Sinotruk HOWO 4x2 10cbm LPG Bobtail Truck for Cooking Gas Cylinder Refilling

Views:1732     Author:Dong Runze Special Vehicle     Publish Time: 2017-05-03      Origin:Dong Runze Special Vehicle

Sinotruk HOWO 4x2 10cbm LPG Bobtail Truck for Cooking Gas Cylinder Refilling

HOWO LPG bobtail truck LPG filling cylinder truck for sale

US $36,888-41,088 / Set

LPG Bobtail Truck     LPG Truck with            Dispenser :(For reference)
Chassis Specification
Item No.Parameters
Overall Dimension8000x2500x3500 mm
Gross Vehicle Weight14100kg
Curb Weight8757kg
Loading Weight4200 Kg
Wheel Base4500 mm
Front/rear Overhang1245/2287mm
Approach/Departure Angle25/14 degree
EngineYuChai 160HP Diesel Engine, Four Stroke,6 Cylinder in line.
Engine horsepower160 HP Euro III
Displacement5.9 L(Diesel)
Max Driving Speed90 km/h
Gear BoxDongfeng Brand, 6 Forward Gear, 1 Backward Gear
CabinLeft Hand Driving, 3 Passengers Allowed
Tire9.00-20(7 pieces)

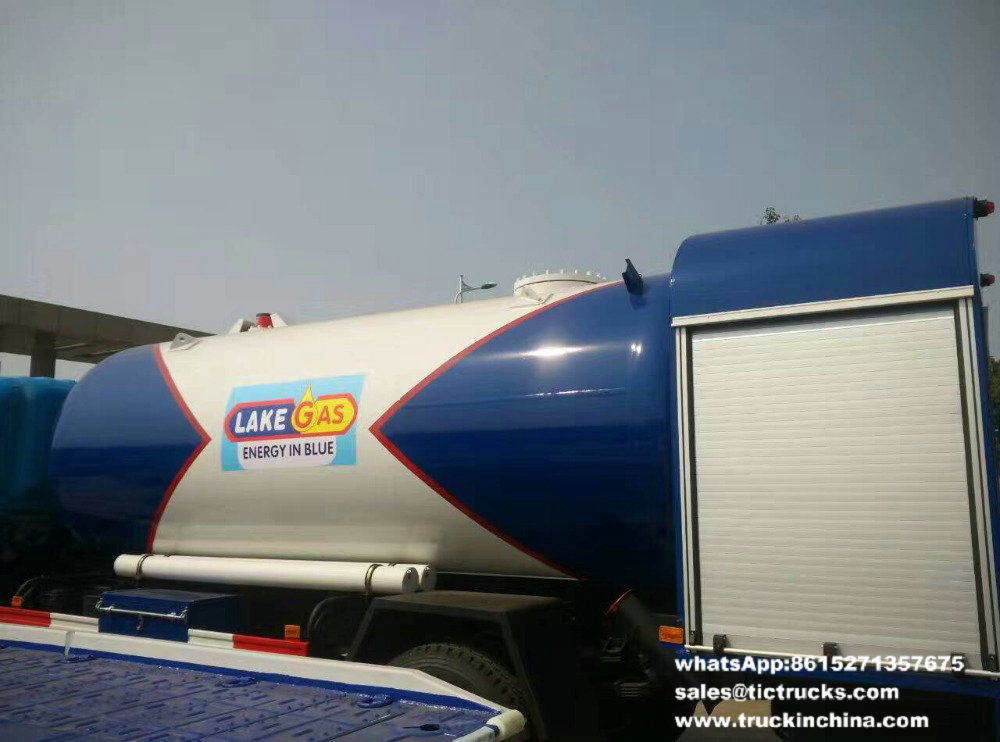

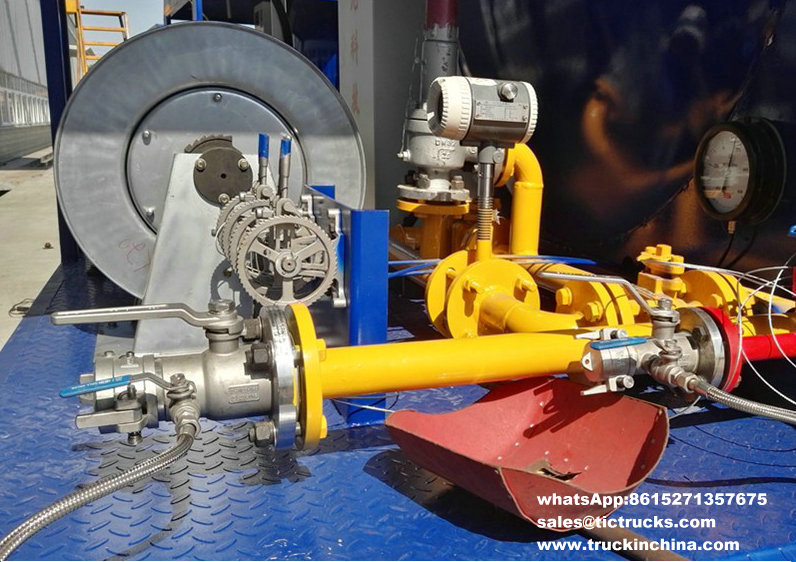

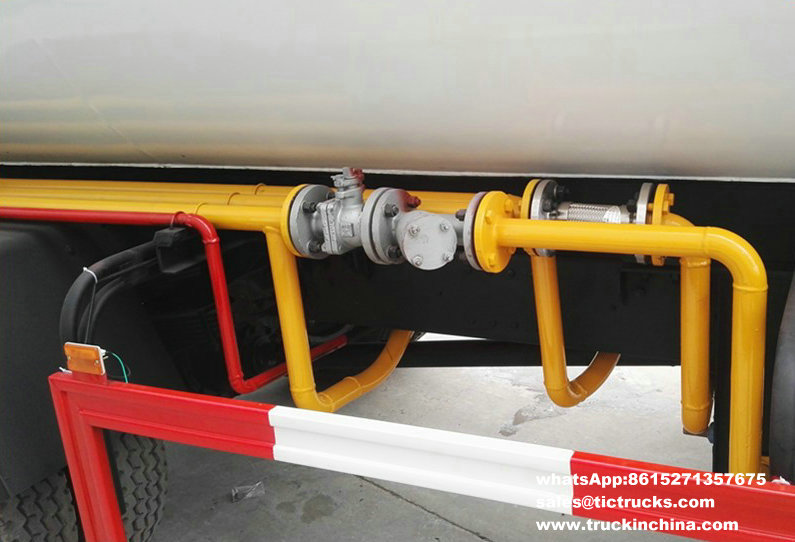

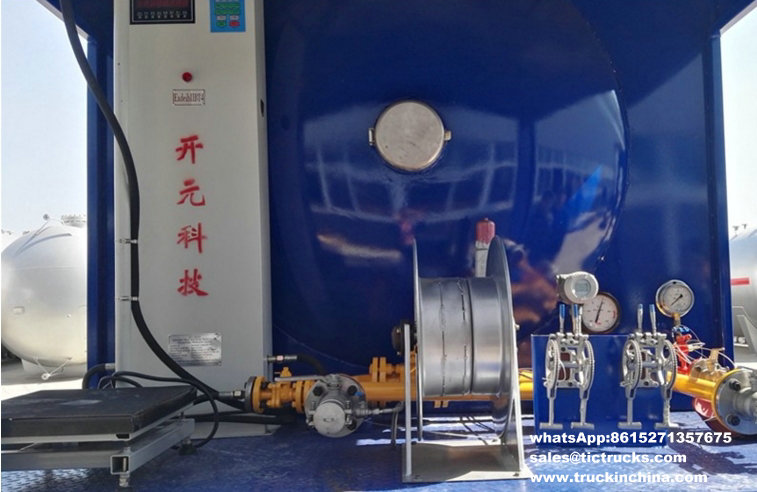

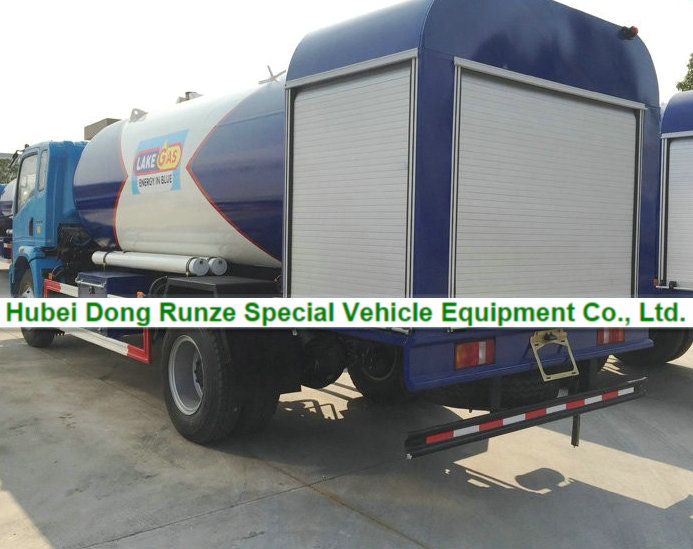

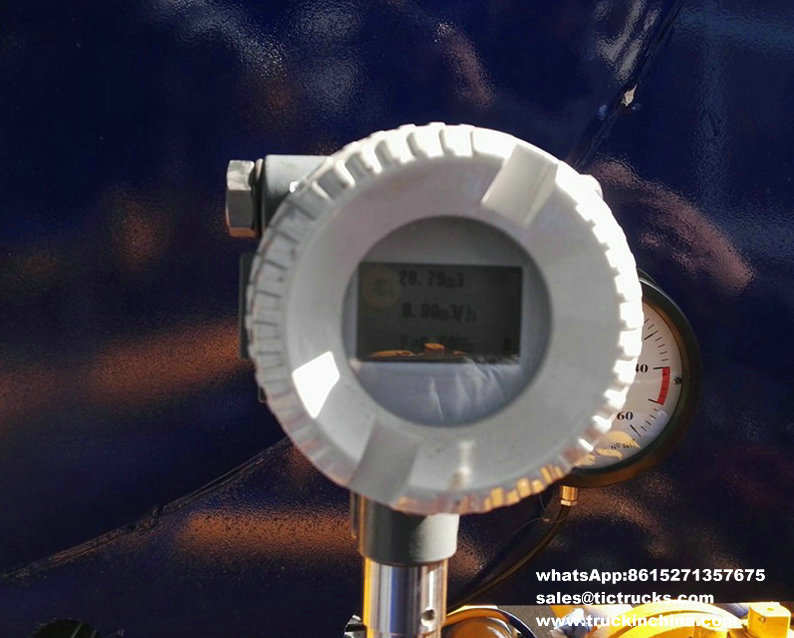

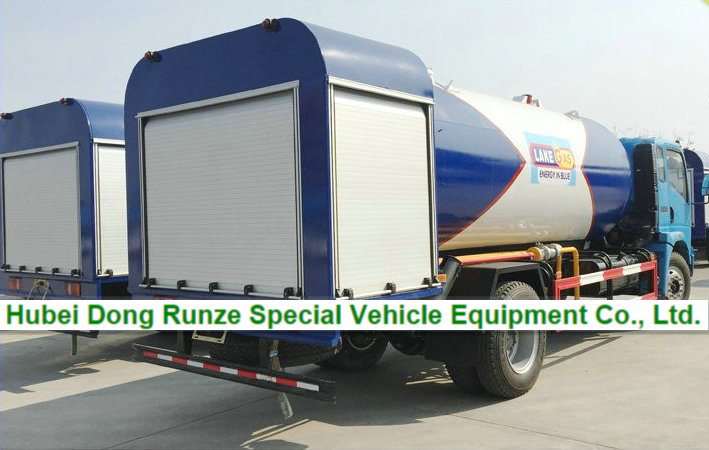

 k LPG bobtail with filling scale_1.jpgLPG bobtail truck -06T-_1.jpgSINO TRUK HOWO 4*2 RHD lpg gas tank truck with digital scale for African client. HOWO-4x2-LPG-tank-truck-small-Ch_1.jpgLPG bobtail truck -08T-_1.jpgLPG bobtail truck -09T-_1.jpgLPG bobtail truck 12000Liters 3.jpgLPG bobtail truck 12000Liters 6.jpg

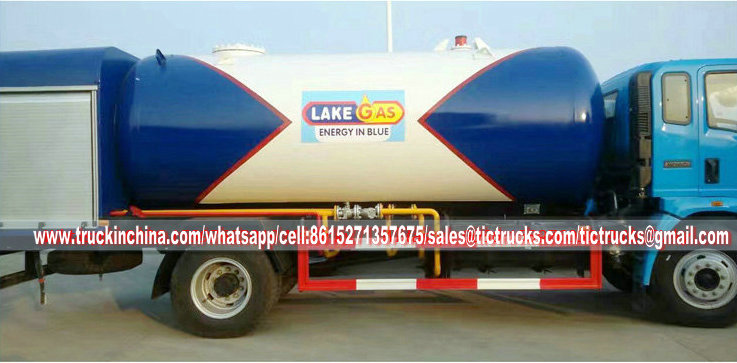

SINO TRUK HOWO Brand 4*2 LHD/RHD 10m3 lpg gas bobtail truck with electronic scale for sale  LPG gas bobtail vehicleLPG bobtail truck -05000L-.jpglpg gas truck with digital scale for sale LPG bobtail truck -12000L-.jpg



Tanker & Filling system Specification
Item No.10 CBM (10,000L)
Tank CapacityLiquefied Petroleum Gas (Propane)
Filling ContentQ345R high tension steel, 8mm Thick Tank Body.
Standard Equipment

Safety Valve, Liquid Level Gauge, Pressure Gauge, Thermometer, Emergency Shut-off Valve, Tool Boxes,AntistaticGroundingTape.   1 Filling Machine,  1 Filling Gun with Black Rubber Tube.

Specification

Designed Pressure: 1.66Mpa

Filling Ratio: 0.42 kg/L

Working Temperature: under 50 centigrade

Corrosion Allowance: 1mm




LPG Mobile Truck Dispenser 5Tons LPG Bobtail Truck for Cooking Gas Cylinder Refilling 12000Liters  for Door to Door LPG Gas Cylinders

Mobile LPG Cylinder Refilling Trucks  with 12000Liters  5Tons LPG Gas Tanker, LPG Filling Machine with Tickert Printer ( including volume, unit price, amount, date), LPG Pump, Level Meter, different valves(including safe valves, Cut-off Valves and the size valves for safe and automatic refilling LPG Gas to LPG Cylinders) for Cooking Gas, temperature meter, pressure meter.

LPG Gas Tanker Truck with 120HP Diesel Engine, 4Cylinders, 7.50R16 Tire, With Aire Condition.

Sinotruk Light LPG Mobile Truck Dispenser, new design. good performance. best price.

1. LPG Mobile Truck Dispenser also can be design for :

1. Cooking Gas LPG Cylinders ( Bottling)

2. Cars taxi

3. Forklifts

3. Dual Fuel Trucks

4. Buses

5. Marine Boats

6. other industrail and commercial Vehicles.

gasoline skid tank with automatic dispensing, For refilling ofcooking gas

mobile domestic lpg gas dispensing truck for sale

2. Photos of  Dongfeng LPG Tanker 10cbm Truck  LPG Bobtail Truck  LPG Truck with Dispenser :(For reference)

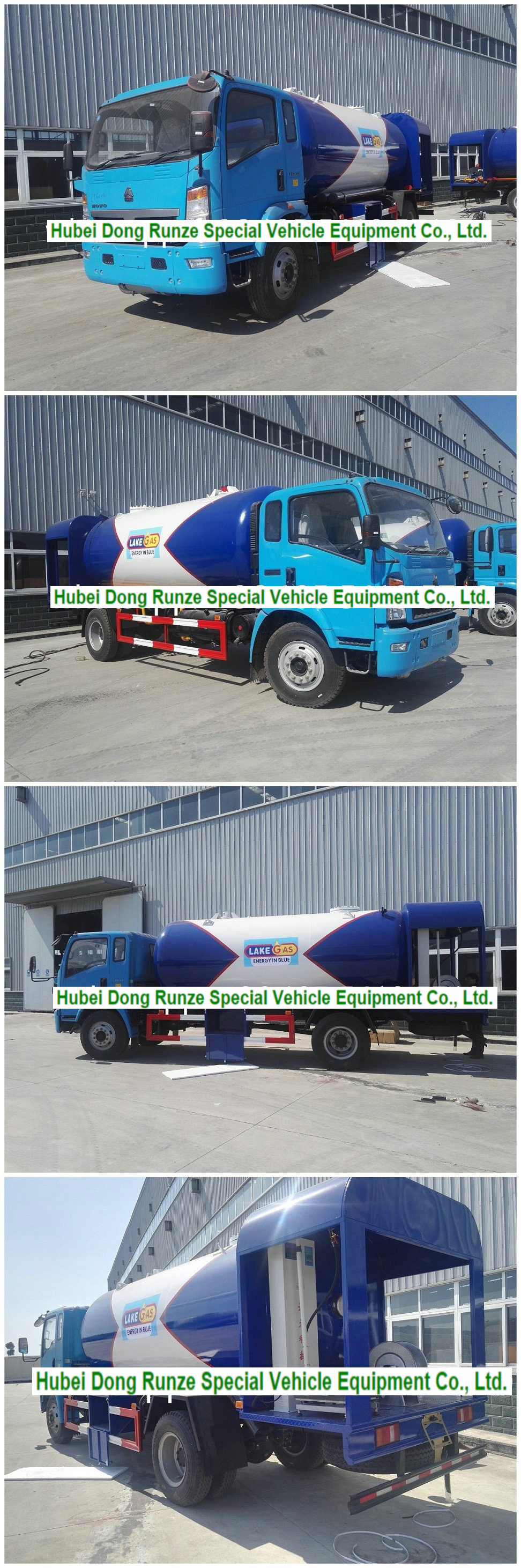

SINO TRUK HOWO 4*2 10m3 160hp diesel LPG gas bobtail vehicle for sale LPG bobtail truck -05T-.jpg

3. the Specification of LPG Mobile Truck Dispenser 5Tons LPG Bobtail Truck for Cooking Gas Cylinder Refilling:

12000Liters (6 tons) LPG bobtail
Item No.Parameters
Overall Dimension8450x2500x3500mm
Drive model4x2, new condition , RHD, or LHD
Gross Vehicle Weight14900kg
Curb Weight8700 kg
Loading Weight6200 Kg
Wheel Base4700 mm
Front/rear Overhang1240/2460 mm
Front/rear Tread1515/1495 mm
Approach/Departure Angle16/13 degree
EngineYuchai Engine, YC4E160-33, Diesel Engine, Four Stroke,

4 Cylinder in line.
Engine horsepower160 HP Euro 3,China Yuchai engine
Displacement4.257 L(Diesel)
Full loading Fuel
Consumption Rate
200G/KW.H
Max Driving Speed90 km/h
Gear BoxDC6J65TC, 6 Forward Gear, 1 Backward Gear
CabinRight Hand Driving, 3 Passengers Allowed
Tire9.00R20, 6 pieces with 1 spare tire.
Tank Capacity12,000 Liters 6 TONS
Filling ContentLiquefied Petroleum Gas (Propane)
Tank MaterialQ345R high tension steel, 8mm Thick Tank Body.
Standard Equipment1 .Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter,  Pressure gauge, Temperature Gauge, 2 Valve Boxes in both sides.Anti-static Grounding Tape.
2. Famous brand Pump, Filling gun and flow-meter
SpecificationDesigned Pressure: 1.66Mpa
Liquid Density: 500-590 kg/m3
Working Temperature: under 50 centi-degree
Corrosion Allowance: 1mm
