For oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
The pictures are for your reference only.

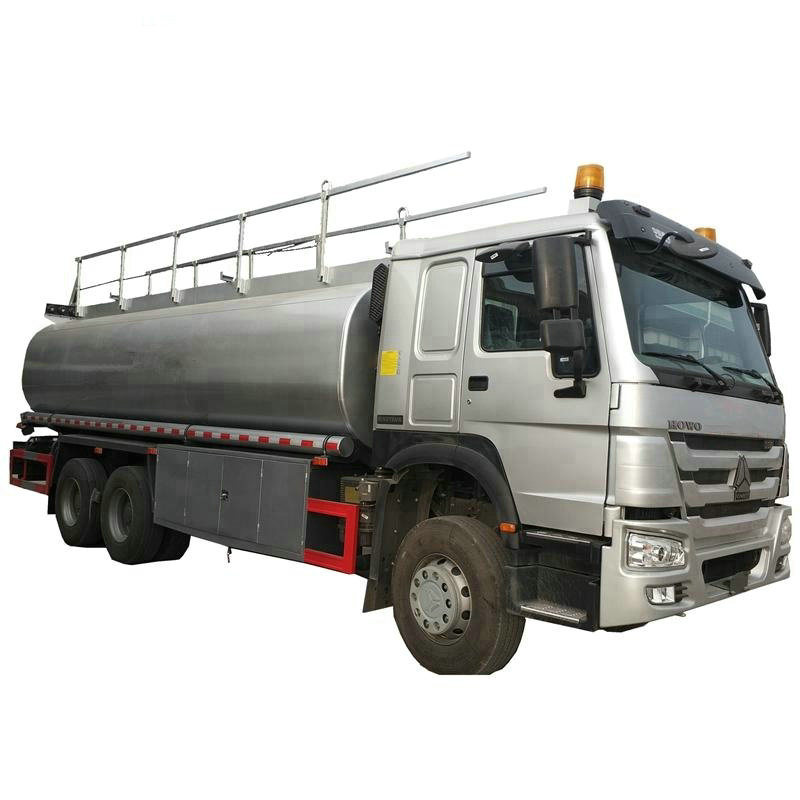

5000 Litres capacity fuel tank truck
HOWO 4x2 5000 Liters Capacity aluminum fuel delivery tanker truck1000 Gallon Fuel oil Tank Truck price
1. Transporting diesel, gasoline, heavy oil, coal tar, vegetable oil etc.
2. Tank body material: superior quality carbon steel meeting international standard.
3. Tank shape: Square round, oval, reasonable and durable structure, low failure rate, reduce the cost of maintenance
4. The tank can be divided into several compartment to transport different oil.
5. Make the tank strength and stable. It is safe for transportation.
6. One year warranty for three key parts (engine ,gear-box, axle)
Technical parameter for fuel tanker truck
Fuel Tanker is one of our main and competitive products. We can provide you product with high quality and at reasonable price according to your requirements. The tank material could be carbon steel, stainless steel, aluminum alloy, etc. Fuel tank can be chosen with oil pump, flow meter, tanker piston, and bobbin disk. Fuel tank can be separated to several compartments to fill different kinds of fuel. Our tankers are seamless welding and has gone through strict anti-leakage inspection. And the interior tank body has gone through anti-corrosion treatment.
|Petroleum Tanker JAC (8,000 Litres)|
|Overall Dimension||7000 * 2200*2550 mm|
|GVW / Kerb Weight||9,995 kg / 8,000 kg|
|Cab||Cab Capacity||3 persons allowed|
|Air Conditioner||Air conditioner is optional|
|Engine Brand||Dongfeng Chaoyang engine|
|Power||130 Ps (96 KW)|
|Emission Standard||Euro III|
|Chassis||Drive Type||4X2, left or right hand drive|
|Transmission||5-speed front, 1 reverse|
|Wheelbase/No. of axle||3815 mm / 2|
|Tyre Number||6 tyres and 1 spare tyre|
|Max Speed||80 km/h|
|Superstructure||Tank Capacity||8,000 Litres (About 2,000 gallons)|
|Tank Material||Carbon steel|
|Pump||Fuel pump equipped for overhead delivery|
|Suction Head||6 m|
|Hose||High quality, wire strengthened hose, with cooper wire, anti-static|
|All standard accessories: manhole, ladder, inlet, discharge.....|
** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)...
** It can be divided into many compartments.
** Imported mechnical pump Blackmer
** Imported electrical pump Fillrite....

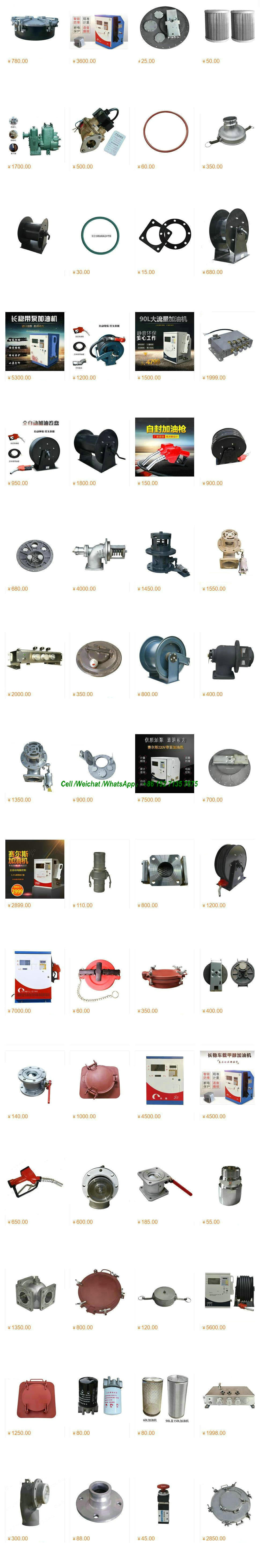

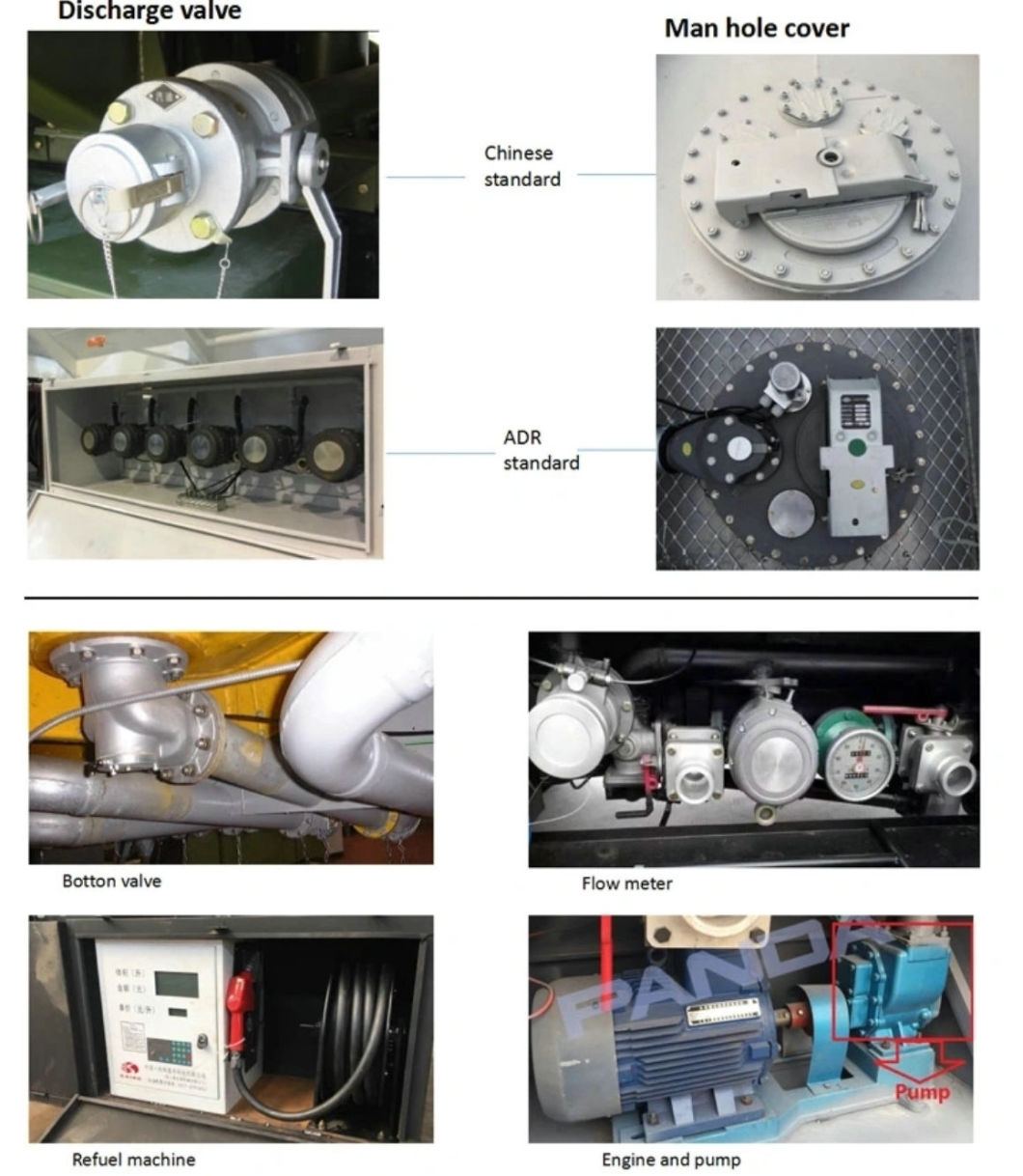

** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge...
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.
Gasoline refueling tanker truck, Petrol refueling tanker truck,mobile refueling truck, 3000~5000 liter, 6 wheel 10000 Liter Fuel Tank Truck 10000L Oil Refueling bowser Truck
Specificaiton of fuel tank truck

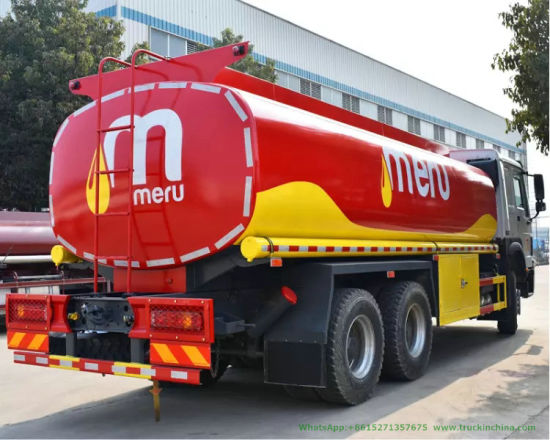

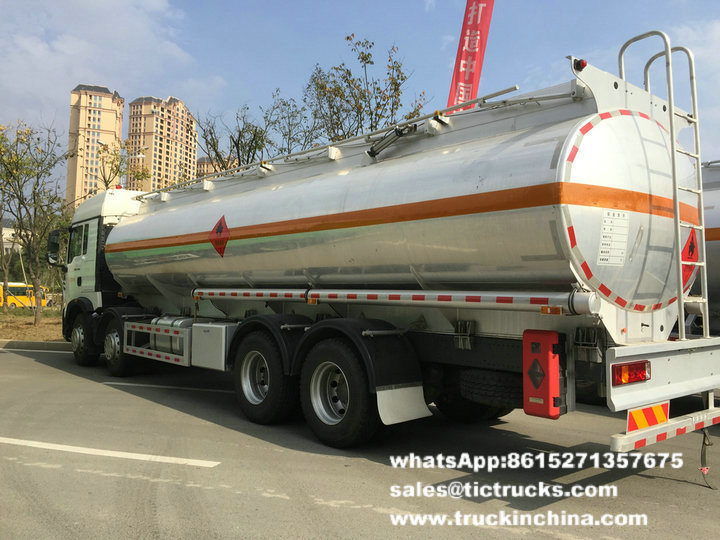

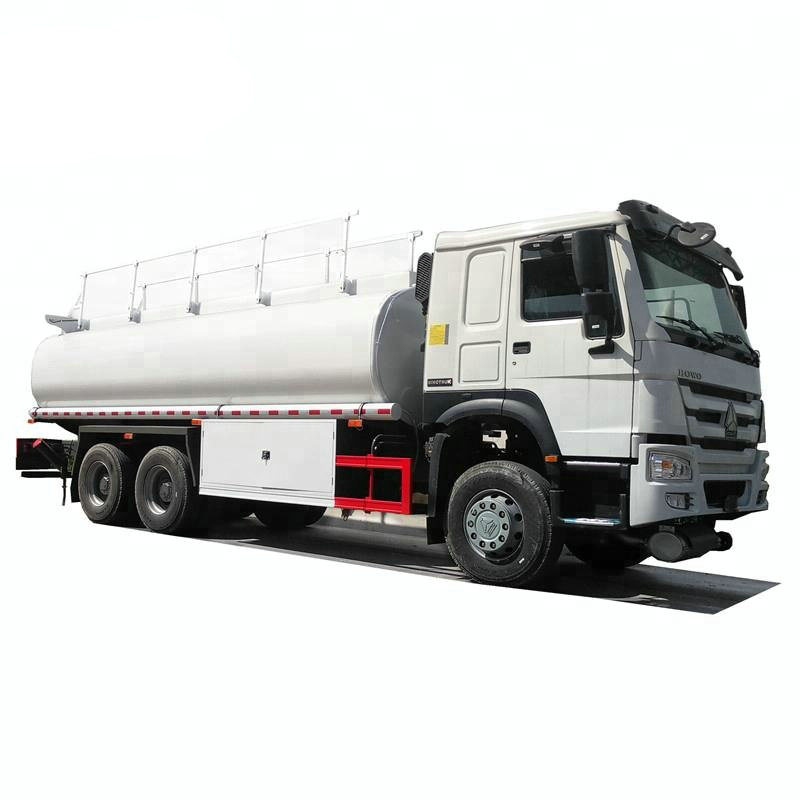

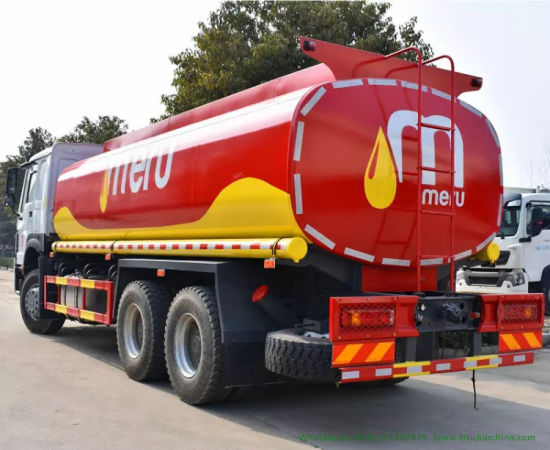

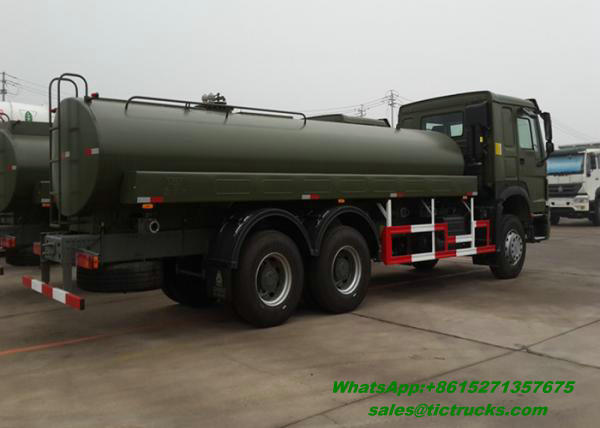

Oil tank truck/Fuel tank truck
Oil tank truck, also known as mobile fuel trucks, fuel tankers, fuel tank truck, oil tankers,oil transport truck and edible oil tankers,
According to different uses and use environments, there are a variety of refueling or oil transportation functions, with oil absorption, oil pumping, and a variety of oil separation and distribution functions. Can separate warehouse, separate different oil products, tank body set up multiple anti-wave partitions. Can be designed as a chemical transportation vehicle.
Transport medium: applicable to the transport of gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.
The tank material adopts high-quality 4-6mm thick carbon steel, stainless steel, aluminum alloy.
For oil tank truck, according to the transport medium, the configuration and different places, there are many different titles, such as: tanker, tank truck, oil tanker, refueling truck, tax-control refueling truck, fuel tanker, Petrol tanker, coal tar carrier, lube oil carrier, crude oil transporter, heavy oil transporter, oil transporter and so on.
According to the appearance, the oil truck can be divided into: flat head tanker, pointed tanker, single bridge tanker, rear double-bridge tanker, double-bridge tanker, double rear-axle tanker, light tanker, small tanker, medium tanker, large tanker, semi-trailer tanker, small three-axle tanker, double former-axle with single rear-axle tanker, four former-axle with four rear-axle tanker, four former-axle with eight rear-axle tanker and so on.
According to brand, the oil truck can be divided into: Dongfeng tanker, Futian tanker, Sino tanker, North Benz tanker, Jianghuai oil tanker, Shaanqi oil tanker, CAMC oil tanker, Isuzu tanker, Qingling tanker, Jiangling tanker and so on.
According to transportation medium: the truck suitable for the transport gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar oil and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.
The material of tank body is made of 4-6mm thick carbon steel with high quality . GB sheet can choose carbon steel and stainless steel or aluminum alloy, pure aluminum can, lined with rubber, rotomolding, plastic, glass steel and so on.
The tank shape: square-round, oval, round;
Pump can be choose self-priming pump, gear pump or double pump; the pump can help the oil pump in and out or self-flow.
Other function: can be designed for chemical transport vehicles;
Special design: can be designed to an independent sub-warehouse to transport different oil with the same time. 15 meters refueling reel (can automatically return to position), the tank is equipped with many anti-wave boards to keep the tank with high strength, stable center of gravity, delivery safety and other characteristics in the transportation.
Optional equipment: All tankers can be designed into chemical trucks, different kinds of heating and insulation series tank; all tankers can be equipped with computer and flow-meter.
