Sino Vacuum tanker Combined water Jetting truck
Tank A:Capacity: 6, 000~16000ltrs of solid/liquid human waste. Tank B: Capacity: 2000~4000litrs of clean water for drinking, cleaning and flushing.
Type | Combined Canal Jetting & Sewage Trucks |
Tank volume | 4,000lt – 20,000lt |
Tank Material | 304 Cr-Ni, ST-52 |
Water Pump | 100 bar – 270 from |
Pump Flow | 150lt/sc – 450lt/sc |
Vacuum Pump | 1,500m3/hour – 8,000m3/hour |
Canal Hose and Reel | 3 / 4 “- 5 / 4″ / 80 m – 120 m hose, hydraulic. |
Logar Cover Lifting Crane | 200kg – 400kg capacity |
Tailgate | Full Hydrolic |
Vacuum pump drive systems | Dec. Transmission / Auxiliary Engine / PTO |
Pressure Regulator | Pneumatic – Mechanical |
Vaccum tanker vacuum sewage suction truck
Tank A:Capacity: 6~16, 000ltrs of solid/liquid human waste. Tank B: Capacity: 2~4000litrs of clean water for drinking, cleaning and flushing.
Sludge & Water Tank |
|
Capacity (L) | 16000 |
Material | Mild steel |
Working Pressure | -0.9 bar (under pressure) |
Vacuum System |
|
Vacuum pump | Liquid ring vacuum pump |
Max vacuum level | 95% |
Suction time (min) | ≤ 4 |
Max suction lift (M) | ≥ 9 |
Max suction distance (M) | ≥ 50 |
Water Jetting system |
|
Pressure pump brand | Plunger (Optional) |
Flow rate (L/min) | 250 |
Max pressure (bar) | 200 |
Working Length (M) | 60-150 |
Chassis Specification | |
Truck Model | ZZ1257N4647D1 |
Engine |
|
Model | D10.34-40 |
Type | Six-cylinder, water-cooled, mechanical injection |
Rated power (Hp) | 340 |
Transmission |
|
Model | FAST 10 |
Type | 9 Forward & 2 Reverse Speed |
Travelling |
|
Drive Model | 6x4 |
Steering Wheel Position | Left hand drive |
Max. Travelling speed | 90 |
Dimension |
|
Overall Size (mm) | 9870 x 2500 x 3890 |
Tyre Size | 11.00-20 |
Wheel Base(mm) | 4600 + 1350 |
Weight |
|
Curb Weight (kg) | 18940 |

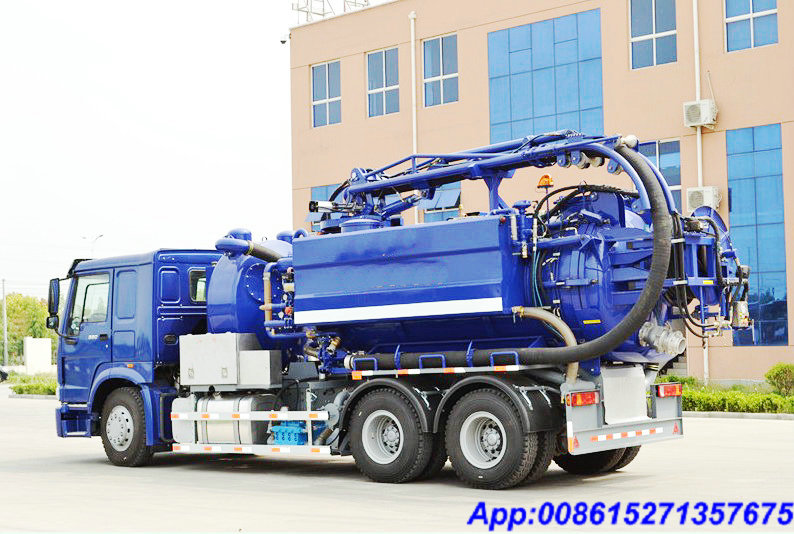

This combination vacuum jetter truck, also known as combination vacuum jetting truck or sewer vacuum truck, is a kind of vehicle specially used to suck, transport, and transfer sludge and sewage in sewer lines, rainwater wells, and sedimentary wells. It can help to reduce the labor intensity of work in sewer as well as to keep poisonous gases away from workers.
This sewer vacuum truck mainly consists of chassis, tank, vacuum system, high pressure system, driving system, water recycling system, hydraulic system, and electrical system. |
with twin vacuum pump for non-potable water, sewage suction and transport
