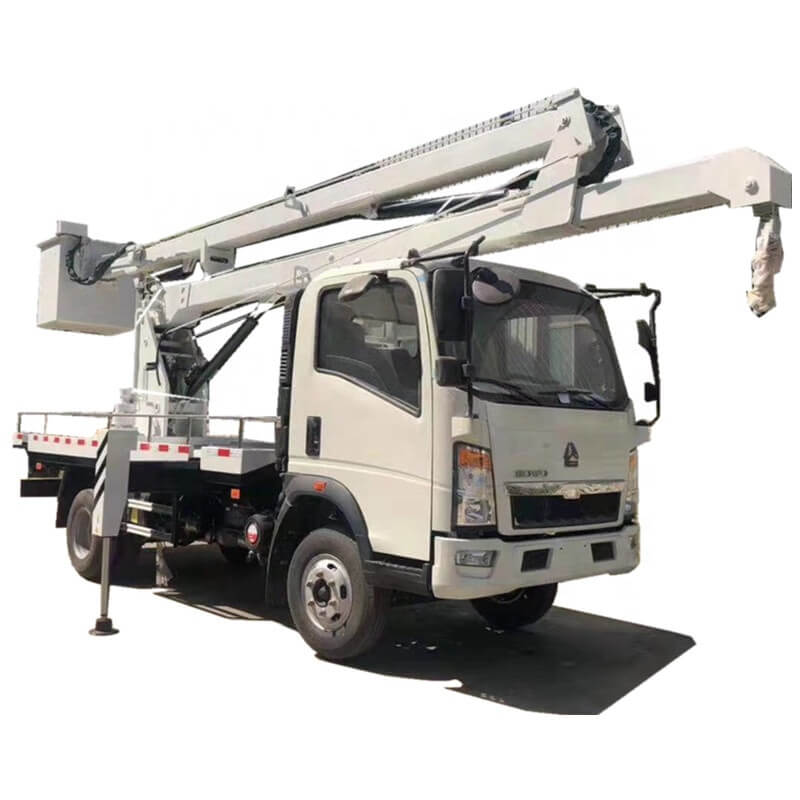

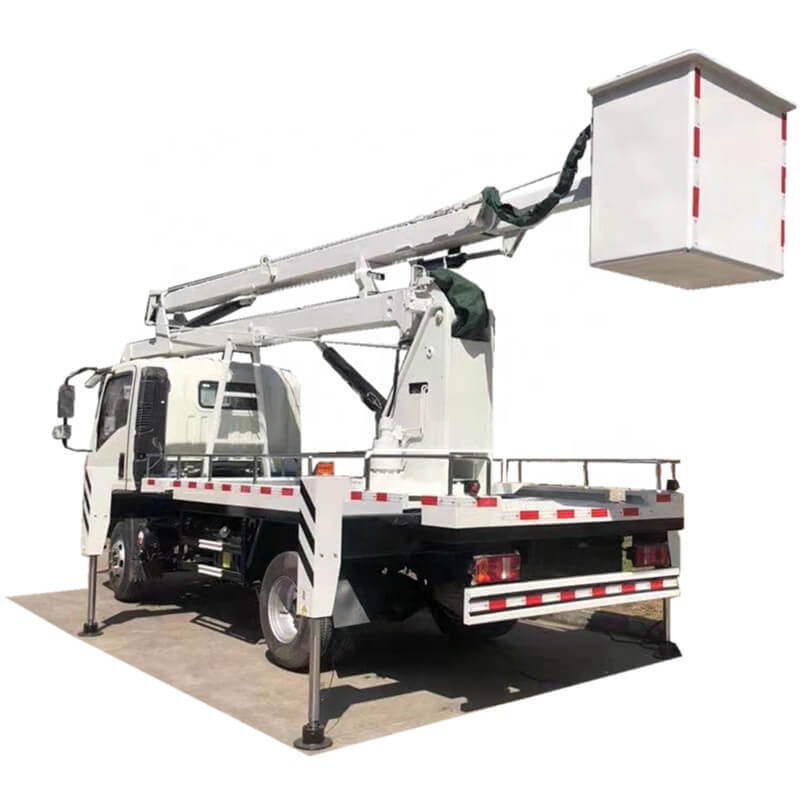

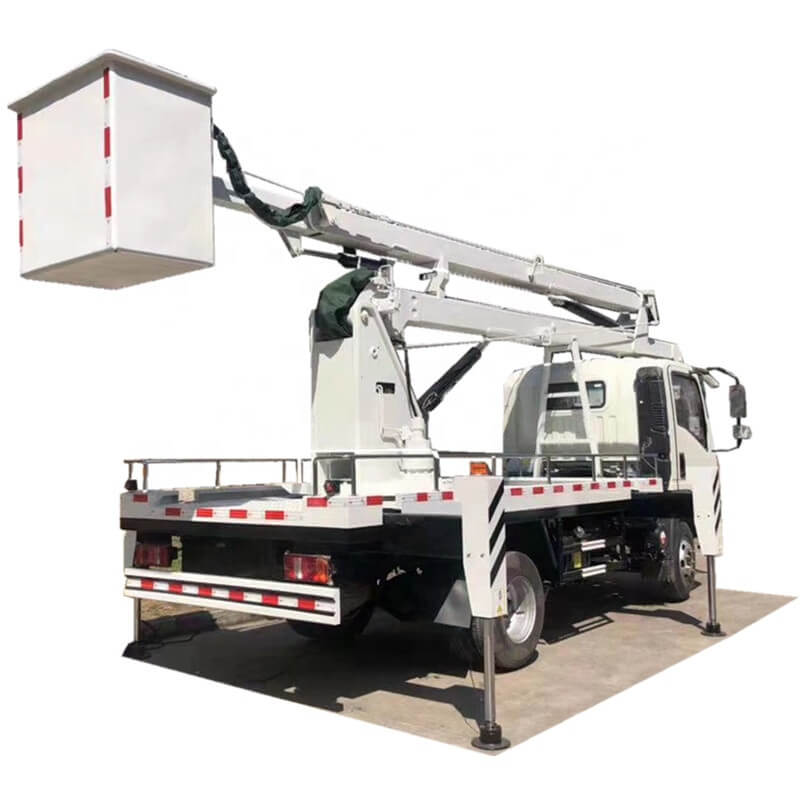

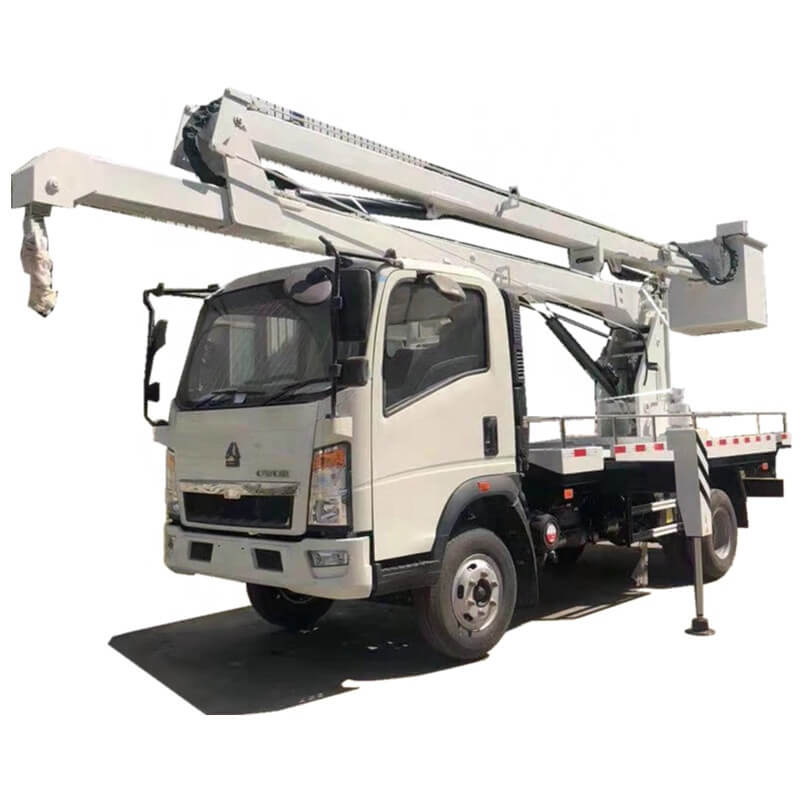

Sino Truck HOWO 12-18m Aerial Platform Truck
Customizing ask for better Price.
boom trucks aerial bucket truck
Model | DRZ5050JGKZZ | Curb weight | 5000 |
Over size | 7400x1980x3100(mm) | Type | 2 axles |
Wheelbase | 3360mm | Power steering | Equipped |
Front axle | 2ton | Rear axle | 4ton |
Gearbox | Manual | Tire | 7.00R-16 |
Engine | 120Hp | Working height | 12-16M |
Max speed | 95km/h | Emission standard | Euro II |
Color | according to you | Hydraulic legs | 4units |
AERIAL PLATFORM TRUCK | ||
# | Descriptions | Specifications and types |
General | Truck Brand | DRZ |
Chassis Brand | Sinotruk howo | |
Approx. Dimension | 7600*1995*3220 mm | |
GVW./Kerb Wt. | 5815 /5490kg | |
Cab | Cab Capacity | 2+3 persons' seat |
Air Conditioner | Air Conditioner is optional | |
Chassis | Drive Type | 4X2,LHD or RHD |
Fuel Type | Diesel | |
Engine Make & Model | Chaochai engine | |
Power | 120hp | |
Displacement | 3856 ml | |
Emission Standard | EURO II or EURO III or Euro IV | |
Wheelbase/No.of axle | 3300 mm / 2 | |
Tyre Specfication | 7.00-16 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 90 km/h | |
Paint | Automative metallic paint | |
Superstructure | Max working height | 10m 12m 14m 16m |
Working cage | 200kg capacity | |
Beam | Hydraulic control | |
Slewing | 360 continuous rotation | |
Equipments | Four hydraulic outriggers are equipped, stable and reliable Dual control system both in the working cage and on the deck. Safety device: relief valve, balance valve, double way hydraulic lock , motor emergency system Insulated aerial platform ,hoist hook with cables optional |
The above information is for reference only. We can produce according to your needs so, If you have

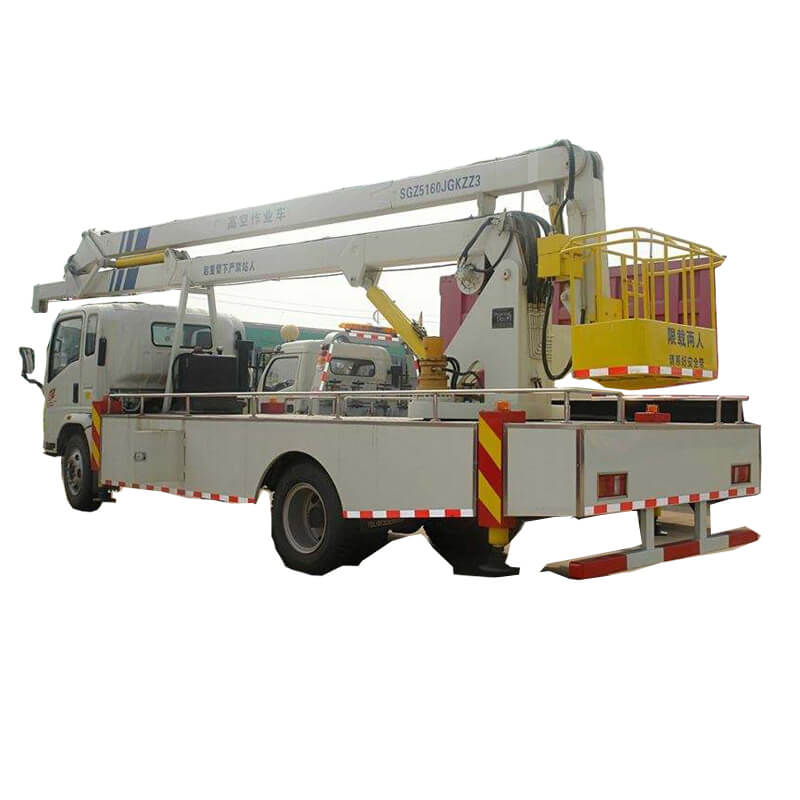

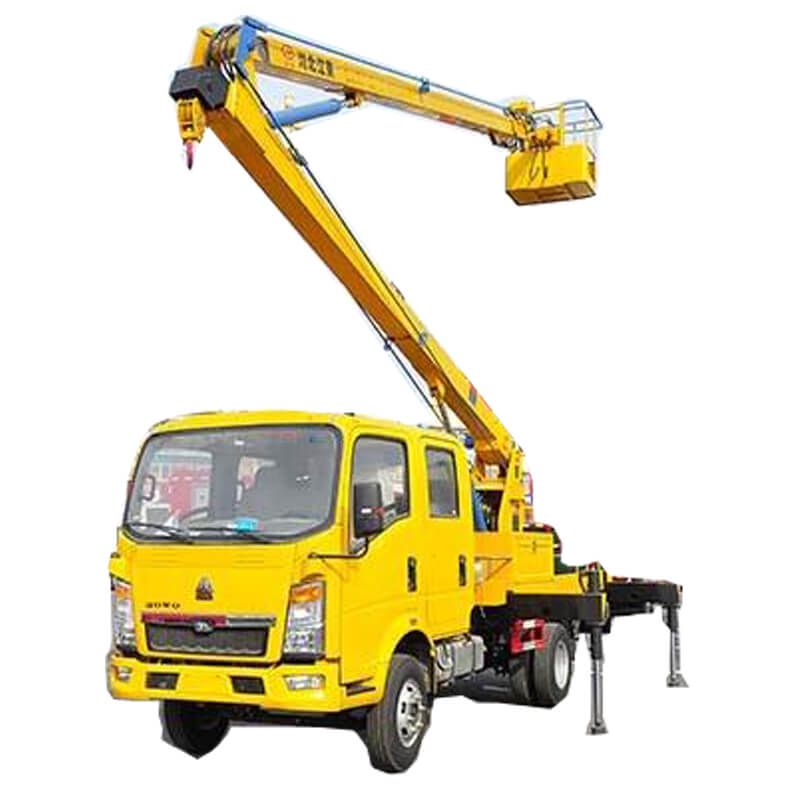

any questions you can contact me at any time.Sinotruk HOWO Aerial Work Platform truck 18 meters Cherry Picker
fully Hydraulically Operate Arial Work Platforms
Max operation height 12m,14m,16m ,18m,22m,16m
max operation radius 5.7m, 6.3m,7m
max working platform rating loading=200kg,
