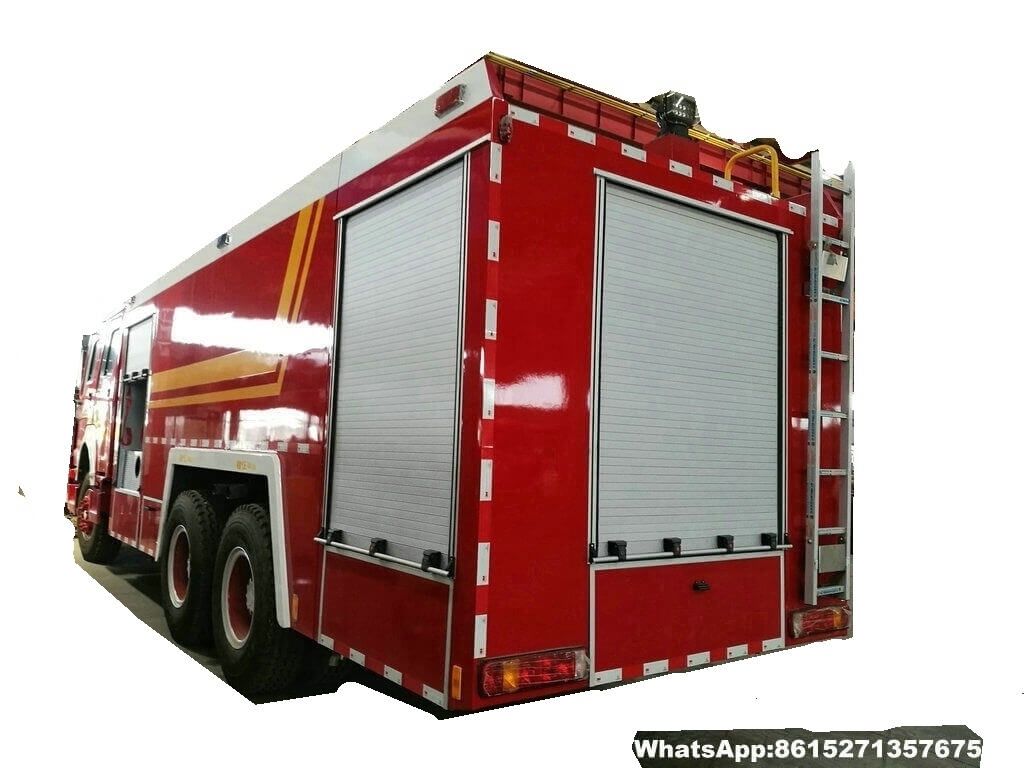

Sino HOWO 6x4 heavy foam fire truck specifications unit price $86800-$94800FOB shanghai port
main parameters: Overall dimensions 10230x2490x3430
Machine total weight 33000 kg
Tank volume: 18000kg(15000 kg/water bubbles 3000 kg)
Overall layout: rear-mounted water pump arrangement
Main features: vehicle working arm is set at the top, the water gun can fire operations when the maximum working height of 7m, equivalent to 7m height high jet fire engine.
Second, chassis
Model: ZZ5347V4647D5
Drive type: 6x4
CAB: four-door cab
Crew: 2+4
Wheelbase: 4600+1350 mm
Driving: steering wheel driving on the left
Engine model: D12.42-40
Displacement:11.596 l
Rated power: 309-kilowatt kW (420 HP)/2000RPM
Maximum torque: 1820NM/1150~1400rpm
Emission standard: States
Engine air intake: double-barrel with cyclone desert air filter
Transmission type: HW19710
Transmission ratio: 10 forward gears and 2 reverse gear
Shift: manual
Clutch: single dry clutch, clutch plate diameter 430 mm, hydraulic power
PTO type: YQ800
PTO parameters: Rotate clockwise (toward the vehicle direction), ratio of 1.16:1 (growth)
The permissible gross vehicle weight: 33 ton
Chassis weight: 9230 Kg
Front axle permissible load: 7500 Kg
Rear axle permissible load: 25500 Kg (and dual-axis)
Front/rear suspension: 1500/2445 mm
Maximum speed: 102 km/h
Minimum turning diameter: 22 m
Minimum ground clearance: 298 mm
Approach angle: 16 degrees
Departure angle: 19
Tires and rims:
Tires: 12.00R20
Rims: 8.5-20
Spare tire: 1, RIM
Tire rack: with the chassis
Steering system:
Steering type: ZF8098
Steering ratio:22.2-26.2
Steering pump maximum pressure (Kpa): 18300
Multifunction steering wheel, height and angle adjustable, manual locking
Brake system:
Rated working pressure (Kpa): 810
Service brake: dual circuit air brake
Parking brake: spring energy storage to snuff out brake
Auxiliary brake: engine exhaust brake
Heating type long-lasting compression air dryer
Chassis frame:
Type: front after wide and narrow ladder frame (1000/850)
Longitudinal beams: Groove 300´90´8mm
Pair of longitudinal beams: slot-280 ´80´4mm
Fuel tanks and fuel supply systems:
200 litre aluminium tank
Left sets the tank, fuel tank cap with lock, refueling mouth filter,
Primary fuel oil filter, heating oil-water separator
Electrical system:
Line type: cathode, power control
Line voltage: 24V DC
Generator power: 2000W
Battery voltage/capacity (V/Ah):2*12/165
Other: triangular warning signs, truck-tool, 16 ton jacks, pressure scales, 25 m air hose, spare bulb set, manual
Third, the cab
External configuration: cab two-row, 2+4 people
CAB four-point suspension, suspension after strengthening
CAB hydraulic flip device.
Steel sunroof, Central locking
Co-pilot front wide-angle mirrors, under the passenger side-view mirror, look to mirror
Internal configuration: the driver's seat can be adjusted, normal co-pilot seat, rear seat side air breathing 6
Driver's side and passenger side manual window, and courtesy light, CD radio, heater/ventilation systems, air conditioning systems, dust filters
Instruments: instrument panel graphic display systems for the international standard metric units
Indoor temperature display
Fuel consumption display
Additional equipment: in addition to the original vehicle equipment, and equipped with PTO control switch and indicator lamp, 100W siren, Police
Head light switch radio power cord pile driving reserved indoor GPS satellite positioning systems, meter
Computer power connector and install location. Reversing warning device, parking sensors, reversing the image,
Navigation system
Four, cars and pump room
Case structure: skeleton with steel welded together, mask by Anodic oxidation of high-strength aluminum alloy plate bonding.
Storage compartment: inside the storage compartment with aluminum tread plate decoration, solid and reliable, and place reasonable equipment, space utilization > 85%.
Equipment features:
v In accordance with the following principles for arrangement
v Design according to fight into the ring and fighting equipment integration;
v According to ergonomic principles and design of storage compartment;
v By using logic and frequently used placing equipment;
v Standing on the ground or pedal 1-2 access to any equipment within the movement.
v According to the equipment characteristics, equipment boxes has a rust-proof, vibration-proof, loss-proof, scratch-resistant special fixture, place general fire-fighting equipment.
v Equipment layout
The door: storage compartment left side and pump around three sides are alloy aluminum rolling doors, lightweight and reliable, low noise; the Ribbon with the durable and reliable LED hand-held lights, all operations and instructions are in the driver's cab equipped with status LEDs and switches.
Bottom: car and pump room floor is made of aluminum skid plates, meet the requirements of rust-proof, wear-resistant, scratch-resistant.
External lighting: trunk and pump features a lighted lamp, meet the lighting needs of fire fighting at night.
Pumps and meters: include pressure gauges, vacuum gauges, tachometer, water tank level gauge, foam tank level gauge, vacuum pump indicator light, foam tank inhalation inhalation, jug, pump water, water gun water comes with instructions. Prominent Chinese operations flowchart and permanent identification, signage, etc.
Lift the pedal: the skeleton for the steel outer Mongolia plate is anodized aluminum panels, step panels for non-slip aluminum diamond plate, in line with the demand of durable, non-slip.
Five, the appearance
Exterior colour: fire red
Car paint: car imported fire red spray paint on the surface, in order to ensure work safety at night, the body has met the safety standard of fluorescent reflective tape.
Vehicle ID: spraying according to user requirements.
Six liquid tank
Capacity: 18000kg(15000 kg of water, foam 3000 kg)
Material: high quality stainless steel welded together, stable performance, durability, service life with the chassis.
Structure: internal vertical and horizontal swinging shield plate.
Equipment: 2 450mm population hole with quick locking and opening device.
1 overflow valve.
2 liquid level indicator.
2 outlet.
4 DN80 injection, pipe female connector (KYK80) about the two.
1 breath valves
Seven, fire pumps and piping systems
v Fire-fighting pumps:
Maximum working pressure: 1.273MPa
The maximum allowable inlet pressure: 0.4MPa
Installation: rear-mounted
Water type: electric pump water
Diversion: ≤50s
Maximum vacuum: ≥85kPa
Maximum suction depth: 7m
Speed ratio: 1:1.555 (
Condition 1: the 80L/s @≥1.0MPa 2124±50rpm
Condition 2: the 56L/s @≥1.3MPa 2480±50rpm
Condition 3: the 40L/s @≥1.0MPa 2000±50rpm
v Piping systems
Suction pipe: pump with water after about 2 DN150 suction inlet is available from natural water sources by any one
Water absorption water absorption.
Water outlet pipeline:
² For ease of operation, pump station each outlet 2 DN80;
² Roof has a 7-meter-high boom, boom and water cannons by remote control, manual operation;
² There is a water pipe, through the water pump directly to the tank water.
² Two DN80 piping on either side of the car, directly to the tank water.
v Foam Proportioning system
Model: PH64
Type: pump
Mixing ratio: 0.16~6.4%
Outside the bubble: equipped with 1 external suction interface and implemented a DN50 3M straw.
System cleaning: fire-fighting when the job is complete, close the jar a bubble valve, open the purge valve, cleaning the foam pipe.
v Fire monitor
Model: PLKD64 type electric RC foam dual-use fire water gun
Flow rate: 64 L/s
Range: water ≥65mfoam ≥55m
Pressing force: 1.0MPa
Pitch angle: -30°-70°
Horizontal angle: 360°
Control mode: wireless remote control with remote control and manual control devices, manual control can be used in case of emergency.
BA, electrical systems
v Roof installed before long rows of lights (on cab front top).
v Vehicles on both sides of the top fitted with lights, installing security lights below.
v Alarm power was 100W; sirens, police lights, lighting circuit for stand-alone attached circuit controller installed inside the cab.
v Control Panel shows all switches, speed, pressure, liquid level indicators.
v Cab reserve radio wiring trailer.
v Wiring trailer cab reserve GPS satellite positioning system.
v Water is provided with high brightness HID (Xenon lamp) Searchlight, with high brightness, irradiation distance, smoke penetration characteristics, can fully meet the needs of night operation.
JIU, the General technical requirements
1, all operation of the valve switches, gauges, buttons, equipment and vehicles that complies with the standard Chinese nameplates signs and instructions;
2, the vehicle performance in line with the GB7956 of the fire performance requirements and test provisions of the method;
3, quality tank GA39. 5-92 provisions;
4, the vehicle looks nice, smooth GA39.5-92 provisions;
5, all joints secure and reliable to ensure sufficient strength;
6, all solid welding, postweld grinding and finishing.
Ten, with car files
1, vehicle operation manual (Chinese)
2, chassis manual (Chinese)
3, vehicle operation and maintenance manual (Chinese)
4, chassis operation and maintenance manual (Chinese)
5, the chassis quality warranty card
6, certificate
7, engine number rubbing parts
8, chassis number rubbing
9, truck equipment listing
10, vehicle certificate
11, vehicle tracking service card
12, vehicle transfer list
13, 3C certification
Sino HOWO 6x4 heavy duty foam fire truck equipment list
Serial number | The name | Specifications | The number of | Notes |
1 | Different-diameter | 125/150 | 1 | |
2 | Different-diameter | 65/80 | 2 | |
3 | Ground wrench rack | 1 | ||
4 | Waist hanging fixture | 1 | ||
5 | Shovel racks | 1 | ||
6 | Hammer frame | 1 | ||
7 | Spring clamp | Φ40 | 1 | |
8 | Spring clamp | Φ28 | 1 | |
9 | Spring clamp | Φ17 | 2 | |
10 | Spring clamp | Φ19 | 4 | |
11 | Gun | 65 | 8 | |
12 | Gun | 80 | 2 | |
13 | Water separator | 1 | ||
14 | Ground wrench | 1 | ||
15 | Underground wrench | 1 | ||
16 | Crow | 1 | ||
17 | Hook wrench (a) | 180-200 | 2 | |
18 | Suction pipe wrench | Card I | 2 | |
19 | Fire lumbar axe | 1 | ||
20 | Adapter | KJ65/80 | 2 | |
21 | Adapter | 80/80 male | 2 | |
22 | Adapter | Male/65 female 80 | 2 | |
23 | Water | 20-65-20 | 6 | |
24 | Water | 20-80-20 | 6 | |
25 | Water retaining bridge | 1 | ||
26 | Hose strap | 2 | ||
27 | Hose wrap | 4 | ||
28 | Pressure switch in a water pistol | 2 | ||
29 | Pressed flower water | 2 | ||
30 | Bubble water gun | 2 | ||
31 | Card three water separator | 80/65 | 1 | |
32 | Water filters (button) | 150 | 1 | |
33 | Foam gun | 2 | ||
34 | Shut-off nozzle bracket | 2 | ||
35 | Flower water gun bracket | 2 | ||
36 | Suction pumps for fire protection | 150*2 m | 4 | |
37 | Foam suction tube | Button interface 50 | 1 | |
38 | Fire shovels | 1 | ||
39 | Fire picks | 1 |
