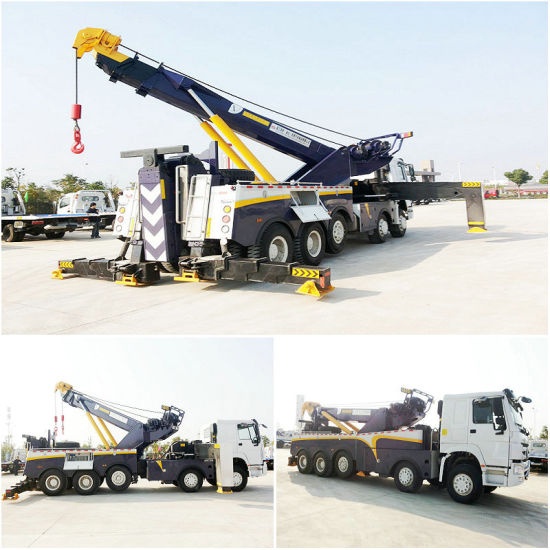

Sino HOWO 5 Axle 60ton Heavy Duty Rotator Road Wrecker Zz5507n31b7d1

Quantity:
  • 10000
  • Nil
  • T/T, Western Union
  • ZZ5507N31B7D1
  • HOWO
  • New
  • 12.00-20,12.00r20,12.00r24
  • Hf9/ Hc16
  • Hw79/ Hw76
  • Weichai / 340~420HP
  • Zf8098
  • 50000-60000
  • 55000
  • 12500/12300
  • 360°
  • 25000-26000
  • HOWO
  • military standard.
  • China
  • 8705909090
  • ISO9000, CCC
  • Euro 4
  • Manual
  • 50T
  • Diesel
  • Heavy Duty
SINO HOWO 5 axle heavy duty wrecker truck
SINO HOWO 10x4 Heavy wrecker truck 16 wheeels Recovery truck
Left hand drive / right hand drive
Sino ZZ 60Ton heavy duty rotator road wrecker



Recovery Trucks Wrecker
Customization, Cost Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7635


TIC
SINO HOWO 5 axle heavy wrecker truck
Cab
Single row,Left/right hand drive with AC
Chassis
Brand
Sinotruck
Chassis model
ZZ5507N31B7D1
Drive type
10x4
Tire Spec.
12.00-20,12.00R20
Tire Numbers
16
Braking System
Air braking
Clutch
Uniwafer, dry clutch, hydraulic remote control
Transmission
Manual
Engine
Model
D10.38-40 D12.38-40 D12.42-40
Horse Power(hp)
380 / 420
Displacement(cc)/ Power(kw)
9726/276;11.596L/279;11.596L/309
Emission
EuroIII/EuroIV
Main Parameters
Overall dimension (L*W*H/mm)
11950X2500X3690
Wheelbase(mm)
1950+3075+1375+1350
Axles No.
5
GVW(kg)
50000
Curb Weight(kg)
33000
Leaf spring No.
11/11/-/12
Approaching/Departure Angle(°)
16/13
Front/Rear track(mm)
2022/1830
Front/Rear suspension(mm)
1500/1900
Max speed(km/h)
80
Front/Rear Axle Load(kg)
8000/8000/8000/26000
Modified Description
1. Equipped with LED project alarm lamp, two sides with combined operation device and one hand washing device;
2. Monolithic carriages, the front bumper with a counterweight, 3 back indicator light,;
3. With winch, fork lift, fork lift base, chain hook.
Application
This truck is mainly used for road fault vehicle, urban peccancy vehicles and rescue, etc.
Boom
:Rating Towing Mass Kg
50000-60000
30°(kg)
Fully back lifting capacity at 30 ° angle
:55000
30°(kg)
Fully extended boom lifting capacity at 30 ° angle
:12000
:Extension Stroke mm
6000
:Max. Lifting Height mm
12500/12300
:Max. Inclination Angle
60°
:Rotating Angle
360°
:Range of Inclination Angle
0~60°
Under lift
:Original Lifting Mass Kg
25000-26000
:Rating Lifting Mass Kg
12000-12500
:
Rating Lifting Mass Fully Extended Kg
7800 /9500/10000
:Max. Effective Length mm
3390/3760
:Extension Stroke mm
1850
:Range of Inclination Angle
-9°~93°
Folding Angle
102°
Outriggers
:Longitudinal Span between Front Outrigger and Rear Outrigger (mm)
7765/7370
:Transverse Span of Front Outriggers (mm)
6300/6940
:Transverse Span of Rear Outriggers
4320/4840
:Rating Towing Mass Kg
55000
:Rating Pulling Power of Winch KN
2×250
:Length of Cable Wire m
50
All cab with air conditioning USD FOB CHINA SHANGHAI PORT price list for refer only.

T
Chassis
cab
Engine
Front axle
Gear box
Rear axles
tire
Wheel base
Drive
USD Price
16T
ZZ1317N4667D1H
HW76
D10.34-40
HF9
HW19710
HC16
12.00R2011.00R20
1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400
8×4
$91600
D10.38-40
$92600
D12.34-40
$93600
25T
D12.38-40
$96800
HW79
D10.34-40
$95500
D10.38-40
$96000
32T
D12.34-40
$123900
D12.38-40
$125500
16T
ZZ1257M5847D1
HW76
D10.31-40
HF9
HW15710
HC16
12.00R20
5825+1350,5800+1400
6×4
$87100
HW79
$87800
40-
60T
ZZ5507N31B7D1
HW76
D10.38-40
HF9
HW19710
HC16
12.00R20
1950+3075+1375+1350,1950+4575+1375+1350
10×4
$138400
D12.38-40
$139900
D12.42-40
$140500
25T
ZZ1317N4667D1H
HW76
D10.34-40
HF9
HW19710
HC16
12.00R2011.00R20
1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400
8×4
$94800
D10.38-40
$95300
D12.34-40
$96800
32T
D12.38-40
$122600
HW79
D10.34-40
$122600
D10.38-40
$123100
40T
D12.34-40
$1366300
D12.38-40
$1386300
16T
ZZ1257N5847D1
HW76
D10.34-40
HF9
HW19710
HC16
12.00R2011.00R20
5825+1350,5800+1400
6×4
$83800
D10.38-40
$85000
D12.34-40
$88000
D12.38-40
$90000
HW79
D10.34-40
$84000
D10.38-40
$87300
D12.34-40
$88800
D12.38-40
$90800
32T
ZZ1317N4667D1H
HW76
D10.34-40
HF9
HW19710
HC16
12.00R2011.00R20
1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400
8×4
$121900
D10.38-40
$122400
D12.34-40
$139600
D12.38-40
$141600
HW79
D10.34-40
$122600
D10.38-40
$123100
D12.34-40
$124600
D12.38-40




Road wrecker Cumstomizing body building code infromation.
8T12D2 two 8T 80 kn hydraulic winch 40M Steel Wire Rope

this the 8T not too big. optional 20T/32T/40t
20T20D2 ; 30DZ3+16T+40ZT1; 40DZ3+25T+40ZT1
