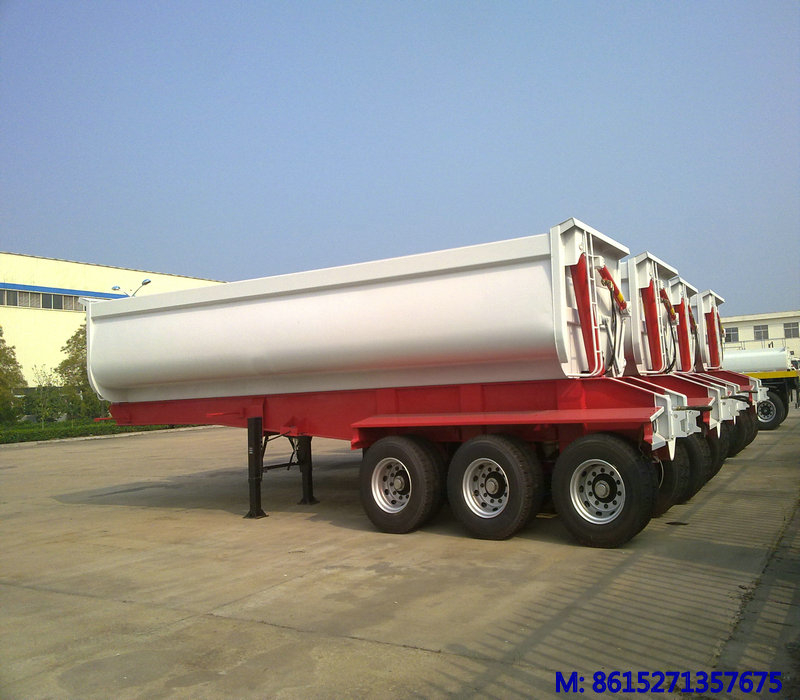

Side Tipper trailer 3 axles
| DIMENSIONS | ||
| Tare Weight | Approx.8500kgs | |
| Payload | 30000kgs | |
| Overall Length | 10000mm | |
| Overall Width | 2480mm | |
| Overall Height | 2840mm | |
| DUMPER BODY | ||
| Volume | Appox 24 m3 | |
| Bin and door | 5mm thickness by hardox 450 | |
| SPECIFICATION | ||
| Chassis | Heavy duty and extra durability designed Fabricated I-Beam - 345 MPa welded by automatic Submerged-Arc processes. Top Flange 16mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. | |
| Axle | 3 axles | |
| K-Hitch brand ADR approved 11.5 T | ||
| Cylinder | two set of hydraulic tip cylinder Ø 150mm , door cylinder Ø 80mm Single Stage, Double Acting, Externally Mounted to each end | |
| Hydraulic system | One (1) Air-Operated Directional Control Valve with manual over ride. Two (2) 1" Hydraulic hoses fitted to front of subframe with 1" BSP compatible couplings | |
| Suspension | K-Hitch brand mechanical with 8-piece leaf spring. Air bag is optional | |
| King Pin | JOST brand 2’’ or 3.5'' Two bosses with 90mm Kingpin to suit Tandem or Tri Axle Dolly | |
| Landing Gear | Jost brand Two Speed, Manually operated, with Rubber Flap Guard to front | |
| Wheel Rim | 8.25R22.5 10 stud steel rim 13 pieces PCD 285.75; alloy rim is optional | |
| Tyre | Korea Hankook brand 11R22.5 tubeless tire , 13 pieces | |
| Spare Tire Rack | Underslung accommodates 2 spares , Dual Swinging type | |
| Braking System | 3 sets of T30/30 Spring brake chamber; 40L air tanks with two outlets to suit OZ standard, air control valve and air tube is not included | |
| Mud guard | Spring Tension Rubber over Tri Group | |
| Finish | Sandblasted to grade 2.5; 2k Primer and Painted in 2-Pack to required color | |
| Light & wire | Orion brand ADR LED Combination Rear Lights, and LED Side lights. with ADR standard wire and 7-pin socket | |
| Others | Road train Spec. | |
