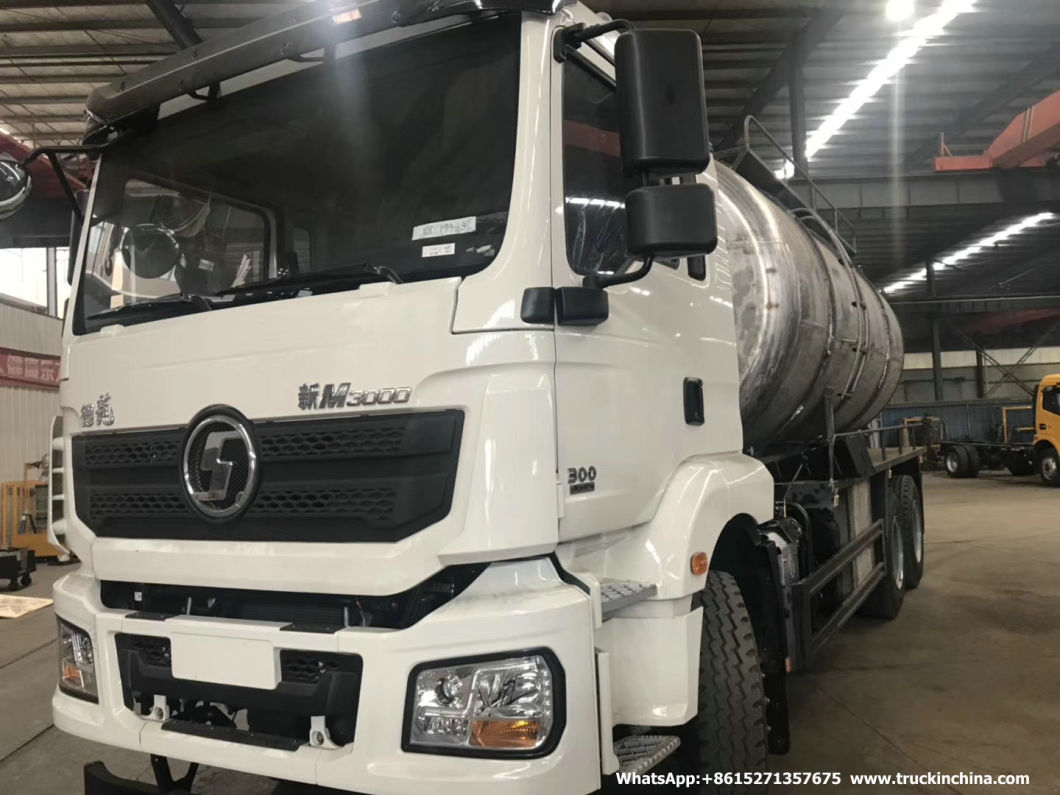

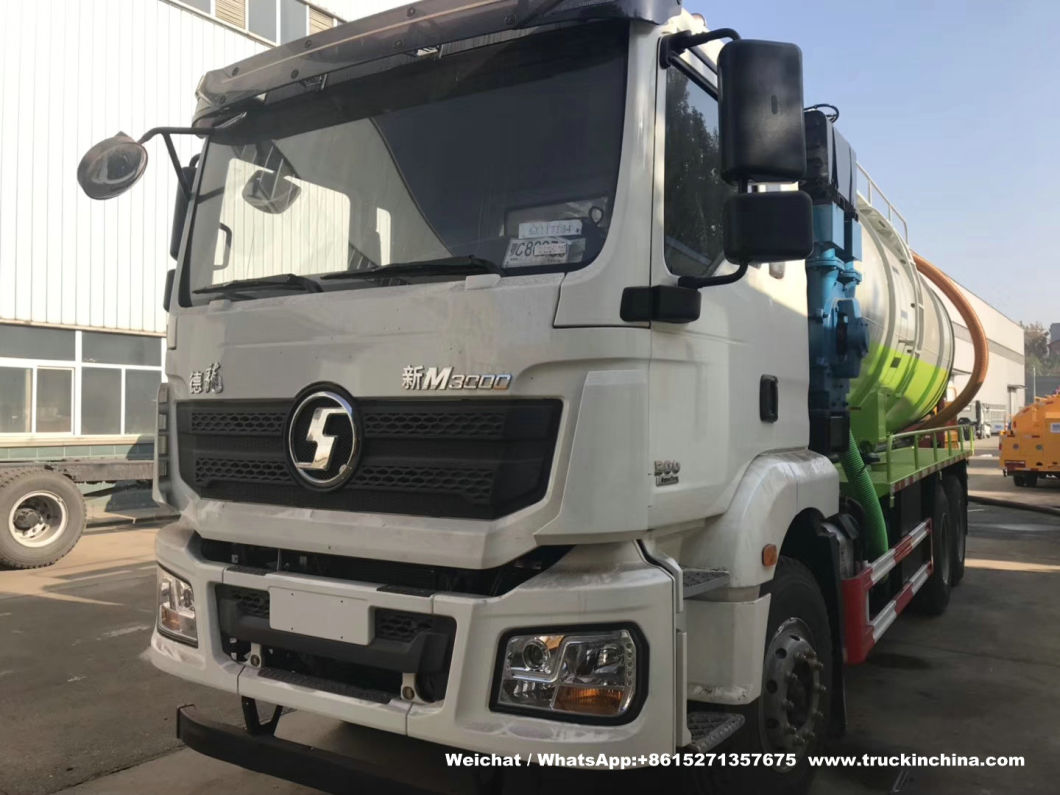

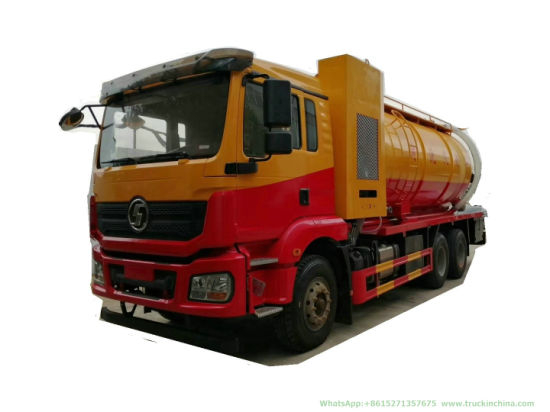

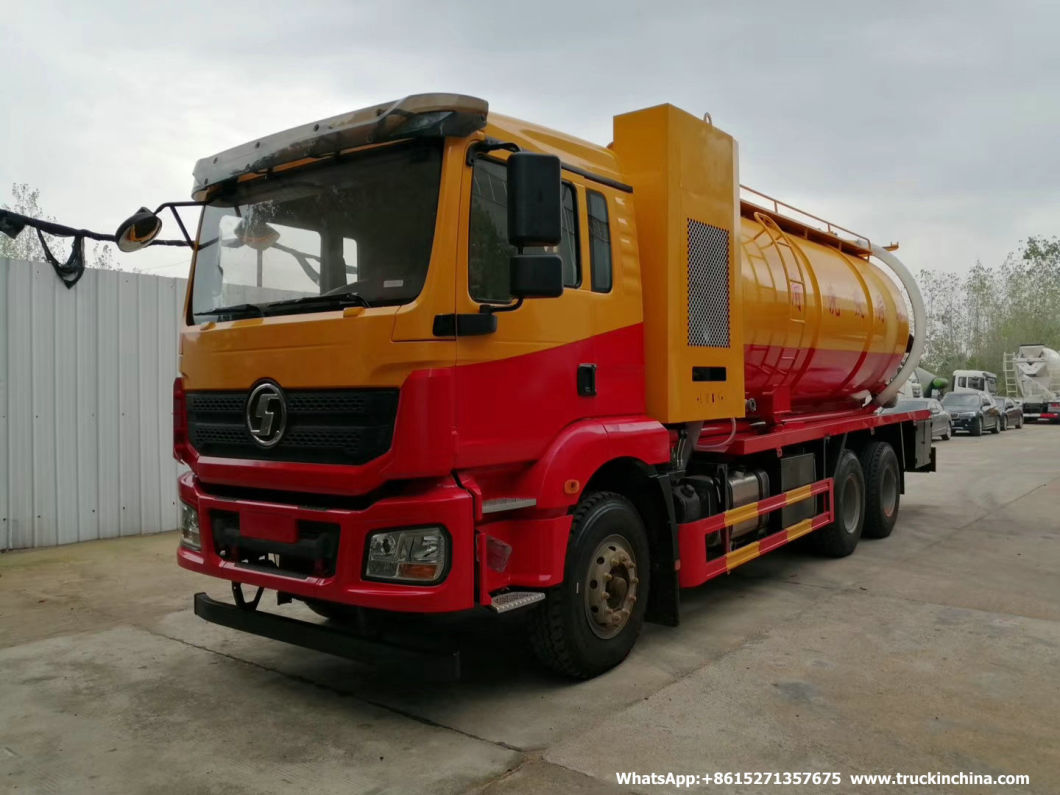

Shacman vacuum Jetting Tanker (Vacuum Tank Combined Tank Stainless Steel)

Shacman vacuum Jetting Tanker (Vacuum Tank Combined Tank Stainless Steel)

Quantity:
  • DRZ5250
  • SHACMAN
  • 8705
  • Shanghai, China
  • 800
  • T/T

25Ton-30Ton SHACMAN VACCUM JETTING TANKER ( Vacuum Tank Combined Tank )Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck )
High Pressure Combined Vacuum Sewage Sewer Water Jetting Truck

30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck 18m3 Wast Sludge 10m3 Clean Water Tank )
Cesspit Emptier  Vacuum Tanker Truck
Shacman vacuum Jetting Tanker (Vacuum Tank Combined Tank Stainless Steel)
Shacman vacuum Jetting Tanker (Vacuum Tank Combined Tank Stainless Steel)
Shacman vacuum Jetting Tanker (Vacuum Tank Combined Tank Stainless Steel)

For Cesspool Emptier

Shacman vacuum Jetting Tanker (Vacuum Tank Combined Tank Stainless Steel)
Shacman vacuum Jetting Tanker (Vacuum Tank Combined Tank Stainless Steel)
Shacman vacuum Jetting Tanker (Vacuum Tank Combined Tank Stainless Steel)
Shacman vacuum Jetting Tanker (Vacuum Tank Combined Tank Stainless Steel)
Shacman vacuum Jetting Tanker (Vacuum Tank Combined Tank Stainless Steel)

carbon - stainless steel






Shacman vacuum Jetting Tanker (Vacuum Tank Combined Tank Stainless Steel)

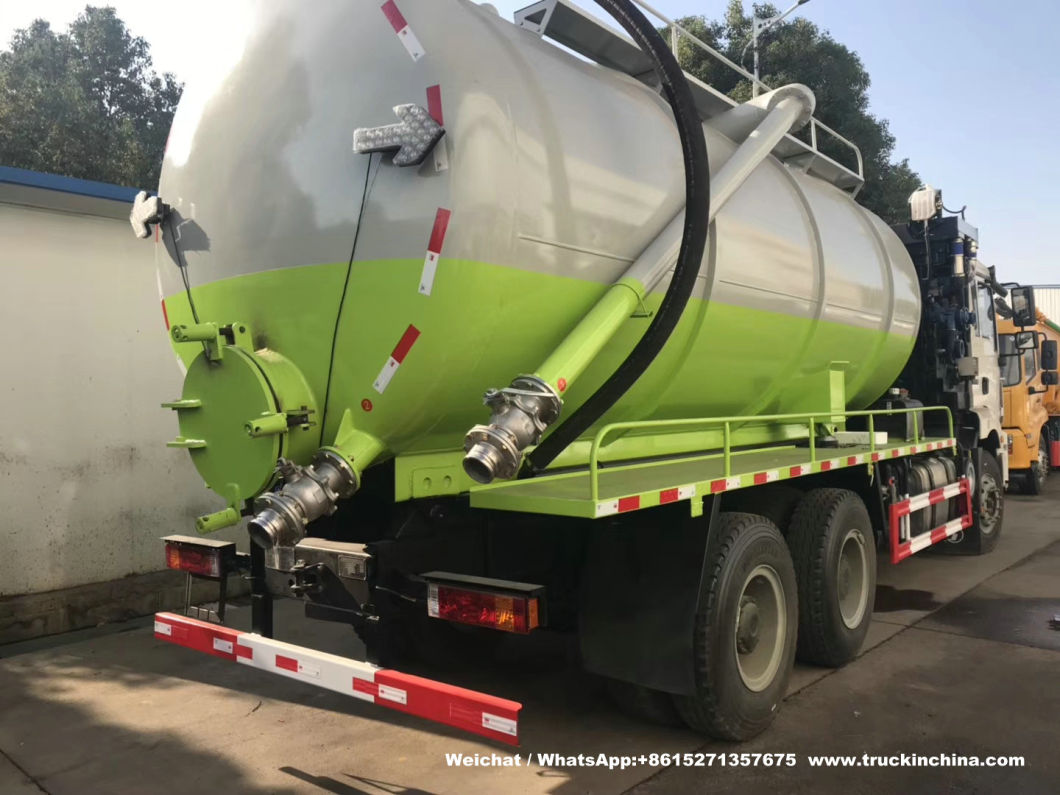

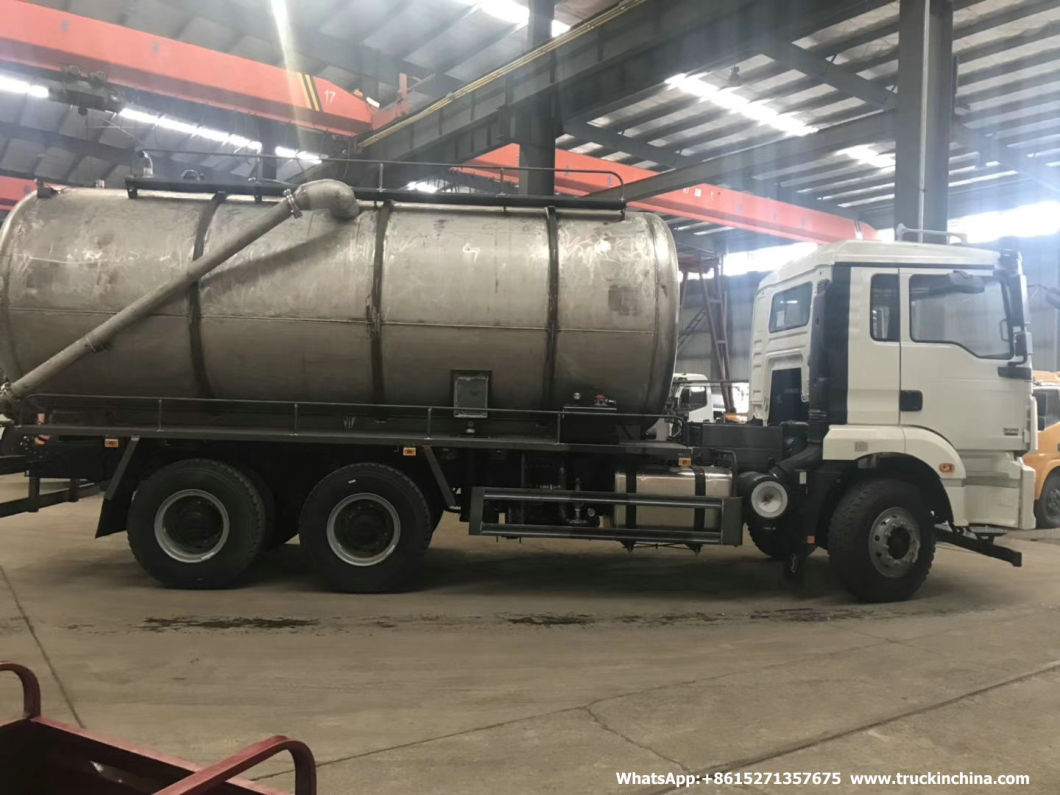

Sludge and Water Tank


Shape Cylindrical shaped tank with external reinforce rings
Material Mild steel
Primary shut off SS float ball prevents overfilling sludge tank.
Shell thickness 5mm,6mm
Tipping cylinder Front tipping and double acting cylinder
Safety support Support the tank to ensure safety when it's tipped up
Sight glasses 3units are mounted at the rear of the tank
Over pressure safety Over pressure relief valve on tank top

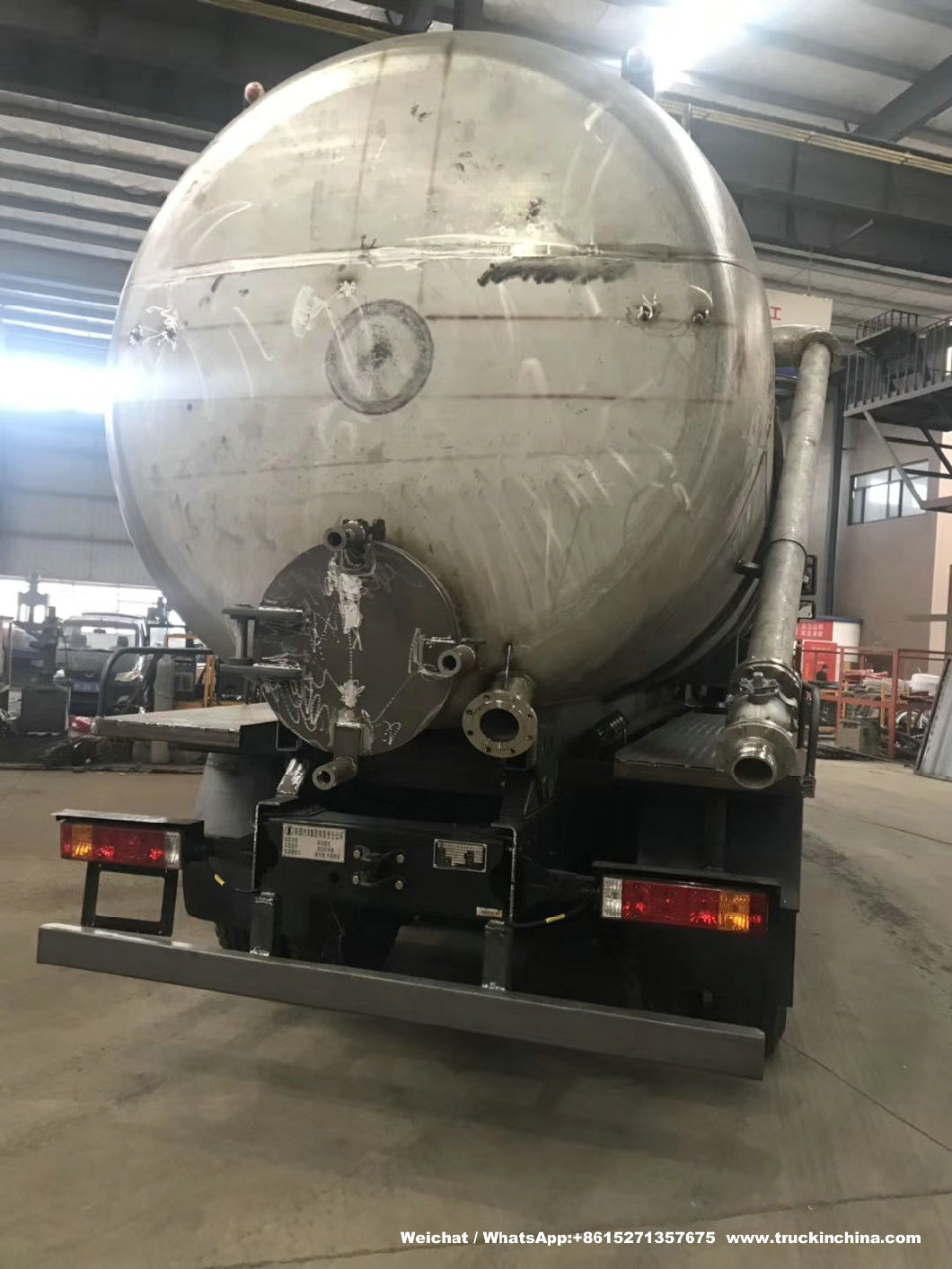

Full opening rear lid Hydraulically opening and locking
Inlet and Outlet Valve Pneumatically and Manual operation



Vacuum system


Vacuum pump Liquid ring vacuum pump
Max vacuum level 95%
Continuous vacuum level 80%
Rotate speed Max 900r/min
Pump cooling Cooling Water tank 1,000L, mounted behind cab
Protection 1.Aluminum filter 2. Vacuum pressure relief valve
Telescopic suction boom

Stainless steel material. Swivel in both vertical and horizontal plane.

270°horizontal rotation, 6m working radius, 6m below ground and 1.4m extension..


High Pressure Combined Vacuum Sewage Sewer Water Jetting Truck

Reverse discharge system

Pressure switch system allows reverse discharging filtered water via suction boom or outlet valve, with only mud or solid waste left in tank. This reduces cycle dumping time, no need to go and back many times.

Technical parameters of shacman 18 ton vacuum truck for sale

Items Descriptions Specifications and Types
General Truck Name Combined sewer truck
Drive Type 6*4
Gross Vehicle Weight(kg) 25000
Curb Weight (kg) 13000
Overall Dimensions L*W*H(mm) 11000×2500×3270
Engine Engine Model WP10.290E32
Engine Brand Wei Chai
Fuel Type Diesel
Power 290HP
Emission Standard Euro II
Displacement(ml) 9760
Engine Type 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Chassis Chassis Brand SHACMAN
Tire No. 10+1
Tire Specification 12.00R20 Steel tire
Wheelbase (mm) 4375+1400
Axle No. 3
Front Axle MAN 7.5T
Rear Axle MAN 13T double grade
Steering Wheel Left Hand Drive with power-assisted
Gear Box FAST 9 speed forward with 2 reverse, manual
Brake Air brake
Air Conditional Suitable for tropical climate
Tank Tank Material Carbon steel
Tank Shape Cylindrical
Waste water tank volume(L) 18000
Pump High pressure vacuum Italy imported
Vacuum pump Domestic Weilong pump
Hose Suction hose length(m) 6x2


Above vacuum suction tank truck specifications is just for reference


30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck )
