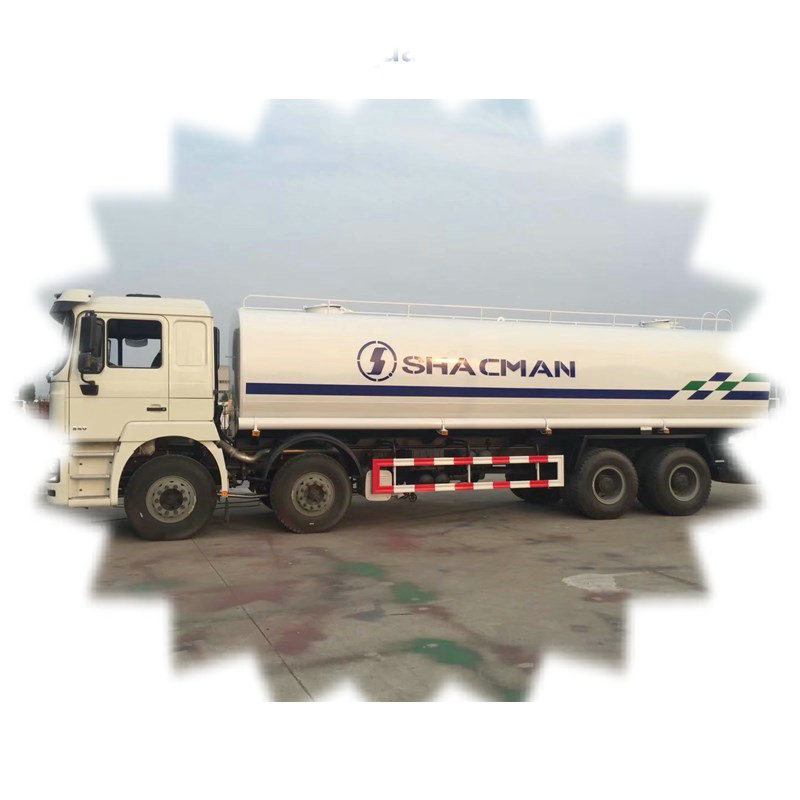

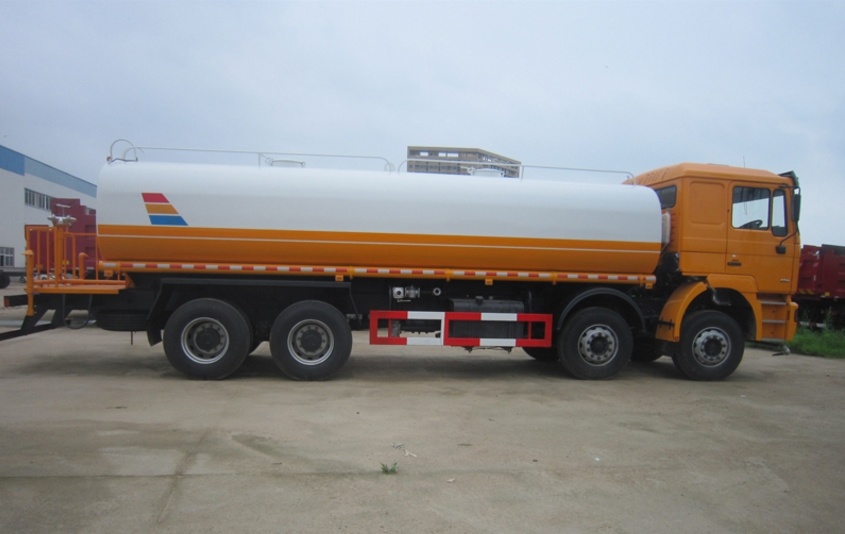

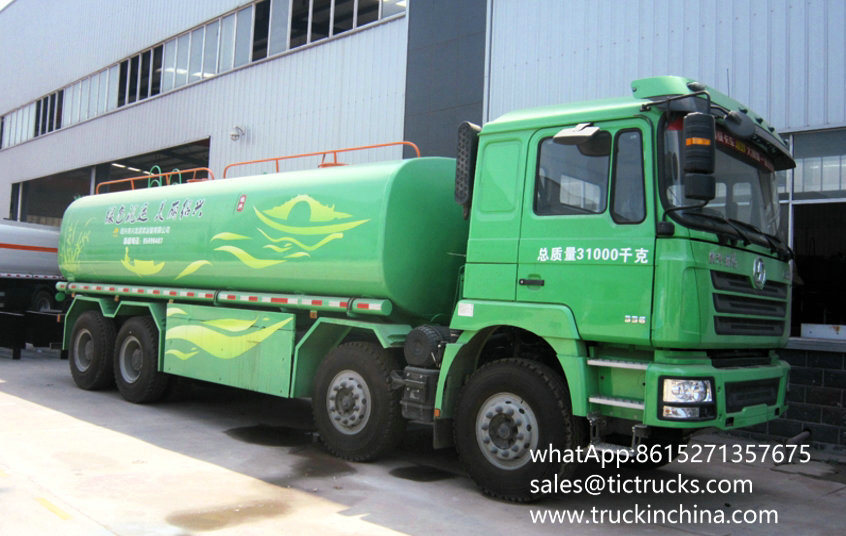

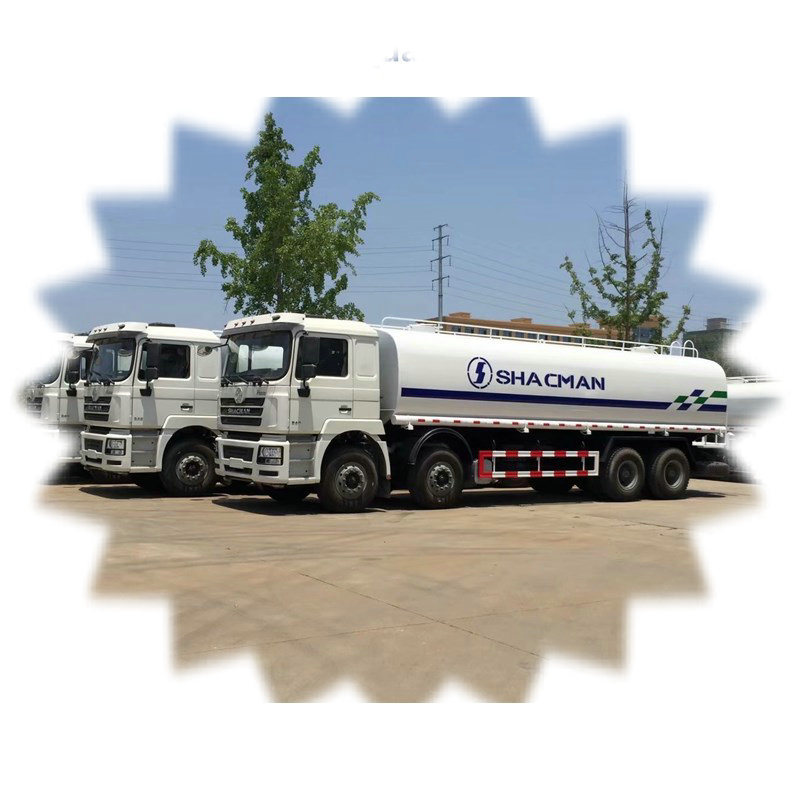

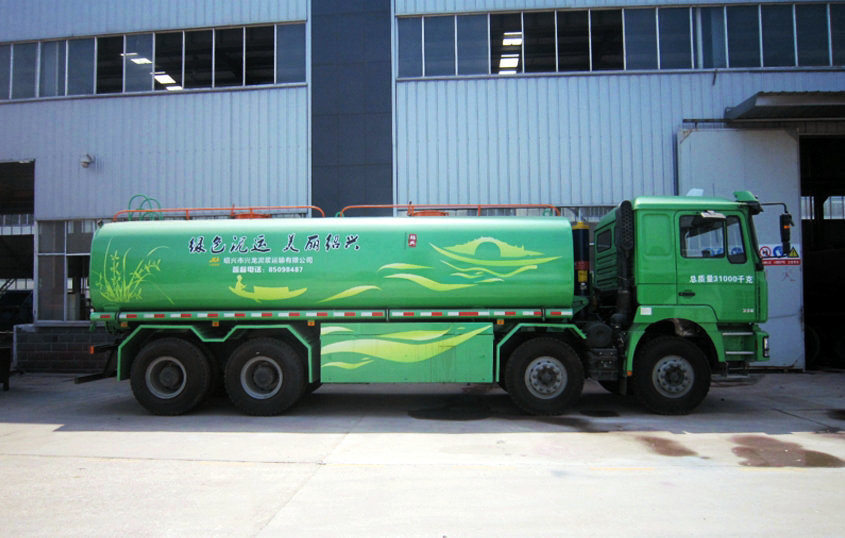

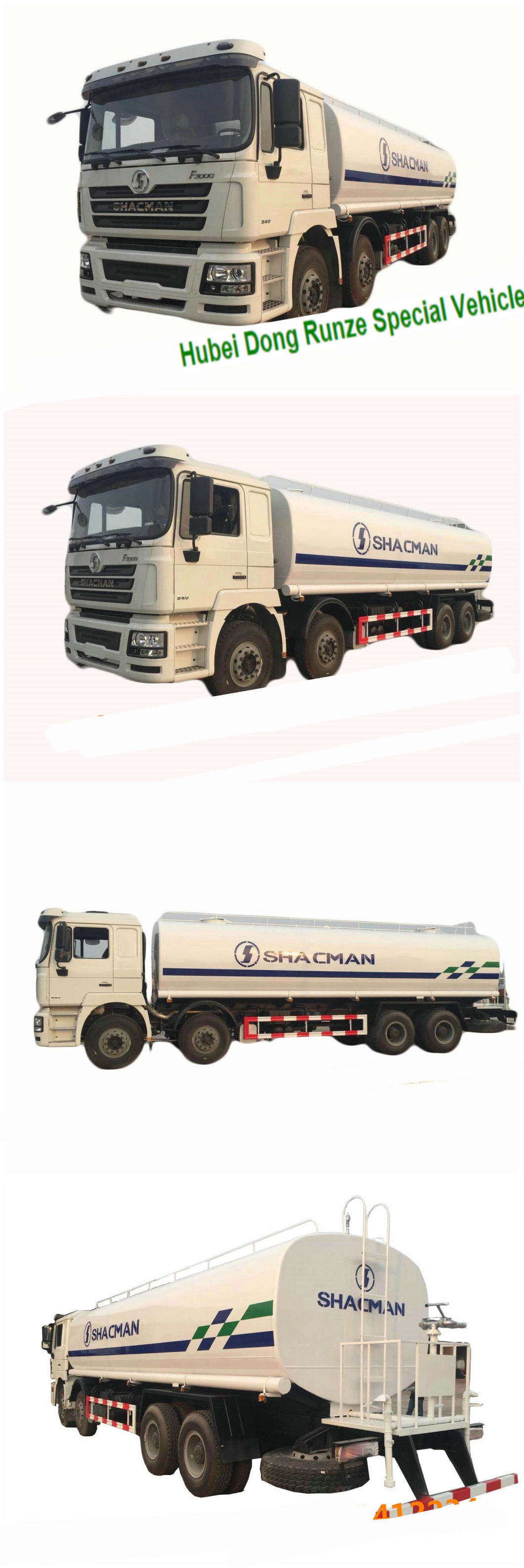

Shacman Water Bowser Sprinkler Truck 5000 Gallon (20000 Liters 8X4 Water Tank Truck)
| Quantity: | |
|---|---|
- Shanghai, China
- 10000
- T/T, Western Union
Bowser Tanker used for fueling aircraft and other vehicles or for supplying water.
water/ oil tanker truck Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale 86-152 -7135-7675
water tankers are available in steel, stainless steel, or aluminum, and can be constructed to haul drinking water and non drinking water each with their own specific and different types of pumping systems.
Features and Specifications
• 3000-30,000 liters capacity
• Available in steel, stainless steel and aluminum
• Offset baffle opening to prevent sloshing
• Tanks designed to carry potable and non-potable water
• Chassis frame mounted rear platform area
• Rear mounted hydrant fill with an air space
• High quality, little maintenance, competitive price
• Numerous spray head, spray bar(front, rear and side) and water cannon(monitor, 360° rotatable) options available
• Numerous chassis available
GVW31000kg Driving Type 8x4 | ||||
Model | DRZ5315GSSFS | |||
Cab | Delong F3000 long a row and a half deluxe cab(with sleeping berth),allowable 3 passengers, electronically controlled automatic constant temperature air conditioner, electric rocking window machine, ordinary air filter, air master seat, four point airbag, traveling data recorder | |||
Engine(Hp) | 270 | |||
Power(Kw) | 199 | |||
Wheelbase | 1800+4575+1400 | |||
Front/Rear Suspension | 1525/2500 | |||
Steering | Power steering | |||
Approach/departure angle | 16/14 | |||
Wheels & tire | 12.00R20 | |||
Tire number | 12+1 | |||
Tank Dimensions(mm) | 8200x2500x1500 | |||
Cubage (m3) | 30 | |||
Steel thickness of tank(mm) | 5/6 | |||
RHD or LHD | optional | |||
Overall Dimensions(mm) | 12000×2500×3340 | |||
Curb weight (Kg) | 14170 | |||
Engine | Model | WP7.270 | ||
Horsepower | 270 | |||
Maximum output Kw | 199 | |||
Maximum torque N.m | 1350 | |||
Type | 6cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine | |||
Displacement | 7.140L | |||
Weichai engine brand, Euro 3 | ||||
Driving passenger | 2,3 | |||
Transmission | 9 forwards,1 reverse | |||
Front Axle | 7T | |||
Rear Axle | 13T | |||
Brake System | air brake | |||
Color and LOGO | customized | |||
Electric system | 24V | |||
Tank material | Carbon steel, stainless steel, aluminum, etc. alloy, etc. | |||
Sprinkling width | 14m each side | Suction height | 7m | |
Standard configuration | carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder. | |||
Optional configuration | Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights | |||
Delivery date | Within 20 days after receipt advance | |||
Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | |||
Technical parameter for 5000 gallon water tank truck
Item | unit | parameter | ||
Vehicle model | 20000Liter 6*4 Water Tank Truck LHD or RHD | |||
Chassis model | ZZ1257M4341W/L0WA | |||
Overall dimensions | mm | 9435×2500×3060 | ||
Curb Weight | kg | 11085 | ||
Payload | 25000 | |||
Wheel base | mm | 4300+1350 | ||
Exhaust/hp | ml/ps | 6780/196 | ||
Max speed | km/h | 95 | ||
Tire specification | 11R22.5 | Engine type | WD615.62, 266hp | |
Traction system | 6*4 | Transmission | 10-speed with over drive | |
Number of axles | 3 | Axle Load(kg) | 7000/18000 | |
Engine | Weichai brand ,diesel,6-cylinder in-line with water cooling | |||
Tank | Material | Q235 | ||
Paint | Anti-corrasive | |||
Volume | 18000L | |||
Equipment | Cabin | Flat head, metal-enclosed cab, two door, panoramic curved windshield | ||
Front(rear,side) sprinkler | Sprinkling width>14m | |||
Rear working platform with water cannon | Range>28m | |||
Chinese brand Weilong pump | Suction lift >6m | |||
Water valve | 1 | |||
Fire valve | 1 | |||
Pipeline | 3m*2 | |||
sprinkler | 2 | |||
water tank truck, water truck, sprinkler, road cleaning truck ;
| Product Name | Water tank truck | ||
| Driving Type | Left hand drive ( RHD is optional) | ||
| Weights | |||
| GVW(kg) | 6000, 15000, 25000, 31000 | ||
| Rated payload weight(kg) | 3000L-30000L 3CBM-30CBM 3 tons to 30 tons | ||
| Curb weight(kg) | 9005 | ||
| Dimensions | |||
| Wheelbase(mm) | 4325+1350 3300, 3800, 4500, 5100mm is optional | ||
| Overall Dimension(mm) | 9800×2495×3130 | ||
| Box dimension | 3-30 CBM 3000L -30000L | ||
| Max speed(km/h) | 98 | ||
| Engine | |||
| Engine model | WP10.290 (120hp, 190hp, 266hp, 340hp, 380hp, 420hpHP) | ||
| Engine type | 4 stroke water-cooled,water-cooling. | ||
| No. of cylinders | straight-6 cylinders | ||
| Displacement(L)/Power(km) | 6.494/162 | ||
| Max. torque (kw) | 800N.m | ||
| Drive Line | |||
| Transmission | 7DS100,7 forwards,1 reverse gear,manual operation | ||
| Steering | With power steering | ||
| Brake system | Air brake | ||
| Cab | |||
| Air container | Have | ||
| Standard configuration | L cab,sound, and so on | ||
| Axle | |||
| Front axle | 5 tons | ||
| Rear axle | AK153 tons | ||
| Tire specification | |||
| Tire specification | 10.00R20 standard tire,10 tires+1 spare tire | ||
| Specification fuctionof water truck | |||
| Tanker shape | Ellipse water tanker | ||
| Tanker material | Q235,carbon steel | ||
| Introduction | 1. Suction≥7m Sprinkler width≥14m Range≥28m | ||
| 2. with front spout, back spill and side spout function | |||
| 3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) | |||
| 4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. | |||
| Sprinkling area(m) | »14m | Vertical suction range (m) | »7m |
| Watering pressure | 250-450Mpa | Pump style | Self-priming centrifugal pump |
| Manhole | Man way access hole on top of tank;1 units DN500mm manhole | ||
| Front spray function | Front spray bar with fan sprayer on both sides, spray range: »28m | ||
| Man walk way | With skid resistance man walk way on top of tank | ||
| Horse reels | Two 75 ft hose reels at each side of the truck | ||
| Water pump | Water pump model: CLW80QZF-60/90N | ||
| Water pump flow rate(L/m): 60m3/h | |||
| Head of delivery(m): 90m | |||
| Self-priming function(min/4m):1.5 | |||
| Efficiency(%):95% | |||

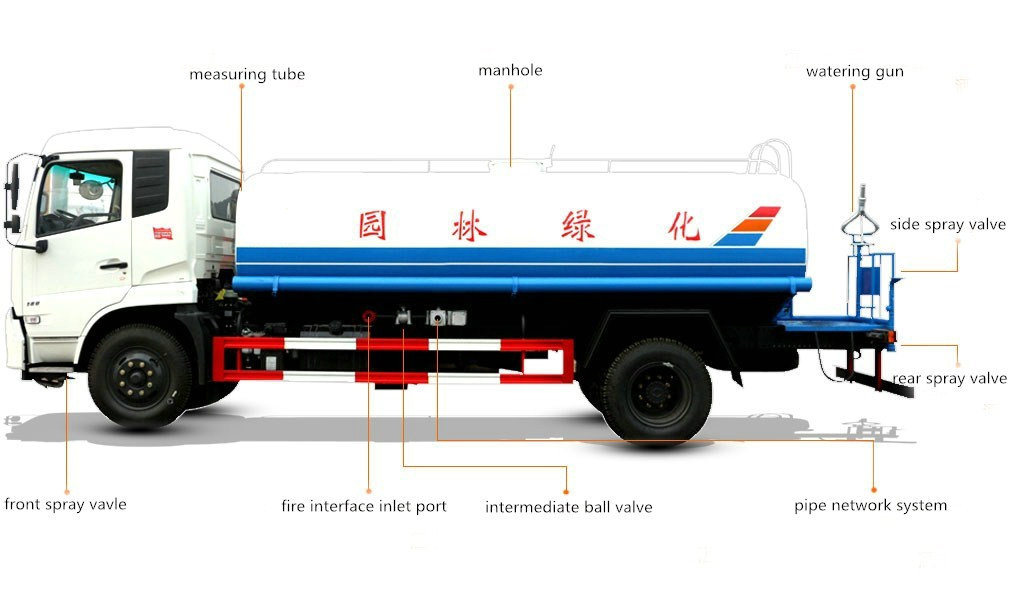

water truck Sprinkles standard configuration: former blunt sprinkling, take lateral jet after sprinkled with tank after, after work platform, platform after install greening sprinkling, guns regt can rotate 360 degrees, but even after adjusting heavy rain, rain, drizzle, mist shape, straight strong shape, range 30 meters. Take self-priming, since row function, take fire interface, with their valves, install screen.
water truck oblique configuration: medicine dish, medication pumps, anticorrosion, tank intersectorial inlet and outlet water joint, solenoid valves, pneumatic valves, etc.
ater truck special function | A. Water tank capacity(L):6000L 10,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% | |
Welcome all around world customer visit our factory.- which has excellent performance with reasonable price.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
| Model | DS-120 |
| Throw | 120m without wind |
| Volume Flow | 120L-160L/min |
| Fog Droplet Size (Adjustable ) | 30-300μm |
| Water Pressure(Mpa) | 2.5-3.5Mpa |
| Horizontal Rotation Angle (Adjustable ) | ±160° Automatic |
| Pitching Angle (Adjustable ) | -10°~45° |
| Coverage Area | 34000~40000m² without wind |
| Product Size(L*W*H) | L295*W154*H275 (cm) |
| Water Tank Capacity (Optional) | 4000-20000L |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Warranty | 1year |
| Model | DS-100 |
| Throw (m) | 100 |
| Volume Flow (L/min) | 120~160 |
| Water Pressure (MPa) | 2.5~3.5 |
| Fog Droplet Size ( um ) | 30-200 |
| Horizontal Rotation Angle (Remote Control) | ±160° Automatic |
| Pitching Angle (Remote Control) | -10°~45° |
| Coverage Area | 23000~27000m² without wind |
| Degree of Protection | Not less than IP55 |
| Overall Dimensions (L*W*H) | L277*W154*H271cm |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-30 |
| Throw | Horizontal: 30m; Vertical: 20m (without wind) |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150 μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 180° Manual |
| Overall Dimensions | L130 * W115 * H148 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Diesel generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-35 |
| Throw Distance | Horizontal: 35m; Vertical: 20m |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 360° Automatic |
| Overall dimension | L145 * W113 * H176 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Gasoline generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-40 |
| Throw | Horizontal: 40m; Vertical: 25m (no wind) |
| Volume Flow | 16-24L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~45° |
| Horizontal Rotation Angle | 180° Manual / 360° Automatic |
| Overall Dimension | L1560 * W750 * H1700 (mm) |
| Water Tank Capacity (Optional) | 400-4000L |
| Auxiliary Power Unit | diesel generator set (optional), plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-50 |
| Max Throw | 50m*no wind condition |
| Discharge (Adjustable) | 16~30L/min (less water consumption) |
| Fog Droplet Size (Adjustable) | 30um-50um /50um-100um |
| Horizontal Rotation Angle | 180°manual control / 320°remote control |
| Pitching Angle | -10°~40° |
| Coverage Area | 5000~7000m² without wind |
| Water Pressure | 1.5~3.5MPa |
| Auxiliary Power Unit | 20KW Diesel Generator Set |
| Dimensions(L*W*H) | 158×145×175cm |
| Sprayer Tank | According to customer's requirements |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-60 |
| Throw | ≥60m |
| Volume Flow | 70L-80L/min |
| Fog Droplet Size (Adjustable ) | 30-150 µm |
| Water Pressure(Mpa) | 2.0~3.5Mpa |
| Water Pressure(bar) | 20-35bar |
| Water Pressure(kg) | 20-35kg |
| Motor RPM | 2900 |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | -10°~45° |
| Coverage Area | 8,000 ~10,000m2 |
| Product Size ( L * W * H) | L220 * W154 * H239 (cm) |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-80 |
| Throw | 80m no wind |
| Volume Flow (Adjustable) | 105L-118L/min |
| Fog Droplet Size (Adjustable ) | 30-150um |
| Water Pressure (Mpa) | 2.5~3.5Mpa |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | 10° +45° |
| Coverage Area | 15000~17000m² without wind |
| Overall Dimensions (L*W*H) | L241*W153*H250(cm) |
