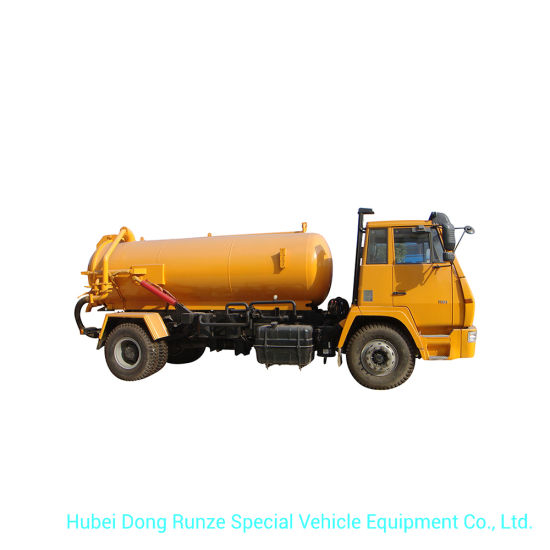

Shacman Vacuum Sewage Tank Truck With 12cbm Septic Tank RHD OR LHD 4x4 /4x2
For Cesspool Emptier
carbon - stainless steel
RHD OR LHD 4x4 /4x2
Vac Tank truck high quality waste treatment vehicle for sale
Our tanker CKD or SDK is available
Sewage suction truck, It's mainly used for the pumping, transporting and draining of sludge and waste oil in sewers, catch basion, sewer man-hole, sepic tanks and sediments of sludge pool in chemical plants. sewage suction truck is composed of power take-off, trransmission shaft, vacuum sewage suction pump, pressure tanker, hydraulic system, pipe network system, equipped with vacuum pressure gauge, liquid indicator, hand-washing device.
1. Equipped with hydraulically opened rear lid with self-discharge, high vacuum degree an sucking range.
2. Equipped with self-priming and self-draining vacuum pump (ratin rotate speed=1400r/m, min rotate speed>800r/m,max suction lift> 6m, vacuum>500mmhg, clockwise)
3. Time for full suction <5min
The pictures are for your reference only.
Sewage suction truck capacity from 3000 litres to 20,000 litres
Fecal suction truck capacity from 3000 litres to 10,000 litres septic tank truck
, sewage suction truck, toilet truck
, sewer truck
, vacuum truck vacuum sucker trucks Detailed Product Description
|Item ||unit ||parameter |
|Vehicle model || ||SX1166UN461 Sewage Suction Truck |
|Chassis model || ||SX1166UN461 |
|Overall dimensions ||mm ||8450*2490*3300 |
|Factual cubage ||L ||12000 |
|GVW ||kg ||Appro×16000 |
|Rated loading capacity ||Appro×12000 |
|Mass in working order ||Appro×14000 |
|Body internal dimensions ||mm ||5500*2000*1370 |
|Wheel base ||4600 |
|F/R track base ||1250/2450 |
|Approach/departure angle ||° ||34/18 |
|Exhaust/hp ||ml/kw ||9726/221 |
|Max speed ||km/h ||90 |
|Tire specification ||11.00R20 ||Engine type ||WP10.300E40 |
|Traction system ||4×2 ||transmission ||6-speed with over drive |
|Number of axles ||2 ||Electric system ||24v |
|Operation control system ||Electrically hydraulic control ||Allowable passengers in cab ||3 |
|Equipment ||Equipped with special vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise) |
|Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment |
|Time for full sucktion<5min |
|Engine ||DongFeng Environmental Protection,supercharge,diesel engine |
Basic equipment of sludge tank truck
Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,
water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.
1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed
hydraulically. With full opening design, discharge can be very quick∁lete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit
brand new high pressure vacuum suction truck
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
Looking forward to receiving your inquiry!
