DRZ5311
SHACMAN
8705
Shanghai, China
800
T/T
Sludge and Water Tank
Shape | Cylindrical shaped tank with external reinforce rings |
Material | Mild steel |
Primary shut off | SS float ball prevents overfilling sludge tank. |
Shell thickness | 5mm,6mm |
Tipping cylinder | Front tipping and double acting cylinder |
Safety support | Support the tank to ensure safety when it's tipped up |
Sight glasses | 3units are mounted at the rear of the tank |
Over pressure safety | Over pressure relief valve on tank top |

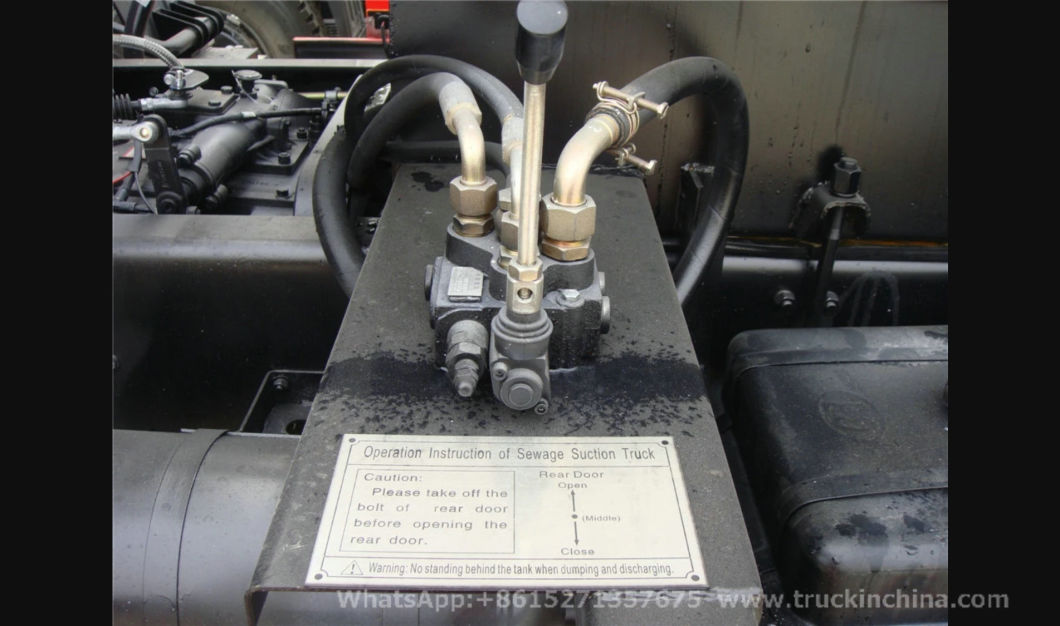

Full opening rear lid | Hydraulically opening and locking |
Inlet and Outlet Valve | Pneumatically and Manual operation |
Vacuum system
Vacuum pump | Liquid ring vacuum pump |
Max vacuum level | 95% |
Continuous vacuum level | 80% |
Rotate speed | Max 900r/min |
Pump cooling | Cooling Water tank 1,000L, mounted behind cab |
Protection | 1.Aluminum filter 2. Vacuum pressure relief valve |
Telescopic suction boom | Stainless steel material. Swivel in both vertical and horizontal plane. 270°horizontal rotation, 6m working radius, 6m below ground and 1.4m extension.. |
Reverse discharge system
Pressure switch system allows reverse discharging filtered water via suction boom or outlet valve, with only mud or solid waste left in tank. This reduces cycle dumping time, no need to go and back many times.
Technical parameters of shacman 18 ton vacuum truck for sale
Items | Descriptions | Specifications and Types |
General | Truck Name | Combined sewer truck |
Drive Type | 6*4 | |
Gross Vehicle Weight(kg) | 25000 | |
Curb Weight (kg) | 13000 | |
Overall Dimensions L*W*H(mm) | 11000×2500×3270 | |
Engine | Engine Model | WP10.290E32 |
Engine Brand | Wei Chai | |
Fuel Type | Diesel | |
Power | 290HP | |
Emission Standard | Euro II | |
Displacement(ml) | 9760 | |
Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | |
Chassis | Chassis Brand | SHACMAN |
Tire No. | 10+1 | |
Tire Specification | 12.00R20 Steel tire | |
Wheelbase (mm) | 4375+1400 | |
Axle No. | 3 | |
Front Axle | MAN 7.5T | |
Rear Axle | MAN 13T double grade | |
Steering Wheel | Left Hand Drive with power-assisted | |
Gear Box | FAST 9 speed forward with 2 reverse, manual | |
Brake | Air brake | |
Air Conditional | Suitable for tropical climate | |
Tank | Tank Material | Carbon steel |
Tank Shape | Cylindrical | |
Waste water tank volume(L) | 18000 | |
Pump | High pressure vacuum | Italy imported |
Vacuum pump | Domestic Weilong pump | |
Hose | Suction hose length(m) | 6x2 |
Above vacuum suction tank truck specifications is just for reference
Sludge and Water Tank
Shape | Cylindrical shaped tank with external reinforce rings |
Material | Mild steel |
Primary shut off | SS float ball prevents overfilling sludge tank. |
Shell thickness | 5mm,6mm |
Tipping cylinder | Front tipping and double acting cylinder |
Safety support | Support the tank to ensure safety when it's tipped up |
Sight glasses | 3units are mounted at the rear of the tank |
Over pressure safety | Over pressure relief valve on tank top |
Full opening rear lid | Hydraulically opening and locking |
Inlet and Outlet Valve | Pneumatically and Manual operation |
Vacuum system
Vacuum pump | Liquid ring vacuum pump |
Max vacuum level | 95% |
Continuous vacuum level | 80% |
Rotate speed | Max 900r/min |
Pump cooling | Cooling Water tank 1,000L, mounted behind cab |
Protection | 1.Aluminum filter 2. Vacuum pressure relief valve |
Telescopic suction boom | Stainless steel material. Swivel in both vertical and horizontal plane. 270°horizontal rotation, 6m working radius, 6m below ground and 1.4m extension.. |
Reverse discharge system
Pressure switch system allows reverse discharging filtered water via suction boom or outlet valve, with only mud or solid waste left in tank. This reduces cycle dumping time, no need to go and back many times.
Technical parameters of shacman 18 ton vacuum truck for sale
Items | Descriptions | Specifications and Types |
General | Truck Name | Combined sewer truck |
Drive Type | 6*4 | |
Gross Vehicle Weight(kg) | 25000 | |
Curb Weight (kg) | 13000 | |
Overall Dimensions L*W*H(mm) | 11000×2500×3270 | |
Engine | Engine Model | WP10.290E32 |
Engine Brand | Wei Chai | |
Fuel Type | Diesel | |
Power | 290HP | |
Emission Standard | Euro II | |
Displacement(ml) | 9760 | |
Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | |
Chassis | Chassis Brand | SHACMAN |
Tire No. | 10+1 | |
Tire Specification | 12.00R20 Steel tire | |
Wheelbase (mm) | 4375+1400 | |
Axle No. | 3 | |
Front Axle | MAN 7.5T | |
Rear Axle | MAN 13T double grade | |
Steering Wheel | Left Hand Drive with power-assisted | |
Gear Box | FAST 9 speed forward with 2 reverse, manual | |
Brake | Air brake | |
Air Conditional | Suitable for tropical climate | |
Tank | Tank Material | Carbon steel |
Tank Shape | Cylindrical | |
Waste water tank volume(L) | 18000 | |
Pump | High pressure vacuum | Italy imported |
Vacuum pump | Domestic Weilong pump | |
Hose | Suction hose length(m) | 6x2 |
Above vacuum suction tank truck specifications is just for reference
