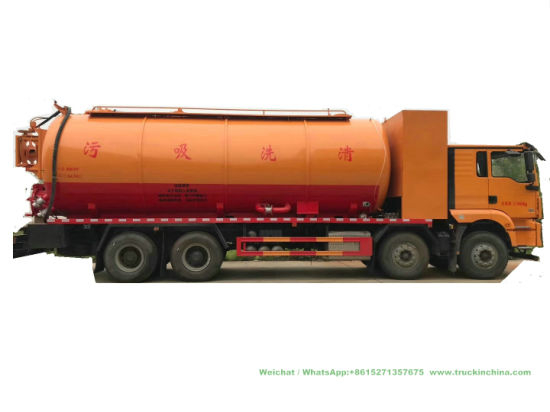

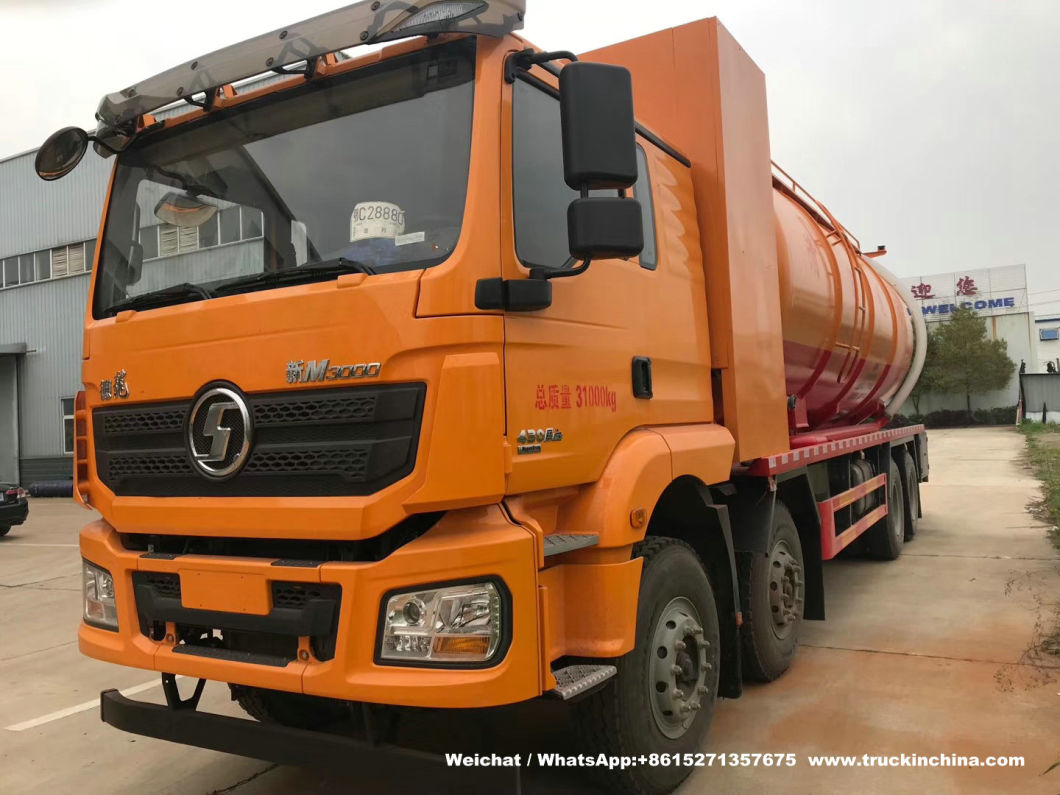

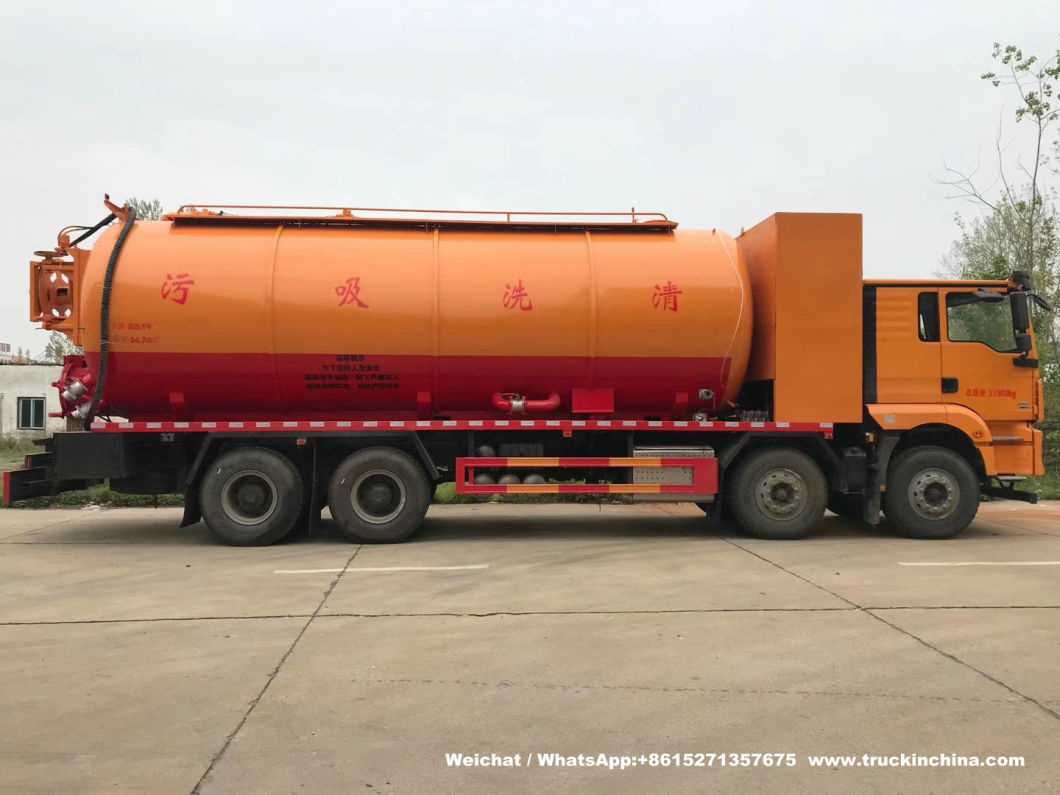

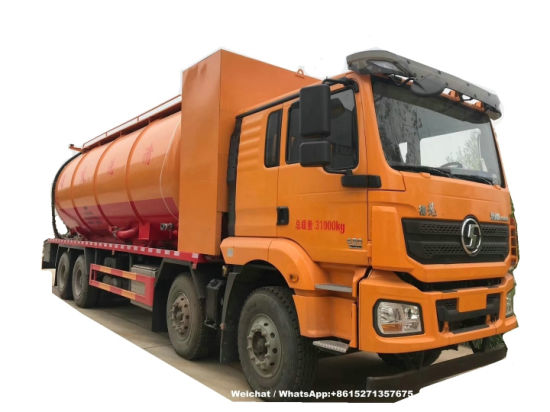

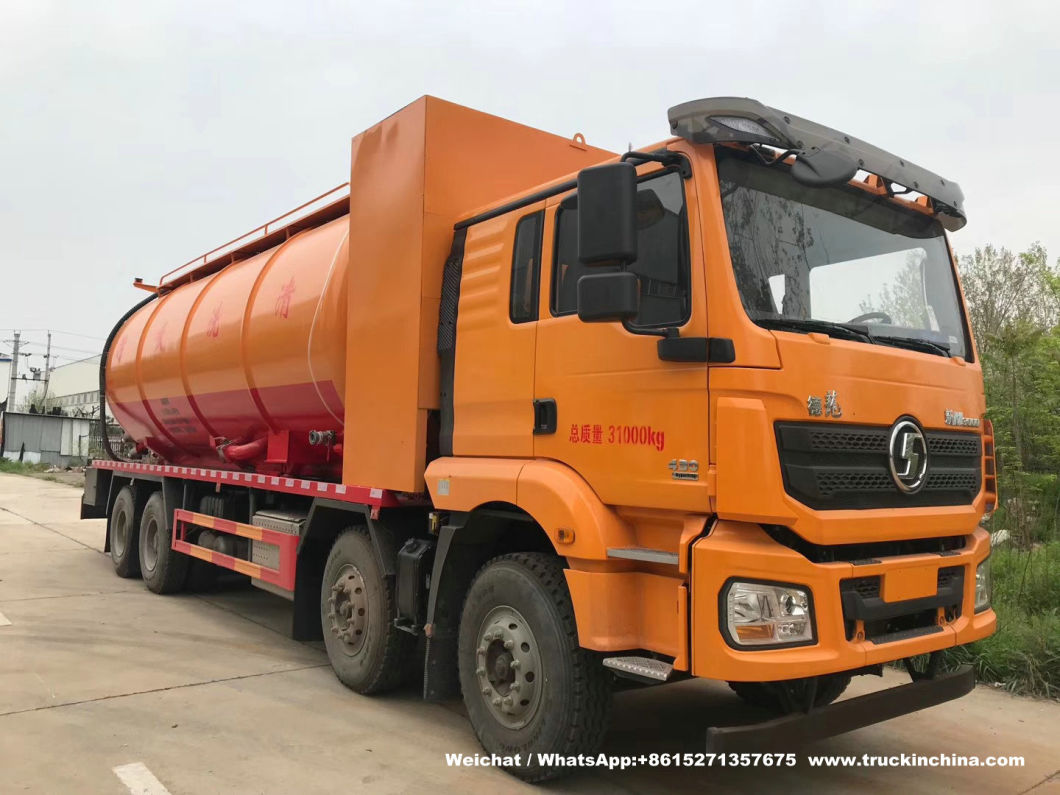

Shacman H3000 Jet VAC Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck)

Shacman H3000 Jet VAC Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck)

Quantity:
  • DRZ5311
  • SHACMAN
  • 8705
  • Shanghai, China
  • 800
  • T/T

SHACMAN H3000 Jet Vac Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck )
ACUUM-Tank truck with JETTING and FLUSHING function
( Vacuum Tank Combined Tank )Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck )
High Pressure Combined Vacuum Sewage Sewer Water Jetting Truck

Vacuum Tank with vacuum system

Fresh-water-tank with Jetting System

High pressure system

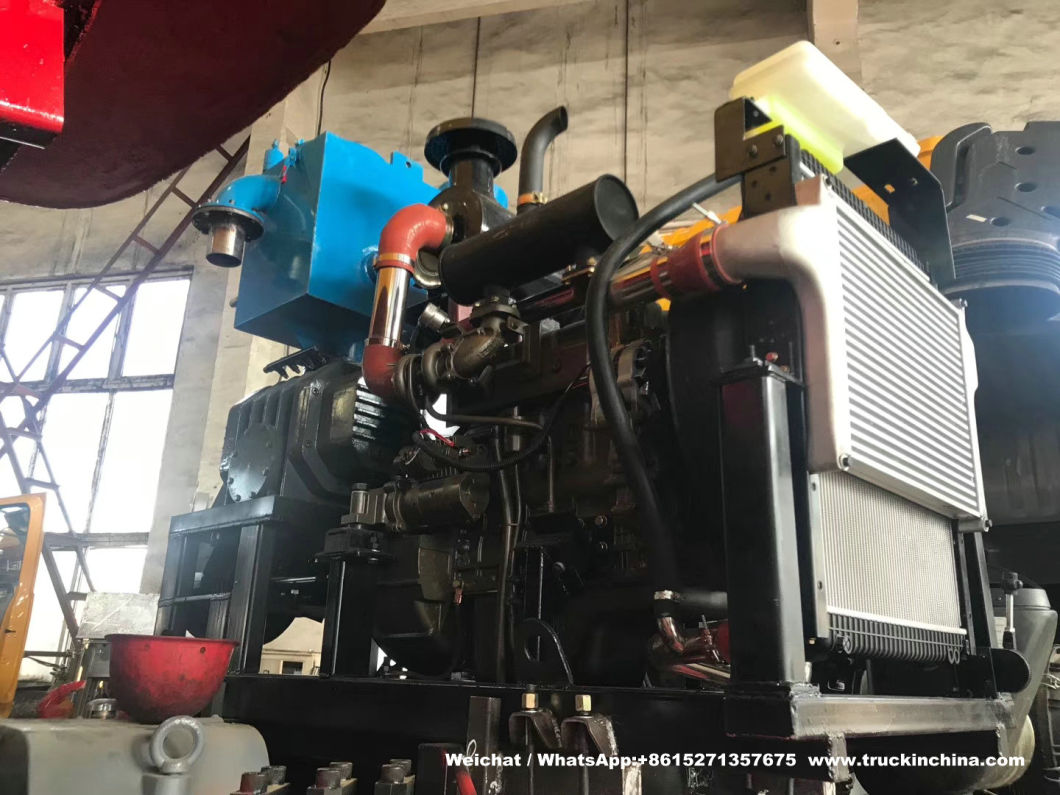

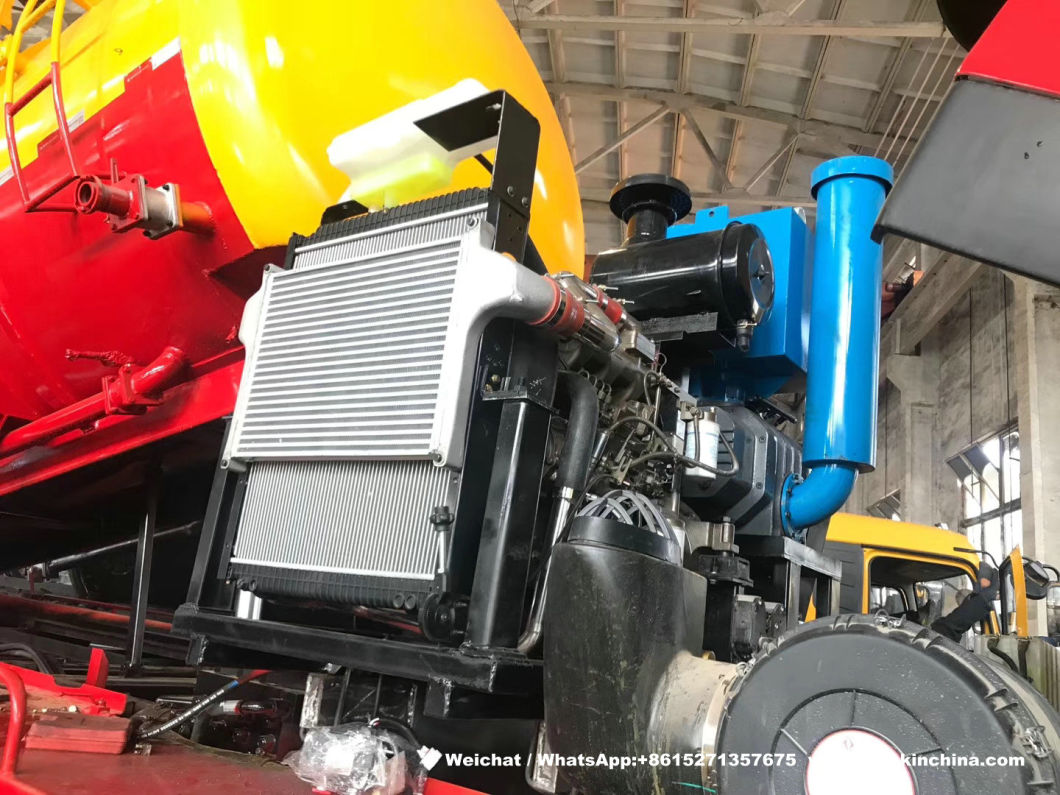

One (1) high-pressure pump, hydraulically driven by PTO of truck chassis. Hydraulic system with oil-cooler and fan.
Capacity, approx.: approx. 50ltr. / min at 150bar

All vacuum tank trucks and vacuum-jetting-flushing tank trucks are custom-made in accordance with your specific requirements.
Shacman H3000 Jet VAC Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck)
Shacman H3000 Jet VAC Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck)
Shacman H3000 Jet VAC Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck)
Shacman H3000 Jet VAC Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck)
Shacman H3000 Jet VAC Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck)
Shacman H3000 Jet VAC Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck)
Shacman H3000 Jet VAC Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck)
Shacman H3000 Jet VAC Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck)
Shacman H3000 Jet VAC Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck)

Shacman H3000 Jet VAC Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck)

30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck 18m3 Wast Sludge 10m3 Clean Water Tank )
Cesspit Emptier  Vacuum Tanker Truck
Shacman H3000 Jet VAC Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck)

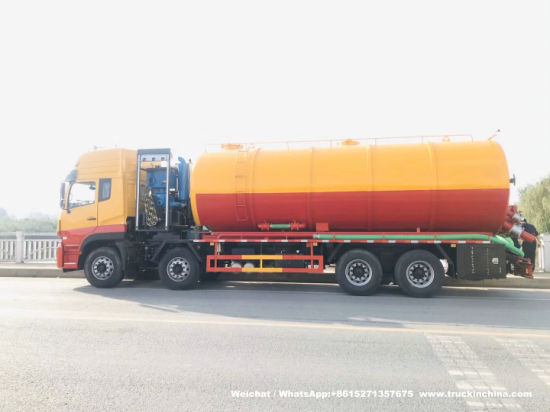

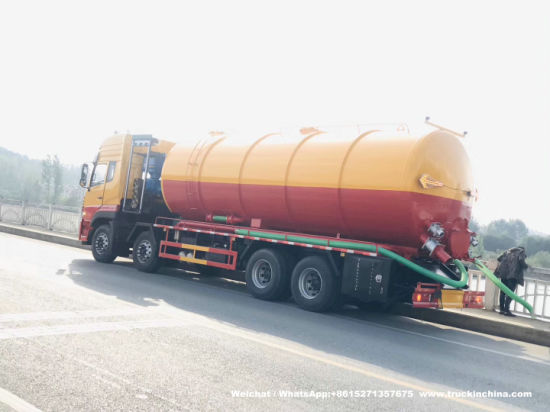

Vacuum - Jetting-Flushing combination truck for vacuuming and transport of oil mud, waste-water (sewage) as well as for high-pressure sewer pipe cleaning operations. The tank capacity is 15 000 ltr. vacuum tank and 3 000 ltr. integrated fresh water tank . The complete unit is mounted on 6x4 or 6x6 all-terrain truck chassis
For Cesspool Emptier
Custom-made Vacuum-Jetting-Flushing-Tank-Truck for suction and transport of oil mud, waste-water (sewage) as well as for high-pressure cleaning. Tank capacity 19.000 ltr. vacuum tank and 1.000 ltr. fresh water, mounted on 6x4  truck chassis,  Cabin with A/C and bed compartment.

Shacman H3000 Jet VAC Tankers Supersucker Combined Vacuum Jetting Tanker Trucks (Vacuum Jetting Flushing combination truck)

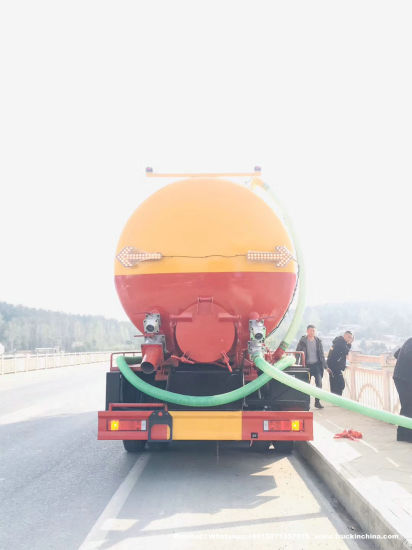

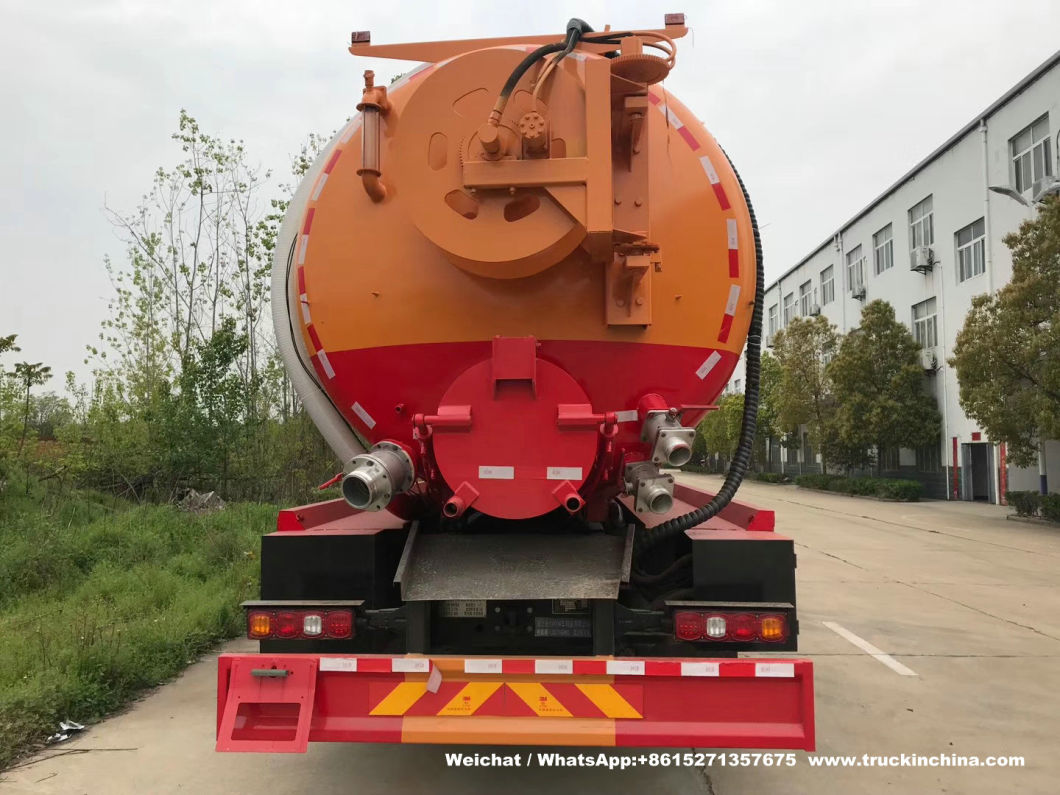

The rear end of the Vacuum-Jetting Tank superstructure can be furnished either with a 600 mm man hole or with complete rear opening, hydraulically operated, as shown on the above picture. However the Off-Loading Process of the tank content is always by pressure. The man hole as well as complete rear opening are only for (special) cleaning jobs. The tank needs not to be opened for loading or off-loading jobs.



carbon - stainless steel





Sludge and Water Tank


Shape Cylindrical shaped tank with external reinforce rings
Material Mild steel
Primary shut off SS float ball prevents overfilling sludge tank.
Shell thickness 5mm,6mm

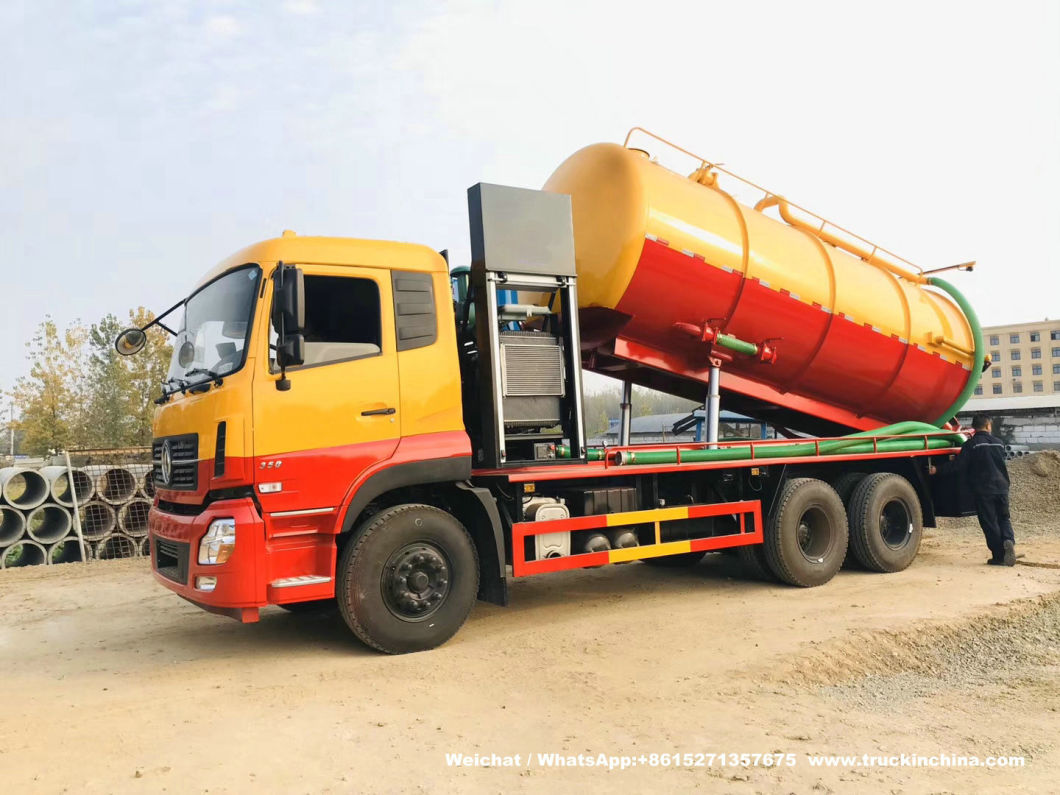

Tipping cylinder Front tipping and double acting cylinder
Safety support Support the tank to ensure safety when it's tipped up
Sight glasses 3units are mounted at the rear of the tank
Over pressure safety Over pressure relief valve on tank top
Full opening rear lid Hydraulically opening and locking
Inlet and Outlet Valve Pneumatically and Manual operation

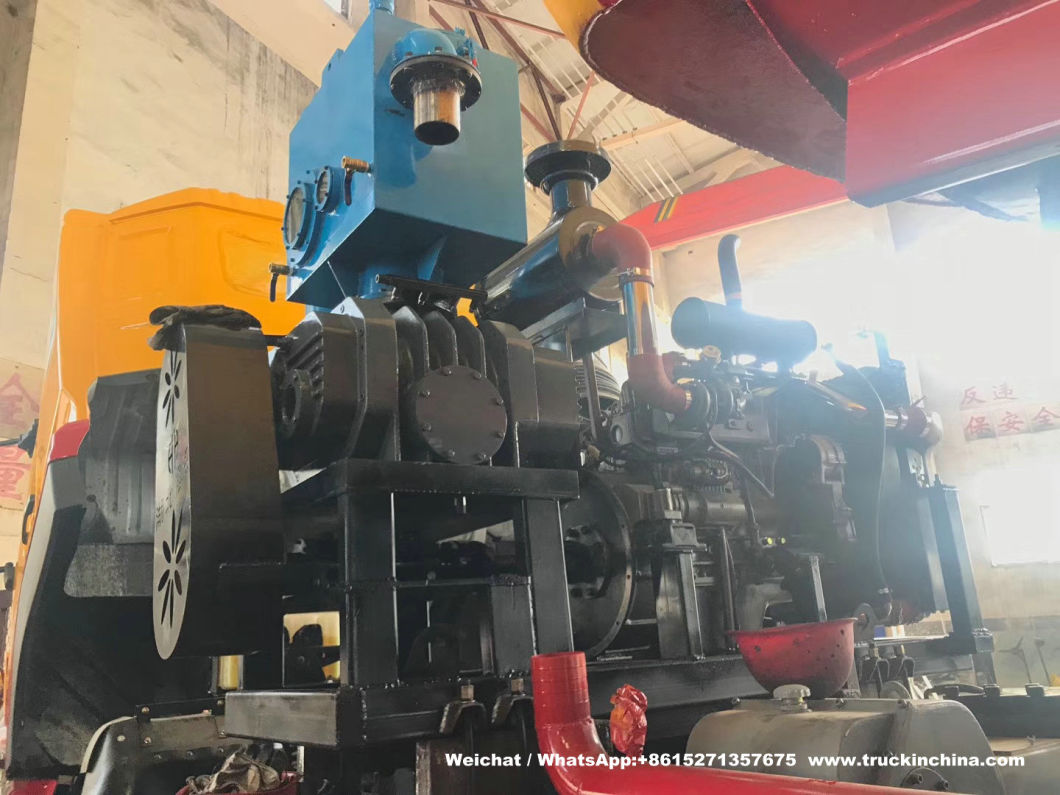

Vacuum system


Vacuum pump Liquid ring vacuum pump
Max vacuum level 95%
Continuous vacuum level 80%
Rotate speed Max 900r/min
Pump cooling Cooling Water tank 1,000L, mounted behind cab
Protection 1.Aluminum filter 2. Vacuum pressure relief valve
Telescopic suction boom

Stainless steel material. Swivel in both vertical and horizontal plane.

270°horizontal rotation, 6m working radius, 6m below ground and 1.4m extension..


High Pressure Combined Vacuum Sewage Sewer Water Jetting Truck

Reverse discharge system

Pressure switch system allows reverse discharging filtered water via suction boom or outlet valve, with only mud or solid waste left in tank. This reduces cycle dumping time, no need to go and back many times.

Technical parameters of shacman 18 ton vacuum truck for sale

Items Descriptions Specifications and Types
General Truck Name Combined sewer truck
Drive Type 6*4
Gross Vehicle Weight(kg) 25000
Curb Weight (kg) 13000
Overall Dimensions L*W*H(mm) 11000×2500×3270
Engine Engine Model WP10.290E32
Engine Brand Wei Chai
Fuel Type Diesel
Power 290HP
Emission Standard Euro II
Displacement(ml) 9760
Engine Type 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Chassis Chassis Brand SHACMAN
Tire No. 10+1
Tire Specification 12.00R20 Steel tire
Wheelbase (mm) 4375+1400
Axle No. 3
Front Axle MAN 7.5T
Rear Axle MAN 13T double grade
Steering Wheel Left Hand Drive with power-assisted
Gear Box FAST 9 speed forward with 2 reverse, manual
Brake Air brake
Air Conditional Suitable for tropical climate
Tank Tank Material Carbon steel
Tank Shape Cylindrical
Waste water tank volume(L) 18000
Pump High pressure vacuum Italy imported
Vacuum pump Domestic Weilong pump
Hose Suction hose length(m) 6x2


Above vacuum suction tank truck specifications is just for reference


30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck )
