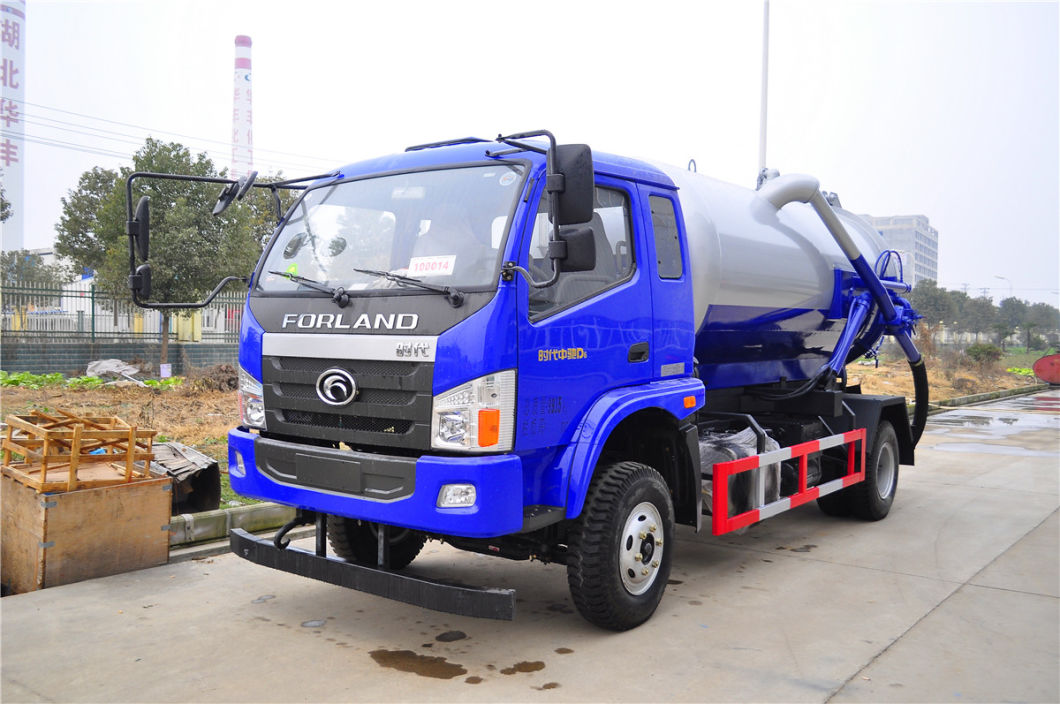

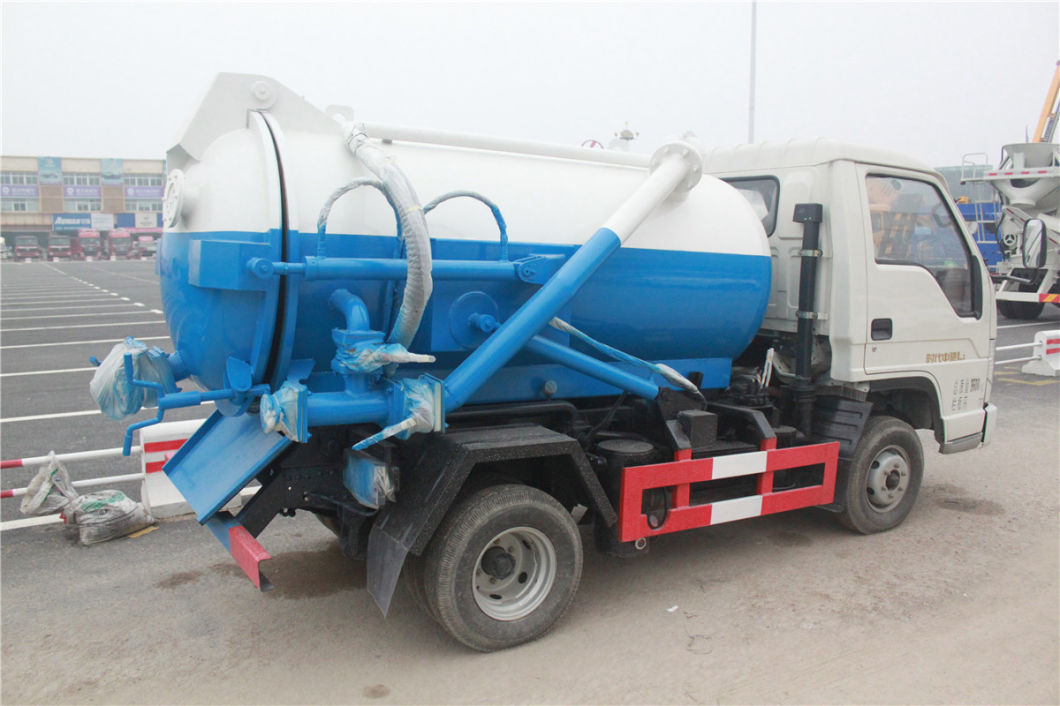

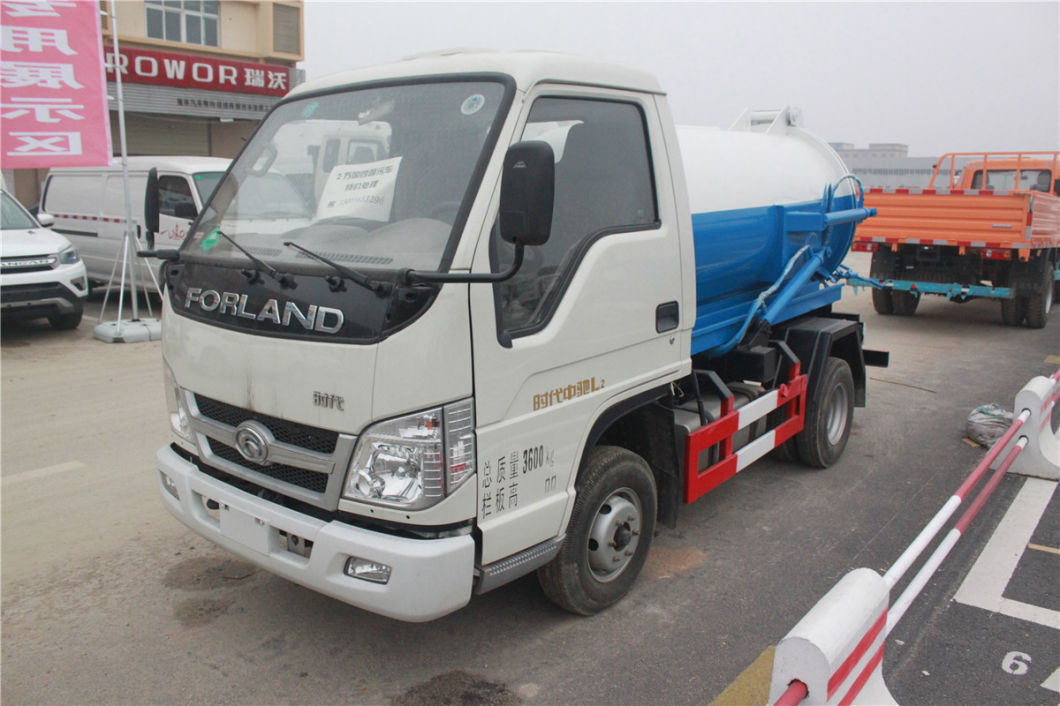

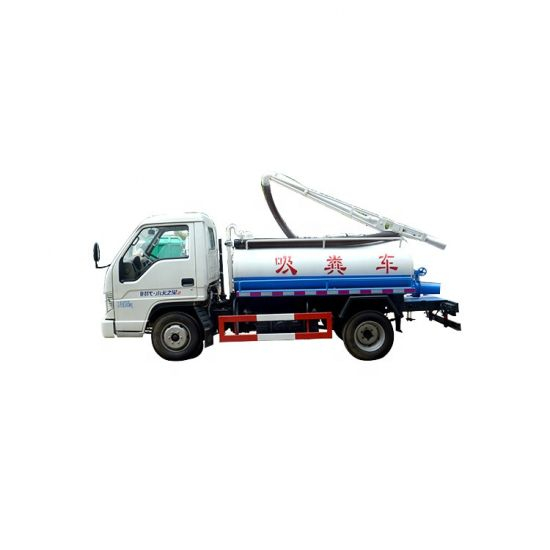

Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Tanker Sewer Cleaner

Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Tanker Sewer Cleaner

Quantity:
  • DRZ5060
  • FOTON
  • 8705
  • Shanghai, China
  • 80000
  • T/T
Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Sewer Cleaner

carbon - stainless steel

RHD OR LHD 4x4 - 4x2



Clean water Tank Capacity     Litres
Sewer water tank capacity    3000 litres
High pressure pump    High pressure pump pressure 16mpa, flow rate 130L/min
Vacuum pump    China famous brand water ring pump sk-6
RHD OR LHD Truck

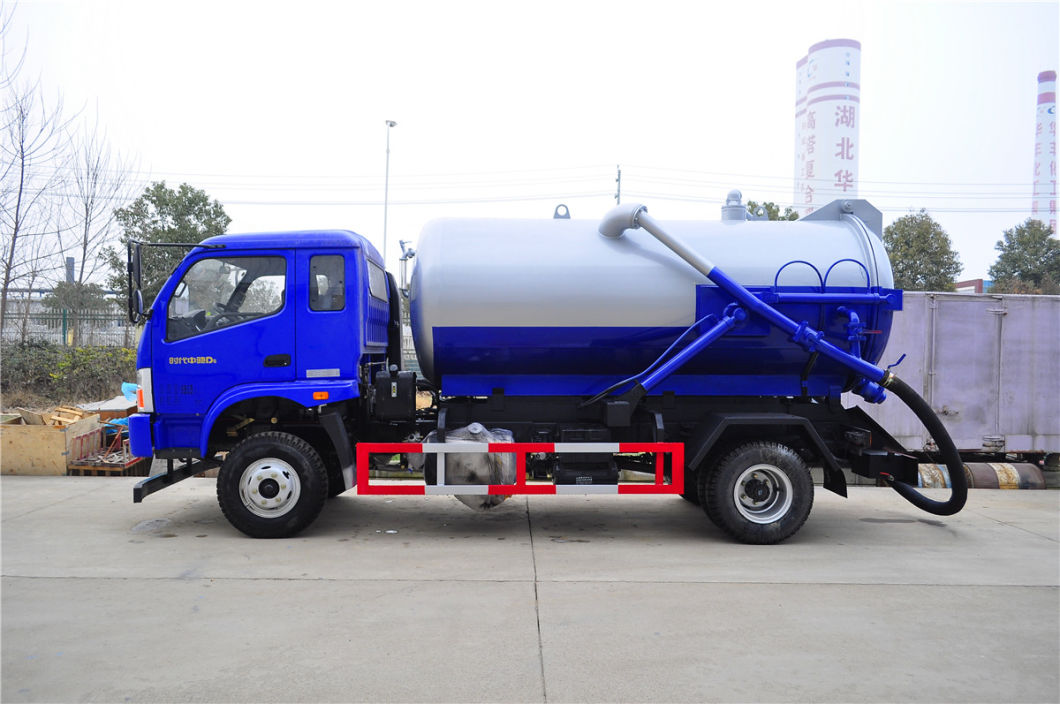

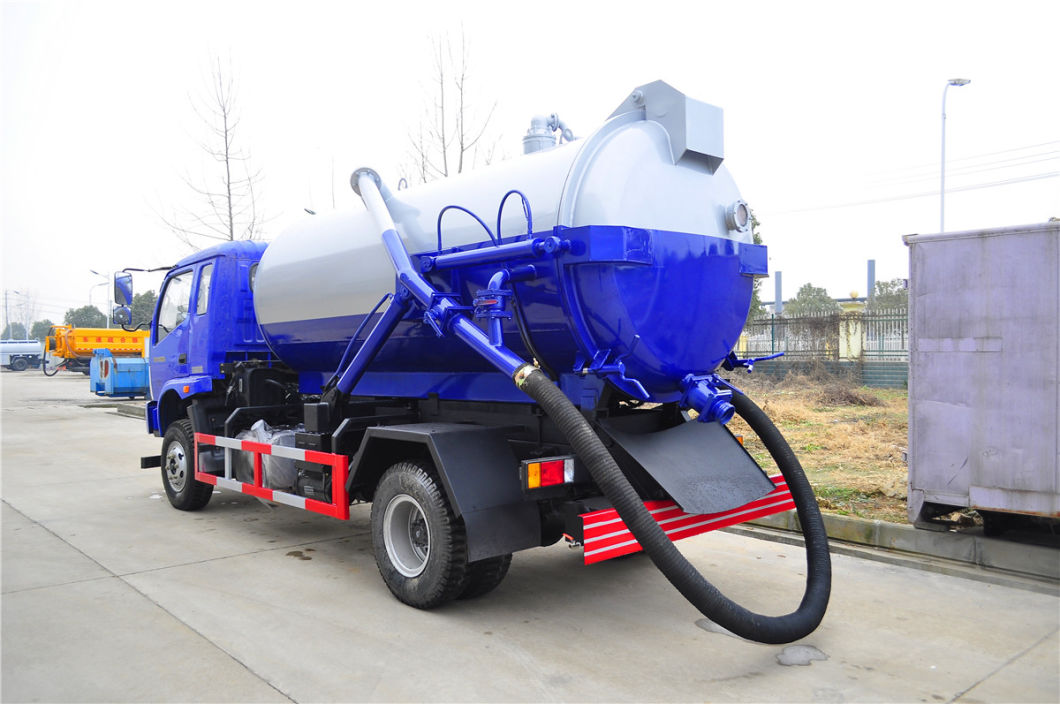

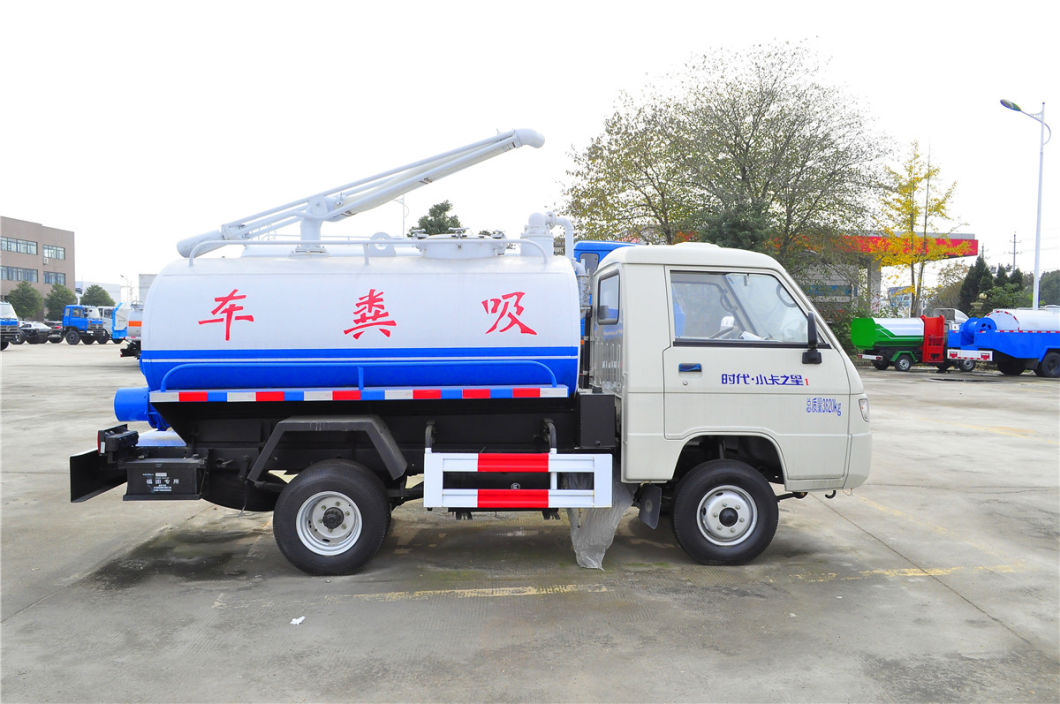

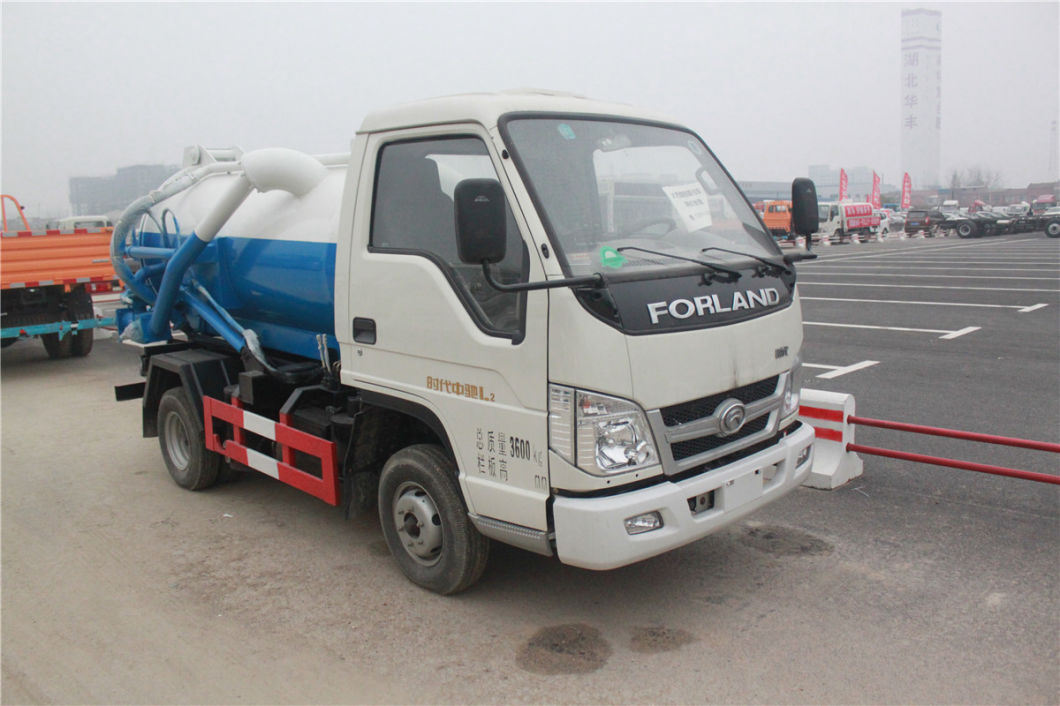

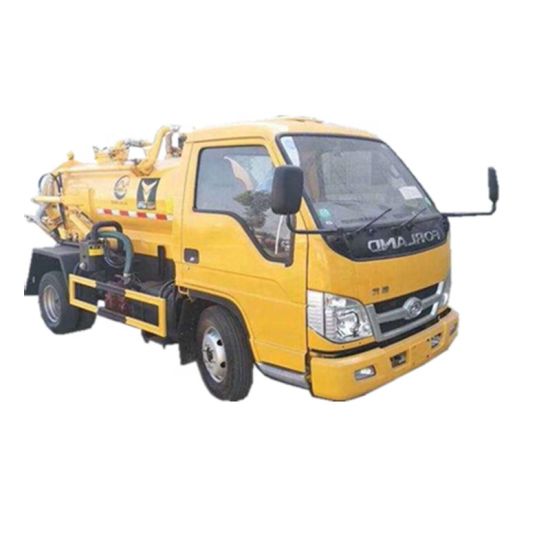

The pictures are for your reference only.


Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Tanker Sewer Cleaner
Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Tanker Sewer Cleaner
Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Tanker Sewer Cleaner
Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Tanker Sewer Cleaner
Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Tanker Sewer Cleaner
Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Tanker Sewer Cleaner
Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Tanker Sewer Cleaner
Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Tanker Sewer Cleaner



Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Tanker Sewer Cleaner
Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Tanker Sewer Cleaner

Sewage suction truck capacity from 3000 litres to 20,000 litres

Fecal suction truck capacity from 3000 litres to 10,000 litres



septic tank truck, sewage suction truck, toilet truck, sewer truck, vacuum truck



Detailed Product Description

Right hand drive or left hand drive FOTON forland 4x2 3000Liters 4000Liters vacuum tank sewage suction truck hot sales


Vehicle information list

Truck brand

Forland

Truck model

BSX5040GXW

Total mass

5980

Tanker volume

4000L

Rated mass

3000

Vehicle size

5255×1890×2410

Curb weight

2550

Cabin seat

2

A/D angle

23/17

F/R hang

1090/1365

Axles

2

Wheel base

2800

Axles loading

1480/2500

Max speed

90



Chassis information list

Chassis model

BJ1043V8JD5-S1

Tyre quantity

6

Tyre size

6.50-16

Leaf spring quantity

7/7+5

Front track

1415,1510

Fuel type

Diesel

Rear track

1425

Standard

Euro III

Engine model

4D22E

92HP

Displacement/power

2540ml/67kw

Material: -


Carbon Steel

Capacity of the tank


3 m3

type


Cylindrical, thickness of the tank 5 mm. The container is equipped with splash walls and reinforced around it's circumference by U-profiles

over pressure.

0.5 bars

Inclination

towards the rear

Construction

completely welded,full welding

Indicator mark level of the sewage on the tank

for maximum and minimum

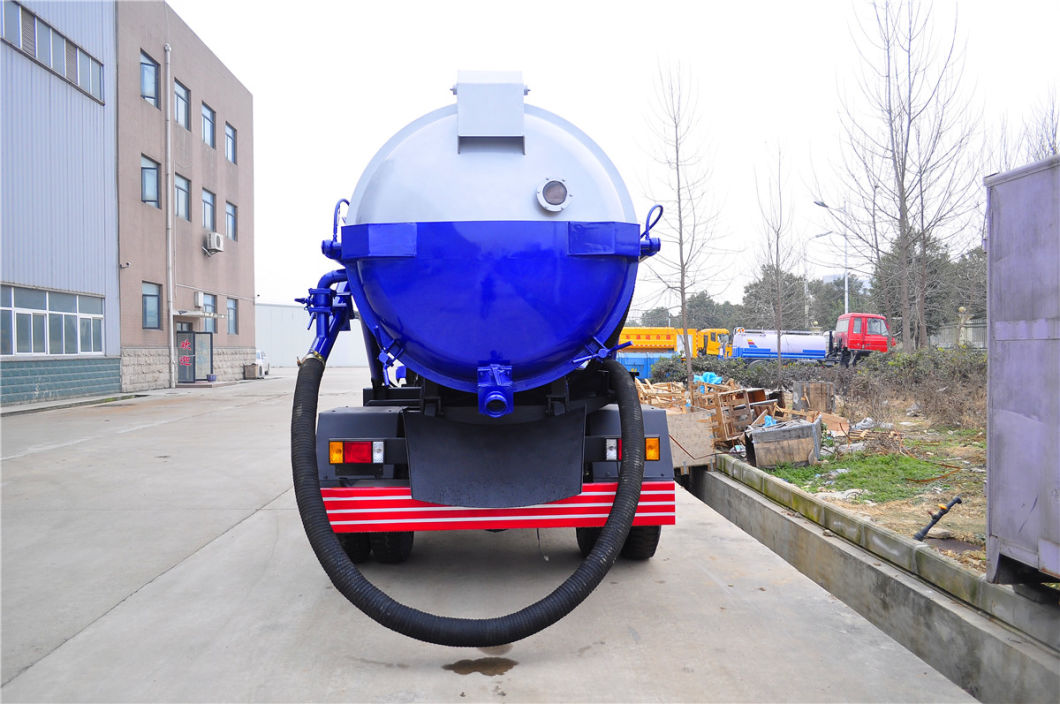

Tailgate

tightly locked with bolts, can be opened over the whole section laterally for maintenance and cleaning purposes. It shall be equipped with four inspection glasses

.Valve


Four way cock for suction and pressure, protection valve in front of vacuum pump

Drive


Direct drives from power take off Mechanically or Hydraulically.

Filling level indication


by sight glass including mechanical clearing connection mounted right in front of the tank

If there is additional indication systems takes the priority

Vacuum pump

Rotary type Air cooled



Capacity

300 m3/h


Location

between the cab and tanker or at the side of the tanker

Suction(Lifting capacity

minimum 0.2 m3 per minute at a depth of not less than 10 meter

Drives

Direct from power take off.

Suction and pressure system  non return valve

DN 80, non-return valve and silencer in the pressure line

valve

Four-way-cock for suction and pressure manually controlled

safety valve

for maintenance of the pressure.

.


Corrosion-resistance ball float valve with one ball at the highest point of the sludge tank.

Safety pot with cyclonic cleaner. Easy maintenance by special cleaning door

Ball float valve in the safety pot

Fine mesh filter in the suction part of the vacuum pump with easily inter changeable rust proof filter element

Oil filling at the end of the pipe

High capacity cyclone between sewage tank and vacuum pump

Two hose trays

L=3200mm(volume according to space) open, made of galvanized steel, are fitted at the right-and-left-hand side


Suction hoses

oil resistance,light,Flexible heavy duty suction hose,L=3 meters, dia100 mm,14PCS

Connection

efficient, airtight and have simplified design, compatible with couplings on truck.


Hose retainer located in the tank sides.


4000liters Forland Small Fecal Tanker Truck


Chassis model

BJ1043V9JE6-MS

Dimensions

mm

5990*1990*2350

Fact cubage

cbm

4

Engine

(Weichai Power Co., Ltd)

CA4DC2-10E3

(Euro3 emission standard)

Exhaust & engine power

3168ml, 76kw

Max speed

90km/h

Mass in working order

kg

2755

G.V.W

4400

Axle load

1760/2640

Wheel base

mm

3200

F/R track base

1590/1525

Suspension

1100/1620

Approach/departure angel

°

23/17

Tire specification

6.50-16, 6.50R16, 7.00-16, 7.00R16

Number of axles

2

Basic equipment of sludge tank  truck

Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,

water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.

1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed

hydraulically. With full opening design, discharge can be very quick&complete.


2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.


3.Super power of vacuum pump, seamless die casted sheel cover, designing for container  with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit

emptier.

 brand new high pressure vacuum suction truck

Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Tanker Sewer Cleaner
Septic Tank Truck Forland 3000 Liters Mini Fecal Suction Truck Vacuum Tanker Sewer Cleaner

The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.



Looking forward to receiving your inquiry!
