Quantity: | |
---|---|
Vehicle Description | |
Overall dimensions | 6000*2100*2600mm |
GVW | 7300kg |
Mass in working order | 4000kg |
Chassis brand | ISUZU |
Traction type | 4*2 |
Vehicle Description | |
Overall dimensions | 6000*2100*2600mm |
GVW | 7300kg |
Mass in working order | 4000kg |
Chassis brand | ISUZU |
Traction type | 4*2 |
Tanker Description | ||
Tanker | Capacity | 4cbm |
Material | 5mm thickness, high quality carbon steel | |
Structure | Welding, vacuum tank, Cylindrical | |
Pump | Type | Vacuum pump |
Flux | 45(L/S) | |
Rating speed | 500~800(r/min) | |
Shaft power | 4(kw) | |
Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | |
Manufacture | Hangzhou WEILONG Pump Co., Ltd. | |
Pipe | Suction and discharge pipe | |
Special function | Suction time ≤ 5min, Effective suction range ≥ 8, Max vacuum degree ≤ 15 Kpa, dump angle ≥ 45 | |
Standard configuration | Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. | |
Optional configuration | Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank |
Chassis Description | ||
Chassis model | QL1040A1HAY | |
Steering | LHD | |
Cab | 600P,single row, with A/C | |
Wheelbase | 3360mm | |
Tire specification | 7.00-16 | |
Tire quantity | 6 tires and 1 spare tire | |
Engine | Engine model | 4KH1-TCG |
Emission level | EURO 5 | |
Displacement/output | 2999ml/88kw | |
Horse power | 120hp | |
Gear box | Model | ISUZU MSB |
Number of gears | 5-speed | |
Brake system | Air break | |
Axle | Front | 2.5T |
Rear | 4.8T | |
Fuel tanker | Type | Stainless steel |
Capacity | 140L |
Customizing | Recovery Wrecker | Special Car | Tanker truck | Aerial platform truck | Concrete mixer | Crane truck | Road Sweeper | Skip Loader | Vacuum truck Combined Jetting | Water Sprinkler truck | Fire Trucks | Milk Tank Truck | Sprayer tank Truck | Chemical Liquid Tanker | LPG Tanker | LED Advertising truck | Mobile fast food cooking truck | Mobile generator truck | Mobile workshop maintenance lorry
Isuzu QL1040A7HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG51 | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 88 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2020 |
Isuzu QL1060A5KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6665 × 1980 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 6500 |
Fuel type: | diesel fuel | Curb weight (kg): | 2180 |
Isuzu QL1044A5HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2050 |
Isuzu QL1045A6HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2050 |
Isuzu QL1240DTFZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCSG40 | Wheelbase (mm): | 5700+1300 |
Displacement (cc): | 7790 | Dimensions (mm): | 11497 × 2465 × 2810 |
Power (kW): | 206 | Gross weight (kg): | 24000 |
Fuel type: | diesel fuel | Curb weight (kg): | 7300 |
Isuzu QL1080A8PAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 5200 |
Displacement (cc): | 5193 | Dimensions (mm): | 8912 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 8100 |
Fuel type: | diesel fuel | Curb weight (kg): | 3200 |
Isuzu QL1040A5FWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5230 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2100 |
Isuzu QL10909MARY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TCG40 | Wheelbase (mm): | 4475 |
Displacement (cc): | 5193 | Dimensions (mm): | 7930 × 2170 × 2350 |
Power (kW): | 139 | Gross weight (kg): | 9410 |
Fuel type: | diesel fuel | Curb weight (kg): | 3040 |
Isuzu QL10909KARY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TCG40 | Wheelbase (mm): | 3815 |
Displacement (cc): | 5193 | Dimensions (mm): | 6980 × 2170 × 2350 |
Power (kW): | 139 | Gross weight (kg): | 9390 |
Fuel type: | diesel fuel | Curb weight (kg): | 2970 |
Isuzu QL1072A5KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6760 × 1995 × 2260 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2250 |
Isuzu QL1100A8MAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 4475 |
Displacement (cc): | 5193 | Dimensions (mm): | 7930 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10000 |
Fuel type: | diesel fuel | Curb weight (kg): | 3210 |
Isuzu QL1160VQFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 5550 |
Displacement (cc): | 5193 | Dimensions (mm): | 8835 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5225 |
Isuzu QL1160VKFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 3900 |
Displacement (cc): | 5193 | Dimensions (mm): | 6435 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 4990 |
Isuzu QL1100A8PAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 5200 |
Displacement (cc): | 5193 | Dimensions (mm): | 8912 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10000 |
Fuel type: | diesel fuel | Curb weight (kg): | 3310 |
Isuzu QL1100A8KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 3815 |
Displacement (cc): | 5193 | Dimensions (mm): | 6980 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10000 |
Fuel type: | diesel fuel | Curb weight (kg): | 3180 |
Isuzu QL1180XMFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCL | Wheelbase (mm): | 4500 |
Displacement (cc): | 7790 | Dimensions (mm): | 7570 × 2490 × 2810 |
Power (kW): | 177 | Gross weight (kg): | 18000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5500 |
Isuzu QL1180XQFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCL | Wheelbase (mm): | 5550 |
Displacement (cc): | 7790 | Dimensions (mm): | 8855 × 2490 × 2810 |
Power (kW): | 177 | Gross weight (kg): | 18000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5730 |
Isuzu QL1160VMFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 4500 |
Displacement (cc): | 5193 | Dimensions (mm): | 7570 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5090 |
Isuzu QL1100A8LAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 4175 |
Displacement (cc): | 5193 | Dimensions (mm): | 7430 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10055 |
Fuel type: | diesel fuel | Curb weight (kg): | 3200 |
Isuzu QL1160VNFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 5000 |
Displacement (cc): | 5193 | Dimensions (mm): | 8835 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5210 |
Isuzu QL1250WRFZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCH | Wheelbase (mm): | 5100+1300 |
Displacement (cc): | 7790 | Dimensions (mm): | 10210 × 2490 × 2810 |
Power (kW): | 221 | Gross weight (kg): | 25000 |
Fuel type: | diesel fuel | Curb weight (kg): | 7820 |
Isuzu QL1250WPFZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCH | Wheelbase (mm): | 4650+1300 |
Displacement (cc): | 7790 | Dimensions (mm): | 9410 × 2490 × 2810 |
Power (kW): | 221 | Gross weight (kg): | 25000 |
Fuel type: | diesel fuel | Curb weight (kg): | 7540 |
Isuzu QL1250WTFZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCH | Wheelbase (mm): | 5700+1300 |
Displacement (cc): | 7790 | Dimensions (mm): | 11575 × 2490 × 2810/3610 |
Power (kW): | 221 | Gross weight (kg): | 25000 |
Fuel type: | diesel fuel | Curb weight (kg): | 8100, 8300 |
Isuzu QL1040A5FAY (batch 88)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 4715 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 1980 |
Isuzu QL1071A5FAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5310 × 1995 × 2260 |
Power (kW): | 96 | Gross weight (kg): | 7120 |
Fuel type: | diesel fuel | Curb weight (kg): | 2170 |
Isuzu QL1040A6FWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5230 × 1880 × 2160 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2050 |
Isuzu QL1040A5EWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2490 |
Displacement (cc): | 2999 | Dimensions (mm): | 4605 × 1695 × 2120 |
Power (kW): | 96 | Gross weight (kg): | 4000 |
Fuel type: | diesel fuel | Curb weight (kg): | 1900 |
Isuzu QL1043A5HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5995 × 1995 × 2260 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2200 |
Isuzu QL1042A6HWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2180 |
Isuzu QL1040A6FAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5230 × 1880 × 2160 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 1950 |
Isuzu QL1040A5HWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2150 |
Isuzu QL1071A5KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6665 × 1980 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2150 |
Isuzu QL1071A5HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5995 × 1995 × 2260 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2200 |
Isuzu QL1040A6EAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 2490 |
Displacement (cc): | 2999 | Dimensions (mm): | 4605 × 1695 × 2120 |
Power (kW): | 72 | Gross weight (kg): | 4000 |
Fuel type: | diesel fuel | Curb weight (kg): | 1750 |
Isuzu QL1040A6EWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 2490 |
Displacement (cc): | 2999 | Dimensions (mm): | 4605 × 1695 × 2120 |
Power (kW): | 72 | Gross weight (kg): | 4000 |
Fuel type: | diesel fuel | Curb weight (kg): | 1900 |
Isuzu QL1044A6HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5995 × 1995 × 2260 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2200 |
Isuzu QL1040A5HAY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2000 |
Isuzu QL1070A5KWY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6665 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 6810 |
Fuel type: | diesel fuel | Curb weight (kg): | 2300 |
Isuzu QL1042A5HAY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2020 |
Isuzu QL1040A6HWY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2130 |
Isuzu QL1043A6HAY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4170 |
Fuel type: | diesel fuel | Curb weight (kg): | 2000 |
Isuzu QL1070A5FAY (batch 85)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5230 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 6720 |
Fuel type: | diesel fuel | Curb weight (kg): | 2050 |
Isuzu QL1070A5KAY (batch 85)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6665 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2110 |
Isuzu QL1040A6HAY (batch 85)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 1950 |
Isuzu QL1042A6HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2000 |
Isuzu QL1070A5HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2080 |
Isuzu QL1070A5HWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 6750 |
Fuel type: | diesel fuel | Curb weight (kg): | 2160 |
Isuzu QL1075A1HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5995 × 2020 × 2260 |
Power (kW): | 88 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2160 |
Isuzu QL1073A1KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6805 × 2020 × 2300 |
Power (kW): | 88 | Gross weight (kg): | 7495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2210 |
Isuzu QL1250AVCKY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCNG40 | Wheelbase (mm): | 1850+5650 |
Displacement (cc): | 7790 | Dimensions (mm): | 11765 × 2490 × 3025 |
Power (kW): | 177 | Gross weight (kg): | 25000 |
Fuel type: | diesel fuel | Curb weight (kg): | 7750 |
Isuzu QL1043A1HAY (batch #267)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5995 × 2020 × 2260 |
Displacement (cc): | 2999 | Gross weight (kg): | 4495 |
Power (kW): | 88 | Curb weight (kg): | 2140 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 1750/2745 |
Isuzu QL11009HARY (batch #267)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TCG40 | Dimensions (mm): | 5940 × 2170 × 2330/2410 |
Displacement (cc): | 5193 | Gross weight (kg): | 10000 |
Power (kW): | 139 | Curb weight (kg): | 2950 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 3350/6650 |
Isuzu QL1061A1HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5900 × 1880 × 2160 |
Displacement (cc): | 2999 | Gross weight (kg): | 5800 |
Power (kW): | 88 | Curb weight (kg): | 1900 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 2050/3750 |
Isuzu QL1042A1HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5900 × 1980 × 2150 |
Displacement (cc): | 2999 | Gross weight (kg): | 4495 |
Power (kW): | 88 | Curb weight (kg): | 1905 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 1805/2690 |
Isuzu QL1250UPCZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 9375 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 24700 |
Power (kW): | 257 | Curb weight (kg): | 8200 |
Wheelbase (mm): | 4605+1300 | Axle loads (kg): | 6700/18000 |
Isuzu QL1250URCZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 10170 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 25000 |
Power (kW): | 257 | Curb weight (kg): | 8300 |
Wheelbase (mm): | 5100+1300 | Axle loads (kg): | 7000/18000 |
Isuzu QL1250UACZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 8440 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 25000 |
Power (kW): | 257 | Curb weight (kg): | 8120 |
Wheelbase (mm): | 4025+1300 | Axle loads (kg): | 7000/18000 |
Isuzu QL1250ULCZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 7655 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 25000 |
Power (kW): | 257 | Curb weight (kg): | 8055 |
Wheelbase (mm): | 3600+1300 | Axle loads (kg): | 7000/18000 |
Isuzu QL1250UTCZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 11745 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 24700 |
Power (kW): | 257 | Curb weight (kg): | 8400 |
Wheelbase (mm): | 5820+1300 | Axle loads (kg): | 6700/18000 |
Isuzu QL1310URCHY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 9695 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 31000 |
Power (kW): | 257 | Curb weight (kg): | 8950 |
Wheelbase (mm): | 1850+3320+1300 | Axle loads (kg): | 6500/6500/18000 |
Isuzu QL1310UVCHY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 11745 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 31000 |
Power (kW): | 257 | Curb weight (kg): | 9100 |
Wheelbase (mm): | 1850+4615+1300 | Axle loads (kg): | 6500/6500/18000 |
Isuzu QL1040A1FAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5230 × 1880 × 2150 |
Displacement (cc): | 2999 | Gross weight (kg): | 3780 |
Power (kW): | 88 | Curb weight (kg): | 1870 |
Wheelbase (mm): | 2765 | Axle loads (kg): | 1310/2470 |
Isuzu QL1041A1HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5900 × 1880 × 2150 |
Displacement (cc): | 2999 | Gross weight (kg): | 3790 |
Power (kW): | 88 | Curb weight (kg): | 1800 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 1315/2475 |
ISUZUseries | wheelbase mm | cabin | Isuzu model | equipments | |||||
ISUZU100P light truck EURO 5 | 2490 | single cabin | QL1040A6EAY | 4KH1CN5LS Isuzu 4KH1CN5LS diesel engine 98hp, Euro 5 emission, MSB five gears transmission, with A/C, hydraulic assist, front axle 2T, rear axle 4T, with ABS, tyre 7.00R16, double circuit type oil brake. single row cabin tiltable. hazardous chemicals transport truck chassis add disc brake, front mounted exhuast pipe, speed limit, speed limit device, exhaust brake. | |||||
double cabin | QL1040A6EWY | ||||||||
2765 | single cabin | QL1040A6FAY | |||||||
double cabin | QL1040A6FWY | ||||||||
3360 | single cabin | QL1040A6HAY | QL1042A6HAY | QL1043A6HAY | |||||
QL1045A6HAY | |||||||||
single cabin wider | QL1044A6HAY | ||||||||
single with sleeper | |||||||||
double cabin | QL1040A6HWY | QL1042A6HWY | |||||||
3815 | single cabin | ||||||||
double cabin | |||||||||
600P | 2490 | single cabin | Isuzu 4KH1CN5HS diesel engine 130hp,Euro 5 emission, MSB five gears transmission, with A/C, hydraulic assist, front axle 2.5T, rear axle 4.8T, with ABS, tyre 7.00R16, double circuit type oil brake. single row cabin tiltable, double row cabin can not tiltable. hazardous chemicals transport truck chassis add disc brake, front mounted exhuast pipe, speed limit device, exhaust brake. | ||||||
double cabin | QL1040A5EWY | ||||||||
2765 | single cabin | QL1070A5FAY | QL1040A5FAY | QL1071A5FAY | |||||
double cabin | QL1040A5FWY | ||||||||
3360 | single cabin | QL1070A5HAY | QL1071A5HAY | QL1040A5HAY | |||||
QL1044A5HAY | |||||||||
single cabin | QL1040A7HAY | ||||||||
single with sleeper | |||||||||
double cabin | QL1070A5HWY | QL1040A5HWY | |||||||
single cabin wider | QL1043A5HAY | ||||||||
3815 | single cabin | QL1070A5KAY | QL1071A5KAY | ||||||
QL1060A5KAY | |||||||||
single cabin wider | QL1072A5KAY | ||||||||
single with sleeper | |||||||||
double cabin | QL1070A5KWY | ||||||||
700P ISUZU middle truck | 3360 oil brake | single cabin | Isuzu 4HK1-TC51 diesel engine 190hp, Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, front axle 4T, rear axle 7T, tyre 235/75R17.5, double circuit type oil brake. | ||||||
3815 oil brake | single cabin | ||||||||
single cabin | |||||||||
4175 oil brake | single cabin | ||||||||
4475 oil brake | single cabin | ||||||||
single cabin | |||||||||
single with sleeper | |||||||||
5200 oil brake | single cabin | QL1080A8PAY | |||||||
single with sleeper | |||||||||
3815air brake | single cabin | QL1100A8KAY | Isuzu 4HK1-TC51 diesel engine 190hp, Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, front axle 4T, rear axle 7T, tyre 235/75R17.5, exhaust brake. | ||||||
4175air brake | single cabin | QL1100A8LAY | |||||||
4475air brake | single cabin | QL1100A8MAY | |||||||
5200air brake | single cabin | QL1100A8PAY | |||||||
FTR ISUZU middle truck | 3900 | single with sleeper | QL1160VKFRY | Isuzu 4HK1-TC50 diesel engine 205hp,Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, central lock,power window, front axle 6.3T, rear axle 13T, tyre 10.00R20 , exhaust brake. | |||||
4500 | single with sleeper | QL1160VMFRY | |||||||
4700 | single with sleeper | ||||||||
5000 | single with sleeper | QL1160VNFRY | |||||||
5550 | single with sleeper | QL1160VQFRY | |||||||
5800 | single with sleeper | QL5160XXYVRFRY | |||||||
FVR heavy duty EURO5 | 3900 | single with sleeper | Isuzu 6HK1-TCL diesel engine 240hp,Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, central lock,power window, front axle 6.3T, rear axle 13T, with ABS, tyre 295/80R22.5, exhaust brake. | ||||||
4500 | single with sleeper | QL1180XMFRY | |||||||
4700 | single with sleeper | ||||||||
5000 | single with sleeper | ||||||||
5550 | single with sleeper | QL1180XQFRY | |||||||
5800 | single with sleeper | QL5180XXYXRFRY | |||||||
1850+5650 | single with sleeper | 6HK1-TCL power 240hp | |||||||
4500 | single with sleeper | QL5190GXFWMFRY | 6HK1-TCH power 300hp | ||||||
FVZ ISUZU heavy duty EURO5 | 4000+1300 | single with sleeper | Isuzu 6HK1-TCH diesel engine 300hp,Euro 5 emission, FAST nine gears transmission, with A/C, hydraulic assist, central lock,power window, front axle 7T, rear axle 18T(double axles), with ABS, tyre 11.00R20, exhaust brake. | ||||||
4350+1300 | single with sleeper | ||||||||
4650+1300 | single with sleeper | QL1250WPFZY | |||||||
4900+1300 | single with sleeper | ||||||||
5100+1300 | single with sleeper | QL1250WRFZY | |||||||
5400+1300 | single with sleeper | ||||||||
5700+1300 | single with sleeper | QL1250WTFZY | |||||||
VC61 ISUZU heavy duty EURO5 | 4650 | single with sleeper | |||||||
3385+1370 | single with sleeper | QL4250W2NCZ | 6WG1-TCG51 power 450hp | ||||||
3600+1300 | single with sleeper | ||||||||
4025+1300 | single with sleeper | ||||||||
4605+1300 | single with sleeper | ||||||||
5100+1300 | single with sleeper | ||||||||
5820+1300 | single with sleeper | ||||||||
4605+1300 | single with sleeper | ||||||||
1850+3320+1300 single with sleeper | 6WG1-TCG51 power 450hp | ||||||||
1850+4575+1370 single with sleeper | QL5400GXFW2VCHY |
$27,300.00 / Set

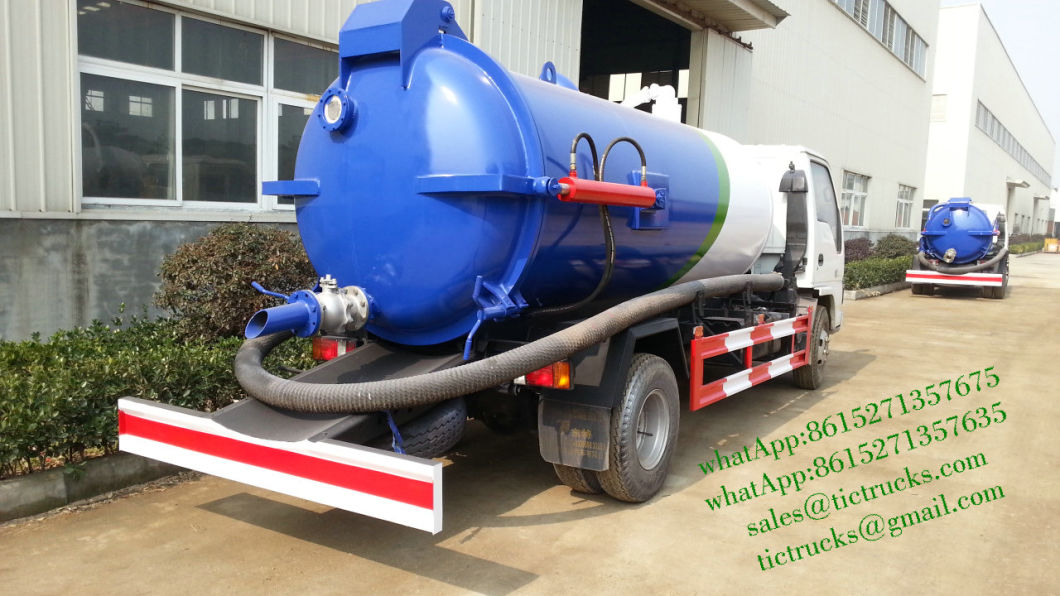

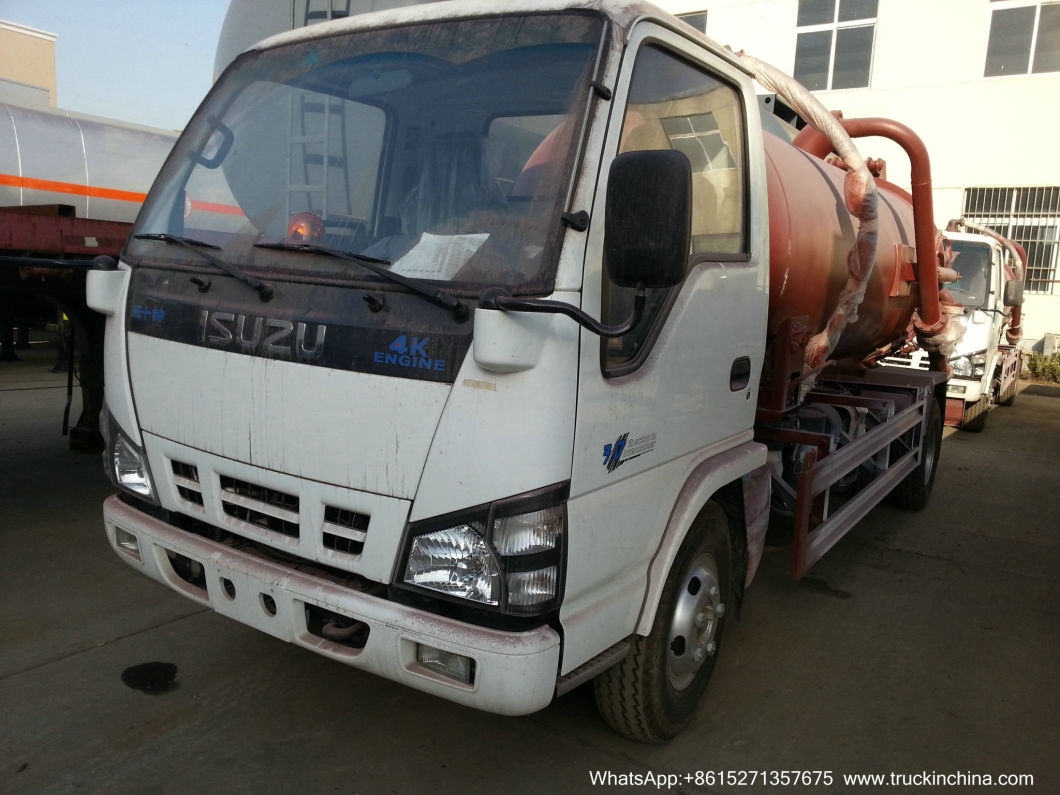

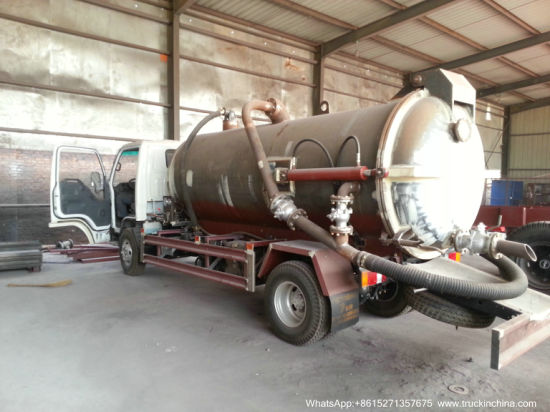

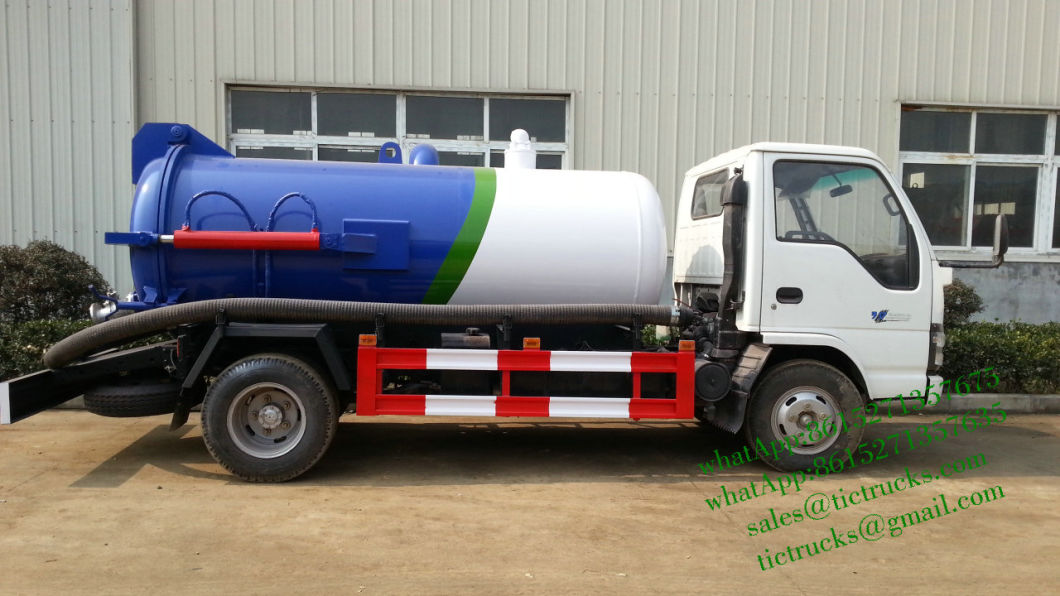

ISUZU 700p sewer vacuum truck 7000L Applications
1).Hydrodynamic sewer and pipeline dredging and cleaning.
2).Hydrodynamic drain line dredging and cleaning.
3).High pressure surface cleaning.
4).High pressure industrial cleaning.
ISUZU SEWAGE SUCTION Truck ISUZU 700p sewer vacuum truck 7000L
Overall dimension(LxWxH)mm | 6980×2400×2580 |
G V W(kg) | 11070 |
Payload (kg) | 6000 |
Kerb mass(kg) | 4920 |
Approach/Departure Angle(°) | 21/13. |
Front/Rear Suspension (mm) | 1110/2055. |
Fuel Type | Diesel |
Fuel consumption(L/100km) | 9 |
Top speed | 95 |
Model | 4HK1-TC |
Exhaust/Power(kw) | 5193CC / 129KW 190hp |
Manufacturer | ISUZU Motor Co., Ltd. |
Type | 4-in-line electric control Common Rail Diesel Engine |
Drive type | 4×2 |
Wheelbase (mm) | 3815 |
Tread(front/rear)mm | 1680 / 1650. |
Front Bridge | 4 Ton |
Rear Bridge | 7 Ton |
Transmission | Double spoke wheel, circle ball transmission |
Gear box | Five forward gear, one reverse gear, mechanical transmission, flexible wiredraw operate |
Clutch | Uniwafer, dry membrane spring clutch |
Brake system | Air brake |
Cab | 0 |
Number of spring axles(front/rear) | 9/14. |
Tire specification | 9.5R17.5,8.25-20,8.25R20 |
Air condition | Chose to fix |
suction pump | Single Stage Rotary Oil Seal Vacuum Pump |
Vertical suction heihgt | ≥8 |
working pressure | 8500Pa |
rotation speed | 500 |
suction speed | 98L/S |
power | 5.5kw |
inlet diatmeter | 50mm |
filling time | 5s |
discharge time | 4s |

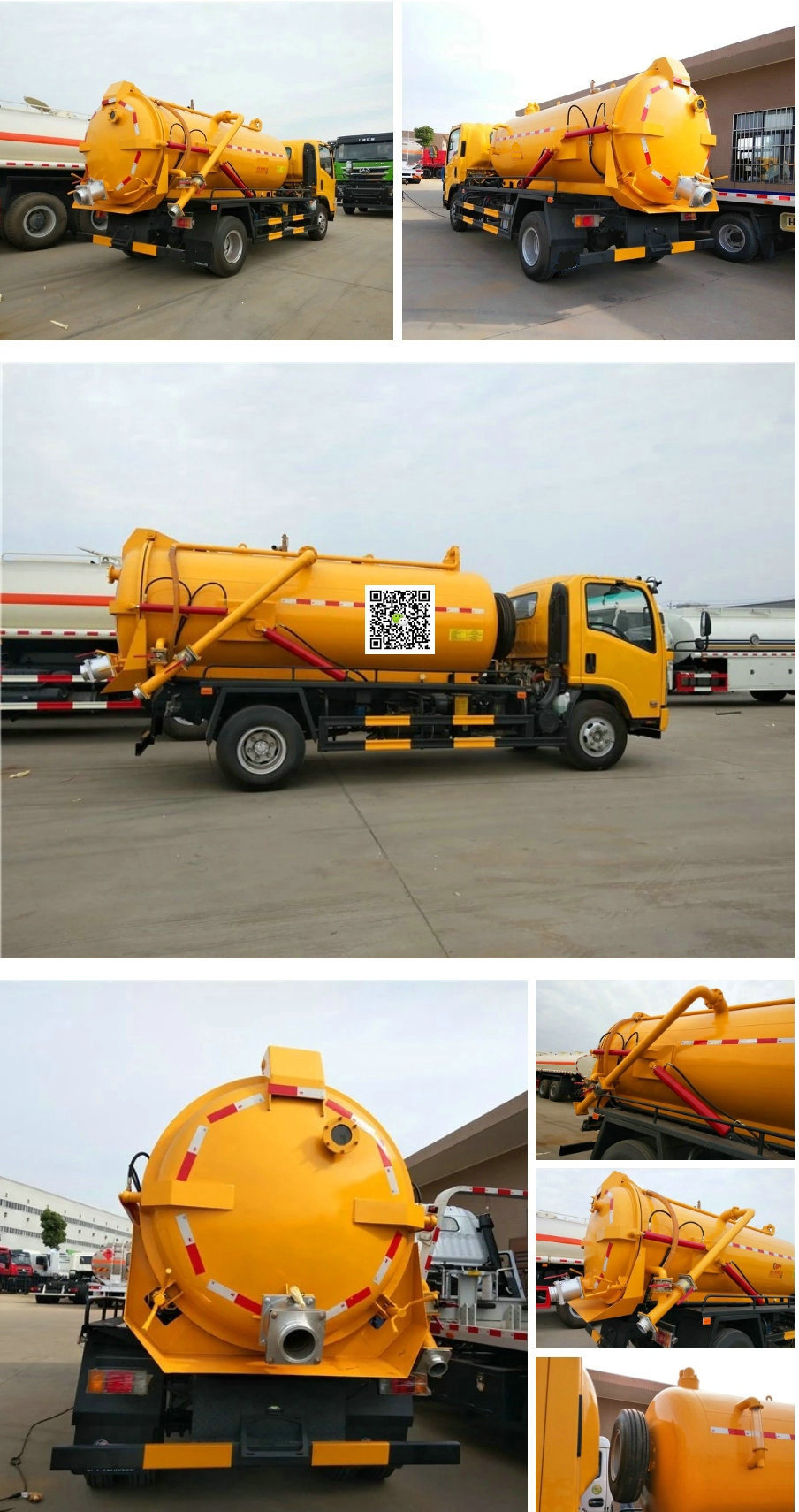

ISUZU vacuum Sewage Suction Truck 6000Liters
5-6CBM vacuum sewage suction truck wholesale good price, 5000Liters Sewage Suction Truck, 5000Liters Vacuum Truck, 6000Liters Dirty Water Suction Truck, 6000Liters Toilet Trucks, 6000Liters Vacuum Truck, 8000Liters Sludge Trucks, 8000Liters Toilet Trucks, 8000Liters vacuum sewage suction truck, 8000Liters Vacuum Trucks, 8cbm Sludge Trucks, 8m3 sludge trucks, 8m3 Vacuum Sewage Suction Trucks, 8Tons Sludge Truck, Cesspit Emptier best 5-6CBM sewage suction truck hot sale, cheap price, China Hubei Sewage Suction Trucks, China Hubei Sludge Trucks, China Hubei Toilet Trucks, China Vacuum Truck, Good Price Vacuum Truck, Hubei Vacuum Truck, ISUZU Cesspit Emptier, ISUZU septic pump truck, ISUZU Septic Tank Trucks, isuzu sewage suction truck, isuzu toilet truck isuzu sludge trucks, ISUZU Vacuum Sewage Suction Truck, isuzu vacuum truck, Sludge Transport Trucks, Vacuum Suction Dirty Water Trucks Export

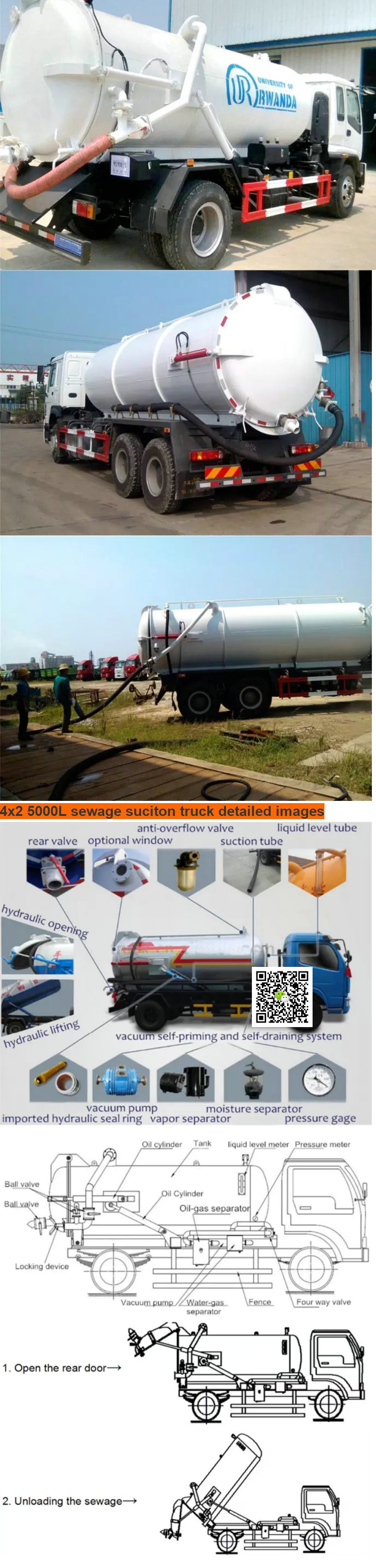

Sucking sewage waste water operation
Vacuum Suction Sewage Trucks vacuum suction pump can be self-suction, self-discharge, fast working speed, large capacity, convenient transportation, suitable for the collection and transportation of waste, mud, oil, dirty water, sludge, septic, fecal, sludge, crude oil, and other solid stuff such as small stones, bricks as well.
The sewage suction truck can Self-suck and self-discharge. It has fast working speed, large capacity and convenient transportation. It is suitable for collecting and transporting liquid waste substances such as feces, mud and crude oil. The vacuum pump of the sewage suction truck, which is advanced in domestic technology, has large suction force and long suction distance. It is especially suitable for suction, loading and discharge of silt in sewer, especially for suction of larger objects such as slurry, silt, stone and brick in sewer. sewer cleaner truck vacuum tanker truck Collecting and transferring sludge, sewage, cleaning the sewer, Cesspoolage, cesspit, cesspool, gully, sewer etc. Sucking sludge tanker truck vacuum tanks brand Dongfeng, Jiefang, Foton, , HINO, Sinotruk Truck etc.

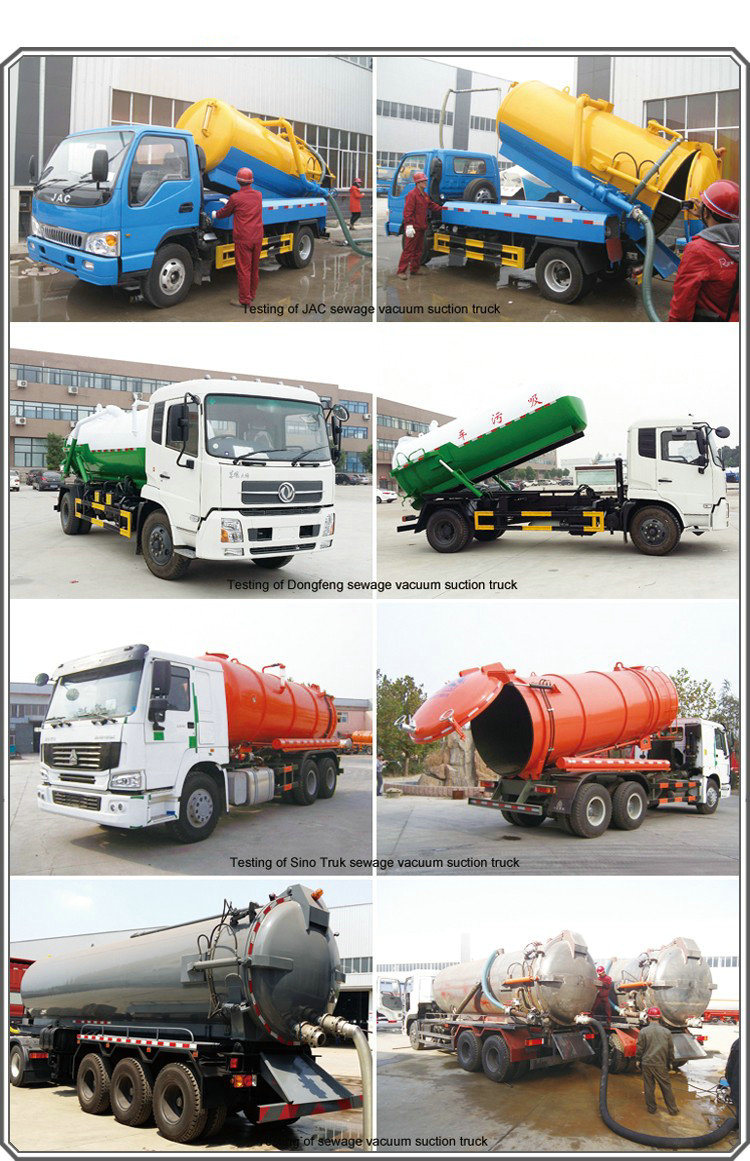

Dongfeng vacuum sewage suction truck, Jiefang sewage tanker truck, Futian suction truck, Heavy Truck suction truck, Shaanxi suction truck, Jianghuai suction truck and Qingling suction truck.
Inspection company on behalf of TCM for LIWA PLASTICS INDUSTRIAL COMPLEX PROJECT. 10Units T21 TEAL Portable Tank Containers For Metal Alkyls Date : 2021-3-12T21 TEAL tank Triethylaluminum (TEAL) Alky Portable Tank Container tank capacity 1880L FOR UN3394 ,UN3399 HS code :8609009000
3 Units LDPE Lined Hydrochloric Acid Tank Body 25 m3 for trailer mounted to DAMMAM,SAUDI ARABIA Tank For HCL Cargo truck Tank capacity: 25000 Liters With PE Lined Steel Manhole cover Lid PE lined Tank (without chassis)for transport: HYDROCHLORIC ACID (HCL UN1789)Tank capacity: 25m3 mobile con
Tecnimont New order 10Units T21 TEAL Portable Tank Containers For Metal Alkyls C-430 saddle type with fusible plug Triethylaluminum (TEAL) Alky Portable Tank Container - tank capacity 1880L - FOR UN3394 ,UN3399 HS code :8609009000
Lined LDPE 18mm Hydrochloric Acid Tank Body 11m3 to Vietnam Lined tank ,Acid tank for lorry ,Lined Tank Truck Body Tank For HCL Cargo truck 2 compartments Tank capacity: 11000 Liters Hydrochloric Acid tank,hydrochloric acid fluid tank,Sulfuric Acid Tank,dilute Sulfuric Acid
Triethylaluminum (TEAL) Alky Portable Tank Container - tank capacity 1880L - FOR UN3394 ,UN3399 - complete set with valves- full set ADR/RID BV INSPECTION CERTIFICATE BIC Number- Nameplate with individual tank serial number for each tank
9 units LLDPE Lined Acid Storage Tank expor to VIETNAM THREE (3) UNITS OF PE LINED STEEL TANK 3M3. THREE (3) UNITS OF PE LINED STEEL TANK 4M3. THREE (3) UNITS OF PE LINED STEEL TANK 5M3. H.S CODE: 7309.00
Steel Lined LDPE 18mm Moblie Hydrochloric Acid Tank Body 13m3 -16m3 to Vietnam Lined tank ,Acid tank for lorry ,Lined Tank Truck Body Tank For HCL Cargo truck 3 compartments Tank capacity: 13000 Liters ,16500 Liters With 60pcs PE Manhole cover Lid With Flange ,50units #22cm seal ring ,50units#37cm seal ring Hydrochloric Acid tank,hydrochloric acid fluid tank,Sulfuric Acid Tank,dilute Sulfuric Acid
2MarksDescription of goodsQuantityN.Wg.wMEASUREMENTDRAU2062222 30FT Tank Container ISOTANK 25M3, 3 chambers, for 30FT trailer. Steel sheet 5mm, head 6mmLiner thickness: 16mm PE Tank in 30ft rectangular frame;8000+9000+8000 = 25000 liter. 3 Full Plastic Manhole Cover two side discharge pipe hydrofluoric acid with the concentration of 1790 (<55%) or hydrochloric acid with the concentration of 1789 (<38%)
T14 Iso tank / Lined tank for Acid UN1789.UN1790. Shanghai port waiting ship to TEMA Ghana 20FT Tank Container for Hydrochloric Acid Un1789 HCL Hydrofluoric Acid HF acid UN1790 carbon steel and lined with 16mm LLDPE Tanks capacity 21KL hydrofluoric acid with the concentration of 1790 (<55%) or hydrochloric acid with the concentration of 1789 (<38%)
20pcs T21 TEAL TANK UN Portable Alkyls 1.88m3 UN3394 Container Ship to Rotterdam After amost 2 and a half months Producing, those 20 units UN Portable T21 TEAL TANK (EMPTY AND NEW TANKS) finally two partial ship From Shanghai Port China To Germany, Transit Through Rotterdam , Country Of Destination Turkmenistan, Transit Through Germany.The commodity is a circulation tare. Temporary bringing in EU. Filling at the Lanxess Organometallics GmbH, Bergkamen, Germany. The end destination - Turkmenistan.
Dongfeng Water Tanker Fire Truck Export to YANGON MYANMAR
2 Sets 13M Low Bed Trailer 3m Wide 60 Tons With 14T BPW Axles and 4pcs Container Locks Transport:FROM SHANGHAI PORT,CHINA TO MoMOMBASA ports , BY SEA Price TERM: CIF MOMOMBASA COUNTRY OF DESTINATION: UGANDA OR JUBA SOUTH SUDAN
5 Units New 20FT ISOTANK For HCl Acid Chemical Liquid Export to HAIPHONG VIETNAM this the third branch Hydrochloric Acid Tanks 20FT-ISO-HCL-Acid-Tank-Container-21cbm Length : +6.058- 6.06 m Width : +2.438- 2.44 m Height : 2.438/2.591- 2.60 m Steel Lined LDPE aslo for HCL(max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%) DRAU2019817 DRAU2019822 DRAU2019838 DRAU2019843 DRAU2019859
20m3 Concentrated Sulfuric Acid Carbon Steel Storage Tank expor to CPE VIETNAM
10 Units New ISO 20 FT TANK CONTAINER LLDPE LINED TANK For contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%) Export To HAIPHONG VIETNAM Second times MARKS AND NUMBERS DRAU2019308 DRAU2019313 DRAU2019329 DRAU2019334 DRAU2019340 DRAU2019355 DRAU2019360 DRAU2019376 DRAU2019381 DRAU2019397
