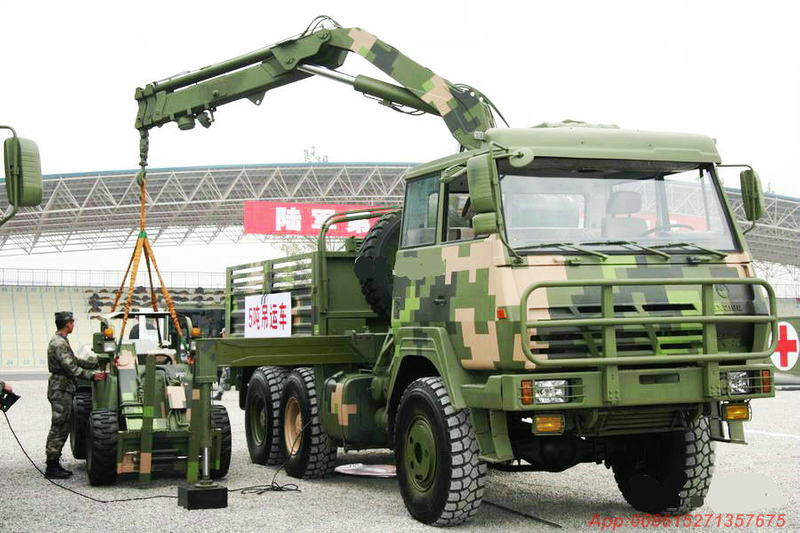

STEYR 6x6 Military Truck off road truck crane
| Quantity: | |
|---|---|
SHACMAN STEYR 6x6 Military Truck SX2190 off road truck
SHACMAN STEYR
6x6 Military Truck SX2190 off road truck
<Customization LHD RHD>
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
| Model | SX2190 |
| Make | SHACMAN Military Truck |
| Drive type | 6×6 |
| Application | Off-road |
| Weight | |
| Complete kerb mass (kg) | 11500 |
| GVW (kg) | 18500 |
| GCW (kg) | 26000 |
| Dimensions | |
| Max.length(mm) | 7994 |
| Max.width(mm) | 2500 |
| Max.heigh(mm) | 3095 |
| Front / Rear overhang (mm) | 1770/1449 |
| Wheel base(mm) | 3375+1400 |
| Track width(mm) | 2072/2072 |
| Performance | |
| Max.speed (km/h) | 86 |
| Min.turning circle(m) | 13 |
| Min.ground clearance(mm) | 380 |
| Approach / Departure angle (°) | 36/38 |
| Max.gradeability(%) | 60 |
| Engine | |
| Make | WEI CHAI |
| Model | WD615.50 WP10.270~336 |
| Power(kw/HP) | 206/280 |
| Max.Torque (N.m )/rpm | 1160/1400 |
| Displacement (L) | 9.726 |
| Emission Standards | Euro 2 ~ 3 |
| Transmission | |
| Make | FAST |
| Model | RT11509C |
| Control type | manual |
| Gear Shift | 9-forward and 1 reverse speeds |
| Transfer case | |
| Model | VG1200 |
| Clutch | |
| Type | Single plate air assisted type |
| Action | mechanical pull type, self adjusting Air assisted clutch |
| Brakes | |
| Type | Drum |
| Service brake | With dual-circuit compressed air brake |
| Park brake | Power spring brake acting on rear wheel |
| Steering | |
| Make | Shashi Jiulong |
| Type | Integral inner circulation power steering |
| Chassis | |
| Type | Ladder structure with parallel straight |
| Dimensions (mm) | 243×80×8 |
| Suspension | |
| Front Suspension | semi-elliptic springs with shock absorbers |
| Rear Suspension | inverted leaf spring stabilizator suspension |
| Axles | |
| Make | SHAAN'XI HANDE |
| Front axle | 6500kg |
| Rear axle | 13000kg(each other） Double reduction driving axle with inter-wheel differential and differential lock. |
| Ratio | 5.73：1 |
| Tires | |
| Type （Standard） | 14.00-20 |
| Fuel tank | |
| Tank capacity （L） | 400 |
| Material | Metal |
| Electrics | |
| Type | 24V |
| Starter | 5.58kw（24V） |
| Generator | 1.54kw（28V 55A） |
| Battery | 2×180Ah |
| Cab | |
| Type | Steyr length cab |
| Equipments | 2 doors, hydraulic titling, 2 seats |
| Fording depth(m) | 1.2 |
www.truckinchina.com
Cell Phone: 008615271357675
