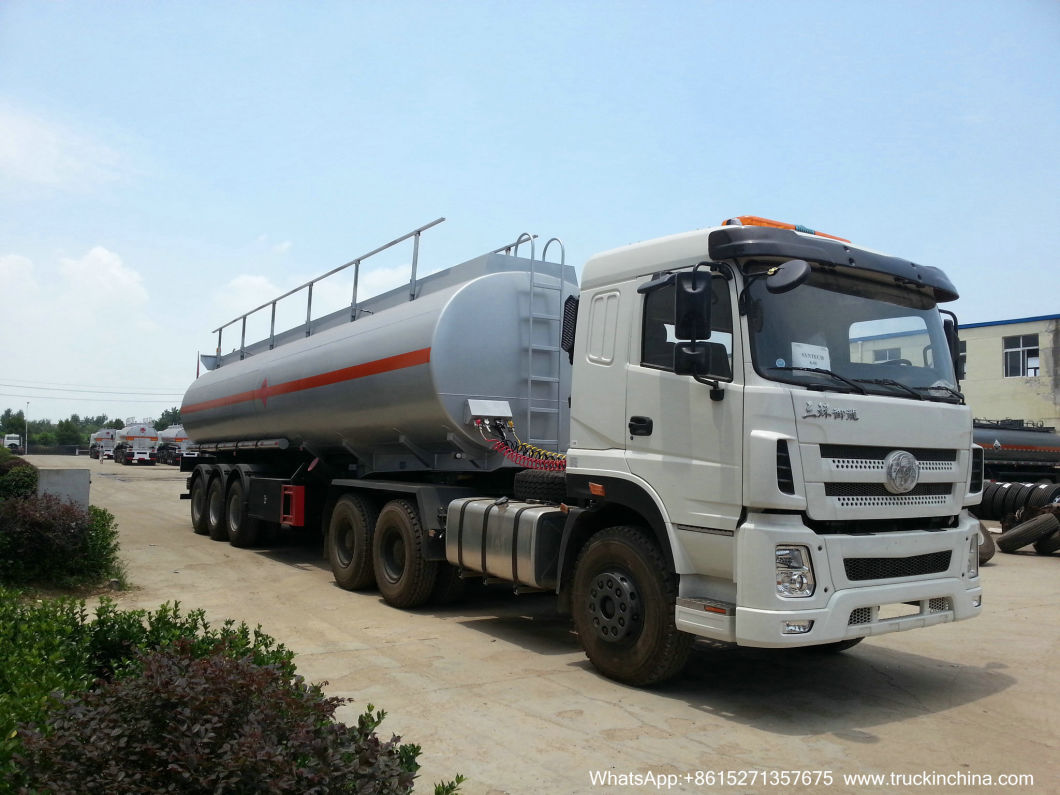

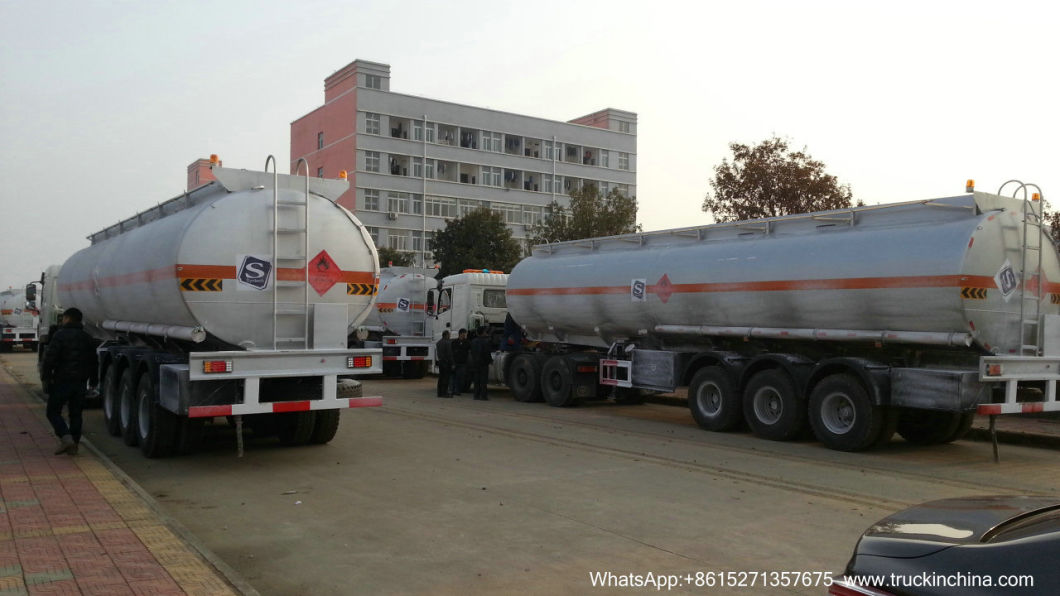

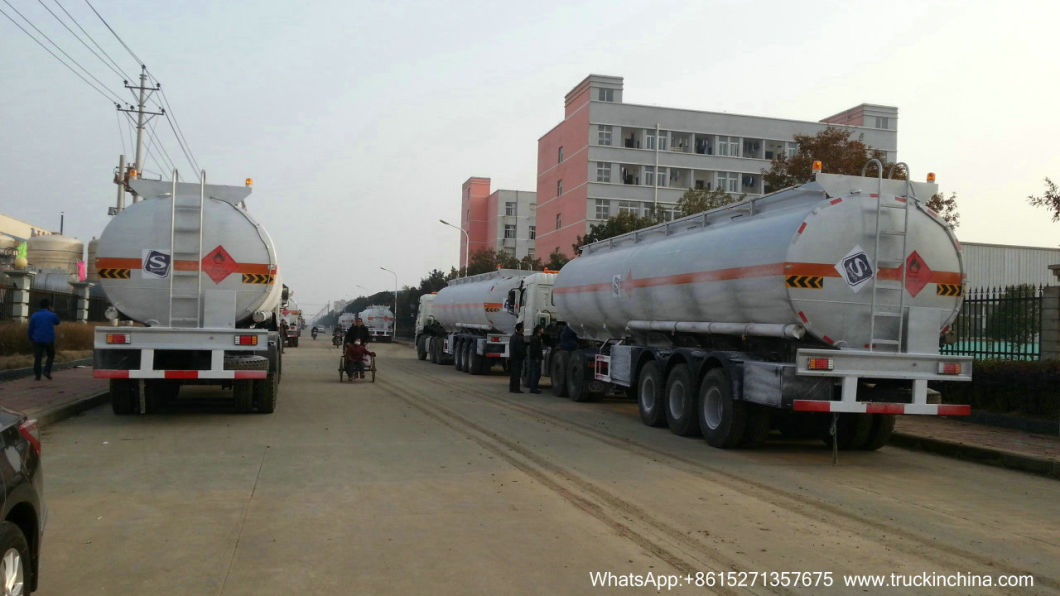

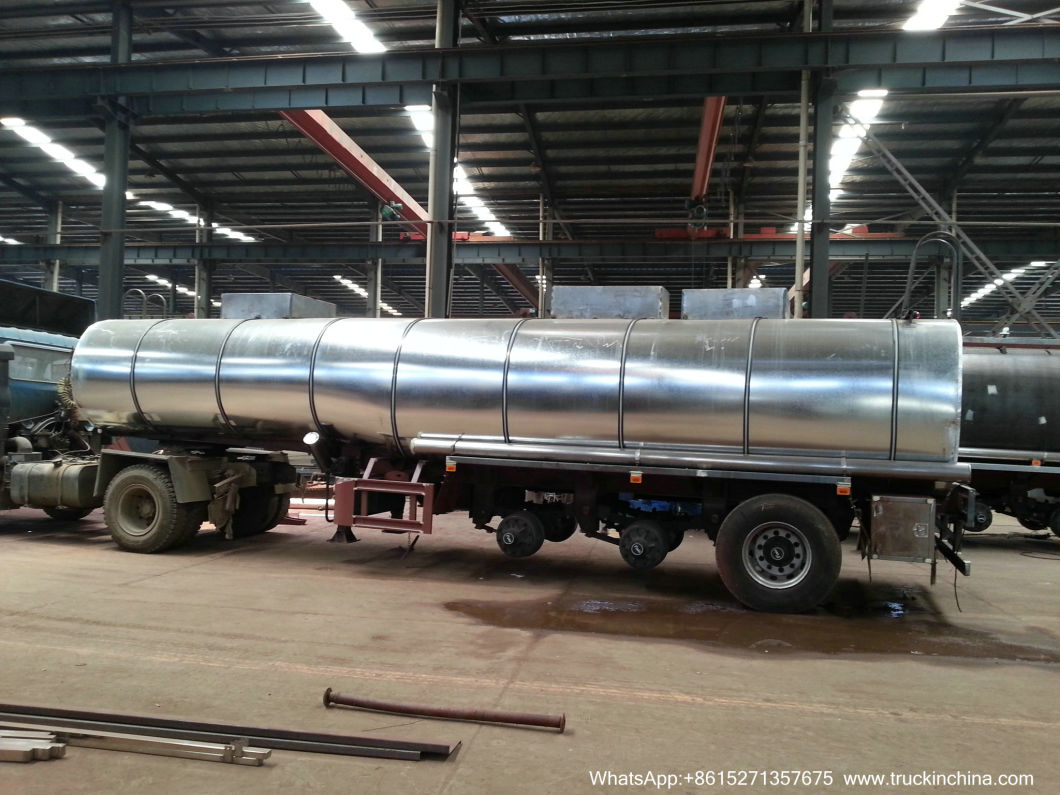

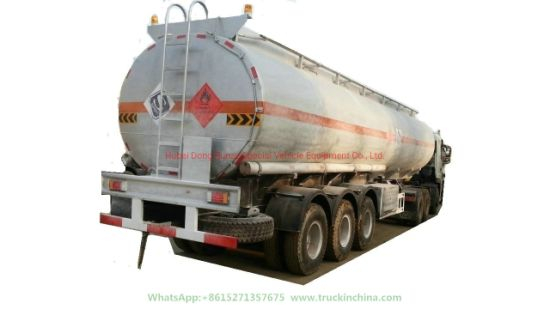

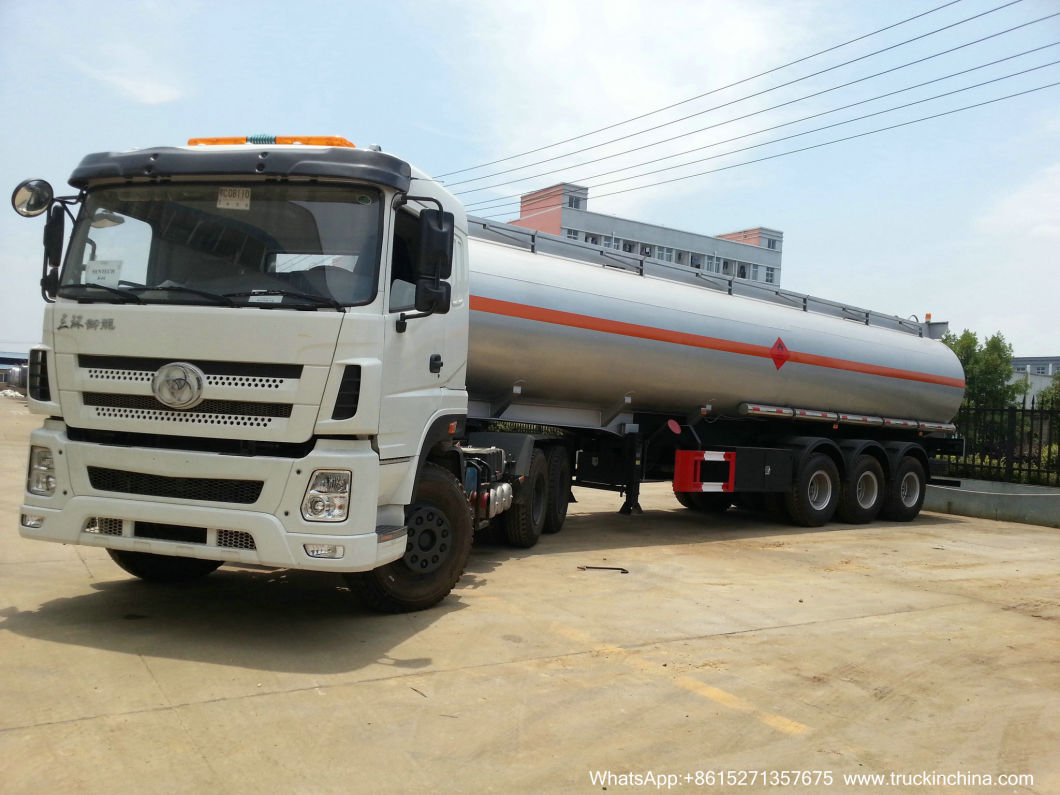

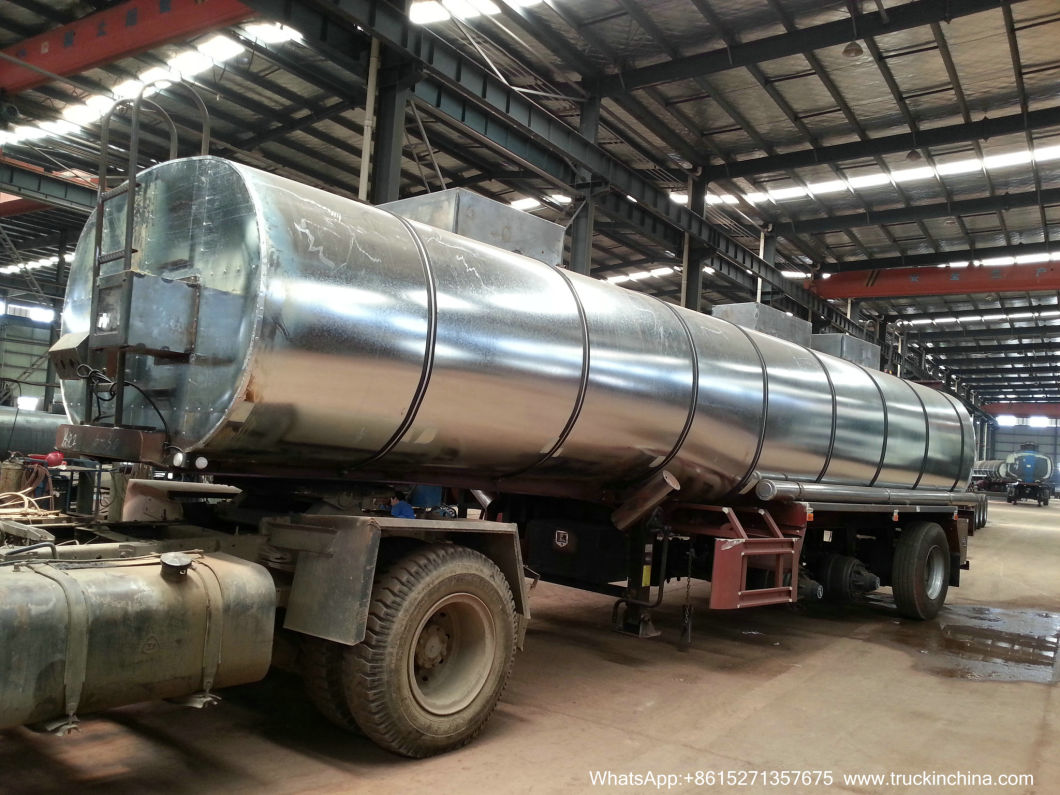

Stainless Steel Tank Trailer  Transport

Stainless steel tank trailer is suitable for different types of liquid transport, like water, drinks, chemical liquid.


The tank is made of food grade stainless steel meeting standards of food security. The reaction between toxic metal and acid-base is avoided.


According to customer's requirement, the tank body could be divided into several compartments for the loading of different liquid. It is option to have flow meter and pump for pumping in and out.


There is also option to have the heating system for discharging.

Stainless Tanker Trailer Highlights

304, 430 or 316L Body ST Quality Steel useage
ADR Compatible Tankers BPW, FUWA or Certificated   Axles
Pnemautic Discharging Valve Air and Mechanical Suspension
ABS and EBS brake system Steel or Aluminum Rims
JOST or Turkish brand parking leg and king pin

Stainless Tanker Trailer Technical Details

  • STRUCTURE

- It is manufactured in volumes of 28.000-65.000 lt. according to request.

- Length 10.000 mm-13.000 mm

- Width 2550 mm

- 2-3-4-5-6 -7compartments dividers

- Our tankers are ellipse, round, double "D", bottle type shaped

- 4 mm Stainless Steel plate is used on tanker body

  • LOADING AND UNLOADING SYSTEM

- Proofed and sealed manhole cap for every cell divider

- 3" in diameter pipes that connects every cell divider to valve box

- Independent natural unloading system with 3" in diameter spherical valves

Chassis: Strengthened "I" section centre members are welded automatically by submerged welding machine. They are welded between 120/14 mm bottom or top steel plate and 5 mm hub plate.

Axles:   Brand, BPW or FUWA 3 x 9,12,14,16 Ton axles brake drum or disc

There are brake shoes and heavy brake levers

uspensions ; It is supplied with Turkish brand of 6 pcs of air cushion with Z leaf spring or mechanical leaf spring suspension with 12 mm x12 pcs of layer with 100 mm width

Brake System ; Wabco brand ABS or EBS braking system will be used.

Brake Chambers ; 1 Axles with T 30/30 emergency brake chamber,2 axles with T 30 service brake chambers

Electrical system ; Hella, Aspöck, Sa-Ba or Sertplas brand 2×7 pin sockets - 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear

2 tail & stop combined lamps (red)

2 turn signal combined lamps (orange)

1 license lamp (white)

Tires; 385/65 R22,5 or 12 R22,5 or 13 R22,5 or 315/80 R22,5 Dongfeng ,Bridgestone,  Goodyear,

1. Triangle group / China
2. Shanghai tire rubber / China
3. Shandong Linglong rubber / China
4. Hangzhou Zhongce Rubber / China
5. Chengshan, Shandong / China
6. Aeolus tire / China
7. Qingdao Double Star Tire / China

Rims; 11.75 R22.5  China  Brand

King Pin ; Jost  or equivelent Turkish brand OMS DIN 74080 standards 2'' or 3,5'' king pin detachable from below made by SAE standards 8 bolt type. With E certificate.

Landing Gear ; Jost  or equivelent Turkish brand front Jack feet are telescopic,parallel working,double speed jointed with wide shoes static 50 tons, dynamic 25 tons capacity

Painting ;

Before the painting trailer is sand blasted

ZincRich epoxy gray is used for first protecting.

1-2 Times of high quality paints are applied on trailer protects against humadity

The color of trailer is selected by our customer according to RAL codes

Standar Accossories

-  Multi-piece plastic fenders that covers trailing  axle tires
-  1 plate unloading valve box
-  1 plate tool box
-  1 non-slip floor walking platform
-  1  ladder (climbed from behind)
-  2 PVC pipes to carry unloading hoses
-  Control Panel(Mob, air clock, access ramp lever)
-  Plastic water tank
-  Roller or basket stare tire conveyor
-  Aluminum bike impact absorber
-  Mounting and mounting space

3 axles Stainless steel Tank Trailer with various specification to meet your needs, please contact us for more details of Semi Trailers.

Ask for better price

Cell +8615271357675

The pictures are for your reference only.


1.Fifth wheel height 1300mm.

2.wheelbase:5790+1360+1360mm,king pin size 50# or 90#,

3. 3*13ton fuwa axles with airbag suspension , with ABS ,16T Brake Pads,

1. Brief Introduction :
This Tanker is applied to transport liquid Ethanol in a short or long distance.
2. Main Performance Characteristics:
Rectangular/Oval cross-section oil tank, low center of gravity and large load capacity.
Based on the following
WEIGHT RATTING:
Tare Weight: 10T
Rated Payload: 30T
Actual payload: 30~38T
G.V.W.R.: 40T
Shape of tank: Elip straight
Tank material: 304 Stainless steel thickness of the carbon stell:5 mm
Vehicles Oil Semi trailer
Types of vehicles Semi-trailer
Over side
Dimensions(mm) 10500x2500x3400;10620×2480×3800(mm);11300×2500×3900(mm
Rated loading weight(kg) 30000 30~38T
Total mass(Kg) 45000 Kerb weight (kg) 10000
Wheelbase(mm) 5100+1310+1310; 5600+1310+1310
Axle number 3 Fuwa
Tire specifications 12R-22.5 Goodyear G-149 16 ply radials Suspension type Mechanical suspension
Number of tire 12 Track rear(mm) 1840/1840/1840
Departure angle 12 degree Rear overhang(mm) 1600
Number of Leaf spring -8/8/8, Tanker capacity(L) 36000
Axle load(T) 13T*3 (3 axles ) King Pin standard JOST brand 2 or 3.5 inch
Landing leg
H-girder, JOST brand
Two-speed, Manual operation
heavy-duty landing gear
Braking system WABCO RE 6 relay valve
Dual line pneumatic brake system
Inlet hole 2 pcs,DN100 Breather valve 2 pcs,DN80
Discharge hole 2 pcs, DN100 with 3 inch coupling Manhole(mm) 2pcs,DN500mm
Floor description 3mm checker plate Fuel tanker cabin Single (the tanker can divided into several sections)Painting Prime and Paint all mild steel parts black
Accessories
1. Two climbing ladders on the front and rear of the tanker; one tool box
2.Two tire carriers
3. one water tank
4. Outlet valve, 2 pcs,DN80
5. Two 1 1/2 diameter Tiger flex drain hoses located one per side
6.One Tool box


Stainless steel tank Trailer
Specification: 48000L
Drive Type: 3 axles


SS304 or 316L Tank Body Stainless Tanker Trailer for Acid, Chemicals, Edible Oil, Liquid Food, Milk, Alcohol 8000USG -15000USG
SS304 or 316L Tank Body Stainless Tanker Trailer for Acid, Chemicals, Edible Oil, Liquid Food, Milk, Alcohol 8000USG -15000USG






Trailer description

Main Dimensions
Tank Body
Shape Optional(Round or Suare)
Dimension 12000mm*2490mm*3990mm(Exact size depend on the final design)
Tare Weight About 8000Kg-12800Kg
Total Volume(m3) 25m3-60m3
Tanker Body Material 5mm or 6mm Stailess steel
End Plate 5mm or 6mm/Q235 Stailess steel
Manhole Cover Stailess steel API manhole cover ,500mm
Bottom Volume Stailess steel API Pneumatic Bottom Valve
Discharging Valve Diameter is 3 or 4 inch
Compartments Optional
Discharging Pipe 4" rubber hose,2 pcs,6m/each
Cat Walk With (Common model or special design)
Chassis
Main Beams Welding design or special design I beam ,connected by bolts and nuts Q345 carbon steel material
Axle 2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear JOSTD200T or China brand 28T
King Pin JOST 2.00 OR 3.5 inch bolt-in king pin
Suspension Mechanical suspension(Germany or American type)/air suspension
Leaf spring 90(w)mm*13(Thickness0mm*10 layer or 100mm*12mm*12/without
Pneumatic Braking System WABCO RE 6 relay valve;Spring brake chamber;2 pieces of 45L air tanks.
Rim 9.00-22.5/8.00-20/8.5-20 China brand
Tire 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional
ABS Optional
Painting Complete Chassis and blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint
Accessories One standard tool lox
Shipping Terms By bulk cargo ship, RORO or 40HQ container

2

30,000L-45,000L 3-axle Tank Semi-trailer
Feature: Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical liquid
Dimension(L*W*H):

11000*2500*3700mm(30,000L)

11700*2500*3750mm(40,000L)

12700*2500*3750mm(50,000L)

13000*2500*3750mm(60,000L)

13700*2500*3750mm(70,000L)

Model DRZ9350GRY
Material: Carbon Steel Stainless Steel Aluminum
Compartment: 3-6
Capacity(kgs): 35,000L-45,000L
Tare weight(kgs): 10,000-11,000kgs 10,000-11,000kgs 6,000-7,000kgs
Kingpin The world-famous JOST brand bolt-in/welded type 3.5"/2"
Landing gear JOST brand two-speed manual operation 19"
Tire size 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5
Rim size 8.25*22.5,9.00*22.5,11.75*22.5
Axle Original BPW-12T/ FUWA-13T
Leafs spring Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension
Brake system One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.
Manhole: Aluminum alloy ø500mm(20") manhole with aluminum alloy cover; with breather valve;
Discharge Valve Aluminum alloy discharge valve with cover
Foot Valve Pneumatic control DN80 aluminum alloy foot valves
Pneumatic Control system

1set Pneumatic Control combined switch

1unit emergency switch

Discharge Hose 2 units 3"×6M factory PVC hose with quick coupling on both ends
Vapor Recovery & Overfill system Optional
Fire Extinguisher Carrier 2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Prime & Topcoat painting S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting
We can build the trailers according to customer's design and requirement

3.

Specifications:


Tare Weight

8000kg -- 14000kg

Loading Capacity

316L

Axle Weight Load

13T/16T

Axle Brand

FUWA/BPW/others

Suspension

Common mechanical or Air Suspension

King Pin

JOST 3.5" traction pin

Dimensions

10500-13000mm*2500mm*3800mm

Support Legs

JOST Single 28T heavy duty

Wheel Rim

9.0-20

Wheelbase

1310mm

Ladder

Mechanical ladder

Accessories

1 Set standard tool box

Light

Tail lamp with turn signal; brake light & reflector, side lamp etc.

Painting

1coat of anticorrosive prime, twice coats of final paint

Tire Spec.

12R22.5 Vacuum tire

Number of Tire

8/12 pieces

Spare Tire Carriers

2 pieces

Manhole Cover

500mm manhole cover .2 sets with 2 breather valve

Discharge Valve & Pipe

4 inch disc valve & 4inch seamless steel tube

Brake Chamber

4 big chamber

Brake System

Dual Line Brake system

Application of the stainless tank drinking water tank trailer
The stainless tank drinking water tank trailer is to load and transport the drinking water. It works with the tractor head for haulage and transport. The tank volume could be from 30000L to 50000L. The tank material is stainless steel to keep the water clean and keep the tank from corrosive.


Description of the stainless tank drinking water tank trailer
This is a 35000L stainless steel tank for drinking water transportation. There are two types of tank used for drinking water transportation. One is carbon steel tank with non-toxic painting inside, one is the stainless steel tank. The carbon steel tank is cheaper, but considering the safety and long time usage, the stainless tank should be the top priority.


Advantages of the stainless tank drinking water tank trailer
1.Stainless tank to keep the water clean, and to keep the tank from corrosive
2.Long time usage and durable


Specification

Dimension

Overall dimension

12500x2500x3580mm

Tare weight

10800kgs

Tank

Shape

Round shape

Total volume

35000L

Tank body material

Stainless steel 304

Tank end plate

Stainless steel 304

Compartment

Single compartments

Discharge system

Stainless steel pipes and discharge valve

Trailer chassis

Main beam

Heavy duty special design I beam, made by carbon steel

Axle

China brand HJ axle, 13Ton capacity

Landing gear

FUWA landing gear

Kingpin

FUWA kingpin 2 inches

Suspension

Mechanical suspension with leaf spring

Braking system

WABCO RE 6 replay valve, T30/30 air chamber

Tire

12R22.5

Wheel rim

9.0R22.5

Accessories

One tool box, one spare tyre carrier


Hot Tags: stainless steel drinking water tank trailer

Customization, Cost  Control Built How You Want it, at a Price You  Can

Afford. for sale call:+86-152 -7135-7675


Related Products

SUCCESS CASES

More >>

Contact Us

EMAIL:Sale@tictrucks.com
TEL: 86-152-71357675
 WeiChat:king253725877
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300  .......

Hubei Dong Runze Special Vehicle Equipment Co., Ltd. All rights reserved. 2009-2020 XML Site Map webmail   Made-in-China.com    https://tictrucks.en.made-in-china.com/
 www.truckinchina.com ,www.tictrucks.com
