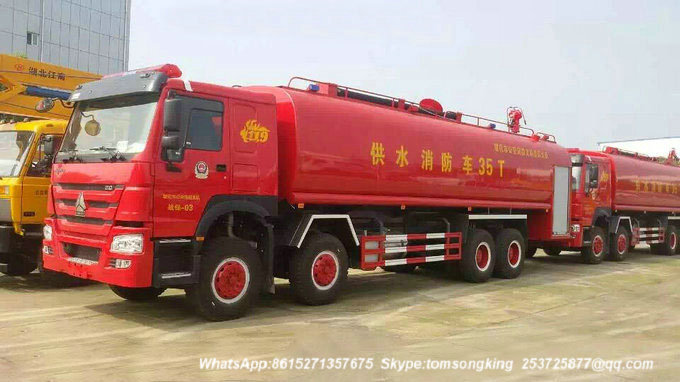

SINOTRUCK HOWO 8x4 Fire Sprinklers Water Tank 28000L with Fire Pump
Fire Pump CB10-60
Water Diversion Time ≤50s Rated Flow 60L/s
Fire Pump CB10-80
Water Diversion Time ≤80s Rated Flow 80L/s
| Quantity: | |
|---|---|
|
| |
-
DRZ5310GPSZ5
-
SINOTRUCK HOWO
-
8705309000
SINOTRUCK HOWO 8x4 Fire Sprinklers Water Tank 28000L -35000L with Fire Pump
Fire Pump CB10-60
Water Diversion Time ≤50s Rated Flow 60L/s
Fire Pump CB10-80
Water Diversion Time ≤80s Rated Flow 80L/s
Chassis euro 5 Technical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | D10.28-50, D10.31-50, D10.34-50, D10.38-50 | 9726; 9726; 9726; 9726 cc | 206; 228; 249; 276 kW | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) | |||
| Performance | ||||
|---|---|---|---|---|
| Fuel | diesel fuel | |||
| Environmental standard | GB17691-2005 National V / Euro 5, GB3847-2005 | |||
| Maximum speed | 95 km/h | 60 mph | ||
| ABS | have | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 25800 kg, 24500 kg | 25.8 t, 24.5 t | 56,900 lbs, 54,000 lbs | |
| Gross vehicle weight rating | 31000 kg | 31 t | 68,000 lbs | |
| Axle load distribution | 6500 kg / 7000 kg / 8750 kg / 8750 kg 6.5 t / 7 t / 8.8 t / 8.8 t 14,300 lbs / 15,000 lbs / 19,290 lbs / 19,290 lbs | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 11150 mm / 11350 mm | 36′7″ / 37′3″ | ||
| Overall width | 2500 mm | 8′3″ | ||
| Overall height | 3415 mm | 11′3″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 4 | |||
| Wheelbase | 1800+4600+1350 mm, 1800+4575+1400 mm, 2150+4600+1350 mm, 2150+4575+1400 mm | 5′11″+15′2″+4′6″, 5′11″+15′1″+4′8″, 7′1″+15′2″+4′6″, 7′1″+15′1″+4′8″ | ||
| Front track | 2022 mm / 2022 mm, 2041 mm / 2041 mm | 6′8″ / 6′8″, 6′9″ / 6′9″ | ||
| Rear track | 1830 mm / 1830 mm | 6′1″ / 6′1″ | ||
| Front/rear overhang | 1500 mm / 1900 mm, 1500 mm / 2100 mm | 5′0″ / 6′3″, 5′0″ / 6′11″ | ||
| Angle of approach | 14° | |||
| Angle of departure | 14° | |||
| Leaf springs | 11 / 11 / 12, 4 / 4 / 12, 11 / 11 / -, 4 / 4 / - | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 12 | |||
| Tyres dimension | 315/80R22.5 16PR, 295/80R22.5, 12R22.5, 12.00R20 16PR, 12.00-20 16PR, 11.00R20, 11.00-20 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Seating capacity | 2 | |||
| Steering control | steering wheel | |||
Various types of fire pumps and parameters.
1. Fire pump model: cb10/20.
Flow: 20L/S, pressure: 1.0mpa.
Model: SP20, range: 48m.
Applicable tonnage: 2.5 ton fire truck.
Applicable model: dongfeng xiaobao fire engine, jiangling shunda, qingling, chongqing May 10 bell.
2. Fire pump model: cb10/30.
Medium pressure pump: cb20.10/15.30.
Low pressure flow/pressure: 30L/S/ 1.0mpa.
Medium pressure flow/pressure: 15L/S/2.0Mpa.
Flow: 30L/S, pressure: 1.0mpa.
Applicable tonnage: 3.5 tons fire truck.
Applicable model: dongfeng dorika fire engine, dongfeng 140.
3. Type of fire pump: cb20.10/20.40.
Low pressure flow/pressure: 40L/S/ 1.0mpa.
Medium pressure flow/pressure: 20L/S/2.0Mpa.
Atmospheric pump: cb10/40.
Flow/pressure: 40L/S/ 1.0mpa.
Applicable tonnage: 4 tons, 6 tons fire truck.
Applicable models: dongfeng tianjin, dongfeng 153.
4. Fire pump (atmospheric pump) model: cb10/60.
Flow: 60L/S, pressure: 1.0mpa.
Model: SP20, range: 48m.
Applicable tonnage: 8 tons fire truck.
Applicable model: haowo single bridge fire engine.
5. Medium and low pressure pump: model: cb20.10/30.60.
Low pressure flow/pressure: 60L/S/ 1.0mpa.
Medium pressure flow/pressure: 30L/S/2.0Mpa.
Applicable tonnage: 8 tons fire truck.
Applicable model: haowo single bridge fire engine.
6. Type of fire pump: cb20.10/30.60.
Low pressure flow/pressure: 60L/S/ 1.0mpa.
Medium pressure flow/pressure: 30L/S/2.0Mpa.
Applicable tonnage: 12 tons fire truck.
Applicable model: haowo double bridge fire engine.
7. Normal pressure pump model: cb10/60.
Flow: 60L/S, pressure: 1.0mpa.
Applicable tonnage: 12 tons fire truck.
Applicable model: haowo double bridge fire engine.
8. Fire pump model: cb10/60.
Flow: 60L/S, pressure: 1.0mpa.
Applicable tonnage: 20 tons fire truck.
Applicable models: heavy duty 4-8 fire engines.
9. Medium and low pressure pump: cb20.10/30.60.
Low pressure flow/pressure: 60L/S/ 1.0mpa.
Medium pressure flow/pressure: 30L/S/2.0Mpa.
Applicable tonnage: 20 tons fire truck.
Applicable models: heavy duty 4-8 fire engines.
Various types of fire guns and parameters.
1. Model of water tank fire monitor: SP40.
Flow: 40L/S, pressure: 1.0mpa, range: 55m.
Foam fire truck: PL32, flow: 32L/S, pressure: 1.0mpa, range: water is greater than 50m, foam: greater than 45m.
2. Model of water tank fire monitor: SP30.
Range: 55 m.
Foam fire truck: PL24, flow: 24L/S, pressure: 1.0mpa, range: water is greater than 45m, foam: greater than 40m.
3. Foam fire truck: PP48.
Flow: 48L/S/ 1.0mpa, water range: > 60 m, foam range: > 55 m.
Water tank fire extinguisher: SP50, water range: greater than 65 meters.
4. Bubble gun: PL48.
Flow: 48L/S/ 1.0mpa, water range: > 60 m, foam range: > 55 m.
Water tank fire truck: SP80, flow: 50L/S/ 1.0mpa, water range: greater than 65 meters.
