SINOMACH Heavy duty vibratory rollers SS1902-2 , LSS2502-2 export to Ghana price

SINOMACH Heavy duty vibratory rollers SS1902-2 , LSS2502-2 export to Ghana price
Price: $ 59900
Discount Price: $ 55000  -  68500
FOB:
Availability:
Quantity:

  • SS1902-2 , LSS2502-2

  • SINOMACH

  • 84294011

SINOMACH  Heavy duty vibratory rollers SS1902-2  , LSS2502-2 export to Ghana price

LSS1902-2 mechanical 19 tons of single steel wheel vibrating road roller, 19 tons of single steel wheel roller technical parameters:
Model LSS1902-2
Quality kg 19000
Static linear load N/cm 437
Amplitude mm 2.0/1.0
Vibration frequency Hz 28/35
Exciting force kN 340/260
Top speed km/h 10.5
Grade ability% 35
Turning radius mm 7500
Vibratory wheel width mm 2130
Vibratory wheel diameter mm 1600
Wheelbase mm 3430
Minimum ground clearance mm 445
Diesel engine model SC8D180
Diesel engine power kW 132

Overall dimensions (length x width x height) mm 6600x2300x3000

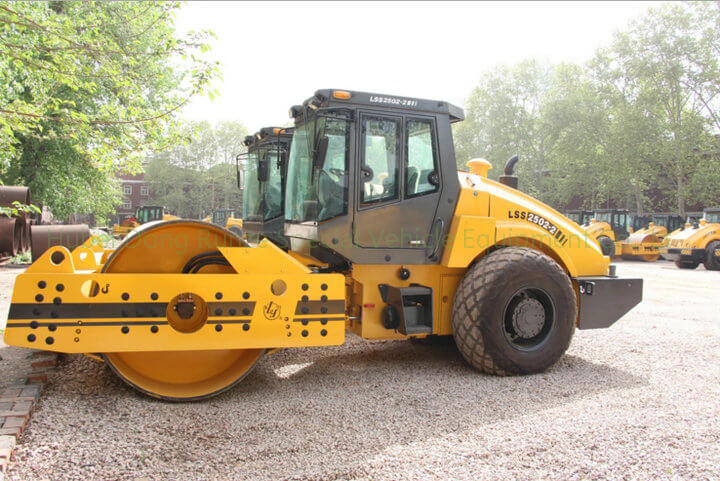

Heavy duty vibratory rollers LSS2502-2

model

LSS2502-2


Operating mass(kg)

kg

25000

Static linear load(N/cm)

N/cm

575

Vibration amplitude(mm)

mm

2.0/1.0

Vibration frequency(Hz)

Hz

28/35

Centrifugal force(kN)

kN

400/320

Travel speed(km/h)

km/h

10.5

Gradeability(%)

%

35


Turning radius(mm)

mm

7500

Drum width(mm)

mm

2130


Drum diameter(mm)

mm

1600


Wheelbase(mm)

mm

3530

Ground clearance(mm)

mm

445

Diesel engine model

SC8D190



Diesel engine power(kW)

kw

140

Overall dimensions(mm)

mm

6800×2300×3000




Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.

LSS323/321 single steel wheel vibrating road roller


LSS214-3/212-3 single steel wheel vibrating road roller


LSS1001 single steel wheel vibrating road roller


LSS208/YZ7G single steel wheel vibrating road roller


LSD230H/228H/226H LSD220H/218H full hydraulic single drum vibratory rollers


LDD316H/312H-2 hydraulic double drum vibratory road roller


LDD314H/312H/310H hydraulic double drum vibratory road roller


LDS212 YZC10GS mechanical double-drum vibratory road roller


LDS206/206VO mechanical double-drum vibratory road roller
LRS230-2/226-2 PowerShift tyre roller


LRS235H/230H LRS226H/YL16G hydraulic pneumatic tyred roller


LGS21/25 LGS18/21 three-wheeled flat rolling road machine


2Y8x10B/D run over two-wheel static rollers


HDD630B/LDD203H/LDS203H double-drum small rollers
LSS203 single steel wheel mini road roller
YZC1/YSZ08DB-1 walking behind vibratory roller
LWB80H/30HE hydraulic driven hand-held vibratory roller
LSS322/LSS320 single steel wheel vibrating road roller
LSD233H/232H full hydraulic single drum vibratory rollers
LSD320H full hydraulic single drum vibratory rollers
LRS240E pneumatic compactor
Impact roller
LDD612/610/608H
LDS303


Technical Specification

modelLSS323LSS321
Operating mass(kg)2300021000
Static linear load(N/cm)529483
Vibration amplitude(mm)2.0/1.02.0/1.0
Vibration frequency(Hz)28/3528/35
Centrifugal force(kN)380/300360/280
Travel speed(km/h)129.8
Gradeability(%)3535
Turning radius(mm)75007500
Drum width(mm)21302130
Drum diameter(mm)16001600
Wheelbase(mm)34203420
Ground clearance(mm)400400
Diesel engine modelSHANGCHAI SC8D200SHANGCHAI SC8D200
Diesel engine power(kW) 132132
Overall dimensions(mm) 6600×2340×30506600×2340×3050
modelLSS214-3LSS212-3
Operating mass(kg)1400012000
Static linear load(N/cm)325285
Vibration amplitude(mm)1.8/0.81.8/0.9
Vibration frequency(Hz)3030
Centrifugal force(kN)290/160270/140
Travel speed(km/h)1111
Gradeability(%)3535
Turning radius(mm)70007000
Drum width(mm)21302130
Drum diameter(mm)15001490
Wheelbase(mm)30803080
Ground clearance(mm)410410
Diesel engine modelYTO LR6A3ZYTO LR6A3Z/CUMMINS 6BT
Diesel engine power(kW) 91.291.2
Overall dimensions(mm)6000×2280×29956000×2280×2995
modelLSS208
Operating mass(kg)8000
Static linear load(N/cm)226
Vibration amplitude(mm)0.4
Vibration frequency(Hz)50
Centrifugal force(kN)80
Travel speed(km/h)13
Gradeability(%)25
Turning radius(mm)5000
Drum width(mm)1700
Drum diameter(mm)1220
Wheelbase(mm)2750
Ground clearance(mm)320
Diesel engine modelXINCHAI A498BG
Diesel engine power(kW) 42
Overall dimensions(mm)5180×1920×2580

Hydraulic single drum vibratory roller

Hydraulic heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction,which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground.

Technical Specification

modelLSD230HLSD218H
Operating mass(kg)3000018000
Static linear load(N/cm)875540
Vibration amplitude(mm)2.0/1.02.0/1.0
Vibration frequency(Hz)28/3528/35
Centrifugal force(kN)500/400360/380
Travel speed(km/h)911.2
Gradeability(%)4545
Turning radius(mm)75007000
Drum width(mm)21302130
Drum diameter(mm)16501600
Wheelbase(mm)35003148
Ground clearance(mm)470472
Diesel engine modelDONGFENG CUMMINS6CTA8.3DONGFENG CUMMINS6CTA8.3
Diesel engine power(kW) 180160
Overall dimensions(mm)6540×2430×30486005×2360×2993


modelLSD210HLSD212H
Operating mass(kg)1000012000
Static linear load(N/cm)242303
Vibration amplitude(mm)1.8/0.9   1.8/0.9
Vibration frequency(Hz)30/36     30/36
Centrifugal force(kN)250/160   270/180
Travel speed(km/h)1010
Gradeability(%)4040
Turning radius(mm)65006500
Drum width(mm)21002100
Drum diameter(mm)15001500
Wheelbase(mm)30503050
Ground clearance(mm)472472
Diesel engine modelDONGFENG 6BT5.9   DONGFENG 6BT5.9
Diesel engine power(kW) 110110
Overall dimensions(mm)6000×2250×29506000×2250×2950
modelLSD226H
Operating mass(kg)26000
Static linear load(N/cm)736
Vibration amplitude(mm)2.0/1.0
Vibration frequency(Hz)28/35
Centrifugal force(kN)430/340
Travel speed(km/h)9
Gradeability(%)45
Turning radius(mm)7500
Drum width(mm)2130
Drum diameter(mm)1650
Wheelbase(mm)3500
Ground clearance(mm)470
Diesel engine modelDONGFENG CUMMINS6CTA8.3
Diesel engine power(kW) 160
Overall dimensions(mm)6540×2392×3048
modelLSD220H
Operating mass(kg)20000
Static linear load(N/cm)600
Vibration amplitude(mm)2.0/1.0
Vibration frequency(Hz)28/35
Centrifugal force(kN)380/300
Travel speed(km/h)11.2
Gradeability(%)45
Turning radius(mm)7000
Drum width(mm)2130
Drum diameter(mm)1600
Wheelbase(mm)3148
Ground clearance(mm)472
Diesel engine modelDONGFENG CUMMINS6CTA8.3
Diesel engine power(kW) 160
Overall dimensions(mm)6005×2360×2993
