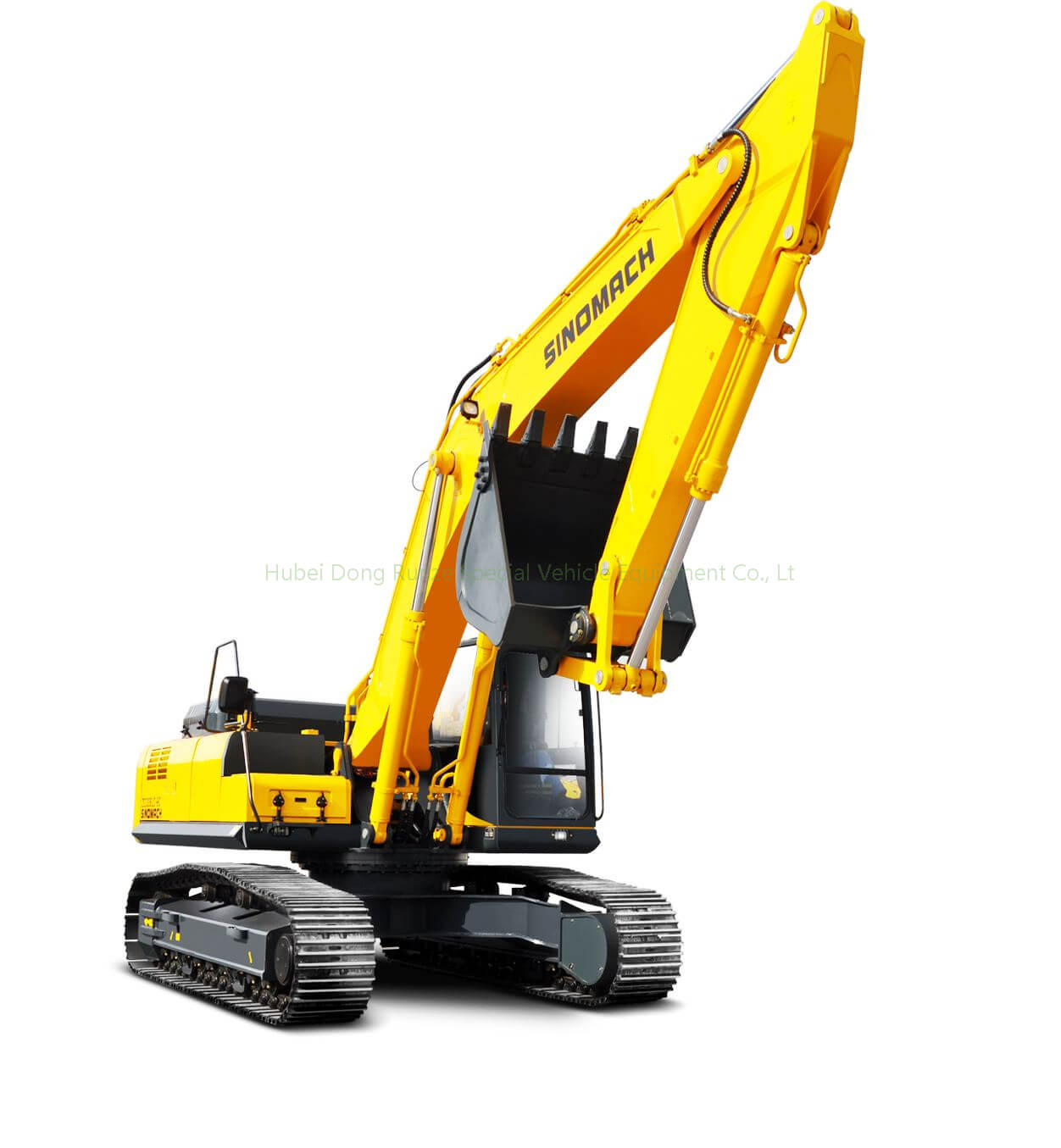

SINOMACH HYDRAULIC EXCAVATOR ZG3335LC-9C export to ZAMBIA price

SINOMACH HYDRAULIC EXCAVATOR ZG3335LC-9C export to ZAMBIA price
Price: $ 0
Discount Price: $ 157300
FOB:
ZG3335LC-9C
Availability:
Quantity:

  • ZG3335LC-9C

  • SINOMACH

  • 84295212

China SINOMACH Heavy  standardized, modular and serialized SINOMACH crawler hydraulic excavator by pooling superior resourcesand innovating independently. This product has become the new favorite of the market by its four performance characteristics of “high-level configuration, energy conservation, reliability, and comfort”.

ZG3335LC-9C Excavator
ZG3335LC-9C ExcavatorSpecification Download print

ZG3335LC-9C Excavator

Main Features
1. ZG3335LC-9C excavator manufactured by Changlin carries the original Cummins C series engine which provides outstanding durability and suitability for high strength and heavy load works in harsh conditions, combined with strong power, low oil consumption and compliance with Euro II .3/4 emission qualification.
2. Due to a negative flow and total power control system with action coordination, it ensures large digging force, high efficiency and perfect flexibility.
3. High strength large structural components, heavy moving arm, bucket rod and reinforced bucket enable this construction equipment to bear severe working conditions such as mine.
4. Lengthened and widened chassis boasts high intensity, making working more stable and safer.
5. The excavator is designed with an intelligent electronic monitoring system which provides real time monitoring, automatic fault diagnosis and warning, maintenance reminding functions.
6. New type driver cab is provided with a fully automatic air conditioning. It is spacious and comfortable, and comes with an eye-catching appearance. The cab is available in various protections for different working conditions.
7. Automatic refueling system is optional. One-key operation makes it easy to use.

Technical Parameters of the Excavator

Model ZG3335LC-9C

Length ×Width ×Height (mm)11140×3280×3280O

perating weight (Kg)32500

Rated bucket capacity (m3)1.45

Max. digging depth (mm)7380

Max. digging radius (mm)11110

Max. digging height (mm)10210

Max. digging force (KN)210

Gradeability (%)70

Diesel engine Cummins 6CTAA8.3-C250

Rated output (KW)186



optional list

modelZG3065-9/ZG3065-9B
Specifications
Operating weight5800kg
Standard bucket capacity0.22m³
Arm length1600mm
Boom length3000mm
Engine
ModelYanmar 4TNV98-SYU
Typecylinders-vertical type-water cooling-4 strokes
Power43.4kW
Max.torque254N.m
No.of cylinders4
Displacement3.319L
Hydraulic system
Main pumpRexroth/ Doosan
TypeVariable displacement axial piston pumps
Max.displacement 156L/min / 170L/min
Working pressure24.5Mpa / 22Mpa
Hydraulic motorJesung
SwingFixed displacement axial piston motor
TraveVariale displacement axial piton motors
 Performance
Swing speed11r/min / 10r/min
Max. travel speed H/L0~2.3/0~4.3km/h
Gradeability30°
Max. digging force of bucket 40kN
Max.digging force of arm25kN
Ground pressure33kPa
Tank capacity
Fuel tank capcity120L
Hydraulic tank capacity 90L


modelZG3085-9
Specifications
Operating weight8100kg
Standard bucket capacity0.37m³
Arm length1730mm
Boom length3904mm
Engine
ModelYanmar 4TNV98T-SFN
TypeVertical type-4 strokes-water cooling-direct injection-turbo charge
Power53.1kW a
Max.torque286.9~312.7N.m
No.of cylinders4
Displacement3.319L
Hydraulic system
Main pump
TypeVariable displacement axial piston pumps
Max.displacement 90ml
Working pressure27.5Mpa
Hydraulic motor
SwingFixed displacement axial piston motor
TraveVariale displacement axial piton motors
 Performance
Swing speed12
Max. travel speed H/L4.5~2.5km/h
Gradeability30°
Max. digging force of bucket 53kN
Max.digging force of arm44kN
Ground pressure37kPa
Tank capacity
Fuel tank capcity138L
Hydraulic tank capacity 95L


modelZG3150-9C
Specifications
Operating weight14000kg
Standard bucket capacity0.6m³
Arm length2500mm
Boom length4600mm
Engine
ModelCUMMINS B3.9-C
TypeTurbo-charged with inter-cooled
Power 86kW
Max.torque486N.m
No.of cylinders4
Displacement3.9L
Hydraulic system
Main pump
TypeVariable displacement axial piston pumps
Max.displacement 2x58cc/rev
Max. Flow Rate2x120L/min
Working pressure30Mpa
Hydraulic motor
SwingFixed displacement axial piston motor
TraveVariale displacement axial piton motors
 Performance
Swing speed13.7r/min
Max. travel speed H/L3.1km/h
Gradeability30°
Max. digging force of bucket 77kN
Max.digging force of arm61.8kN
Ground pressure39kPa
Tank capacity
Fuel tank capcity250L
Hydraulic tank capacity 200L


modelZG3210-9/ZG3210-9C
Specifications
Operating weight21000kg
Standard bucket capacity 0.91m³
Arm length2910mm
Boom length5680mm
Engine
ModelCUMMINS 6BTAA5.9-C150
Type Turbo-charged with inter-cooled
Power112kW/1950rpm
Max.torque614N.m at 1500rpm
No.of cylinders6
Displacement5883cc
Hydraulic system
Main pump
TypeVariable displacement axial piston pumps
Max.displacement 2x108cc/rev C(C TYPE)  2x111cc/rev
Max. Flow Rate2x211L/min C(C TYPE) 2x218L/min
Working pressure31.4/34.3Mpa C(C TYPE) 31.4/34.3Mpa
Hydraulic motor
SwingFixed displacement axial piston motor
TraveVariale displacement axial piton motors
 Performance
Swing speed12.4rpm C(C TYPE) 12.0rpm
Max. travel speed H/L5.4/3.0km/h
Gradeability35°
Max. digging force of bucket 137kN
Max.digging force of arm102kN
Ground pressure47kPa
Tank capacity
Fuel tank capcity400L
Hydraulic tank capacity 210L
modelZG3225LC-9/ZG3225LC-9C
Specifications
Operating weight22000kg
Standard bucket capacity 1.0m³
Arm length2910mm
Boom length5680mm
Engine
ModelCUMMINS 6BTAA5.9-C150
TypeTurbo-charged with inter-cooled
Power112kW/1950rpm
Max.torque614N.m at 1500rpm
No.of cylinders6
Displacement5883cc
Hydraulic system
Main pump
TypeVariable displacement axial piston pumps
Max.displacement 2x108cc/rev C(C TYPE) 2x112cc/rev
Max. Flow Rate2x211L/min C(C TYPE) 2x218L/min
Working pressure31.4/34.3Mpa C(C TYPE) 31.4/34.3Mpa
Hydraulic motor
SwingFixed displacement axial piston motor
TraveVariale displacement axial piton motors
 Performance
Swing speed10.6rpm C(C TYPE) 12.0rpm
Max. travel speed H/L5.4/3.0km/h
Gradeability35°
Max. digging force of bucket 137kN
Max.digging force of arm102kN
Ground pressure45kPa
Tank capacity
Fuel tank capcity400L
Hydraulic tank capacity 210L
modelZG3235-9/ZG3235-9C
Specifications
Operating weight23000kg
Standard bucket capacity 1.1m³
Arm length3050mm
Boom length5850mm
Engine
ModelCUMMINS 6BTAA5.9-C178
TypeTurbo-charged with inter-cooled
Power133kW/2000rpm
Max.torque708N.m at 1500rpm
No.of cylinders6
Displacement5883cc
Hydraulic system
Main pump
TypeVariable displacement axial piston pumps
Max.displacement 2x112cc/rev C(C TYPE) 2x115cc/rev
Max. Flow Rate2x218L/min C(C TYPE) 2x224L/min
Working pressure31.4/34.3Mpa C(C TYPE) 32.3/34.3Mpa
Hydraulic motor
SwingFixed displacement axial piston motor
TraveVariable displacement axial piton motors
 Performance
Swing speed11.3rpm C(C TYPE) 10.5rpm
Max. travel speed H/L5.6/3.1km/h
Gradeability35°
Max. digging force of bucket 162kN
Max.digging force of arm123kN
Ground pressure50kPa
Tank capacity
Fuel tank capcity400L
Hydraulic tank capacity 210L
modelZG3255LC-9/ZG3255LC-9C
Specifications
Operating weight25000kg
Standard bucket capacity 1.2m³
Arm length3050mm
Boom length5850mm
Engine
ModelCUMMINS 6BTAA5.9-C178
TypeTurbo-charged with inter-cooled
Power135kW/2000rpm
Max.torque708N.m at 1500rpm
No.of cylinders6
Displacement5883cc
Hydraulic system
Main pump
TypeVariable displacement axial piston pumps
Max.displacement 2x112cc/rev C(C TYPE) 2x115cc/rev
Working pressure31.4/34.3Mpa C(C TYPE) 32.3/34.3Mpa
Hydraulic motor
SwingFixed displacement axial piston motor
TraveVariable displacement axial piton motors
 Performance
Swing speed11.3rpm C(C TYPE) 10.5rpm
Max. travel speed H/L5.6/3.1km/h
Gradeability35°
Max. digging force of bucket 162kN
Max.digging force of arm123kN
Ground pressure45kPa
Tank capacity
Fuel tank capcity400L
Hydraulic tank capacity 210L
modelZG3465LC-9C
Specifications
Operating weight47300kg
Standard bucket capacity 2.25m³
Arm length3050mm
Boom length5850mm
Engine
ModelCUMMINS QSM11-C375
TypeTurbo-charged with inter-cooled
Power375（280）kW/2000rpm
Max.torque1898N.m at 1400rpm
No.of cylinders6
Displacement10800cc
Hydraulic system
Main pump
TypeVariable displacement axial piston pumps
Max.displacement 200cc/rev×2
Working pressure32.3/34.3Mpa
Hydraulic motor
SwingFixed displacement axial piston motor
TraveVariable displacement axial piton motors
 Performance
Swing speed8.6rpm
Max. travel speed H/L5.4/3.2km/h
Gradeability35°
Max. digging force of bucket 290kN
Max.digging force of arm228kN
Ground pressure0.8kgf/cm²
Tank capacity
Fuel tank capcity680L
Hydraulic tank capacity 380L

Packaging & Shipping

Packaging & Shipping_1.jpg
