DRZ5250GSSX2
-
SHACMAN STEYR
-
8705909990

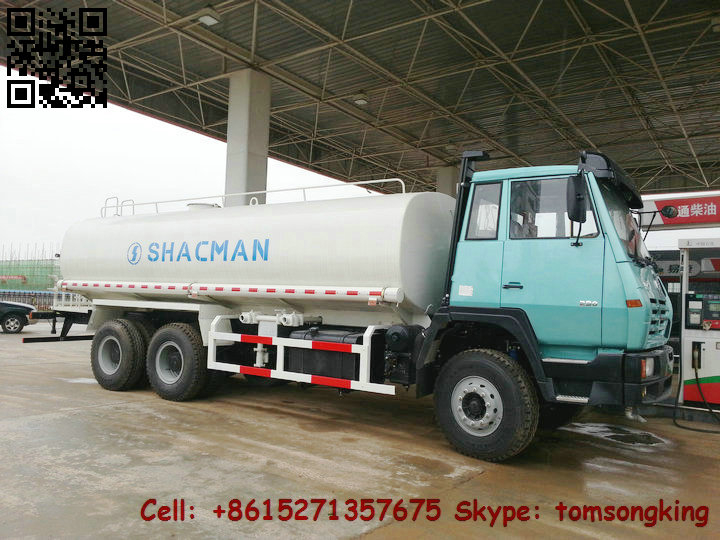

SHACMAN AOLONG STEYR 6X4 WATER TANK TRUCK (18~25 kl)
(Optianal Right Hand drive model)
| Steyr Cabin / Passenger Capacity | One and half row Seat, flat top with a bed, with airbag seat, tiltable, with air conditioner, 2+1 passenger | |
| Chassis | Model | SX1255 |
| Overall dimensions | 9530*2490*3800 mm | |
| G.V.W | 25000 kg | |
| Net weight | 12860 kg | |
| Design load | 25000 kg | |
| Drive type | 6x4 | |
| Suspension F/R | 1576/2279 mm | |
| Wheelbase | 4325+1350 mm | |
| Number of axles | 3 | |
| Axle-load | 7000/18000 kg (two rear driving axle) | |
| Approach/Departure Angle | 18/16 ° | |
| Number of Spring leafs | 10/12 | |
| Track F/R | 1939/1800/1800 mm | |
| Tire ( No. & specification) | 12.00-20,10pcs+1pc ( optional 12.00R20 16PR ) | |
| Max speed (Km/h) | ≥ 80 km/h | |
| Brake system | Pneumatic braking | |
| Steering | Power steering | |
| Transmission | 9JS135,RTD-11509C / Mechanical 9 forward+1 reverse | |
| Engine | Engine model | WP10.290 |
| Type of fuel | diesel | |
| Power | 213kw (290 hp | |
| Exhaust | 9726 ml | |
Tank material
Mild steel / stainless steel / aluminum alloy
Standard equipment
With water pump, water cannon with working platform.
fire valve, water valves, water pipes.
Also could modify in potable or transport water tank.
| Water Tank | Tank capacity | 18000~25000 Liters = 18~25 m3 |
| Tank shape | Oval shape. | |
| Water tanker size | 6800*2400*1500 mm (20 m3) | |
| Tank material | Mild steel / stainless steel / aluminum alloy | |
| Standard equipment | With water pump, water cannon with working platform. fire valve, water valves, water pipes Also could modify in potable or transport water tank |
Our DTA water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK (HOWO / STEYR /GOLD PRINCE),NORTH BENS(Beiben), FOTON(FORLAND /ROWOR / AUMAN), NISSAN, ISUZU, JAC, JMC, KAMA, YUEJIN, HINO, SHACMAN,etc.
Our Water Tank series:
-----water tanker truck
-----sanitation water tank truck
-----sprinkler truck
-----water wagon truck
-----insulation water tank truck
-----pesticide sprinkling truck
-----water spraying truck
-----potable water tank truck
-----Mild steel water tank cart
-----Stainless steel tank water truck
-----Aluminum alloy water tanker
-----RHD watering cart
-----All wheel driving water tanker vehicle
-----Water tank semi trailer
-----Storage water tanker
M:8615271357675
TIC TRUCKS , www.truckinchina.com
