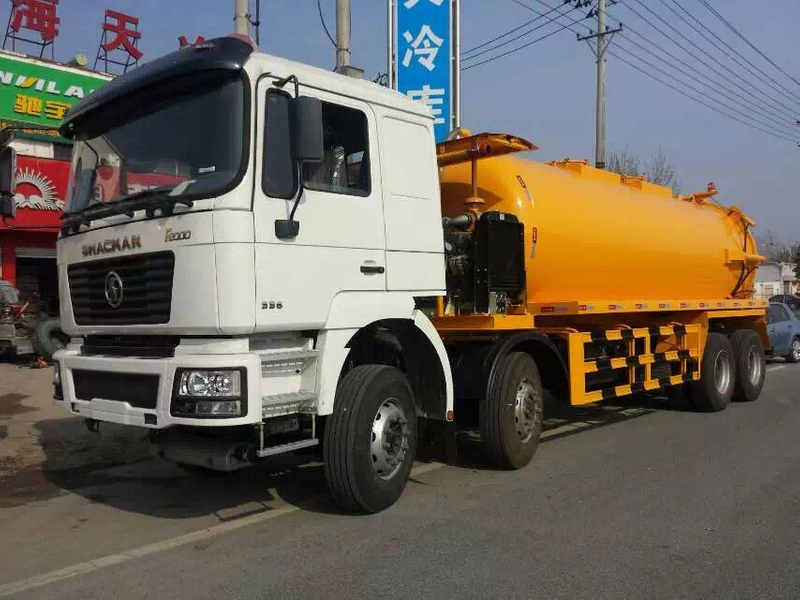

SHACMAN Vacuum Tanker Truck 20000L
| Quantity: | |
|---|---|
tank truck with a heavy duty vacuum designed to pneumatically loadsolids, liquids, sludge or slurry through suction lines typically 2-4"
F2000 Chassis :
Specification:
| Model | SX1315JR456 | SX1315JR456 |
| Drive type | 8×4 | 8×4 |
| Weight | ||
| Complete kerb mass (kg) | 9700 | 9700 |
| GVW (kg) | 12505 | 12505 |
| GCW (kg) | 25000 | 25000 |
| Dimensions | ||
| Max.length(mm) | 8400 | 8400 |
| Max.width(mm) | 2490 | 2490 |
| Max.heigh(mm) | 3160 | 3160 |
| Front/Rear overhang(mm) | 1525/1200 | 1525/1200 |
| Wheel base(mm) | 4325+1350 | 4325+1350 |
| Track width(mm) | 1939/2035 | 1939/2035 |
| Performance | ||
| Max.speed (km/h) | 77 | 77 |
| Min.turning circle(m) | 0 | 0 |
| Min.ground clearance(mm) | 314 | 314 |
| Approach / Departure angle (°) | 20/20 | 20/20 |
| Max.gradeability(%) | 33 | 33 |
| Engine | ||
| Brand | WEI CHAI | WEI CHAI |
| Model | WD615.50 | WD615.56 |
| Power(kw/HP) | 290 | 270 |
| Max.Torque (N.m )/rpm | 1250/1200—1600 | 1250/1200—1600 |
| Displacement (L) | 9.7 | 9.7 |
| Emmission Standards | Euro II | Euro II |
| Transmission | ||
| Brand | FAST | FAST |
| Model | 9JS119 | 9JS135 |
| Control type | manual | manual |
| Gear Shift | 9-forward and 1 reverse speeds | 9-forward and 1 reverse speeds |
| Clutch | ||
| Type | Spring plate,diaphragm spring | Spring plate,diaphragm spring |
| Diameter (mm) | φ430 | φ430 |
| Action | mechanical type,hydraulic and pneumatic operation | mechanical type,hydraulic and pneumatic operation |
| Brakes | ||
| Type | Drum | Drum |
| Service brake | With dual-circuit compressed air brake | With dual-circuit compressed air brake |
| Park brake | Power spring brake acting on rear wheel | Power spring brake acting on rear wheel |
| Auxiliary brake | Exhaust brake | Exhaust brake |
| Option | Jacobs, ABS | Jacobs, ABS |
| Steering | ||
| Type | Integral circulating ball power sreering | Integral circulating ball power sreering |
| Option | ZF8098 | ZF8098 |
| Chassis | ||
| Type | Ladder structure with parallel straight | Ladder structure with parallel straight |
| Dimensions (mm) | 300×80×(8+7) | 300×80×(8+7) |
| Suspension | ||
| Front Suspension | Longitudinal leaf spring | Longitudinal leaf spring |
| Rear Suspension | Inverted leaf spring stabilizator suspension | Inverted leaf spring stabilizator suspension |
| Axles | ||
| Brand | HANDE | HANDE |
| Front axle | 6500kg | 6500kg |
| Rear axle | 13000kg STR | 13000kg STR |
| Ratio | 5.73:1 | 5.73:1 |
| Tyres | ||
| Type (Standard) | 11.00-20 | 11.00-20 |
| Option | 12.00-20 | 12.00-20 |
| Fueltank | ||
| Tank capacity (L) | 380 | 380 |
| Material | FE | FE |
| Electrics | ||
| Type | 24V | 24V |
| Starter | 7.8kw(24V) | 7.8kw(24V) |
| Generator | 2.0kw(28V 70A) | 2.0kw(28V 70A) |
| Battery | 2×180Ah | 2×180Ah |
| Cab | ||
| Type | D LONG, Lengthened flat roof | D LONG, Lengthened flat roof |
| Equipments | 2 rear window,mechanical clerestory, hydraulic suspension cab,A/C,hydraulic chair with seatbelts,one sleeping bed,hydraulic reversal cab,metal bumper,with USB,can play radio with MP3 format | 2 rear window,mechanical clerestory, hydraulic suspension cab,A/C,hydraulic chair with seatbelts,one sleeping bed,hydraulic reversal cab,metal bumper,with USB,can play radio with MP3 format |
| Option | electric windows, electricity heated rear-view mirror, CD, tachograph, 4 point air suspension\ A/C, air suspension driver seat with handle and seatbelts, electricity reversal cab | electric windows, electricity heated rear-view mirror, CD, tachograph, 4 point air suspension\ A/C, air suspension driver seat with handle and seatbelts, electricity reversal cab |
| Platform Dimension | 9500x2326x800 | 9500x2326x800 |
Advantage:
Vacuum tanker
| Vacuum sewage suction tank structure parameters | ||||
| Tank dimensions | 6600×1850×1850mm | Tank volume | 16000L | |
| Tank material | Carbon steel | Tank thickness | 6mm | |
| Color and Logo | Optional | |||
| China WEILONG vacuum pump | ||||
| Model | 50QZXDH-68/7000 | RPM | 800r/min | |
| Flow | 68L/s | Pressure | 7000Pa(93%) | |
| Power | 5kw | Weight | 50kg | |
| Standard configuration | Chassis,sub frame,vacuum sewage tank,oil water separator, water gas separator, hydraulic cylinder for unloading device, domestic vacuum pump, pressure gauge,suction hose, gravity flow valve, connected device,observation tube, automatic anti overflow valve, hydraulic suite,rear door hydraulic opening. | |||
| Selective configuration | Italy BP vacuum pump,Italy Hydraulic Motor | |||
| Italy BP vacuum pump | ||||
| Model | MEC9000 | RPM | 1400r/min | |
| Flow | 107L/min | Pressure | 174bar | |
| Power | 30kw | Weight | 145kg | |
| Italy Hydraulic Motor | ||||
| Code | 6080200141 | Model | KM30.73-RO | |
| R.P.M | 1000r/min | Capacity | 73,82L/min | |
| Output | 17KW | Torque | 136Nm | |
engine optional Euro 3/4/5
| Engine
| WeiChai Power / Cummins ISM |
| Output | 280 HP - 420 HP |
| Volume | 20000L - 27000L |
