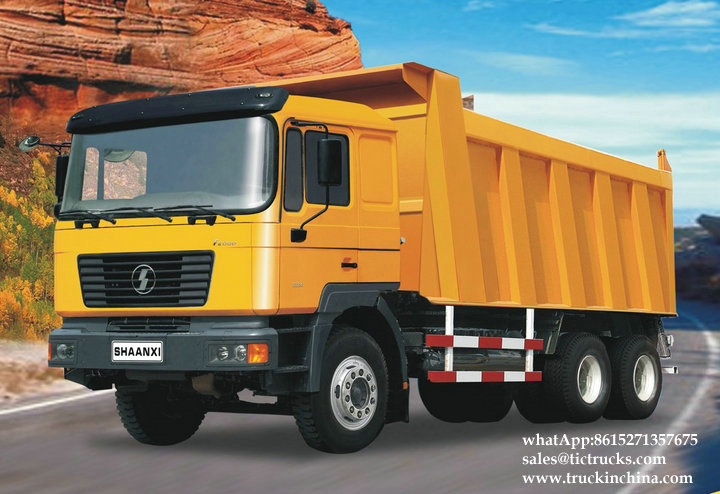

SHACMAN F2000 6x4 Dump Truck SX3254DM384 second hand export to TANZANIA FOB price
Views: 2074 Author: TIC TRUCKS Publish Time: 2017-02-26 Origin: Dong Runze Special Vehicle Equipment
SHACMAN F2000 6x4 Dump Truck SX3254DM384 second hand export to TANZANIA FOB price
GROSS WEIGHT 37500kg NET WEIGHT 37500kg
HS | Product name | Specification model | Quantity | Final destination country | Unit price | Total price | Currency |
87041090 | ENGINEERING | NOT ELECTRIC-WHEEL DIESEL | | SHAANXI AUTOMOBILE LICENSING |SX3254DM384 | 3 | TANZANIA | 14506 | 43518 | USD |
The Specification sheet
| Model | SX3254DM384 |
| Make | SHACMAN |
| Drive type | 6×4 |
| Application | Dump truck |
| Weight | |
| Complete kerb mass (kg) | 14500 |
| GVW (kg) | 32500 |
| Dimensions | |
| Max.length(mm) | 8329 |
| Max.width(mm) | 2490 |
| Max.heigh(mm) | 3450 |
| Front / Rear overhang (mm) | 1525/1654 |
| Wheel base(mm) | 3800+1350 |
| Track width(mm) | 2036/1850 |
| Performance | |
| Max.speed (km/h) | 74 |
| Min.turning circle(m) | 17 |
| Min.ground clearance(mm) | 314 |
| Approach / Departure angle (°) | 22/30 |
| Max.gradeability(%) | 33 |
| Engine | |
| Make | WEI CHAI |
| Model | WD615.50 |
| Power(kw/HP) | 213/290 |
| Max.Torque (N.m )/rpm | 1160/1100—1600 |
| Displacement (L) | 9.726 |
| Emmission Standards | Euro Ⅱ |
| Transmission | |
| Make | FAST |
| Model | 9JS119 |
| Control type | manual |
| Gear Shift | 9-forward and 1 reverse speeds |
| Clutch | |
| Type | Spring plate, diaphragm spring |
| Diameter (mm) | φ430 |
| Action | mechanical pull type, self adjusting Air assisted clutch |
| Brakes | |
| Type | Drum |
| Service brake | With dual-circuit compressed air brake |
| Park brake | Power spring brake acting on rear wheel |
| Auxiliary brake | WEVB |
| Steering | |
| Make | ZF Technology |
| Type | Integral inner circulation power steering |
| Axles | |
| Make | SHAAN'XI HANDE |
| Front axle | 7500kg |
| Rear axle | 13000kg(each other） Double reduction driving axle with inter-wheel differential and differential lock. |
| Tyres | |
| Type (Standard) | Bias type, 12.00-20, 11 pieces |
| Fueltank | |
| Tank capacity (L) | 380 |
| Material | Metal |
| Electrics | |
| Type | 24V |
| Starter | 5.58kw（24V） |
| Generator | 1.54kw(28V 55A) |
| Battery | 2×135Ah |
| Cab | |
| Type | MAN D'LONG F2000, Mid-lengthened flat roof |
| Equipments | 2 rear window, mechanical clerestory, hydraulic suspension cab, hydraulic chair with seatbelts, one sleeping bed, hydraulic reversal cab, with Manual control AC |
| Cargo Box | |
| Platform dimentions(mm) | 5200×2300×1250, middle lifting type, floor thickness 8mm, side thickness 4mm |
