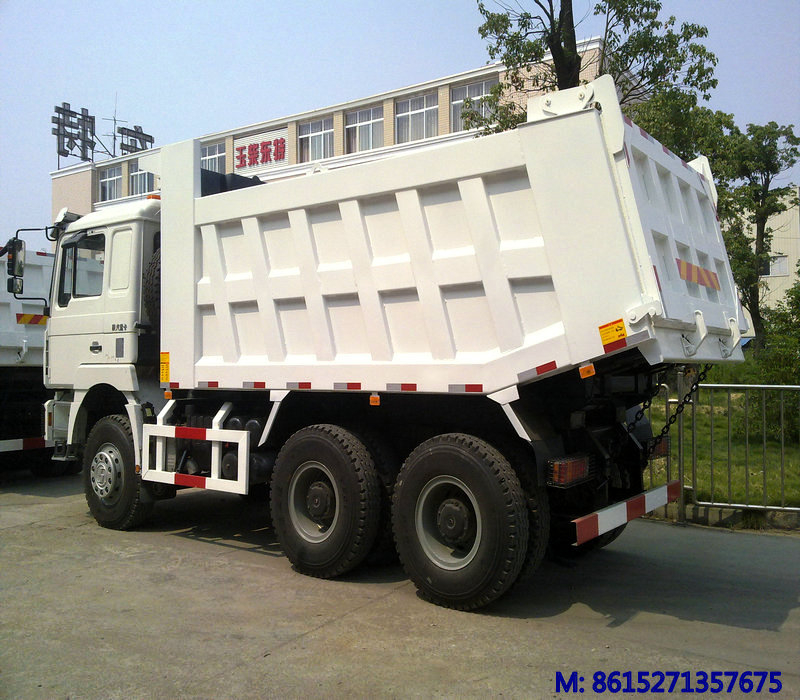

SHACMAN 6x4 Dumper truck 35T $58000~75000
SHACMAN 6x4 Dumper truck 35T
SHACMAN SX3255 ISME 385HP Cummins Engine DUMPER TRUCK
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
| Product | Shacman dump truck (8x4) | |
| Chassis type | SX3255 SX3257 | |
| Model（m3） | 15~22 | |
| Parameters | Overall dimension (mm) | 9180 ×2490×3450 |
| Total Mass(kg) | 25000 | |
| Approach / Departure angle(mm) | 28/30 | |
| Front /rear suspension(mm) | 1525/1630 | |
| Fuel Type | diesel | |
| Max Speed (KM/H) | 85 | |
| Engine | Type | ISME385.30 |
| Displacement(L)/Power(kw) | 10.8L/ 283/ (385Hp) | |
| Manufacturer | XI’AN CUMMINS | |
| Type | Straight in line,6 cylinders,water-cooling | |
| Chassis | Drive type | 6×4 |
| Wheelbase(mm) | 3775+1400 , 5000+1350,4975+1400 | |
| Front axle capacity (kg) | 6500kg | |
| Rear axle capacity(kg) | 16000kg, 2 axle combined | |
| Steering gear | Recirculating ball screw type with hydraulic power assistance | |
| Transmission | 10JSD180, 10 forwarder,1 reverse gear,manuel operation | |
| Clutch | Φ430mm,Dry single plate, hydraulically operated clutch | |
| Braking system | Split air braking system,pneumatic servo,drum brake | |
| Cab | Cab Non-longhead with sleeper cab | |
| Number of spring axle(front/rear) | 10/12 | |
| Tire Type | 12.00R20 | |
| Air-condition | With A/C | |
| Dump body size | Dump body size (mm) | 5500x2300x1500(mm) 6500x2300x1500(mm) |
| Body max title angle | 50° | |
| Lift time (s) | Less than 15s | |
| Descend time (s) | Less than 16s | |
| Dump body volum | About 15cbm | |
| Thickness of plate (mm) | 6mm for side plate,8mm for end floor plate | |
| Hydraulic cylinder type | Front lifting cylinder from China,or choose HYVA cylinder | |
TIC TRUCKS , www.truckinchina.com
