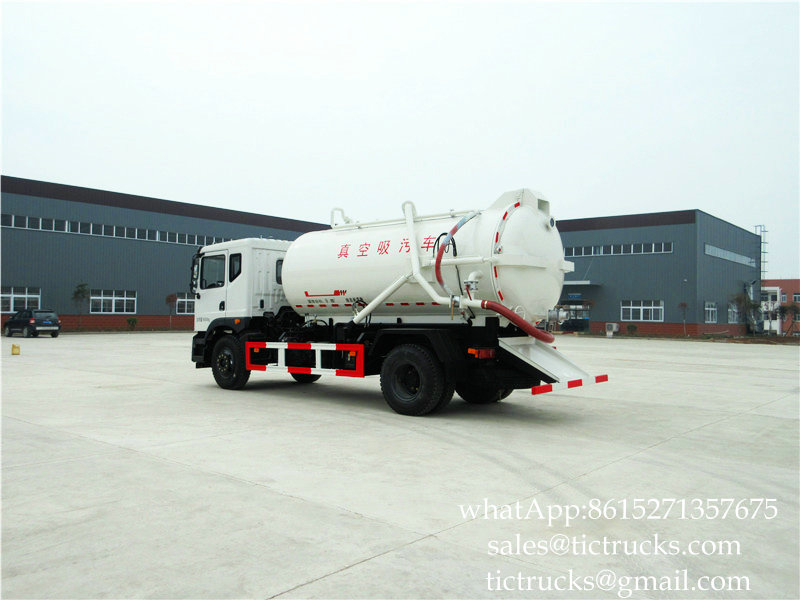

Royal Tiger Vacuum Truck 8900L- Euro 5 Tanker Truck
Royal Tiger Vacuum Truck 8900L- Euro 5 Tanker Truck
| Quantity: | |
|---|---|
vacuum sewerage jetting tanker 2000Gln
Combined High pressure Water cleaning and Jetting Sewage suction Truck 4x2 Euro 4 ,5
The waste water truck is also called sewer truck, sewage suction truck, vacuum suction truck, vacuum sewage suction truck, sewage suction tanker truck, sewage tanker truck, sewage drainage truck, sewage sucking truck, sewage pump truck,etc.
It mainly used for sucking septic material and sludge from drains,transportation and discharge of sewage from septic tank and sludge from drains.And the sewage truck is also used for clean the drainage on the city underground sewers,the industrial pipes, walls and furthermore acts as a sprinkling.Moreover, it can be used to transport water, flush the equipment.
| Vehicle Main Dimensions | Cab type | Single or double |
| Overall dimension(L×W×H)(mm) | 7570,7770,8120,8320×2500×3200(mm) | |
| Wheelbase (mm) | 3950 | |
| Axle number | 2 | |
| Drive type | 4*2 | |
| Steering type | Left Hand Drive with hydraulic power steering | |
| Max. Drive Speed (km/h) | 120 | |
| Curb weight (kg) | Approx 7200kg |
| Chassis parameter | Chassis Model | EQ1168GLJ4 |
| Chassis manufacturer: | DONGFENG | |
| Transmission | Manual , 5 shift (5 forward and 1 reverse) | |
| Brakes | air brake | |
| Tire | |
| Engine parameter | Engine Brand | YUCHAI |
| Model | YC6J180-50 | |
| Fuel type | Diesel | |
| Horse Power(kw)/(hp) | 180hp/132kw | |
| Displacement(L) | 6.7 | |
| Emission Standard | Euro 4 / 5 |
| Superstructure Parameter and main performance | Cleaning Tank volume(m3) | 0 |
| Cleaning Tank material | ||
| Sewage tank volume(m3) | 9 | |
| Sewage tank material | 5 mm good quality carbon steel , round shape | |
| Pump | Imported ITALY high pressure pump and high quality vacuum pump | |
| Standard configuration | 60m long high pressure pipe, 10 high pressure sprayers, inspect window, one gravity mouth, cleaning apparatus,5m long suction pipe, etc | |
| Main performance | 16Mpa, 125L/MIN, vertical suction lift: 7-10m. | |
| Main function | Cleaning city sewer, pipeline dredge, suction sewage,etc | |
| Product name | Dongfeng shenyu Royal Tiger cleaning vacuum truck | Product model | 5160GQWEQ5 |
| Total mass (Kg) | 16000 | Tank volume (m3) | 8.9 |
| Rated load (Kg) | 6865 6800 7365 7300 | Overall dimension (mm) | 7820x2500x3470 |
| Kerb mass (Kg) | 9005 8505 | Cab number (person) | 2,3 |
| Approach/departure angle (°) | 22/14 | Front/rear suspension (mm) | 1250/2070,1450/1870 |
| Number of axes | 2 | Wheelbase (mm) | 3800, 4200, 4500 4700 5100 |
| Axle load (Kg) | 6000/10000 | Maximum speed (km/h) | 90 |
| Other | Notes: 1. the chassis options luminaire with bumpers and other new styles. Tank side of the optional kit, tanks optional tube on both sides. 2. medium: liquid suspended dirt, density of 800 kilograms per cubic meter. Effective volume of the tank when 8.9 cubic meters, drivers mm/mm/wheelbase tank dimensions (length x diameter) mm/rated load kg total mass kg/kerb mass kg/correspondence: 7270/3950/3800x1700/16000/9005/6865 (number 2), 6800 (3 persons). When the tank volume 9.5 cubic metres, Commander mm/mm/wheelbase tank overall dimensions (length x diameter) mm/rated load kg total mass kg/kerb mass kg/correspondence: 7820/4500/4330x1700/16000/8505/7365 (number 2), 7300 (number 3). Side guard material material: Q235, lateral protection of welded and bolted connections, protection after welded and bolted connections, rear protective devices section size (width x height) 50x100 (mm) and rear protective height above ground: 490mm. ABS model 3631010-C2000 | ||
Combined High pressure Water cleaning and Jetting Sewage suction Truck 4x2 Euro 4 ,5
| Cell: 0086 152 7 135 7635 ; 0086 152 7 135 7675 WhatsApp: 8615271357675 tictrucks#gmail.com |  |
| Chassis model | EQ1168GLJ4 | Chassis name | Truck chassis |
| Trademark name | Dong Feng brand | Production enterprises | The Dongfeng Automobile Company |
| Overall dimension (mm) | 8950x2480x3050 | Number of tires | 6 |
| Approach/departure angle (°) | 24/12,26/14 | Tire specification | 10.00-20,10.00R20,9.00R20,9.00-20 |
| Number of leaf springs | 9/11+8,8/10+8,8/11+8,9/10+8 | Front track (mm) | 1910 1760 1940 1960 |
| Fuel type | Diesel | Rear track (mm) | 1860 1690 1750 1800 |
| Emissions standards | GB17691-2005 v, GB3847-2005 | ||
| Engine model | Engine manufacturers | Displacement (ML) | Power (Kw) |
| YC6J180-50 | Guangxi Yuchai machinery company limited | 6500 | 132 |
| YC4EG160-50 | Guangxi Yuchai machinery company limited | 4730 | 118 |
| ISD185 50 | Dongfeng Cummins Engine co | 4500 | 136 |
| ISD210 50 | Dongfeng Cummins Engine co | 6700 | 155 |
| CA4DLD-15E5 | Faw Jiefang automotive company Wuxi diesel engine works | 4400 | 112 |
| ISB170 50 | Dongfeng Cummins Engine co | 5900 | 125 |
| ISB190 50 | Dongfeng Cummins Engine co | 5900 | 140 |
| YC4E160-56 | Guangxi Yuchai machinery company limited | 4260 | 118 |
| YC6JA180-50 | Guangxi Yuchai machinery company limited | 6870 | 132 |
| CY4SK151 | Dongfeng Chaoyang diesel power Co Ltd | 3856 | 125 |
