A.TANK BODY
Tank volume:42000 liters+5% volume expansion
Tank material:ASTM B-209 Alloy 5454 H32 shiny,
Main body:6mm
Bulkhead & end plate 7mm
Baffle/ surge heads 7mm
B. RUNNING GEAR
Suspension BPW 12000kg air suspension.
Axles BPW, 12000 kg capacity, tri-axles.
Wheel Rims,Alcoa brand,shiny 6 Pcs
Tyres BRIFGESTONE brand 385/80R22.5 6 Pcs
King pin JOST 2"
WABCO brand ABS,JOST brand 28T standing legs.
2 Pcs spare tire carrier ,4 Pcs 10 pounds fire extinguishers
50L aluminum water tank.rear ladder at the back of the tank.
24V electrical system and LED rear light.
C.SPECIFICATION FOR FITTINGS: CIVACON brand
1. Euro Manhole cover
2. Foot valve
3. Discharge Coupling
4. Drain valve
5. Air control switch group
D.CERTIFICATES:
With SGS certificate,DOT & SASO
Application of the mirror surface aluminum fuel tank trailer
The aluminum fuel tank trailer is to work with a tractor head to apply the function of fuel transportation. It normally transport between fuel refinery factory, the fuel station and the fuel depot. Since it carries the highly flammable products, the safety issue always comes first for the tank design, fabrication and usage.
Advantages of aluminum fuel tank trailer.
One advantage of the aluminum fuel tank trailer is the better electrostatic conductivity. The aluminium alloy is unflammable material and it accumulates less electrostatic. The aluminium fuel tank could conduct the electrostatic more efficiently, so decrease the possibility of fire accident.
This advantage also contribute the safety level of aluminum fuel tank trailer.
Description of the aluminum fuel tank trailer
This is a 42000L 3 axle aluminum fuel tank trailer. The tank body is made by aluminum alloy 5454, and the trailer chassis is made by aluminum alloy 6061. The tank parts are world famous brand CIVOCAN. The whole set of tank parts include the manhole cover, bottom valve, discharge valve, vapor vent valve, emergency shut off button, etc. The running gear consists of the YORK axle and suspension, super single tyre, aluminum wheel rim, WABCO ABS and WABCO relay valve.
Specification
| Dimension |
| Overall dimension | 11800x2500x2980mm |
| Tare weight | 7500kgs |
| Tank |
| Shape | Round shape |
| Total volume | 42000L |
| Tank body material | Aluminum alloy 5454 5mm |
| Tank end plate | Aluminum alloy 5454 7mm |
| Compartment | 2 independent compartments |
| Manhole cover | Aluminum manhole cover, OPW brand |
| Bottom valve | Pneumatic control bottom valve, OPW brand |
| Discharge valve | 4 inches European type discharge valve, OPW brand |
| Vapor recovery system | With vapor recovery system, OPW brand |
| Trailer chassis |
| Main beam | Heavy duty special design I beam
Made by aluminum alloy 6061 |
| Axle | YORK axle, 13T capacity |
| Landing gear | JOST landing gear |
| Kingpin | JOST kingpin 2 inches |
| Suspension | A whole set of YORK Air suspension |
| Braking system | WABCO RE 6 replay valve, T30/30 air chamber |
| Tire | Tubeless tyre 12R22.5 |
| Wheel rim | Aluminum wheel rim 9.0R22.5 |
| Accessories | One tool box, 2pcs extinguisher, foldable handrill |
↵

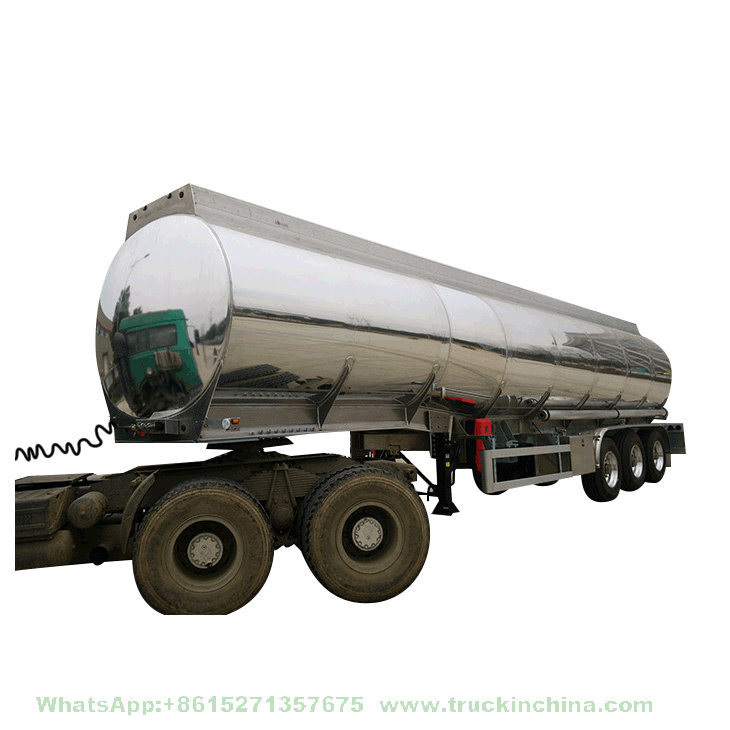

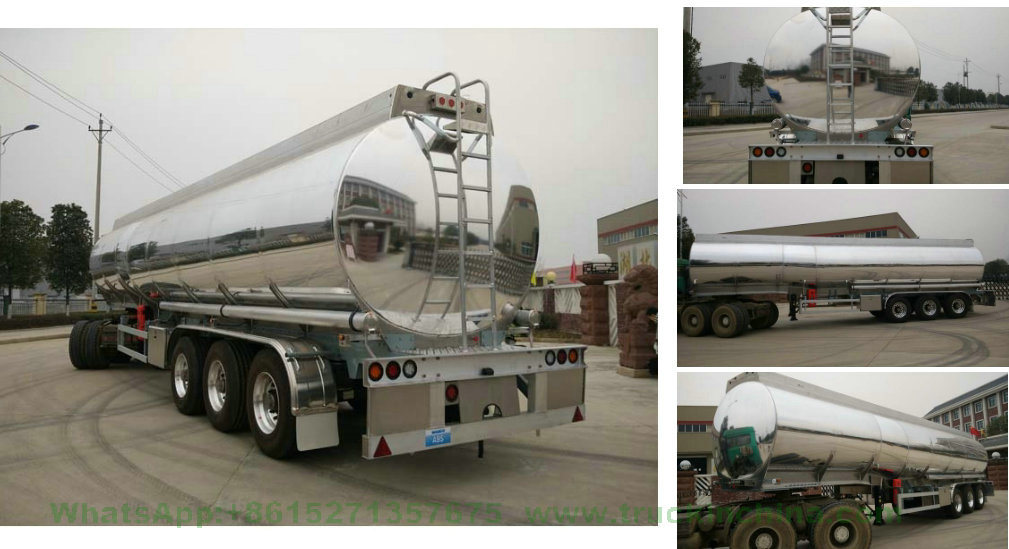

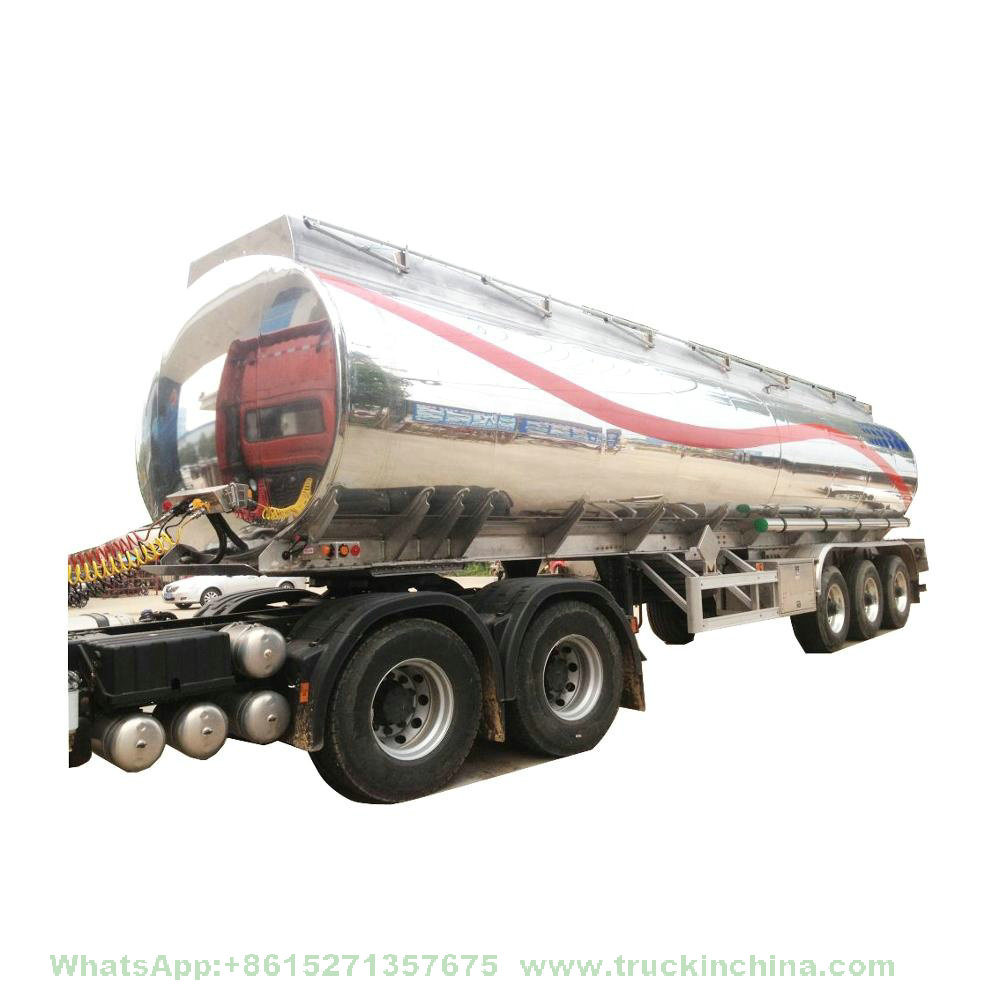

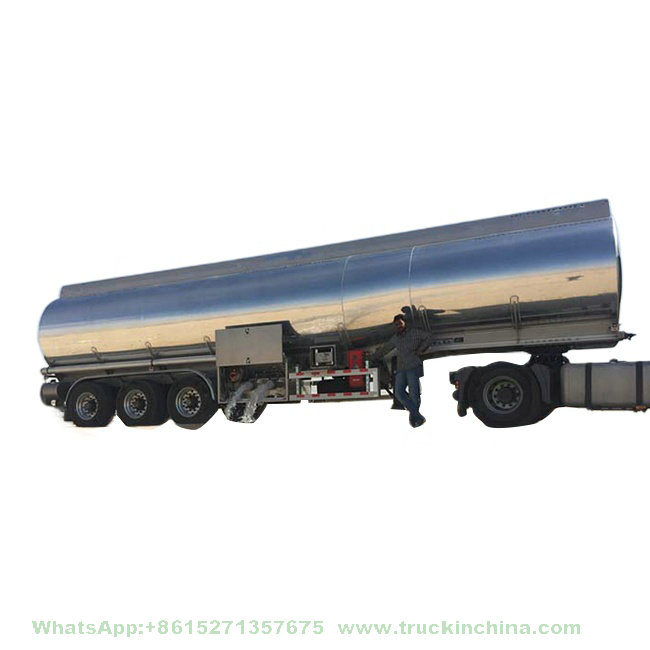

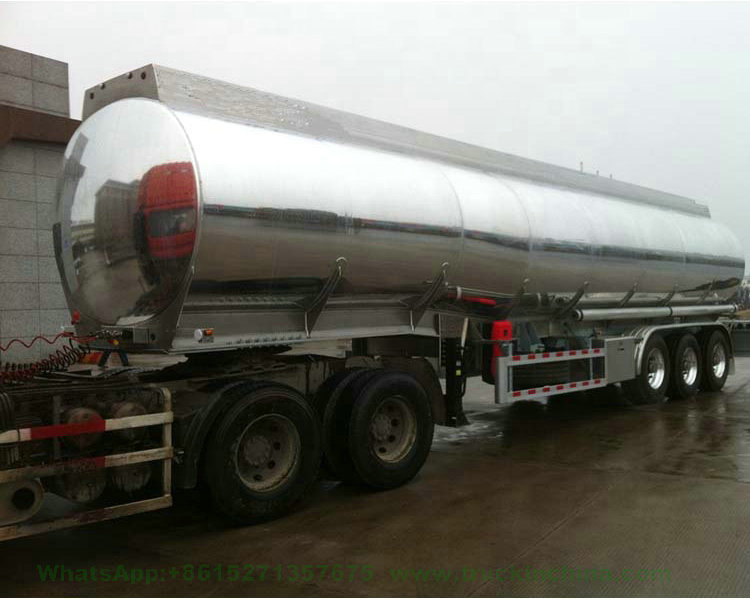

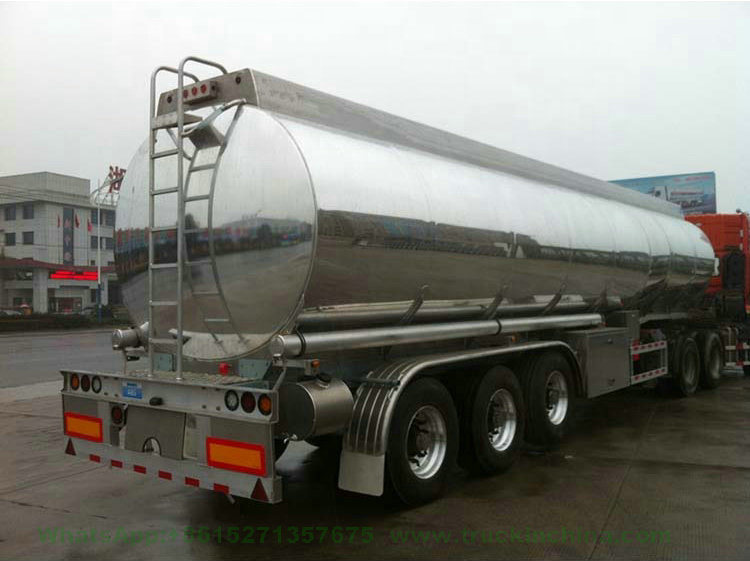

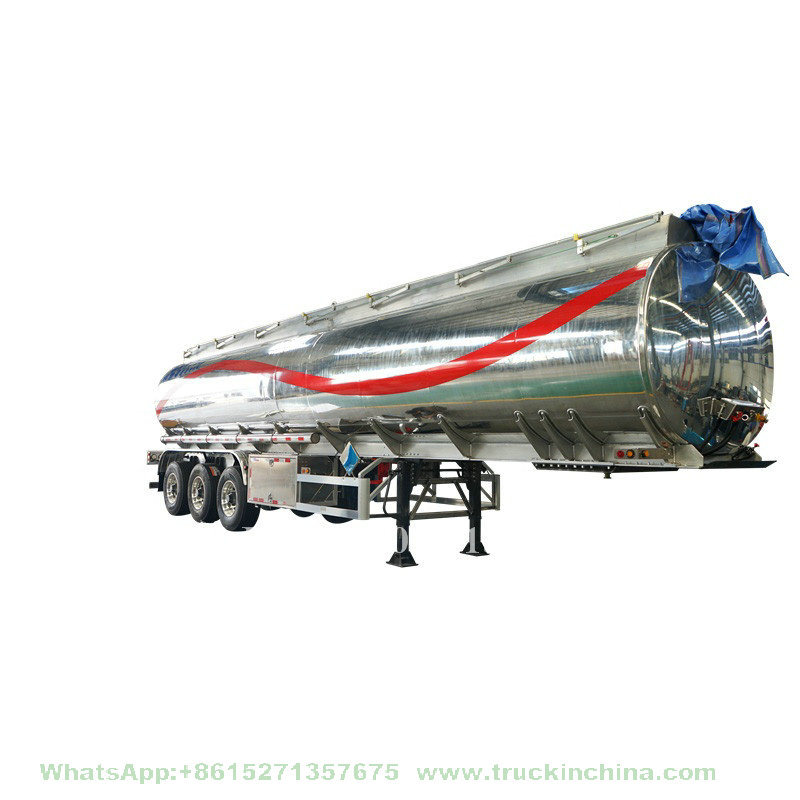

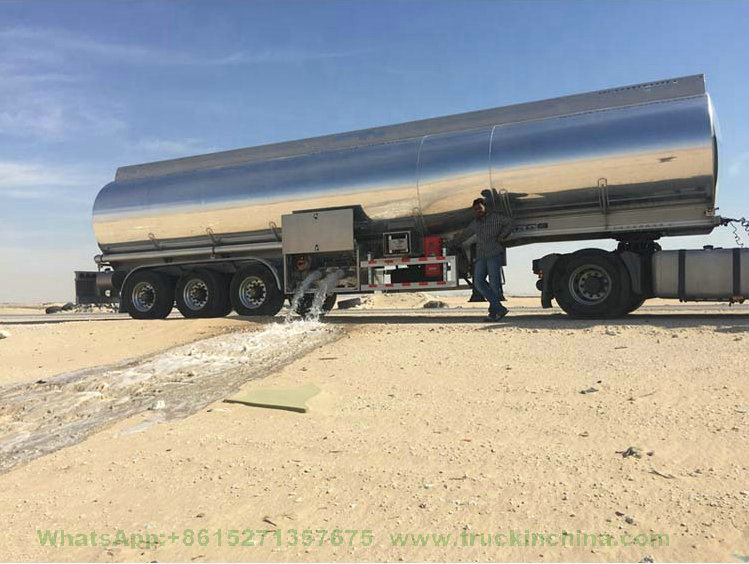

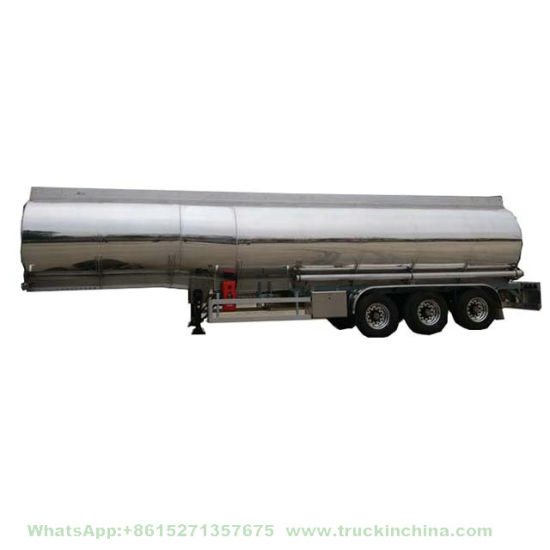

3 Axles Mirror Surface Aluminum Ally Fuel Tank Trailer 42000Lfuel Tanker Trailer
Product Description
| |
| Tare Weight | 7500kgs |
| Overall dimension | 11800x2500x2780mm |
| Shape | Round Shape |
| Total volume | 42000L |
| Tank material | Aluminum alloy 5083 5mm |
| Tank end plate | Aluminum alloy 5083 7mm |
| Compartments | 2 independent compartments |
| Manhole cover | Aluminum manhole cover, OPW brand |
| Bottom valve | Pneumatic control bottom valve, OPW brand |
| Discharge valve | 4 inches European type discharge valve, OPW brand |
| Vapor recovery system | With vapor recovery system, OPW brand |
| Main beam | Heavy duty special design I beam by aluminum alloy 6061 |
| King PIn | JOST kingpin 2 inches |
| Landing Gear | JOST landing gear |
| Wheel Rim | Aluminum wheel rim 9.0R22.5 |
| Tire | Tubeless tyre 12R22.5 |
| Axle | YORK axle, 13T capacity |
| Suspension | A whole set of YORK Air suspension |
| Braking System | WABCO RE 6 replay valve, T30/30 air chamber |
| Accessories | One tool box, 2pcs extinguisher, foldable drill |
3 Axles mirror surface aluminum ally fuel tank trailer 42000Lfuel tanker trailer with high quality
1.High quality aluminum makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2.The most skilled workers make welding of this fuel tank trailer more frequent and strong.
3.Two pieces spare tire carriers, water tank, fuel tank, extinguisher etc, are optional accessories which build modern transportation.
4.Our fuel tanker trailer choose Q345B carbon high-tensile steel material, welded by automatic Submerged-Arc processes.According to clients' requirements, we can customize different volume and compartment.
5. Aluminum tanker trailer can transport more oil than carton steel tanker trailer.Customized fuel tank trailer can be produced
