Road Sweeper Kits Upper Body SKD

Road Sweeper Kits Upper Body SKD
Availability:
Quantity:
  • Shanghai, China

  • 3000

  • T/T

Road Sweeper Kits Upper Body SKD

Road Sweeper Kits Upper Body SKD full parts except of car


Mechanical Sweeper Ask for better price

Cell /+8615271357675

The pictures are for your reference only.

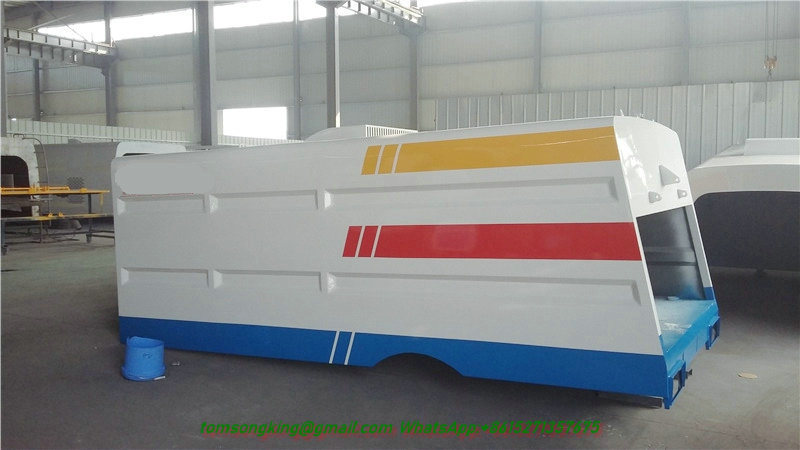

Road Sweeper Kits Upper Body SKD

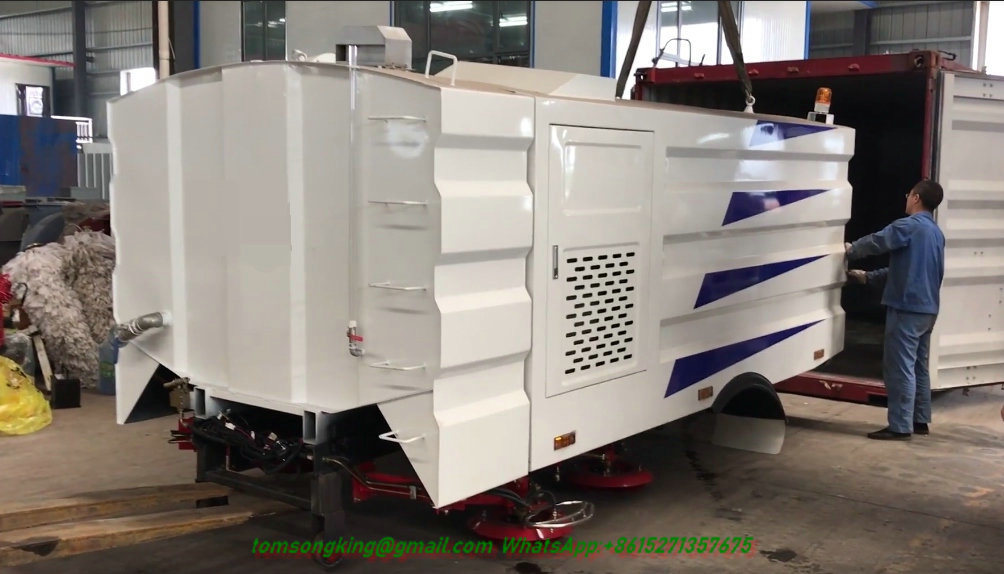

Road Sweeper Kits Upper Body SKD

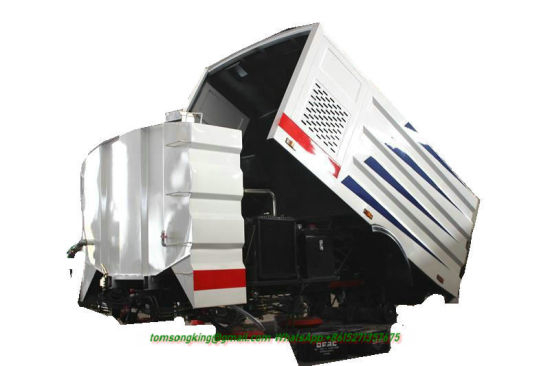

Road Sweeper Kits Upper Body SKD

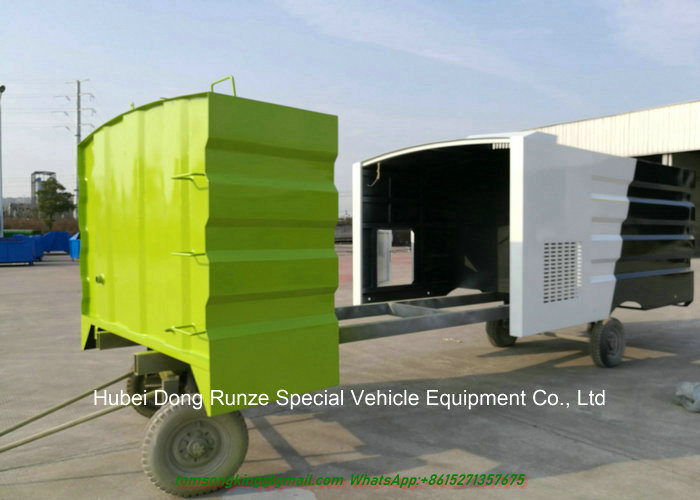

Road Sweeper Kits Upper Body SKD

Road Sweeper  Kits Upper Body SKD

Chassis Parameters  Hyundai / ISUZU / HOWO  SINOTRUCK

chassis of 5 tones

Water tank

1m3;1.5m3; 2.5m3;3.5m3

Waste hopper capacity

4m3  ;5m3;6m3;7m3

Hydraulic System

System Pressure

13MPa

Operating system

Full Hydraulic control


SKD Road Sweeper body 5m³ Road Sweeper Superstructure Spare Parts List


NO. Name Unit Quantity Total Quantity Comments
1 Dust Tank Assembly 1 set 4 set Installed
2 Clean Water Tank Assembly 1 set 4 set Installed
3 Hydraulic Motor 4 unit 16 unit Installed
4 Magnetic Valve 1 unit 4 unit Installed
5 Sweep Plate 4 set 16 set Installed
6 Hydraulic Oil Cylinder 8 unit 32 unit Installed
7 Fan Assembly 1 set 4 set Installed
8 Auxiliary Engine Assembly 1 set 4 set Installed
9 Vacuum Suction Assembly 1 set 4 set Installed
10 Auxiliary Frame Assembly 1 set 4 set Installed





11 Vacuum Suction Pipeline 1 unit 4 unit
12 Electric Control Box 1 unit 4 unit
13 Main Control Box 1 unit 4 unit
14 Rear Door Sealing Strip 1 unit 4 unit
15 Water Pipeline 1 unit 4 unit
16 Three-Way Valve 1 unit 4 unit
17 Two-Way Valve 1 unit 4 unit
18 Pipeline Hoop 1 unit 4 unit
19 Compound Gasket 1 set 4 set
20 Suction Plate Mudapron 1 unit 4 unit
21 Diesel Pipeline 1 unit 4 unit
22 Sweep Brush 88 unit Approx. 1350 unit
23 CCD Camera System 1 set 4 set


Road Sweeper Kit  SKD with  Vaccum Fan , Water Washing  Auxiliary Engine

Road Sweeper Kits Upper Body SKD

Standard configuration
Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system,
hydraulic system and electrical system.
Selective configuration
surveillance system,rolling brush.
Vehicle model Chassis brand Chassis model Load (L) Overall dimensions Wheel base Engine model hp/standard Tire EXW Price
RMB /USD=6.3



Dust Water mm mm


RMB USD
DRZ5160TSLD DONGFENG LHD/RHD RHD price add $2000 DFL1160BX 6000;7000 4000;
3500
8090X2470X3050 4700 B190 33 190/Euro 3 9.00-20 309800 US$49,175
DRZ5060TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1060TJ20D3 3500 800 5970X2000X2400 3300 CY4102-C3F 95/Euro 3 11.00R20 159400 US$25,302
DRZ5090TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1090T9ADJ3AC 4500 1000 6700X2290X2500 3800 CY4102-E3C 120/Euro 3 7.50R16 200500 US$31,825
DRZ5108TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1108KJ 5000 3000 7000X2480X3000 3950 B170 33 170/Euro 3 9.00-20 257700 US$40,905
DRZ5126TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1126KJ1 6000 4000 8090X2470X3050 4700 B190 33 190/Euro 3 9.00-20 279800 US$44,413
DRZ5141TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1141KJ 6000 4000 7650X2480X3000 4500 B190 33 190/Euro 3 10.00-20 272700 US$43,286
DRZ5073TSLB FOTON LHD/RHD RHD price add $2000 BJ1073VEJEA-A 3500 800 5995X1900X2680 3360 4DW91-63NG2 98/Euro 2 6.50-16 149400 US$23,714
DRZ5163TSLB FOTON LHD/RHD RHD price add $2000 BJ1163VKPGG-1 6000 4000 7810X2495X3160 5000 Phaser160Ti-33 160/Euro 3 9.00R20 299800 US$47,587
DRZ5070TSLQ ISUZU
LHD
QL1070A1KAY 4500 1000 6465X1980X2435 3815 4KH1-TCG40 120/Euro 4 7.00-15 255700 US$40,587
DRZ511009TSLQ ISUZU LHD QL11009LARY 5000 3000 6910X2200X2640 4175 4HK1-TCG40 190/Euro 4 8.25-20 331400 US$52,603
DRZ51609TSLQ ISUZU LHD QL11609MFRY 6000 4000 7705X2500X3060 4500 4HK1-TCG40 190/Euro 4 10.00-20 403100 US$63,984
DRZ5161TSLH JAC LHD/RHD RHD price add $2000 HFC1161P3K2A47F 6000 4000 8155X2495X3070 4700 YC4E160-42 160/Euro 4 11.00R20 337900 US$53,635
DRZ5165TSLS SHACMAN LHD/RHD RHD price add $2000 SX1165UN461 6000 4000 8040X2490X3270 4600 WP10.270E32 270/Euro 3 12.00R20 362000 US$57,460

Road Sweeper Kits Upper Body SKD


Cell :+8615271357675
