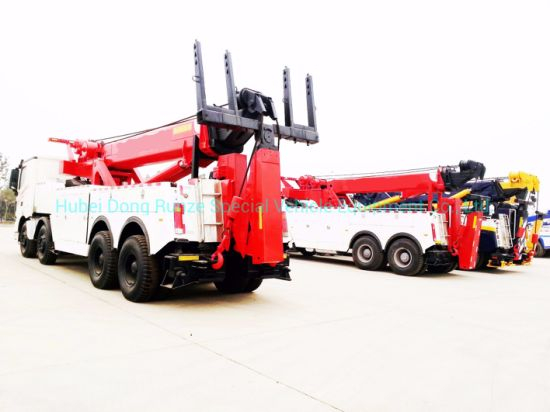

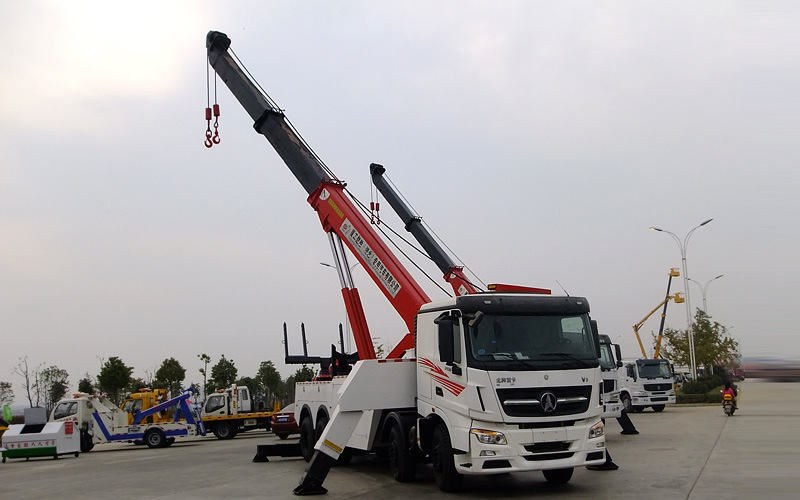

Recovery Trucks Beiben V3 Heavy Duty 50t Tow Rotator Road Wrecker

Recovery Trucks Beiben V3 Heavy Duty 50t Tow Rotator Road Wrecker
Quantity:
  • Shanghai, China
  • 1000
  • T/T

Recovery Trucks Beiben V3 Heavy duty 50T tow Rotator Road Wrecker
beiben V3  Recovery  , beiben  Wrecker,beiben

 Ask for better price

Cell /+8615271357675
The pictures are for your reference only.
Recovery Trucks Beiben V3 Heavy Duty 50t Tow Rotator Road Wrecker
Recovery Trucks Beiben V3 Heavy Duty 50t Tow Rotator Road Wrecker
Recovery Trucks Beiben V3 Heavy Duty 50t Tow Rotator Road Wrecker
Recovery Trucks Beiben V3 Heavy Duty 50t Tow Rotator Road Wrecker

BEIBEN Truck recovery
BEIBEN Truck recovery
(Noth Benz 3138 ) Beiben truck 8x4
Engine: WP10.380   380hp,
40DZ3+25T+40ZT1 Two 250KN hydraulic winch 55m With 360-degree rotation ,Remote operating device
TOW 48t  tyres 12.00R20
100 unit
FOB $136,000
Recovery Trucks Beiben V3 Heavy Duty 50t Tow Rotator Road Wrecker
Recovery Trucks Beiben V3 Heavy Duty 50t Tow Rotator Road Wrecker

8T12D2 two 8T  80 kn hydraulic winch   40M Steel Wire Rope

this the 8T not too big. optional 20T/32T/40t
20T20D2 ; 30DZ3+16T+40ZT1; 40DZ3+25T+40ZT1



Recovery Trucks Wrecker

Customization, Cost  Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

optional  32T/40t


30DZ3+16T+40ZT1  Two 150KN hydraulic winch 55m
Rating Towing Mass 38000 Kg~48000KG


Boom Max lifting capacity: 25T

Max Extended lifting capacity: 3.5T

Max. Lifting Height mm 12000


Under lift Original Lifting Mass Kg 12500/16000

Rating Lifting Mass Fully Extended Kg 9500

With 360-degree rotation ,Remote operating device



40DZ3+25T+40ZT1  Two 250KN hydraulic winch 55m
Rating Towing Mass   48000~58000KG


Boom Max lifting capacity: 40T

Max Extended lifting capacity: 4.5T

Max. Lifting Height mm 12070


Under lift Original Lifting Mass Kg 12500/25000

Rating Lifting Mass Fully Extended Kg 9500 /12500

With 360-degree rotation ,Remote operating device


BEIBEN Truck recovery

3138/8X4

BEIBEN Truck recovery

(Noth Benz 3138 ) Beiben truck 8x4 Engine: WP10.380   380hp,

40DZ3+25T+40ZT1 Two 250KN  hydraulic winch 55m With 360-degree rotation ,Remote operating device Max lifting 40T,

TOW 60T , tyres 12.00R20

BEIBEN Truck recovery

4138/8X8

BEIBEN Truck recovery

(Noth Benz 4138 ) Beiben truck 8x8 Engine: WP10.380   380hp,

40DZ3+25T+40ZT1 Two 250KN  hydraulic winch 55m With 360-degree rotation ,Remote operating device Max lifting 40T,

TOW 60T , tyres 12.00R20


  Description

Technical Parameters

Total Mass(kg)

31000

Curb Weight(kg)

24805

Rated quality(kg)

XX

Chassis Model

ND13101D46J

Approach/departure angle

26/16(°)

Front / rear overhang

1410/2000,1410/1950

Dimensions(mm)

11360x2500x3660,3830

Number of spring

12/12/13

Number of axes

4

Maximum speed

90

Tire Specifications

12.00-20-16PR,12.00R20-16PR

Number of tires

12

Front track

2045

Rear track

1872

Wheelbase

1950+4650+1350,1950+4600+1450

Axle load

6500/6500/18000

Emission Standards

Euro3/Euro4

Type of fuel

Diesel

Engine parameters

Engine Model

WP10.336

Engine Manufacturer

Weichai Power Co., Ltd

Engine Displacement

9726ml

Engine power

247kw

Chassis
               Description

North Benz 8x4 chassis, flat cab with sleeper, left/right hand drive with AC, Weichai 290-336HP 6 cylinder diesel engine, 9-12 speed gear box, 16T rear axle, power steeling, oil brake.

Modified
               Description

1. Unitary body, two sides with combined operation device, front bumper with a counterweight.
              2. Equipped with winch, supporting forks, supporting forks stand, chain hook and warning lights.

Component

Basic composition: chassis, unitary body, winch, crane, supporting forks, supporting forks stand, chain hook and warning lights.

Purpose

This truck  is mainly used for road fault vehicle, urban peccancy vehicles and rescue, etc.

Product advantage

high quality with best price






8T12D2  Two 80KN hydraulic winch 40m
  Rating Towing Mass 16000 Kg~25000KG


Boom Max lifting capacity: 12T

Max Extended lifting capacity: 5.75T

Max. Lifting Height mm 4830




Under lift Original Lifting Mass Kg 4500

Rating Lifting Mass Fully Extended Kg 3500






16T18D2  Two 100KN hydraulic winch 40m
Rating Towing Mass 25000 Kg~31000KG


Boom Max lifting capacity: 18T

Max Extended lifting capacity: 8T

Max. Lifting Height mm 6500




Under lift Original Lifting Mass Kg 6500 / 7470 / 10120

Rating Lifting Mass Fully Extended Kg 5500/7310




20T20D2  Two 100KN hydraulic winch 40m
Rating Towing Mass 25000 Kg~31000KG


Boom Max lifting capacity: 20T

Max Extended lifting capacity: 9T

Max. Lifting Height mm 6400




Under lift Original Lifting Mass Kg 9778

Rating Lifting Mass Fully Extended Kg 7310





30DZ3+16T+40ZT1  Two 150KN hydraulic winch 55m
Rating Towing Mass 38000 Kg~48000KG


Boom Max lifting capacity: 25T

Max Extended lifting capacity: 3.5T

Max. Lifting Height mm 12000




Under lift Original Lifting Mass Kg 12500/16000

Rating Lifting Mass Fully Extended Kg 9500


With 360-degree rotation ,Remote operating device



40DZ3+25T+40ZT1  Two 250KN hydraulic winch 55m
 Rating Towing Mass   48000~58000KG


Boom Max lifting capacity: 40T

Max Extended lifting capacity: 4.5T

Max. Lifting Height mm 12070




Under lift Original Lifting Mass Kg 12500/25000

Rating Lifting Mass Fully Extended Kg 9500 /12500


With 360-degree rotation ,Remote operating device

Recovery Trucks Beiben V3 Heavy Duty 50t Tow Rotator Road Wrecker

Cell :+8615271357675
