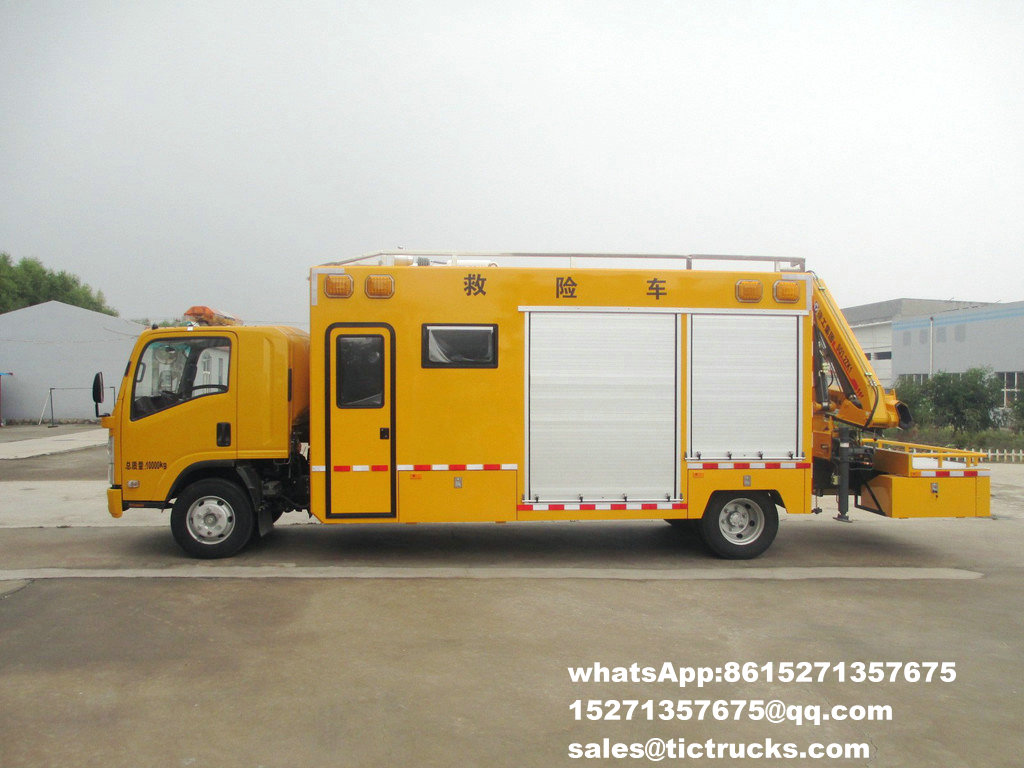

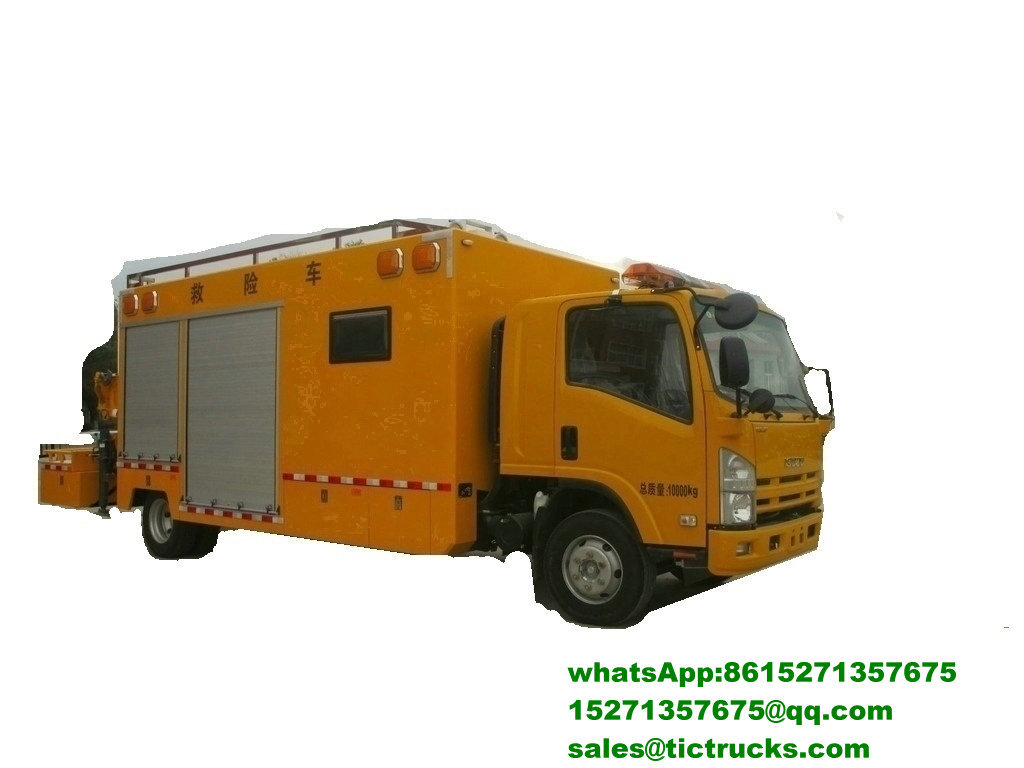

Qing Ling ISUZU 700P multi-function Rescue vehicle with Crane export price
Views: 1436 Author: ISUZU Truck Customizing Publish Time: 2017-07-01 Origin: ISUZU Truck Customizing
Qing Ling ISUZU 700P multi-function Rescue vehicle with Crane
export price FOB:$139000-CIF$148500USD
DRZ5080XXH Rescue vehicles with crane | |||
Serial number | Refit project descriptions and specifications | No. | Work unit |
1 | Chassis: Qingling ISUZU, 700P, v, dimensions: length width 7305 2320 high 2900 (3150);; Wheelbase : 5200mm; Displacement : 5193mL;Power:139kw. | 1 | pcs |
2 | Box body modification:1) service area in the front for maintenance: install RV special single door on the left side of the area, outside the window; installed outside the window on the right side of the central installation manual skylights, ventilation in the area and configuration integrated electrical equipment, control cabinet doors installed on the right side, in the front partition installed 3 twin rest seat. The district may also install other Office equipment according to customer requirements and living facilities. 2) is generating sets in the middle area: install silent diesel generator set, before and after partition noise insulation processing; inlet shutter doors on both sides. 3) equipment: the equipment cabinet skeleton is made of aluminum alloy device profiles, small wood grain aluminum plate laying floor equipped with rescue equipment. 4) rear of the folded crane work;5) finally Ministry for work platforms. | 1 | pcs |

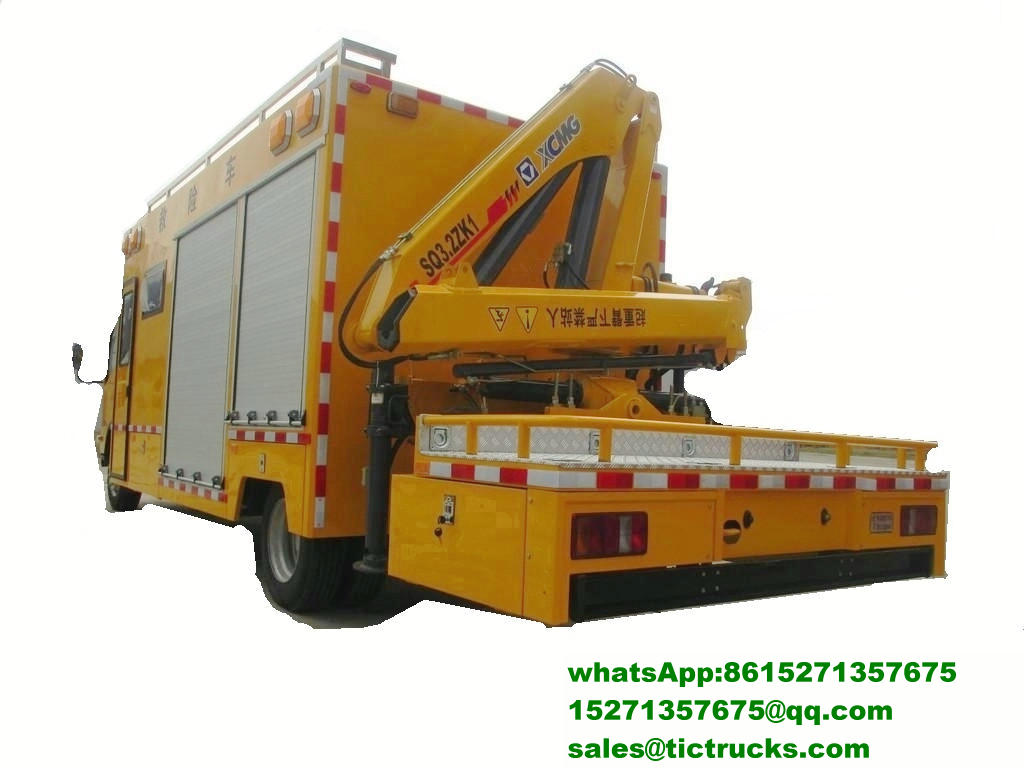

3 | Truck-mounted cranes,SQ3.2ZK1 | 1 | pcs |
4 | Hydraulic support leg | 1 | Set |
5 | Fire roller shutter doors | 4 | Set |
6 | Cutting pattern aluminium floor | 1 | Set |
7 | Equipment warehouses on both sides of the Cabinet body:40aluminum alloy profiles and connection accessories, small wood grain aluminum base plate laying. | 1 | pcs |
8 | Stainless steel maintenance platform | 1 | Set |
9 | Vehicle spray and appearance identification | 1 | Set |
10 | Line of work lights (yellow):100W LED | 1 | pcs |
11 | Flanked by yellow flashing lights : LED | 8 | pcs |
12 | Rear combination of yellow and white strobe lights : LED | 1 | sets |
13 | Interior lighting: adjustable lighting and automotive lighting lamp | 4 | ses |
14 | 1.9 M folding lift lighting camera : lamp voltage 220V, 1 spot,1lights, camera pan and tilt . | 1 | pcs |
15 | HD camera | 1 | Set |
16 | Aluminum outdoor camera enclosures | 1 | Set |
17 | DVR surveillance system | 1 | Set |
18 | Network interface installed | 1 | pcs |
19 | 19" Liquid crystal display | 1 | pcs |
20 | External power supply system | 1 | Set |
21 | Electric control cabinet | 1 | pcs |
22 | Car inverter power : 1500W,DC12V input | 1 | pcs |
23 | Battery DC12V80AH | 1 | Piece |
24 | Star tool | 1 | Set |
25 | Stanley hydraulic power station HP28 | 1 | Set |
26 | The Stanley sewage pumps TP03 | 1 | Set |
27 | Stanley hydraulic breakers pick BR45 | 1 | Set |
28 | Stanley hydraulic explosion-proof exhaust fan | 1 | Set |
29 | Explosion-proof iron pickaxes | 1 | Set |
30 | Explosion-proof shovels | 1 | Set |
31 | Explosion-proof walkie-talkies | 2 | Set |
32 | Safety helmet | 2 | Set |
33 | Automotive medicine cabinet | 1 | Set |
34 | Traffic signs | 5 | Set |
35 | Device bundles | 1 | Set |
36 | 50 Meter cable | 1 | Set |
37 | Portable explosion-proof lights | 1 | Set |
38 | Multi-function aluminum extension ladder | 1 | Set |
39 | GPS Navigation + car monitoring system | 1 | Set |
40 | Vehicle electric winches | 1 | pcs |
41 | -Free WiFi | 1 | pcs |

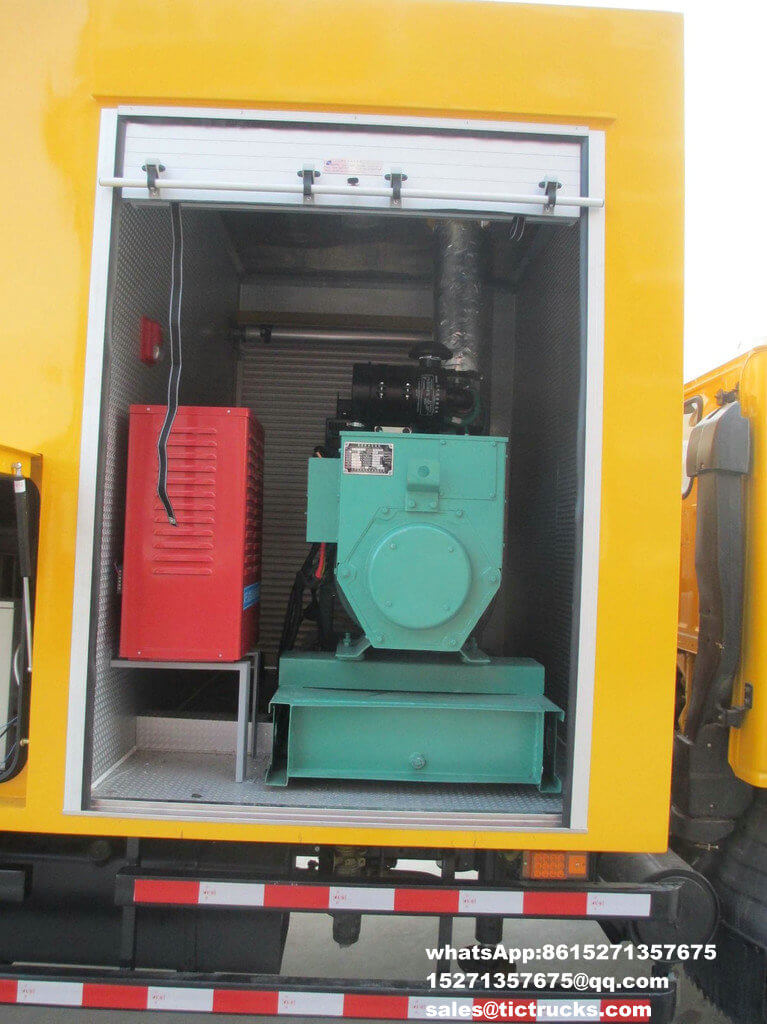

42 | 5.5KW Generator set | 1 | pcs |
43 | Heavier Rails | 4 | pcs |
44 | Security system: grounding, lightning protection lightning protection systems and fire extinguishers | 1 | Set |
45 | Other | 1 | pcs |
