Pto (Power Take Off) Gear Spline Type for Crane Special Vehicle China Truck Shaft Ptosdq12/68 Sdq12/72 Sdq15/75 Sdq21/33 Sdq22/25 Sdq23/30 Sdq23/32 Assembly

PTO (Power Take Off ) Gear Spline Type For Crane Special Vehicle  China Truck Shaft  PTO SDQ 12,13,14,15,16,17,20,24,27,28,50,51,52,211, 212,521 Assembly
















Power take-off SDQ27-21 No.: SDQ27-21
(Car power take-off) Main technical parameters: Current model: SDQ27/21PQ1, Manipulation mode: Pneumatic, Output shaft rotation: Contrary to engine rotation, total power take-off ratio: 1.845, Applicable models: EQ1208G, output torque (Nm): 350, equipped with gearbox: DC85JTZ 17G0Z56-010 17GOA3-(33.35.36) 17G0010-N9002 14G0A3-(32, 34) DC6J85TZ

Power take-off SDQ52-77 Number: SDQ52-77
(Car power take-off) main technical parameters: current model: SDQ52/77PQ1, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.18, applicable models: Isuzu 700P, output Torque (Nm): 400, equipped with gearbox: MRB6Q MLD6Q

Power take-off SDQ52-74 Number: SDQ52-74
(Car power take-off) main technical parameters: current model: SDQ52/74PQ1, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.16, applicable models: QY4202, output torque (Nm): 350, equipped with gearbox: MRB6 (P)

Power take-off SDQ51-74 (manual) No.: SDQ51-74 (manual)
(Car power take-off) main technical parameters: current model: SDQ51/74PS, control mode: manual, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.63, applicable models: NKR55E2 NKR55L, output Torque (Nm): 250, gearbox: MSB-5S MSB-5M

Power take-off SDQ51-65 No.: SDQ51-65
(Auto power take-off) Main technical parameters: current model: SDQ51/65PS, control mode: manual, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: 1.26, Applicable models: Jiangling N800, output Torque (Nm): 350, equipped with gearbox: 6MTI420

Power take-off SDQ51-62 Number: SDQ51-62
(Car power take-off) main technical parameters: current model: SDQ51/62PS, control mode: manual, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.5, applicable models: NKR55E, NKR54, Output torque (Nm): 250, equipped gearbox: MSB-5M LCT88

Power take-off SDQ50-71 Number: SDQ50-71
(Car power take-off) main technical parameters: current model: SDQ50/71PQ1, control mode: manual, pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.17, applicable models: HFC1048, HFC1046, output torque (Nm): 250, equipped with gearbox: LC5T97 LC5T30

Power take-off SDQ50-45 No.: SDQ50-45
(Auto power take-off) Main technical parameters: current model: SDQ50/45PQ1, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: 1.1, applicable models: FC1048K1, EQ1141G7D12, Output torque (Nm): 280, equipped with gearbox: LC6T46 (A2Q25) WLYZ6S46 (reverse gear)

Power take-off SDQ42-16 (two axes) No.: SDQ42-16 (two axes)
(Auto power take-off) Main technical parameters: current model: SDQ42/16LGS-1, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: 1.2, Applicable models: EVKA3010 EVKA4010 , output torque (Nm): 200, equipped with gearbox: 2824. 2826.5

Power take-off SDQ34-39 No.: SDQ34-39
(Auto power take-off) Main technical parameters: Current model: SDQ34/39, Manipulation: Manual, pneumatic, Output shaft rotation: Contrary to engine rotation, total power ratio of power take-off: 1.192, Applicable models: BJ1041, Output torque (Nm): 170, gearbox: CAS5-20B16

Power take-off SDQ34-32 No.: SDQ34-32
(Auto power take-off) Main technical parameters: current model: SDQ34/32PQ1, control mode: manual, pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: 1.192, Applicable models: BJ1041 CA1041 , output torque (Nm): 250, equipped gearbox: CAS5-20B10

Power take-off SDQ33-39 No.: SDQ33-39
(Car power take-off) main technical parameters: current model: SDQ33/39, control mode: manual, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.5, applicable models: BJ1041 CA1041, output Torque (Nm): 170, gearbox: CAS5-20B16

Power take-off SDQ33-32-A No.: SDQ33-32-A
(Car power take-off) main technical parameters: current model: SDQ33/32-A, control mode: manual, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.5, applicable models: BJ1041A, Output torque (Nm): 170, equipped with gearbox: LG520Q3 LG525Q (temporary work)

Power take-off SDQ33-32 No.: SDQ33-32
(Car power take-off) main technical parameters: current model: SDQ33/32PS, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, total force ratio of the power take-off: 1.24, Applicable models: BJ1041, output torque (Nm): 250, equipped gearbox: CAS5-20B10 CAS525C3 LG520EQ GLD5-20E4

Power take-off SDQ28-72 No.: SDQ28-72
(Car power take-off) main technical parameters: current model: SDQ28/72PQ1, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.84, applicable models: EQ5173, output torque (Nm): 450, equipped with gearbox: DC7J120TC (direct gear)

Power take-off SDQ28-65 No.: SDQ28-65
(Car power take-off) main technical parameters: current model: SDQ28/65, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.55, applicable models: CA5173, output torque (Nm): 350, equipped with gearbox: DC7J120TB (overspeed)

Power take-off SDQ28-55 Number: SDQ28-55
(Car power take-off) Main technical parameters: Active model: SDQ28/55PQ1, Manipulation: Pneumatic, Output shaft rotation: Contrary to engine rotation, total power ratio of power take-off: 1.03, Applicable models: EQ4146G (God Jin), output torque (Nm): 400, equipped with gearbox: 17G0A3-38 17N29-00030 17G0A3-B62D 17G0A3-N29 1700010-N9001

Power take-off SDQ28-53 No.: SDQ28-53
(Car power take-off) main technical parameters: current model: SDQ28/53, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.20, applicable models: EQ4146G, output torque (Nm): 320, equipped with gearbox: DF6S900 17G0A3-41

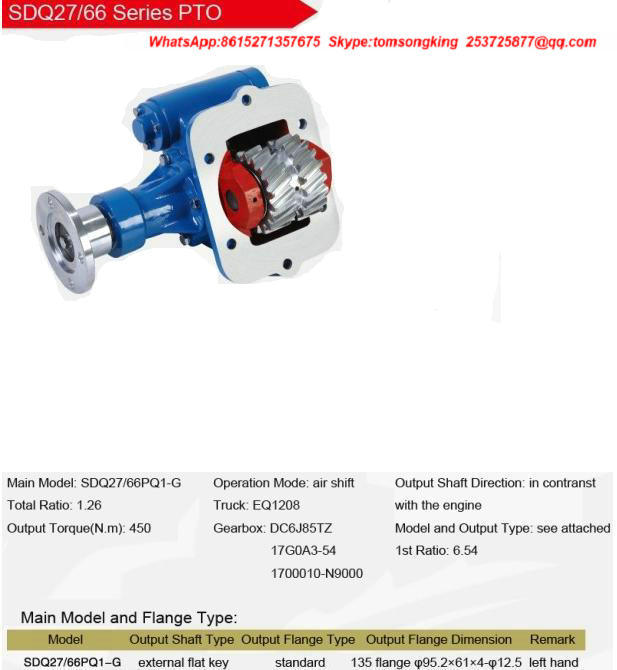

Power take-off SDQ27-66 No.: SDQ27-66
(Car power take-off) main technical parameters: current model: SDQ27/66PQ1-G, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.26, applicable models: EQ1208, Output torque (Nm): 450, equipped with gearbox: DC6J85TZ (overdrive) 17G0A3-54 1700010-N9000

Power take-off SDQ27-65 No.: SDQ27-65
(Car power take-off) main technical parameters: current model: SDQ27/65PQ1, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.07, Applicable models: EQ11230, output torque (Nm): 350, equipped with gearbox: DC7J100TC 17G09-Z66D
Power take-off SDQ27-55 Number: SDQ27-55
(Auto power take-off) Main technical parameters: Active model: SDQ27/55PQ1, Manipulation mode: Pneumatic, Output shaft rotation: Contrary to engine rotation, total power ratio of power take-off: 1.216, Applicable models: EQ1208, output torque (Nm): 400, equipped with gearbox: 17G0A3-(32/33/34/35/36) DC6J85TZ (direct gear)

Power take-off SDQ27-53 No.: SDQ27-53
(Car power take-off) main technical parameters: current model: SDQ27/53, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.36, applicable models: EQ11230 (seven gears) Box overspeed), output torque (Nm): 350, equipped with gearbox: DC7J100TB 17GOA9-Z67D

Power take-off SDQ27-23 No.: SDQ27-23
(Car power take-off) main technical parameters: current model: SDQ27/23, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.58, Applicable models: EQ1230 (sixth gear ), output torque (Nm): 350, equipped with gearbox: 17Z66-00030

Power take-off SDQ26-33 No.: SDQ26-33
(Car power take-off) main technical parameters: current model: SDQ26/33, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.40, applicable models: EQ1206G, output torque (Nm): 350, equipped with gearbox: 17GOA3-26..27.28.29.30.31

Power take-off SDQ26-31-1-B No.: SDQ26-31-1-B
(Auto power take-off) Main technical parameters: current model: SDQ26/31, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: 1.24, applicable model: EQ1141G, output torque (Nm): 350, equipped with gearbox: DC6J70T (170GOA3-08.09.15.25)

Power take-off SDQ26-31-1-A No.: SDQ26-31-1-A
(Auto power take-off) Main technical parameters: current model: SDQ26/31PQ1, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: 1.45, Applicable models: EQ1141G (EQ153) Output torque (Nm): 350, equipped with gearbox: DC6J80T (82.5) 1700NL-010 17N6A-00030 17G0A3-(26/27/28/29/30/31) Jiangshan 750

Power take-off SDQ26-31 No.: SDQ26-31
(Auto power take-off) Main technical parameters: current model: SDQ26/31, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: 1.45, Applicable models: EQ1141G (EQ153) , output torque (Nm): 350, equipped with gearbox: DC6J80T (1700NL-010)

Power take-off SDQ24-70 No.: SDQ24-70
(Car power take-off) main technical parameters: current model: SDQ24/70PQ1, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.15, Applicable models: Ouma Ke, Output torque (Nm): 200, equipped with gearbox: 646B (Wanli Yang) 5S100

Power take-off SDQ24-69-B No.: SDQ24-69-B
(Car power take-off) main technical parameters: current model: SDQ24/69-B, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 0.826, applicable models: EQ1118G ( EQ3141-3082), output torque (Nm): 350, equipped gearbox: 17K17-00030 (17G1A7-15)

Power take-off SDQ24-69-1 No.: SDQ24-69-1
(Car power take-off) main technical parameters: current model: SDQ24/69-1, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.211, Applicable models: EQ1118G ( EQ3141-3082), output torque (Nm): 350, equipped with gearbox: 17D100-00030

Power take-off SDQ24-69 Number: SDQ24-69
(Car power take-off) main technical parameters: current model: SDQ24/69PQ1, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, total force ratio of the power take-off: 1.211, Applicable models: EQ1118G, output torque (Nm): 350, equipped with gearbox: 17K1 (K17, K23)-00030 17G1A7-15 17KT6K-00030

Power take-off SDQ24-65 No.: SDQ24-65
(Auto power take-off) Main technical parameters: current model: SDQ24/65PQ1, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: 1.06, applicable model: EQ1118G, output torque (Nm): 400, equipped with gearbox: 1700KBA DF6S750 17KD100-00030

Power take-off SDQ24-45-B No.: SDQ24-45-B
(Car power take-off) main technical parameters: current model: SDQ24/45PQ1-B, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.03, Applicable models: Dongfengtian Brocade, output torque (Nm): 500, equipped with gearbox: DF6S900

Power take-off SDQ24-45 No.: SDQ24-45
(Car power take-off) main technical parameters: current model: SDQ24/45PQ1, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.2, Applicable models: Dongfeng Tianjin, Output torque (Nm): 500, equipped with gearbox: DF6S900

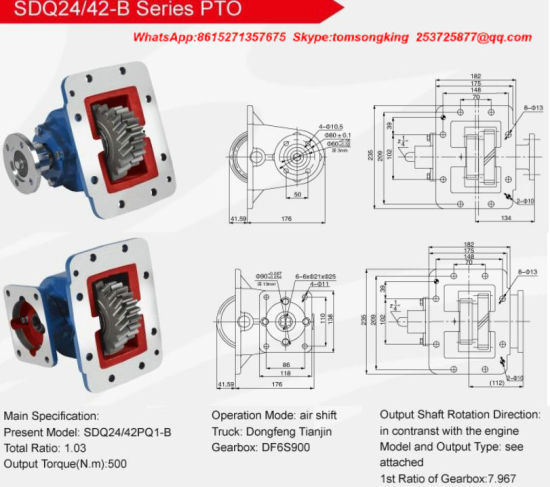

Power take-off SDQ24-42-B No.: SDQ24-42-B
(Car power take-off) main technical parameters: current model: SDQ24/42PQ1-B, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.03, Applicable models: Dongfengtian Brocade, output torque (Nm): 500, equipped with gearbox: DF6S900

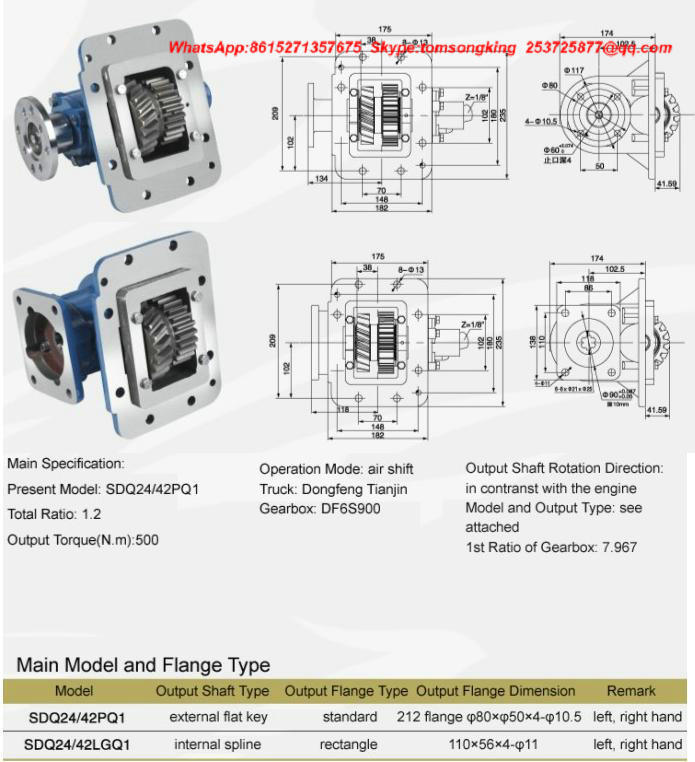

Power take-off SDQ24-42 No.: SDQ24-42
(Car power take-off) main technical parameters: current model: SDQ24/42PQ1, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.2, Applicable models: Dongfeng Tianjin, Output torque (Nm): 500, equipped with gearbox: DF6S900

Power take-off SDQ23-37 Number: SDQ23-37
(Car power take-off) main technical parameters: current model: SDQ23/37, control mode: manual, pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.238, Applicable models: EQ1061T EQ1050 , output torque (Nm): 200, equipped with gearbox: SYC07 (Yiyang)

Power take-off SDQ23-36 Number: SDQ23-36
(Car power take-off) main technical parameters: current model: SDQ23/36, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.20, Applicable models: CA1041, output torque (Nm): 200, equipped with gearbox: CAS5-35i1=5.835

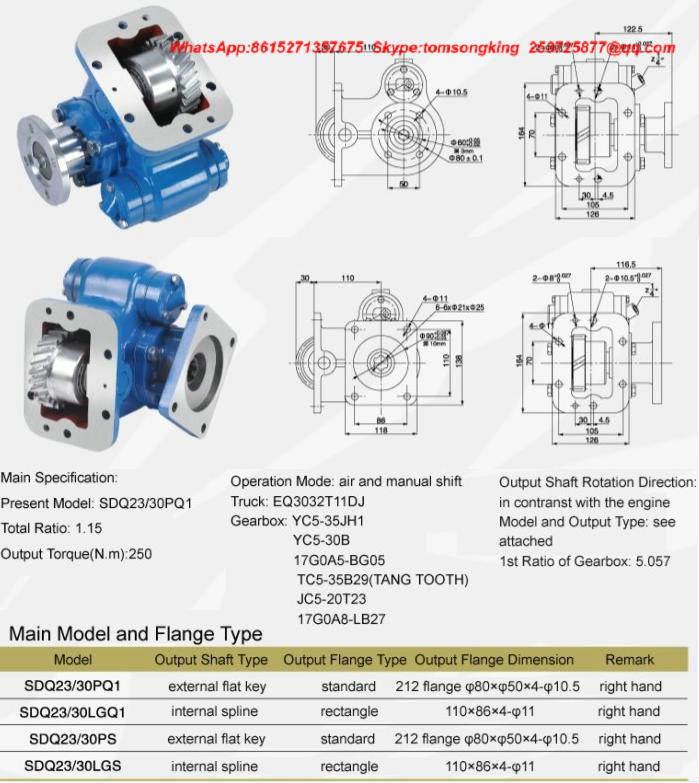

Power take-off SDQ23-30 No.: SDQ23-30
(Car power take-off) main technical parameters: current model: SDQ23/30PQ1, control mode: manual, pneumatic, output shaft rotation: contrary to the engine rotation, the total speed ratio of the power take-off: 1.15, applicable models: EQ3032T11DJ, Output torque (Nm): 250, equipped with gearbox: YC5-35JH1 YC5-30B 17G0A5-BG05 TC5-35B29 (toothed tooth) JC5-20T23 17G0A8-LB27

Power take-off SDQ23-29 No.: SDQ23-29
(Car power take-off) main technical parameters: current model: SDQ23/29, control mode: manual, pneumatic, output shaft rotation: contrary to the engine rotation, the total speed ratio of the power take-off: 1.238, Applicable models: EQ1050 ( Dongfeng Xiaobawang), output torque (Nm): 200, equipped with gearbox: TC5-35B13 (toothed tooth)

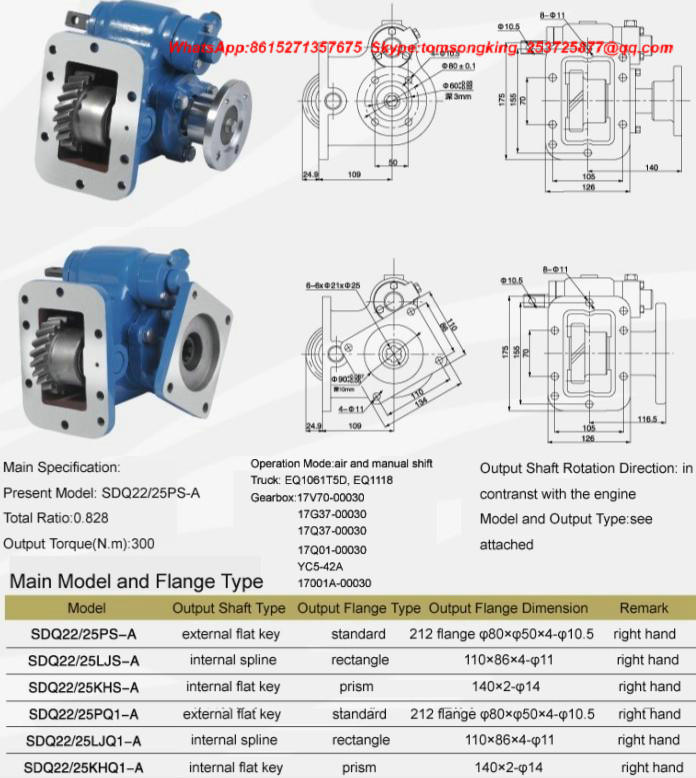

Power take-off SDQ22-25 No.: SDQ22-25
(Auto power take-off) Main technical parameters: current model: SDQ22/25PS-A, control mode: manual, pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 0.828, applicable models: EQ1061T5D, EQ1118, output torque (Nm): 300, equipped with gearbox: 17V70-00030 17G37-00030 17Q37-00030 17Q01-00030 YC5-42A 17001A-00030

Power take-off SDQ21-33-C No.: SDQ21-33-C
(Car power take-off) main technical parameters: current model: SDQ21/33 PQ1-C, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 2.00, Applicable models: CA1160P , output torque (Nm): 250, equipped with gearbox: 17000D4-010 17000D-010

Power take-off SDQ21-33-2 No.: SDQ21-33-2
(Car power take-off) main technical parameters: current model: SDQ21/33 LGQ1-2, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.17, Applicable models: EQ1092F , output torque (Nm): 250, equipped with gearbox: 17A, 17E ()
Power take-off SDQ211-50-1 No.: SDQ211-50-1
(Car power take-off) main technical parameters: current model: SDQ211/50LGQ1-1, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 0.86, Applicable models: Fuller , Fast, output torque (Nm): 500, equipped with gearbox: RT-11609A, 11509C RTO-11609B, 11509F 8JS, 9JS

Bottom power take-off QD40A No.: QD40A
Bottom power take-off (car power take-off)

Full power power take-off HW140Q No.: HW140Q
(Car power take-off) full power power take-off HW140Q

Full power power take-off HW220Q No.: HW220Q
(car power take-off) full power power take-off HW220Q

Transfer case SDF700 No.: SDF700
Transfer case SDF700

Transfer case SDF8000 No.: SDF8000
Transfer case SDF8000

Foreign trade power take-off PTO1000 No.: PTO1000
(car power take-off) foreign trade power take-off. Main technical parameters: current model: PTO1000, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: A: 50% B: 55% C: 73% E: 86% J : 95% O: 125% R: 137% S: 150% T: 165%, Applicable models: Mitsubishi, output torque (Nm): 350, equipped with gearbox: FULLER SERIES (R/675) EATON FS 3005/4005 AB (R/681) ZF S5-42/5.72 (R/676) EATON 6305 A (R/680) MERCEDES G60 (R/956)

Foreign trade power take-off PWP-D2067PQ No.: PWP-D2067PQ
(car power take-off) foreign trade power take-off. Main technical parameters: current model: PWP-D2067PQ, operation mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: -, output torque (Nm): 200, equipped with gearbox: -

Foreign trade power take-off PWP-D2165PS No.: PWP-D2165PS
(car power take-off) foreign trade power take-off. Main technical parameters: current model: PWP-I3165XS, control mode: manual, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: -, applicable models: -, output torque (Nm): 180, Gearbox equipped:-

Foreign trade power take-off PWP-D2768PQ No.: PWP-D2768PQ
(car power take-off) foreign trade power take-off. Main technical parameters: current model: PWP-D2768PQ, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: -, Applicable models: -, output torque (Nm): 200, Gearbox equipped:-

Foreign trade power take-off PWP-I3165XS No.: PWP-I3165XS
(car power take-off) foreign trade power take-off. Main technical parameters: current model: PWP-I3165XS, control mode: manual, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: -, Applicable models: Isuzu, output torque (Nm): 160, Gearbox equipped:-

Foreign trade power take-off PWP-N1115PQ No.: PWP-N1115PQ
(car power take-off) foreign trade power take-off. Main technical parameters: current model: PWP-N1115PQ, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: -, output torque (Nm): 130, equipped with gearbox: -

Foreign trade power take-off PTO280 NO.: PTO280
(car power take-off) foreign trade power take-off. The main technical parameters: the current model: PTO280, control mode: manual, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: -, Applicable models: Isuzu, output torque (Nm): 150, with Gearbox:-

Foreign trade PTO2000 No.: PTO2000
(car power take-off) foreign trade power take-off. Main technical parameters: current model: PTO2000, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: A: 50% B: 55% C: 73% E: 86% J : 95% O: 125% R: 137% S: 150% T: 165%, Applicable models: -, output torque (Nm): 400, gearbox: FULLER SERIES (R/675) EATON FS 3005/4005 AB (R/681) ZF S5-42/5.72 (R/676) EATON 6305 A (R/680) MERCEDES G60 (R/956)

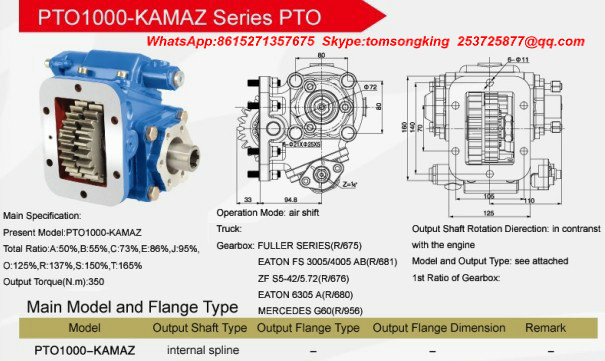

Foreign trade power take-off PTO1000-KAMAZ Number: PTO1000-KAMAZ
(car power take-off) foreign trade power take-off. Main technical parameters: current model: PTO1000-KAMAZ, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: A: 50% B: 55% C: 73% E: 86 % J: 95% O: 125% R: 137% S: 150% T: 165%, Applicable models: -, output torque (Nm): 350, equipped gearbox: FULLER SERIES (R/675) EATON FS 3005 /4005 AB (R/681) ZF S5-42/5.72(R/676) EATON 6305 A(R/680) MERCEDES G60 (R/956)

Foreign trade power take-off PTO270 NO.: PTO270
(car power take-off) foreign trade power take-off. Main technical parameters: current model: PTO270, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: -, Applicable models: Mitsubishi, output torque (Nm): 270, equipped Gearbox:-

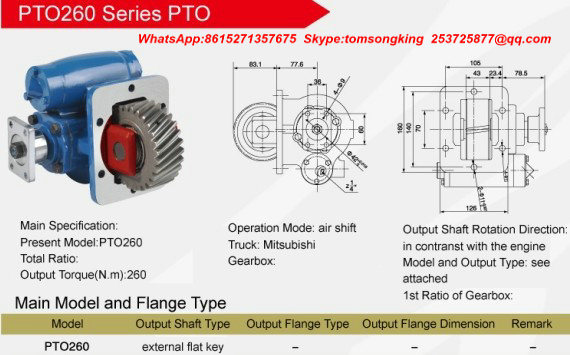

Foreign trade power take-off PTO260 No.: PTO260
(car power take-off) foreign trade power take-off. Main technical parameters: current model: PTO260, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: -, Applicable models: Mitsubishi, output torque (Nm): 260, equipped Gearbox:-

Foreign trade power take-off PTO250 No.: PTO250
(car power take-off) foreign trade power take-off. Main technical parameters: current model: PTO250, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: -, Applicable models: Mitsubishi, output torque (N.m): 250
Power take-off SDQ21-33-A No.: SDQ21-33-A
(Car power take-off) main technical parameters: current model: SDQ21/33PQ1-A-1, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.044, applicable models: EQ1092F, output torque (Nm): 350, equipped with gearbox: 17000D4-010 1700D-010 17C-00030 17D45-00030, gearbox first gear ratio: 7.310

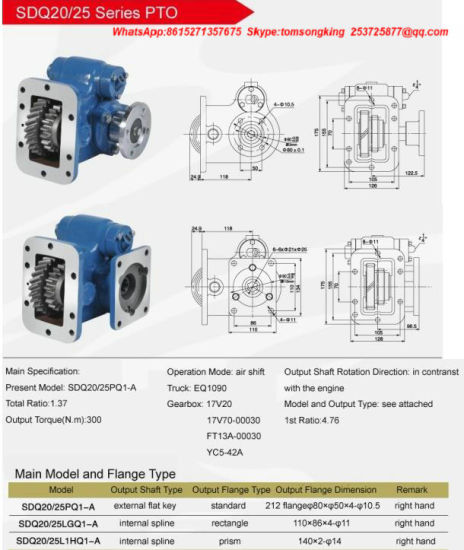

Power take-off SDQ20-25 No.: SDQ20-25
(Car power take-off) main technical parameters: current model: SDQ20/25PQ1-A, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.37, applicable models: EQ1090, Output torque (Nm): 300, equipped with gearbox: 17V20 17V70-00030 FT13A-00030 YC5-42A, gearbox first gear ratio: 4.76

Power take-off SDQ17-36 Number: SDQ17-36
(Car power take-off) main technical parameters: current model: SDQ17/36, control mode: manual, pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.20, applicable models: CA1070, Output torque (Nm): 200, equipped with gearbox: CA5-38 (temporary) 17LG38A, power take-off and gearbox meshing gear: helical gear

Power take-off SDQ17-35 No.: SDQ17-35
(Car power take-off) main technical parameters: current model: SDQ17/35, control mode: manual, pneumatic, output shaft rotation: contrary to the engine rotation, the total speed ratio of the power take-off: 1.20, applicable models: CA1070, Output torque (Nm): 200, equipped gearbox: CA5-38 (FAW), power take-off and gearbox meshing gear: helical gear

Car power take-off No.: SDQ15-75
(Car power take-off) main technical parameters: current model: SDQ15/75PQ1-A, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.006, applicable models: CA1150D, Output torque (Nm): 350, equipped with gearbox: CATS6-74, 75 CA6T-138 TZ1700940H4G gearbox first gear ratio: 7.285

Car Power Take-Off No.: SDQ13-75
(Car power take-off) main technical parameters: the current model SDQ13/75, the applicable model CA3160, the total speed ratio of the power take-off is 1.08, the gearbox CA6-85T14 (85T17), the output torque (Nm) 300, the output shaft rotation In the opposite direction to the engine, the steering mode: pneumatic

Car power take-off No.: SDQ13-70
(Car power take-off) main technical parameters: the current model SDQ13/70PQ1-A, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 1.08, applicable models: CA3160, output Torque (Nm): 350, equipped with gearbox: CATS6-75A (80A.85A) 1700940-680, gearbox first gear ratio: 7.640

Car power take-off No.: SDQ12-83
(car power take-off)

Car power take-off No.: SDQ12-72
(car power take-off) power take-off total speed ratio: 1.199, output torque (N.m): 250, output shaft rotation: opposite to the engine rotation, operating mode: pneumatic, power take-off and gearbox meshing gear: helical gear

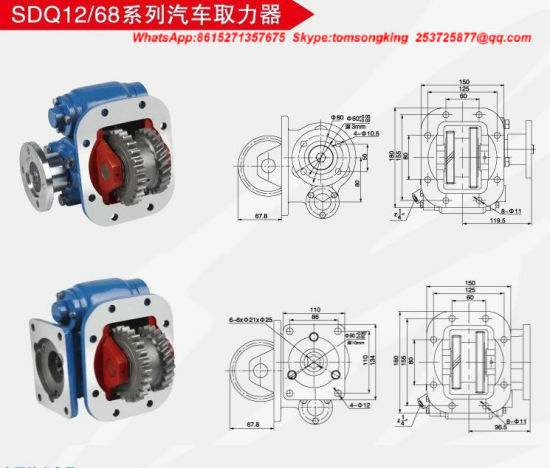

Car power take-off No.: SDQ12-68
(Car power take-off) main technical parameters: the current model SDQ12/68PQ1-A, control mode: pneumatic, output shaft rotation: contrary to the engine rotation, the total speed ratio of the power take-off: 1.19, applicable models: CA1092, output Torque (Nm): 350, equipped with gearbox: CA6T123, TS6-53 (direct gear), CATS6-62, gearbox first gear ratio: 6.515.

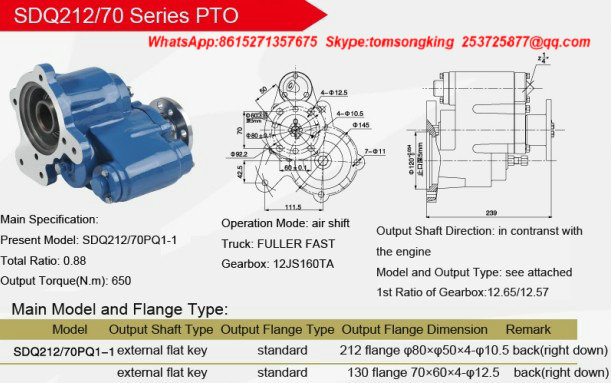

Power take-off SDQ212-70-1 No.: SDQ212-70-1
(Car power take-off) main technical parameters: current model: SDQ212/70PQ1-1, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 0.88, Applicable models: Fuller , Fast, output torque (Nm): 650, equipped with gearbox: 12JS160TA

Power take-off SDQ521 No.: SDQ521
(Auto power take-off) Main technical parameters: current model: SDQ521, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, total speed ratio of power take-off: 0.782, Applicable models: Fuller, Fast , Output torque (Nm): 420, equipped with gearbox: RT-11609A, 11509C RTO-11609B, 11509F 8JS, 9JS

Power take-off SDQ212-70 No.: SDQ212-70
(Car power take-off) main technical parameters: current model: SDQ212/70PQ1, control mode: pneumatic, output shaft rotation: the same as the engine rotation, the total speed ratio of the power take-off: 0.83, applicable models: Hongyan, S Taier, Fast, output torque (Nm): 400, equipped with gearbox: Fast 9JS150

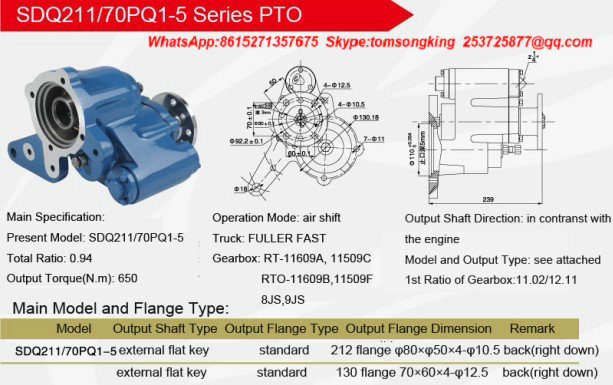

Power take-off SDQ211-70-5 No.: SDQ211-70-5
(Auto power take-off) Main technical parameters: current model: SDQ211/70PQ1-5, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: 0.94, Applicable models: Fuller , Fast, output torque (Nm): 650, equipped with gearbox: RT-11609A, 11509C RTO-11609B, 11509F 8JS, 9JS

Power take-off SDQ211-70-4 No.: SDQ211-70-4
(Car power take-off) Main technical parameters: Active model: SDQ211/70PQ1-4, Manipulation: Pneumatic, Output shaft rotation: Contrary to engine rotation, PTO total speed ratio: 1, Applicable models: Fuller , Fast, output torque (Nm): 500, equipped with gearbox: RT-11609A, 11509C RTO-11609B, 11509F 8JS, 9JS

Power take-off SDQ211-70-3 No.: SDQ211-70-3
(Car power take-off) main technical parameters: current model: SDQ211/70 PQ1-3, control mode: pneumatic, output shaft rotation: the same as the engine rotation, the total speed ratio of the power take-off: 0.86, applicable models: red Rock, Steyr, Fast, output torque (Nm): 400, equipped with gearbox: Fuller Fast

Power take-off SDQ211-70 No.: SDQ211-70
(Car power take-off) main technical parameters: current model: SDQ211/70PQ1-A, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, total force ratio of the power take-off: 0.8, Applicable models: Fuller , Fast, output torque (Nm): 700, equipped with gearbox: RT-11609A, 11509C RTO-11609B, 11509F 8JS, 9JS

SDQ12 Main Technical Parameter

SDQ12 Main Models and Flange Types (see attached)

SDQ13 PTO Main Technical Parameter

SDQ13 PTO Main Models and Flange Type (see attached)

Power take-off SDQ211-70-5 No.: SDQ211-70-5    First ratio of Gearbox 11.02 /12.11 Output flange size 212-80*50; 130- 70*60
(Auto power take-off) Main technical parameters: current model: SDQ211/70PQ1-5, control mode: pneumatic, output shaft rotation: opposite to engine rotation, total speed ratio of power take-off: 0.94, Applicable models: Fuller , Fast, output torque (Nm): 650, equipped with gearbox: RT-11609A, 11509C RTO-11609B, 11509F 8JS, 9JS

Power take-off SDQ211-70-4 No.: SDQ211-70-4   First ratio of Gearbox 11.02, Output flange size 212-80*50;130- 70*60
(Car power take-off) Main technical parameters: Active model: SDQ211/70PQ1-4, Manipulation: Pneumatic, Output shaft rotation: Contrary to engine rotation, PTO total speed ratio: 1, Applicable models: Fuller , Fast, output torque (Nm): 500, equipped with gearbox: RT-11609A, 11509C RTO-11609B, 11509F 8JS, 9JS

Power take-off SDQ211-70-3 No.: SDQ211-70-3  First ratio of Gearbox 12.11, Output flange size 212-80*50;130- 70*60
(Car power take-off) main technical parameters: current model: SDQ211/70 PQ1-3, control mode: pneumatic, output shaft rotation: the same as the engine rotation, the total speed ratio of the power take-off: 0.86, applicable models: red Rock, Steyr, Fast, output torque (Nm): 400, equipped with gearbox: Fuller Fast

Power take-off SDQ211-70 No.: SDQ211-70  First ratio of Gearbox 12.11, Output flange size 212-80*50;130- 70*60
(Car power take-off) main technical parameters: current model: SDQ211/70PQ1-A, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, total force ratio of the power take-off: 0.8, Applicable models: Fuller , Fast, output torque (Nm): 700, equipped with gearbox: RT-11609A, 11509C RTO-11609B, 11509F 8JS, 9JS

Power take-off SDQ211-50-1 No.: SDQ211-50-1   First ratio of Gearbox 11.02  Output flange size 110*86
(Car power take-off) main technical parameters: current model: SDQ211/50LGQ1-1, control mode: pneumatic, output shaft rotation: opposite to the engine rotation, the total speed ratio of the power take-off: 0.86, Applicable models: Fuller , Fast, output torque (Nm): 500, equipped with gearbox: RT-11609A, 11509C RTO-11609B, 11509F 8JS, 9JS


Winch, car winch, hydraulic winch No.: SDYJ-40ZW
( winch, car winch, hydraulic winch) SDYJ-40ZW series hydraulic drive winch is used for self-rescue, rescue, towing objects, and can also be used for towing faulty vehicles for road clearing and rescue vehicles, as well as engineering installation, oilfield drilling and other on-site traction. Heavy use. This product can work with the host for a long time in the wild. Its characteristics are compact structure, small size, light weight, large pulling force, easy installation and convenient maintenance.

Winch, car winch, hydraulic winch No.: SDYJ-80ZW
( winch, car winch, hydraulic winch) SDYJ-80ZW series hydraulic drive winch is used for self-rescue, rescue, towing objects, and can also be used for towing faulty vehicles for road clearing and rescue vehicles, as well as engineering installation, oilfield drilling and other on-site traction. Heavy use. This product can work with the host for a long time in the wild. Its characteristics are compact structure, small size, light weight, large pulling force, easy installation and convenient maintenance.

Hydraulic winch, winch, car winch No.: SDYJ-50ZW
( winch, car winch, hydraulic winch) SDYJ-50ZW series hydraulic drive winch is used for self-rescue, rescue, towing objects, and can also be used for towing faulty vehicles for road clearing and rescue vehicles, as well as engineering installation, oilfield drilling and other on-site traction. Heavy use. This product can work with the host for a long time in the wild. Its characteristics are compact structure, small size, light weight, large pulling force, easy installation and convenient maintenance.

Winch, car winch, hydraulic winch No.: SDYJ-30ZW
( winch, car winch, hydraulic winch) SDYJ-30ZW series hydraulic drive winch is used for self-rescue, rescue, towing objects, and can also be used for road rescue vehicles, dragging and disassembling vehicles, as well as engineering installation, oilfield drilling and other field holdings. Pulling heavy objects. This product can work with the host for a long time in the wild. Its characteristics are compact structure, small size, light weight, large pulling force, easy installation and convenient maintenance.

Winch, car winch, hydraulic winch No.: PW040
PW040 series hydraulic transmission winch is used for self-rescue, rescue and towing of objects. It can also be used for towing faulty vehicles in road clearing and rescue vehicles, as well as on-site pulling and pulling objects for engineering installation and oilfield drilling. This product can work with the host for a long time in the wild. Its characteristics are compact structure, small size, light weight, large pulling force, easy installation and convenient maintenance.


Slewing mechanism SDHZ-63 No.: SDHZ-63
The slewing mechanism is suitable for rotation of various truck-mounted cranes or other engineering machines. This product can work in the field with the host for a long time. Its features are compact, small in size, light in weight, easy to install and easy to maintain.

Planetary slewing reducer
The planetary slewing reducer produced by Zhejiang Pawa Transmission Equipment Co., Ltd. is suitable for various excavators, cranes, ship unloading devices, forestry equipment and other fields with rotary positioning requirements. The slewing system consists of a 1st or 2nd stage planetary gear reducer, a built-in multi-plate parking brake, an output gear and a hydraulic motor. Gear design and component optimization are performed by professional engineers using computer program operations.

Slewing mechanism SDHZ-35 No.: SDHZ-35
The planetary slewing mechanism developed by our company has a maximum torque of 80KN.m and is widely used in crawler excavators, cranes, various modified vehicles and slewing devices. 1. Modular design, motor, integrated valve block, brake, planetary reducer four-in-one, the structure is more compact; 2. Gears use special materials, grinding teeth processing, higher transmission efficiency; 3. Planetary gear floating connection at all levels The load capacity is better; 4. The key bearings adopt imported bearings, and the bearing capacity is stronger.

Slewing mechanism SDHZ-25 No.: SDHZ-25
Slewing mechanism SDHZ-25

NC Series Planetary Gear Reducer No.: NC
Technical parameters: 1, transmission ratio: 3.15-3000 2. Input power: 0.25-55KW 3. Output torque: ≤ 200000N. m 4, output speed: 0.425-445r/min 5. Structure: coupling flange type, foot type, shaft type. Product features: 1, this product is widely used in various mechanical equipment 2, low speed shaft design with solid shaft, hollow shaft with locking disc, spline coupling 3, low noise, high strength, high quality manufacturing standards 4, reasonable appearance Modular design, high carrying capacity 5, wide application range, applicable to different working conditions

MNR Series Planetary Gear Reducer No.: MNR
Technical parameters: 1. Transmission ratio: 3.15-3000 2. Input power: 0.25-55KW 3. Output torque: ≤ 200000N.m 4. Output speed: 0.425-445r/min 5. Structure: coupling flange type, bottom Foot type, shaft type. Features: 1. This product is widely used in various mechanical equipment. 2. Low speed shaft design with solid shaft, hollow shaft with locking disc, spline coupling 3. Low noise, high strength, high quality manufacturing standard 4. Reasonable appearance , modular design, high carrying capacity 5.. Wide range of applications, can be applied to different working conditions

NR Series Planetary Gear Reducer Number: NR
Technical parameters: 1. Transmission ratio: 3.15-3000 2. Input power: 0.25-55KW 3. Output torque: ≤ 200000N.m 4. Output speed: 0.425-445r/min 5 Structure: coupling flange type, foot Type, shaft mounted. Features: 1. This product is widely used in various mechanical equipment. 2. Low speed shaft design with solid shaft, hollow shaft with locking disc, spline coupling 3. Low noise, high strength, high quality manufacturing standard 4. Reasonable appearance Modular design, high carrying capacity 5. Wide application range, applicable to different working conditions

MNC Series Planetary Gear Reducer No.: MNC
Technical parameters: 1. Transmission ratio: 3.15-3000 2. Input power: 0.25-55KW 3. Output torque: ≤ 200000N. m 4. Output speed: 0.425-445r/min 5. Structure: coupling flange type, foot type, shaft type. Features: 1. This product is widely used in various mechanical equipment. 2. Low speed shaft design with solid shaft, hollow shaft with locking disc, spline coupling 3. Low noise, high strength, high quality manufacturing standard 4. Reasonable appearance Modular design, high carrying capacity 5. Wide application range, applicable to different working conditions.
Fast Transmission Gear Take-up Screw
Shanxi Dayun heavy truck power take-off switch Grand Canal heavy truck cab assembly
Shaanxi Auto Delong X3000 power take-off switch DZ97189584728
Temporary MT86 wide body car mining car original parts Weichai power take-off rear drive assembly 612630170069
JAC Jianghuai Geering Sword heavy truck truck accessories K series A series instrument panel power take-off switch
Beiben North Benz Mercedes differential lock wheel inter-bridge switch Locking switch two-position three-way power take-off switch
612600170052 Weichai engine power take-off oil seal
Dongfeng gearbox power take-off assembly 4205KP1-010
Dongfeng 2102N military vehicle parts EQ2120N rear winch power take-off
Weichai engine power take-off oil seal 612600170052 cab assembly
Shaanxi Automobile Delong QH70 power take-off chassis wiring harness
612600170052 Weichai engine power take-off body with skeleton oil seal
 612630170000Chai Europe III rear power take-off assembly
Heavy truck gearbox power take-off needle bearing
Bulk cement transporter Faster 12-speed increase cement truck dedicated power take-off
1320822080034 mixer truck power take-off drive shaft
Shaanxi Automobile Delong M3000 with 70 power take-off special cover
612630170000
Shaanxi Automobile Delong QH70 power take-off chassis wiring harness engine wiring harness cab wiring harness wiring harness
Heavy truck Haowo power take-off switch WG9719582010 price 15 yuan
Hualing Star Kama Auto Parts Star Kama PTO Switch Flameout Switch, etc.
DZ97189584728 Shaanxi Automobile Delong X3000 power take-off work selection switch
FAW Jiefang J6 cement mixing tank power take-off assembly
Crankshaft power take-off gear
Supply Dongfeng Faust power take-off two-axis cylinder block assembly QQ60-4211306
Datong 85 gearbox assembly with power take-off pump
DZ97189584728 Shaanxi Automobile Delong X3000 power take-off work selection switch
Dongfeng Tianjin sanitation car gearbox power take-off assembly
QQ90 power take-off
K505517 Fast Transmission Gear Taken Bearing
Dongfeng EQ2102N military vehicle parts EQ2120N rear winch power take-off
Shaanxi Automobile Delong New M3000 Intermediate Power Take-Off DZ95259240333
Power take-off oil seal
Power take-off from ZF gearbox assembly 16S-1950 1297 095 227
Supply Qin Yan original authentic power take-off oil seal
Nanjun ace Futian Dongfeng Jianghuai FAW Kama wind Panther Panalyan gearbox power take-off 22 teeth
DZ97189584728 Shaanxi Automobile Delong X3000 power take-off work selection switch
Dongfeng special dump truck dump truck Faust 10 gear box power take-off assembly
Heavy truck fire truck power take-off
Faster QC45B power take-off assembly
860433000002Shaanqi KONE wide body car power take-off drive shaft length 375
Concrete pump truck, mixer truck power take-off convex element 4 holes x23 teeth
LG9704580117 heavy truck HOWO light card power take-off switch
Dongfeng Chaolong four-wheel drive off-road passenger car front force booster assembly
Fast Transmission Original QH70 Power Take-Off Rear Case Fast Transmission Original QH70 Power Take-Off Rear Case
JAC Jianghuai Geering Sword heavy truck truck accessories K series A series instrument panel power take-off switch
JAC Jianghuai Geering Sword heavy truck truck accessories K series A series instrument panel power take-off switch
Liberation Aowei J6 differential power take-off electromagnetic valve Exhaust brake electromagnetic valve
Heavy truck Haowo power take-off switch WG9719582010
4205010-K0903-05 Dongfeng Tianlong power take-off oil seal (L340)
 FAT58013513400 Hongyan Jieshi power take-off pipe
Heavy truck HW12707TC gearbox accessories Heavy truck 12707 gearbox power take-off assembly Heavy truck power take-off
Datong gearbox accessories Datong DC6J85T (17GOA3-33) gearbox power take-off
FAW liberation heavy truck teeth 950, 980 gearbox power take-off needle bearing
PTO drive shaft mixing car tanker
China National Heavy Duty Truck original parts Haowo light card rocker switch unified handsome air horn power take-off crisis switch
UFO car original parts Aochi series models C1701450PC5 power take-off assembly (long teeth 525)
JAC Jianghuai Geering Sword heavy truck truck accessories K series A series instrument panel power take-off switch
[QH50] Original supply of Fastbox gearbox power take-off
JAC Jianghuai Geering Sword heavy truck truck accessories K series A series instrument panel power take-off switch
Shandong Tang Jun Ou Ling King Kong Power Take-off Assembly (Pneumatic Internal Spline)
Dongfeng gearbox power take-off 4205F85-010AQ drive shaft disc power take-off assembly
4205A07B-020 Dongfeng 2102N power take-off assembly
JAC Jianghuai Geering Sword heavy truck truck accessories K series A series instrument panel power take-off switch
Dongfeng gearbox power take-off 4205F85-010AQ drive shaft disc power take-off assembly
Professional supply Dongfeng Tianlong car power take-off gearbox power take-off factory direct wholesale
Liberation gearbox power take-off unit 4207010AA6PCJ
Supply Dongfeng military vehicle parts EQ2102 military vehicle power take-off winch drive shaft - connection winch
Weichai engine power take-off oil seal
JAC Jianghuai Geering Sword heavy truck truck accessories K series A series instrument panel power take-off switch
Zhejiang Oufu C300 power take-off oil seal cement mixer A3883620
Dongfeng Tianjin Dongfeng Tianlong Dongfeng gearbox power take-off assembly
Faster QH70 power take-off
Dongfeng Tianlong Tianjin Hercules commercial vehicle parts PTO assembly and accessories
JAC Jianghuai Geering Sword heavy truck truck accessories K series A series instrument panel power take-off switch
Power take-off drive axon
China National Heavy Duty Truck Fujian Haixi Haoman Power Take-Off Switch
Wanliyang gearbox power take-off Wanliyang gearbox power take-off
Anhui Hualing Hanma engine power take-off cover
Dongfeng Hercules cement mixer power take-off flywheel shell original cover 4205010 K0903 07
Specialized in Shaanxi Auto Xuan De Xuan De Xuan De authentic original full range of parts - XDX6 power take-off switch
Power take-off assembly
Foton Auman Daimler accessories power take-off switch
4205010-K0903-05 Dongfeng Tianlong power take-off oil seal (L340)
4205F85-010AQ Dongfeng gearbox power take-off drive shaft disc power take-off assembly
[4205F85E-010] Dongfeng Tianjin gearbox power take-off assembly
Dongfeng Tianlong tanker power take-off assembly CPV7001

Fast transmission gearbox steel pad / gearbox pad / power take-off pad
4993040Dongfeng Hercules cement mixer flywheel housing with power take-off unit 4205010-K0903-01
[4990659] Cummins 6BT flywheel shell power take-off assembly [Cummins]
3693953 Foton Daimler Auman cylinder assembly (without power take-off)
Applicable to Renault DCi11 rear power take-off output shaft assembly
Construction machinery power take-off front oil seal [power take off front oil seal]
Dongfeng Hercules mixer Renault engine flywheel housing (with power take-off) D5010443754
Guangzhou Automobile Hino 700 power take-off flange /
Faster QCZ70A-4211220 power take-off oil seal
Shanxi Dayun N8 power take-off switch
Dongfeng Tianlong power take-off assembly
6S-85 gearbox power take-off 6S-85 output teeth 23:27
Dongfeng Tianlong Tianjin Hercules commercial vehicle accessories Power take-off assembly and accessories QH50.12.80 increase
Heavy truck HOWO power take-off switch
Weichai WP10 engine power take-off oil seal
Dongfeng Tianlong engineering vehicle power take-off oil seal 4205010-K0903-05
Supply Kang machine 300 horsepower cement mixer power take-off oil seal 3883620
Heavy truck power take-off switch 189200580040
Dongfeng military vehicle accessories, Dongfeng off-road vehicle accessories, Dongfeng EQ240 accessories - 240 power take-off
Shaanxi Automobile Delong power take-off switch
Supply Dongfeng Tianlong power take-off switch 3750110-C0100
[4205M-020] Dongfeng military vehicle parts, EQ2102 rear winch power take-off assembly 4205M-020
Foton Ruiwo power take-off and lift distribution valve
Heavy truck gearbox power take-off needle bearing
A3883620 C300 power take-off oil seal (cement mixer)
Power take-off (EQ153-3208)
Heavy truck Howo power take-off
