Pneumatic Switch Controller Valves (Fuel Tank Truck Aluminum Pneumatic Control Block Push Button For 2 -6 Compartments Oil Tanker Huate -YOJE-GLME)

Pneumatic Switch Controller Valves (Fuel Tank Truck Aluminum Pneumatic Control Block Push Button For 2 -6 Compartments Oil Tanker Huate -YOJE-GLME)

Quantity:
  • Shanghai, China
  • 30000
  • T/T

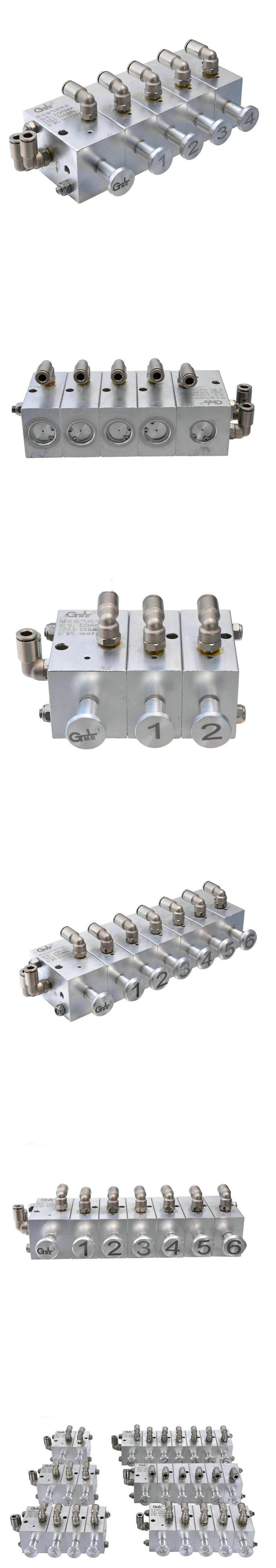

Pneumatic Switch Controller (Fuel Tank Truck Aluminum Pneumatic Control Block Push Button For 2 -6 Compartments Oil Tanker Huate -YOJE-GLME)

Penumatic control block is mainly composed of main control valve, sub control valve, pressure gauge, air source screen, panel and so on. When the air source reach to the working pressure and main control valve pressed, the air source screen will turn green, then the sub control valves start working. When the main control valve colsed, the sub control valves will be closed too. It can connect to remote shutoff switch to close the valve in remote way.
Combination Switch Technical Date:
1. Connecting Air Pipe Diameter: 6mm
2. Working Pressure: 0.5~0.8Mpa
3. Working Temperature : -30ºC`~+70ºC
Notes:
1. The control block must be tightened to make sure it won't be broken or damage during the vehicle running.
2. The control block should not be painted.

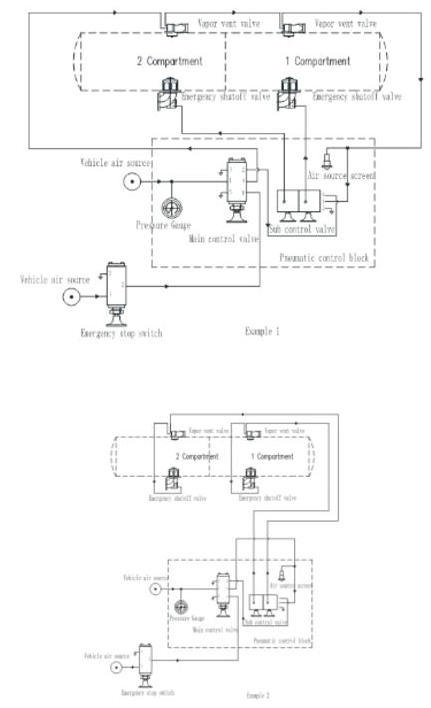

Air-pipe installation as below:

Products Features

a. Name: Pneumatic Control Block

b.Air hose diameter:6mm

c.Working pressure:0.5-0.8 MPa

d.Temperature range:-20-+50 Fuel Tanker Pneumatic Plastic ControlBlock

Pneumatic Switch Controller Valves (Fuel Tank Truck Aluminum Pneumatic Control Block Push Button For 2 -6 Compartments Oil Tanker Huate -YOJE-GLME)
Pneumatic Switch Controller Valves (Fuel Tank Truck Aluminum Pneumatic Control Block Push Button For 2 -6 Compartments Oil Tanker Huate -YOJE-GLME)
Pneumatic Control Unit, Fuel Tanker Pneumatic Control Blocks

Benefit and Feature


* Central Control

One set pneumatic control block can control several valves, it is very convenient for the users' operation.


* Remote Control

In any emergency cases, it can do the remote control to shut off the valves.


Name Model A B C D H Z-do
Control System Qk0X 46 42 22 10 120 4-φ6.5

Pneumatic Switch Controller Valves (Fuel Tank Truck Aluminum Pneumatic Control Block Push Button For 2 -6 Compartments Oil Tanker Huate -YOJE-GLME)
Fuel Tanker Pneumatic Plastic Control Block

Pneumatic Switch Controller Valves (Fuel Tank Truck Aluminum Pneumatic Control Block Push Button For 2 -6 Compartments Oil Tanker Huate -YOJE-GLME)

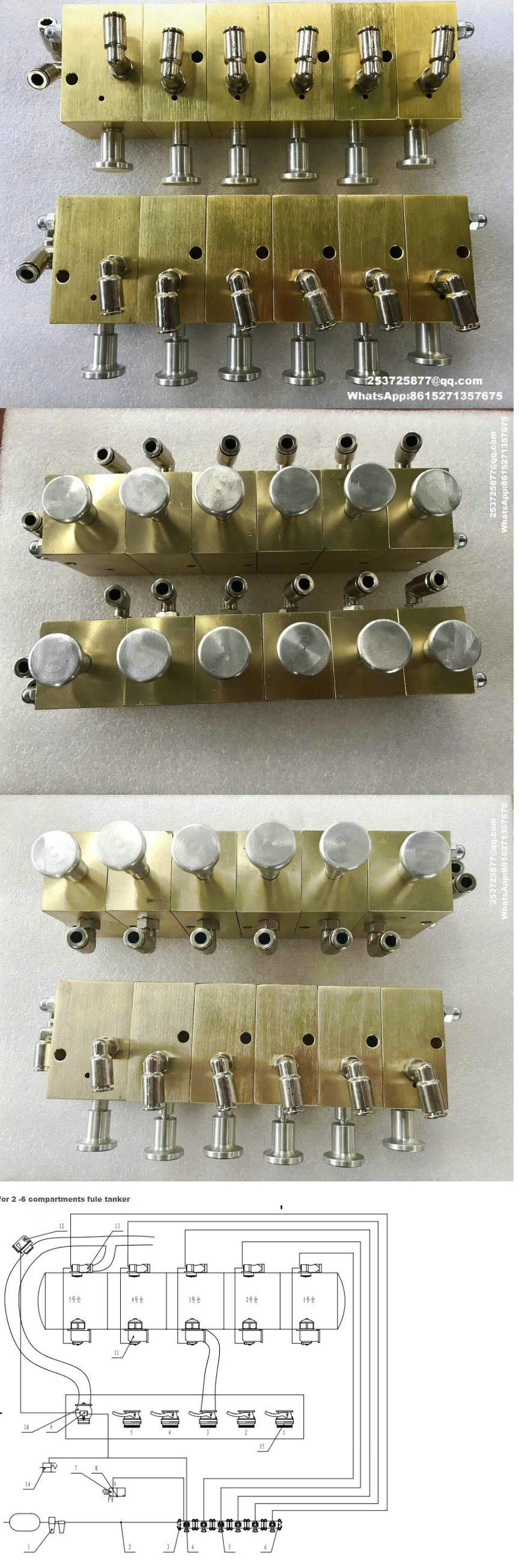

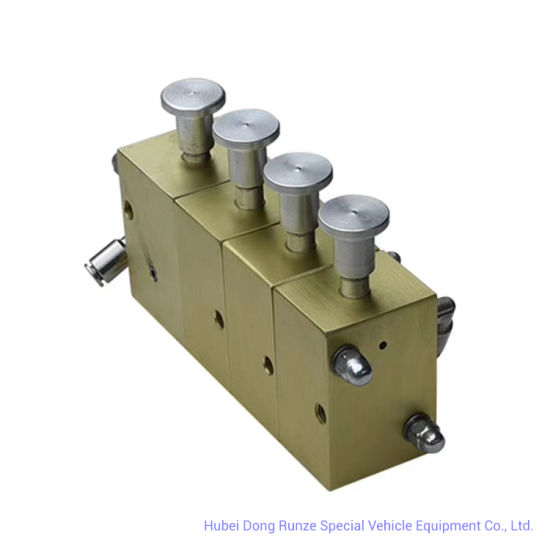

Fuel Tank Truck Aluminum Pneumatic Control Block / pneumatic push button




Pneumatic Switch Controller Valves (Fuel Tank Truck Aluminum Pneumatic Control Block Push Button For 2 -6 Compartments Oil Tanker Huate -YOJE-GLME)

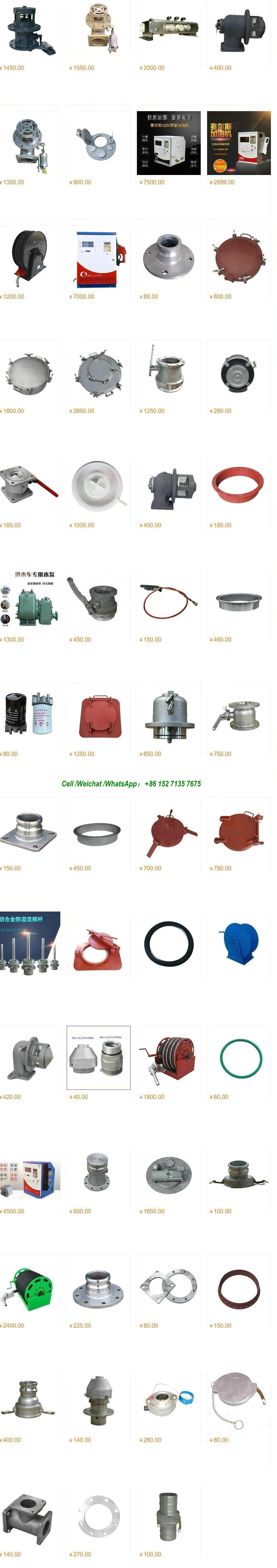

Manhole cover of Tank Truck
