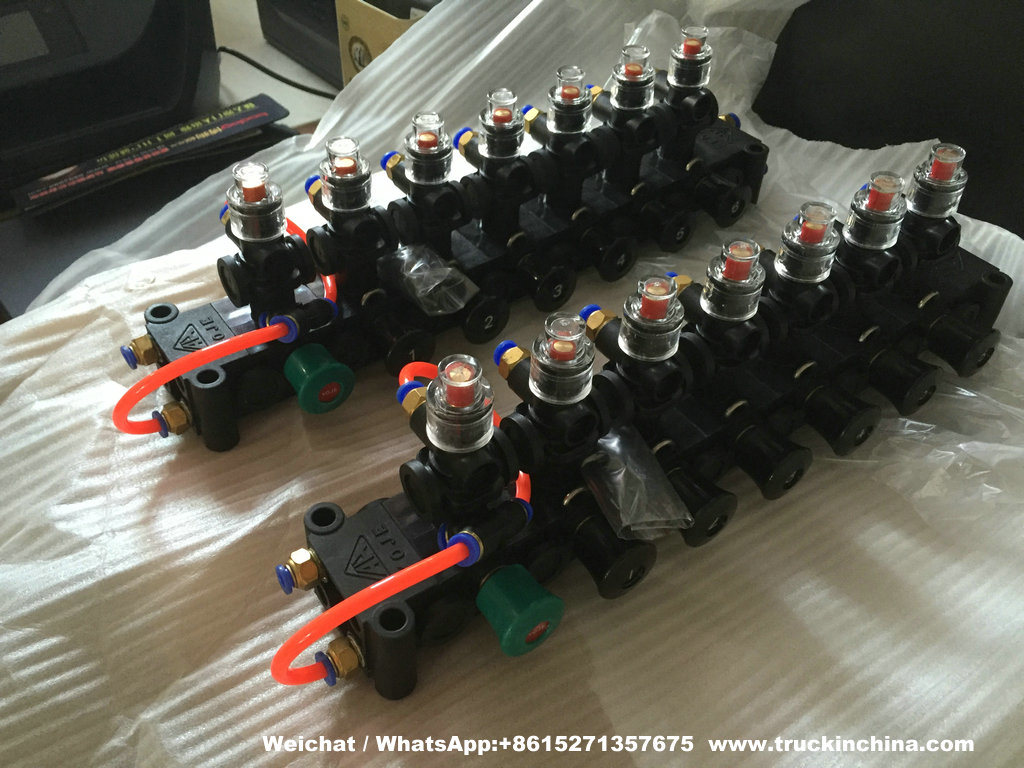

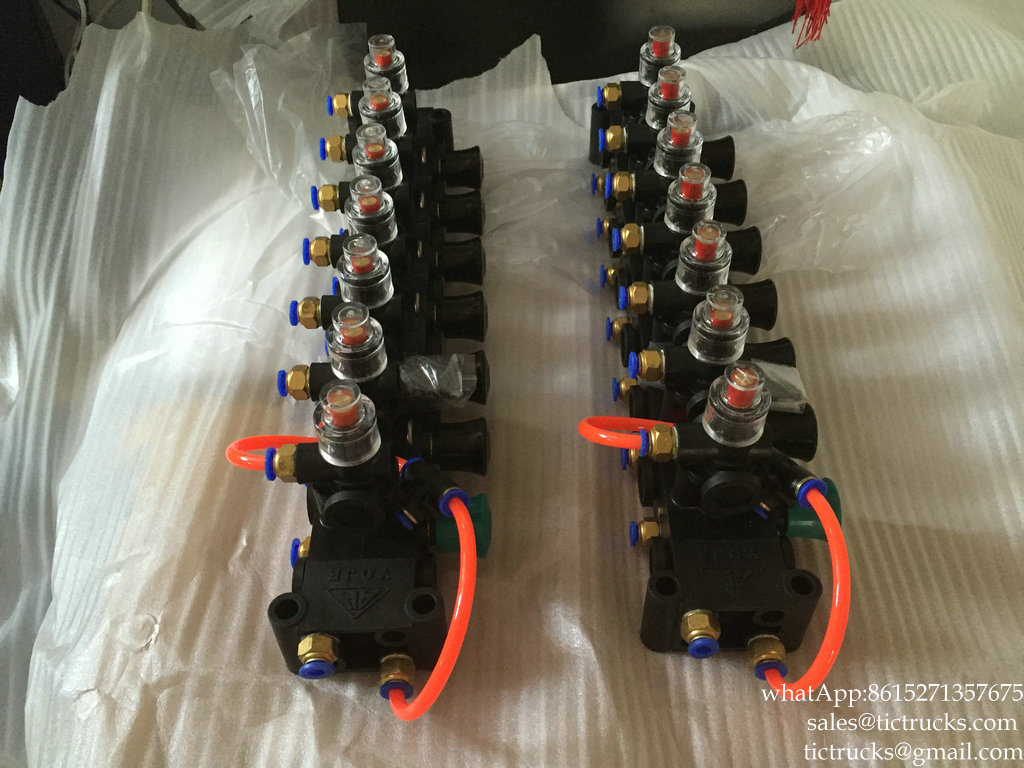

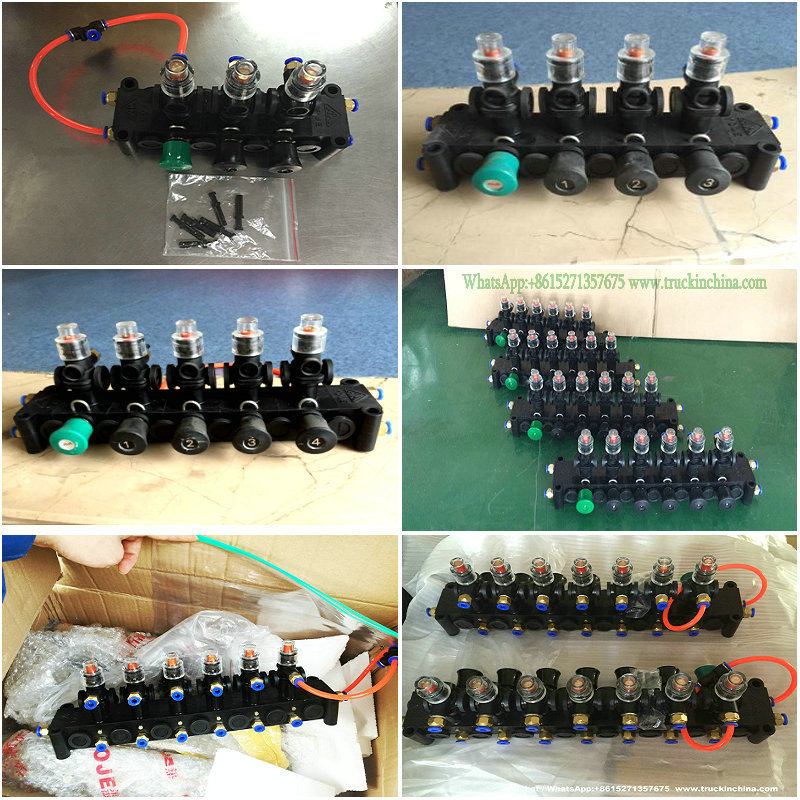

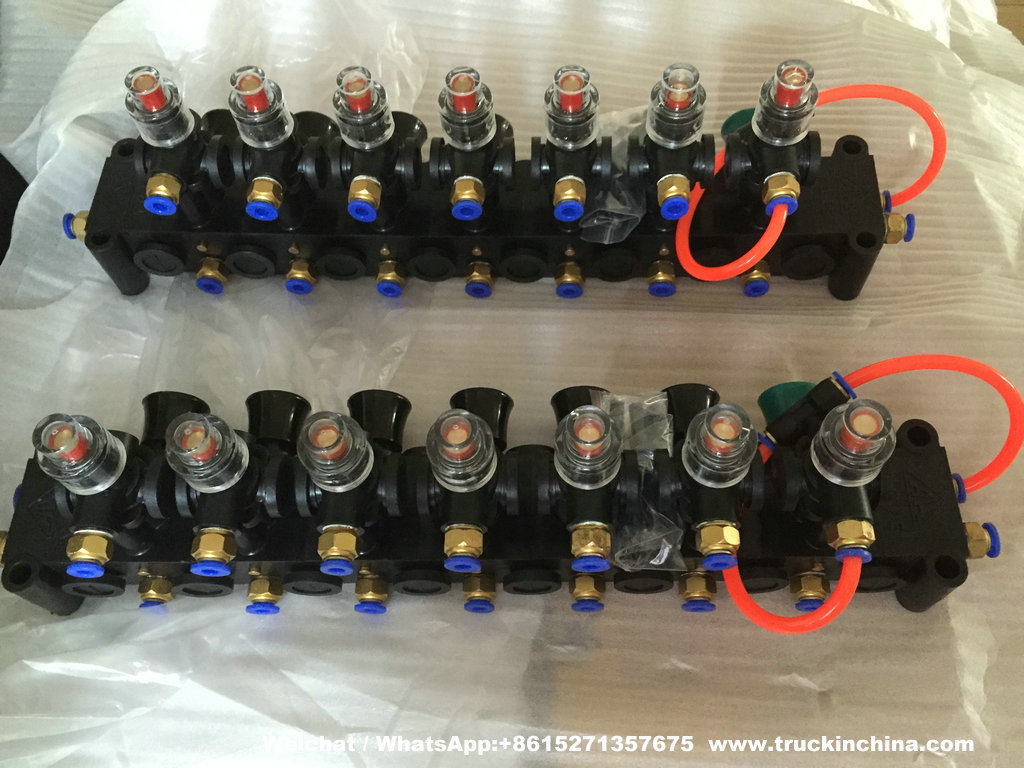

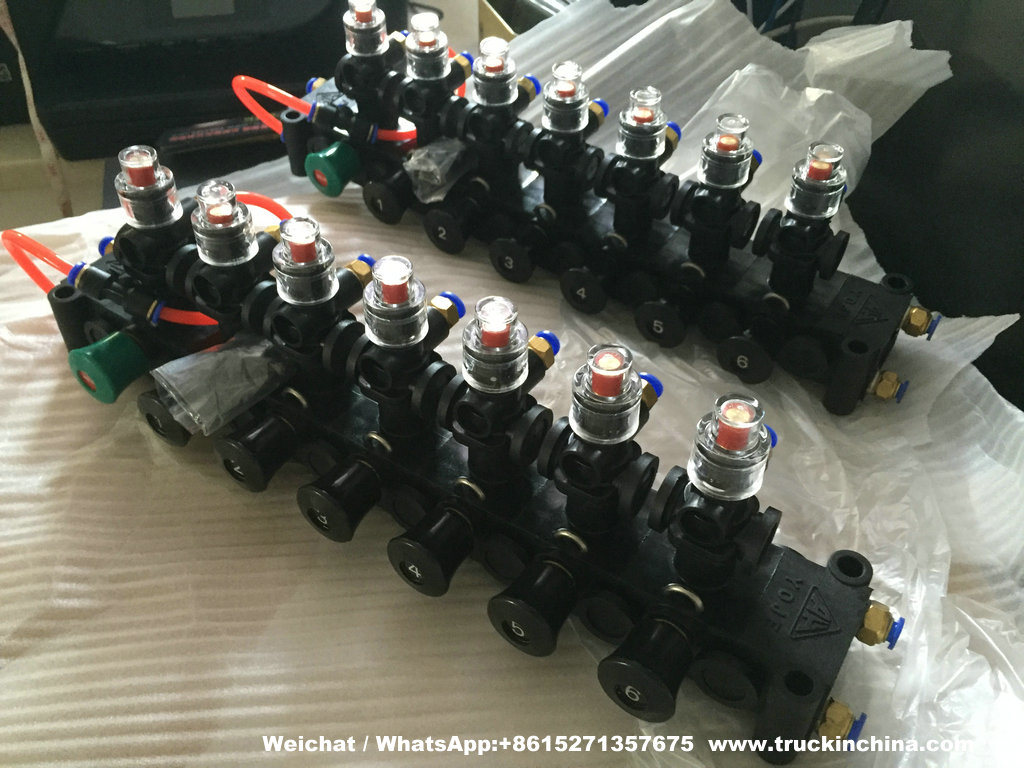

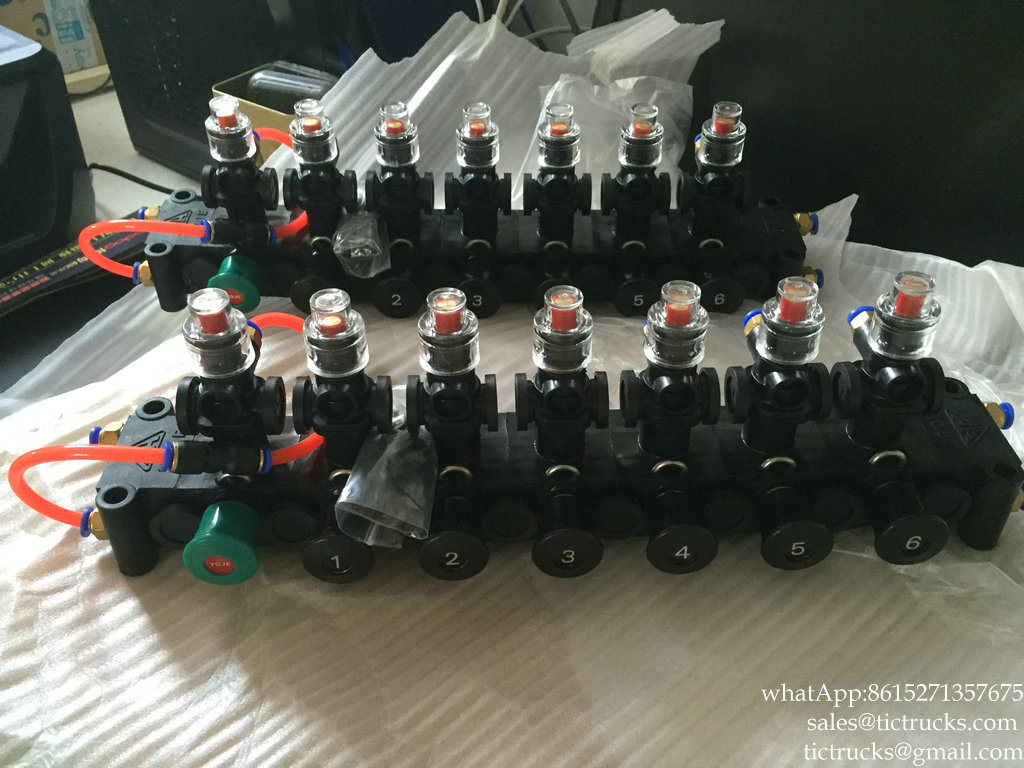

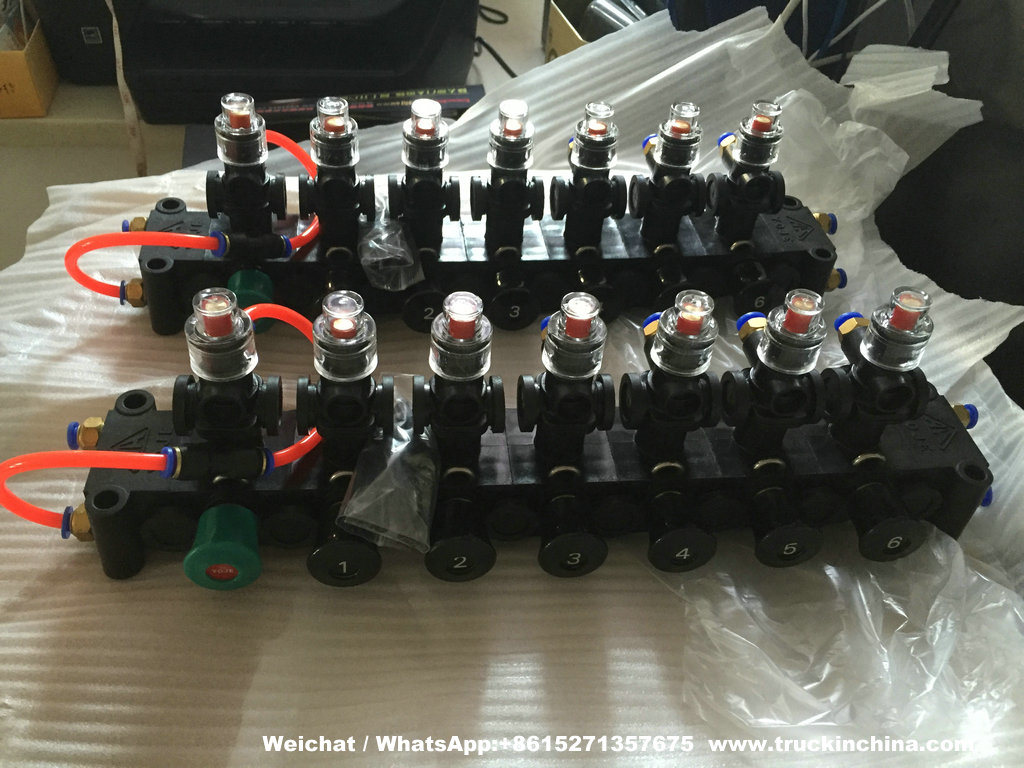

Plastic Pneumatic Control Block Valves for Fuel Tanker (Road Tanker Truck YOJE Pneumatic Control Unit 1-7 Compartments)
| Quantity: | |
|---|---|
- Shanghai, China
- 30000
- T/T
Hot Sale Plastic Pneumatic Control Block Unit Auto Combination Switch
Penumatic control block is mainly composed of main control valve, sub control valve, pressure gauge, air source screen, panel and so on. When the air source reach to the working pressure and main control valve pressed, the air source screen will turn green, then the sub control valves start working. When the main control valve colsed, the sub control valves will be closed too. It can connect to remote shutoff switch to close the valve in remote way.
Pneumatic Control Unit, Fuel Tanker Pneumatic Control BlocksTechnical Date:
1. Connecting Air Pipe Diameter: 6mm
2. Working Pressure: 0.5~0.8Mpa
3. Working Temperature : -30ºC`~+70ºC
Notes:
1. The control block must be tightened to make sure it won't be broken or damage during the vehicle running.
2. The control block should not be painted.
Air-pipe installation as below:
Fuel Tanker Plastic Pneumatic Control Block / interlocking concrete blocks
Products Features
a. Name: Pneumatic Control Block
b.Air hose diameter:6mm
c.Working pressure:0.5-0.8 MPa
d.Temperature range:-20-+50
Fuel Tanker Pneumatic Plastic Control Block
Fuel Tank parts Plastic Pneumatic ControlBlock / pneumatic push button
Plastic Pneumatic Control Unit Benefit and Feature
Material:
Body: POM plastic
Shaft: brass
Seal: FPW,NBR
Spring: SS
Fuel Tanker Pneumatic Plastic Control Block
Specifications
1. Air hose dimeter :6 mm
2. Working pressure : 0.5--0.8 MPa
3. Temperature range:-20 -- +50
1. Pneumatic Control Unit
To be installed in the tanker to do the central control by pneumatic ,including the Vapor Vent Valve,Combing Valve,Bottom Valve,etc. It can do the quick open and close by Pneumatic Control Block to ensure the loading and unloading more reliable.
2. Benefit and Feature
* Central Control
One set pneumatic control block can control several valves, it is very convenient for the users' operation.
* Remote Control
In any emergency cases, it can do the remote control to shut off the valves.
| Item name | Pneumatic interlock valve | Model Number | QK01-7 |
| Main material | Plastic | Air pipe size | 6mm |
| Operating method | Pneumatic | Working pressure | 0.3-0.6MPa |
| Connection mode | Push-in | Temperature range | -20~+50ºC |
| Medium | Air | Sections | 1-7 compartments |
Features:
1.Can be combined freely with different sections.
2. Small, compact and robust.
3. Easy to operate.
4. It can not be opened when the air pressure is less than 0.3MPa.
5. Available with automatic closed when air leaked.
6. Be used for several sections.
7. 1/4 NPT air lineholes.
8. Sight glass for checking directive opening and closing.

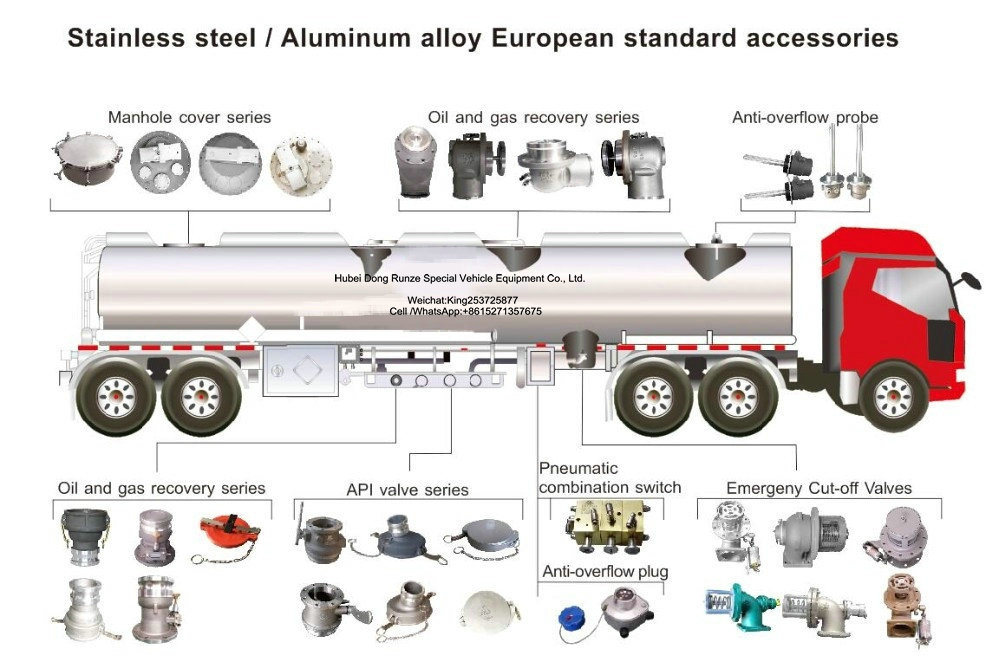

Manhole cover of Tank Truck
Bottom emergency valve
API Bottom Adaptor set
Discharging Valve
Vapor recovery valve set
Optic sensor
Vent Valve
Ball valve
Oil indicator
Manual handle
Pneumatic accessories
Pump
Dry Disconnected Coupler
Oil metering
Flanges
Other accessories
Hot Sale Plastic Pneumatic Control Block Unit Auto Combination Switch
Penumatic control block is mainly composed of main control valve, sub control valve, pressure gauge, air source screen, panel and so on. When the air source reach to the working pressure and main control valve pressed, the air source screen will turn green, then the sub control valves start working. When the main control valve colsed, the sub control valves will be closed too. It can connect to remote shutoff switch to close the valve in remote way.
Pneumatic Control Unit, Fuel Tanker Pneumatic Control BlocksTechnical Date:
1. Connecting Air Pipe Diameter: 6mm
2. Working Pressure: 0.5~0.8Mpa
3. Working Temperature : -30ºC`~+70ºC
Notes:
1. The control block must be tightened to make sure it won't be broken or damage during the vehicle running.
2. The control block should not be painted.
Air-pipe installation as below:
Fuel Tanker Plastic Pneumatic Control Block / interlocking concrete blocks
Products Features
a. Name: Pneumatic Control Block
b.Air hose diameter:6mm
c.Working pressure:0.5-0.8 MPa
d.Temperature range:-20-+50
Fuel Tanker Pneumatic Plastic Control Block
Fuel Tank parts Plastic Pneumatic ControlBlock / pneumatic push button
Plastic Pneumatic Control Unit Benefit and Feature
Material:
Body: POM plastic
Shaft: brass
Seal: FPW,NBR
Spring: SS
Fuel Tanker Pneumatic Plastic Control Block
Specifications
1. Air hose dimeter :6 mm
2. Working pressure : 0.5--0.8 MPa
3. Temperature range:-20 -- +50
1. Pneumatic Control Unit
To be installed in the tanker to do the central control by pneumatic ,including the Vapor Vent Valve,Combing Valve,Bottom Valve,etc. It can do the quick open and close by Pneumatic Control Block to ensure the loading and unloading more reliable.
2. Benefit and Feature
* Central Control
One set pneumatic control block can control several valves, it is very convenient for the users' operation.
* Remote Control
In any emergency cases, it can do the remote control to shut off the valves.
| Item name | Pneumatic interlock valve | Model Number | QK01-7 |
| Main material | Plastic | Air pipe size | 6mm |
| Operating method | Pneumatic | Working pressure | 0.3-0.6MPa |
| Connection mode | Push-in | Temperature range | -20~+50ºC |
| Medium | Air | Sections | 1-7 compartments |
Features:
1.Can be combined freely with different sections.
2. Small, compact and robust.
3. Easy to operate.
4. It can not be opened when the air pressure is less than 0.3MPa.
5. Available with automatic closed when air leaked.
6. Be used for several sections.
7. 1/4 NPT air lineholes.
8. Sight glass for checking directive opening and closing.
