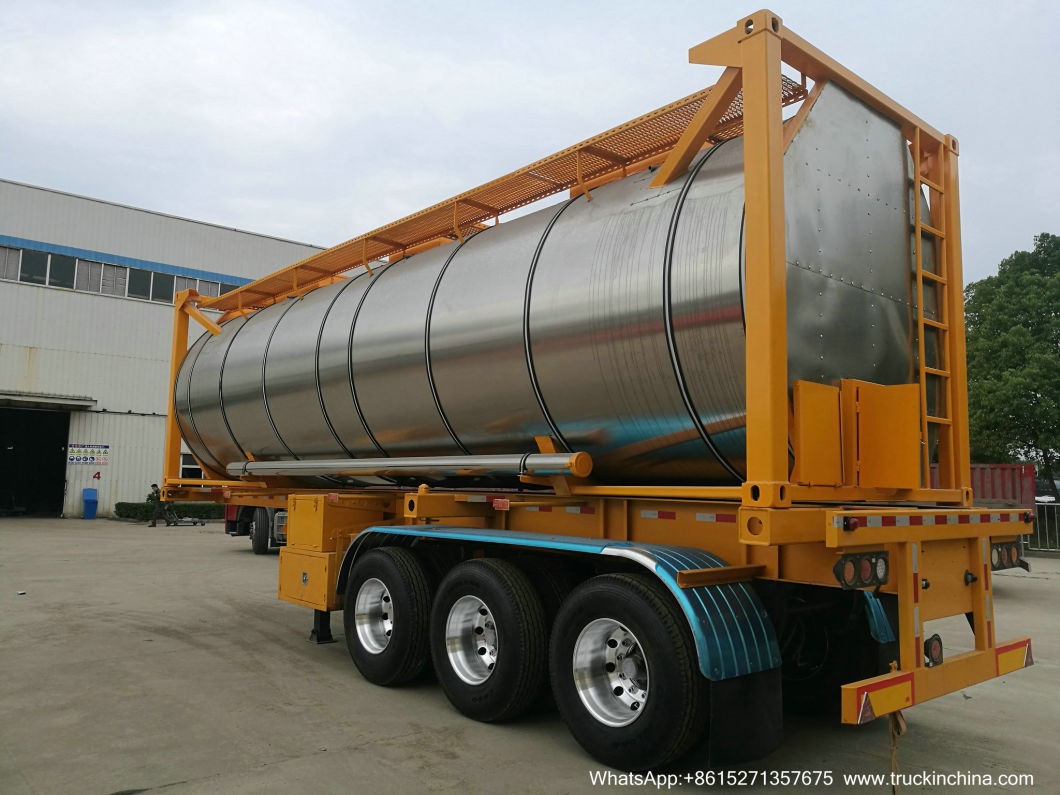

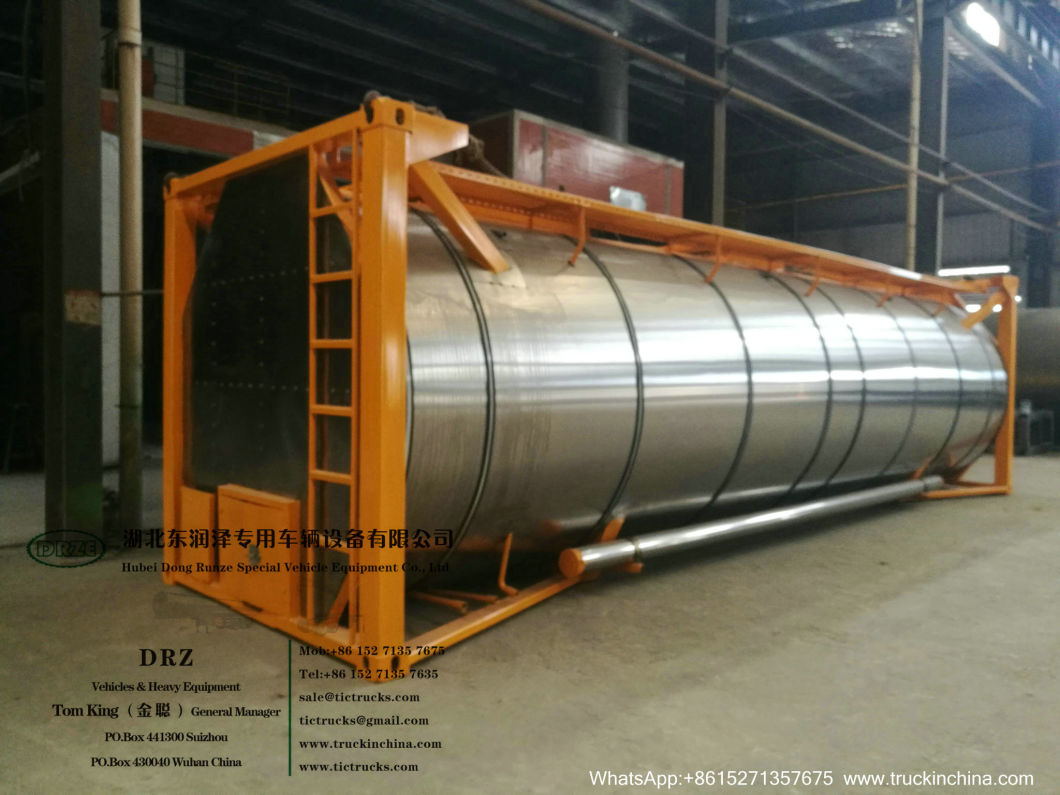

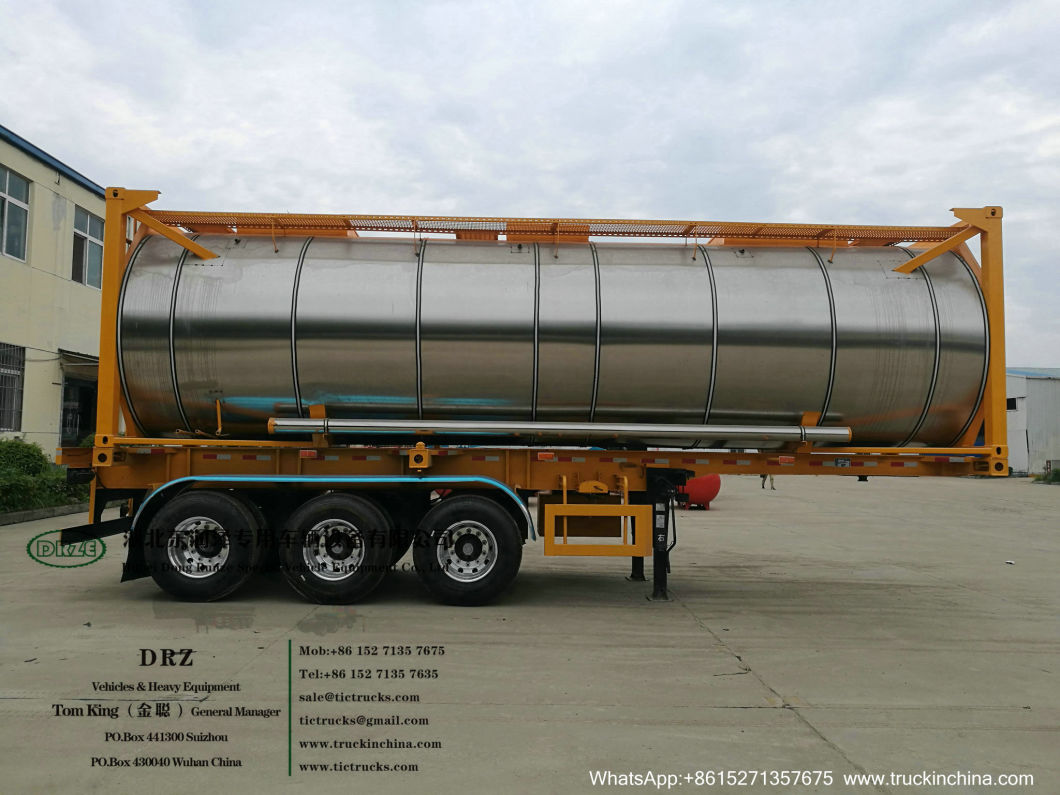

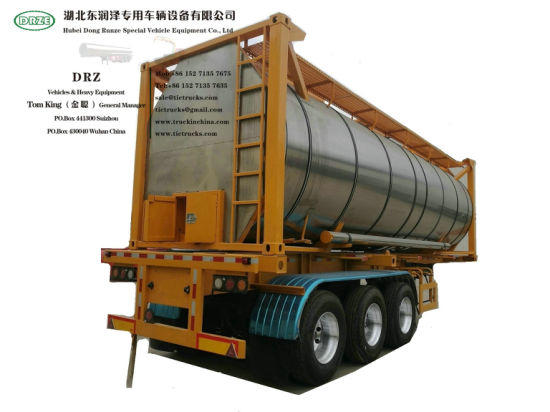

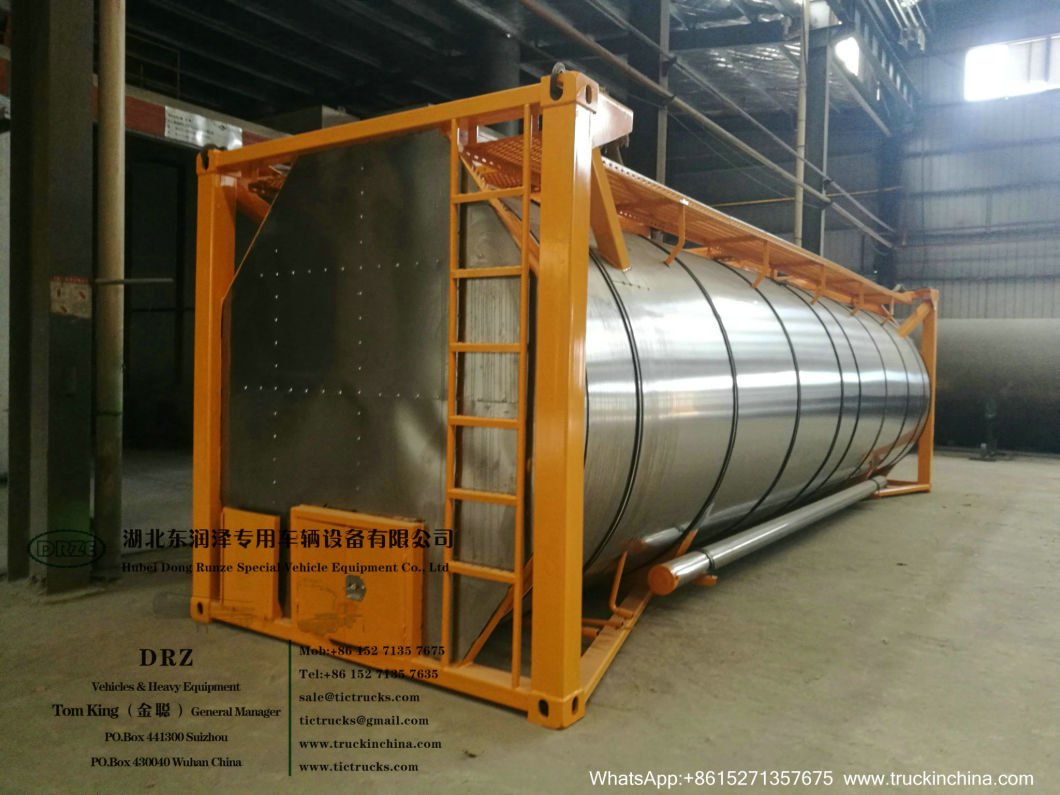

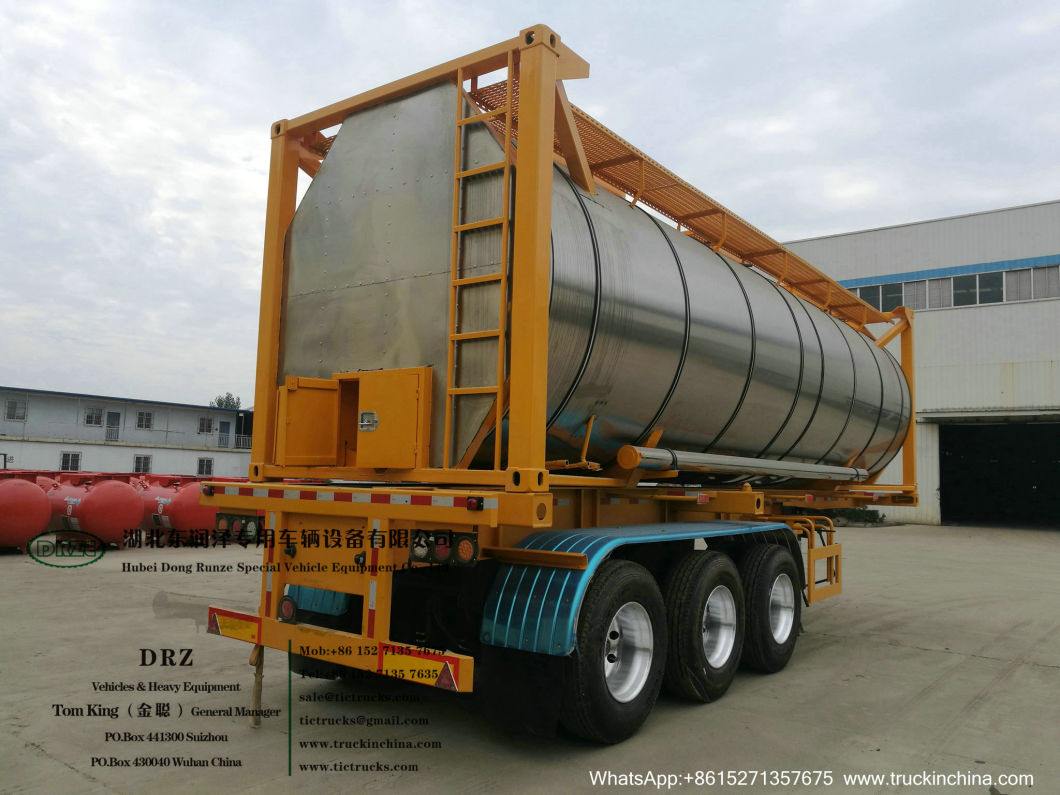

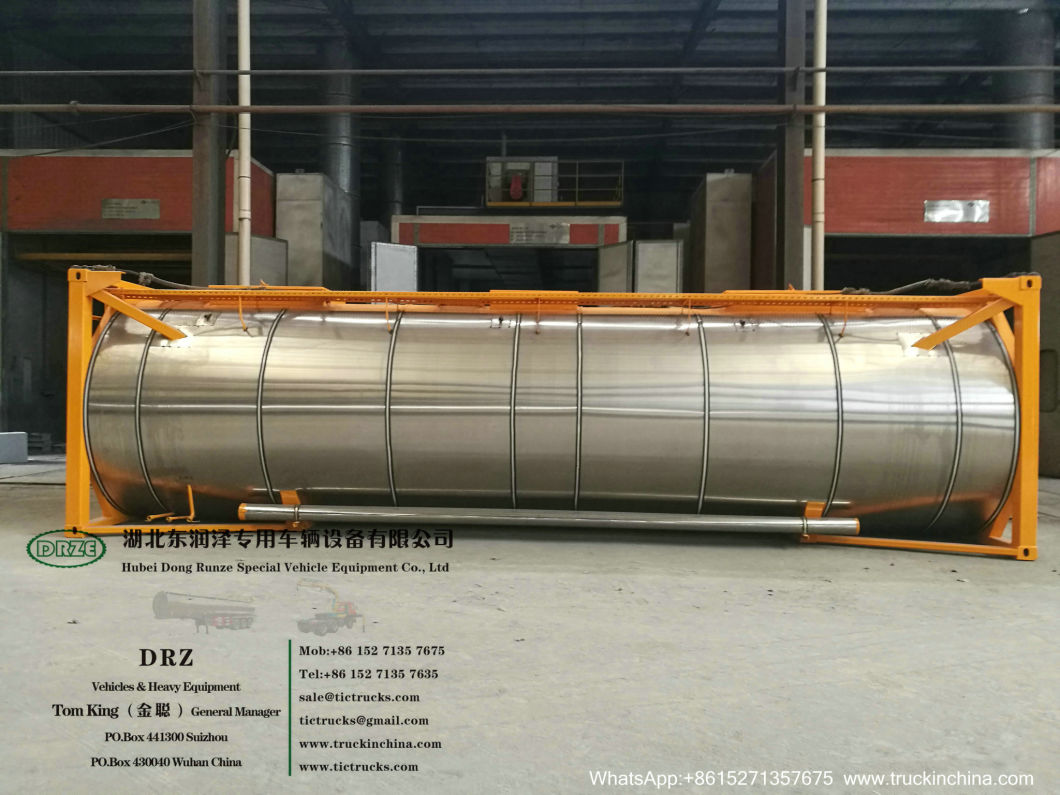

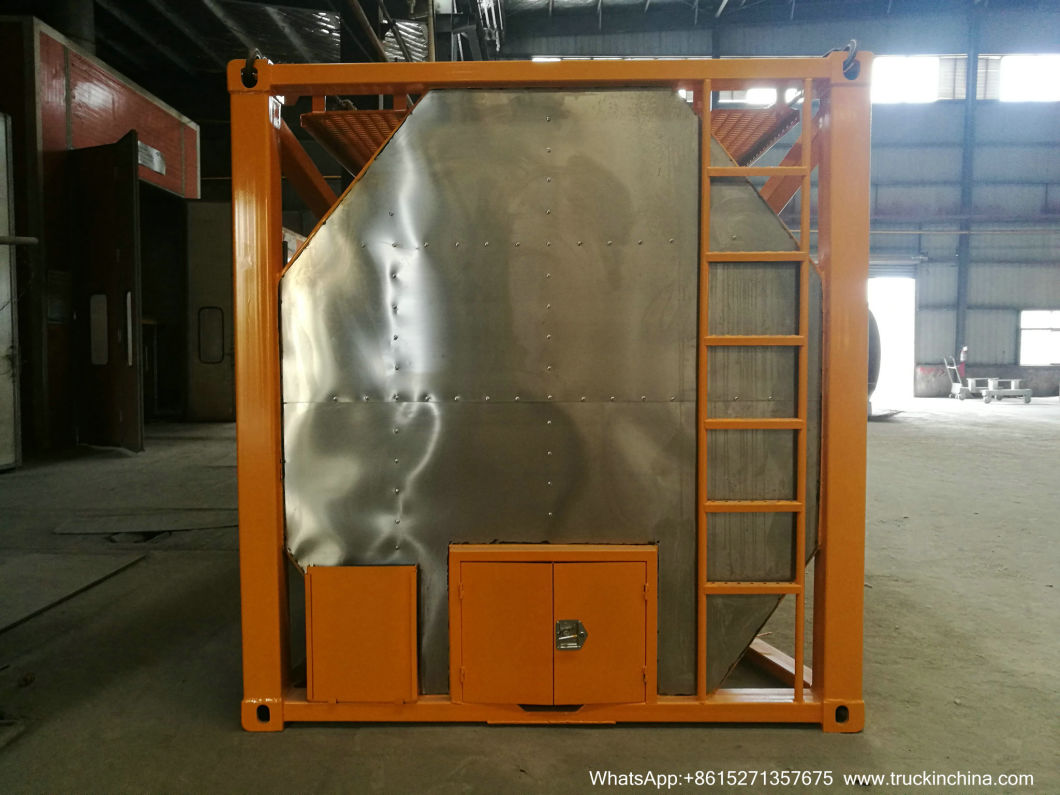

Phosphoric Acid Tank Container Swap Tank Insulated with Stainless Steel Steam Heating Pipe (Road Transport by 30FT ISO Container Trailers)
Phosphoric Acid Tank Container Swap Tank Insulated with Stainless Steel Steam Heating Pipe (Road Transport by 30FT ISO Container Trailers)
| Quantity: | |
|---|---|
- Shanghai, China
- 1000
- T/T, Western Union
Phosphoric Acid Tank Container Swap Tank Insulated with Stainless Steel Steam Heating Pipe ( Road Transport by 30ft ISO Container Trailers)
WE can offer Stainless / Steel Iner Lined LLDPE Tank Container / Tanker Trailer with different type of Steel Lined /Coated PE Plastic or stainless steel materials like 304L and 316L.
Used for:
Acid
Chemicals
Edible Oil
Liquid food
Hydrochloric acid
Acetic Acid
Boric Acid
Milk
Alcohol
Nitric Acid
ISO Tank

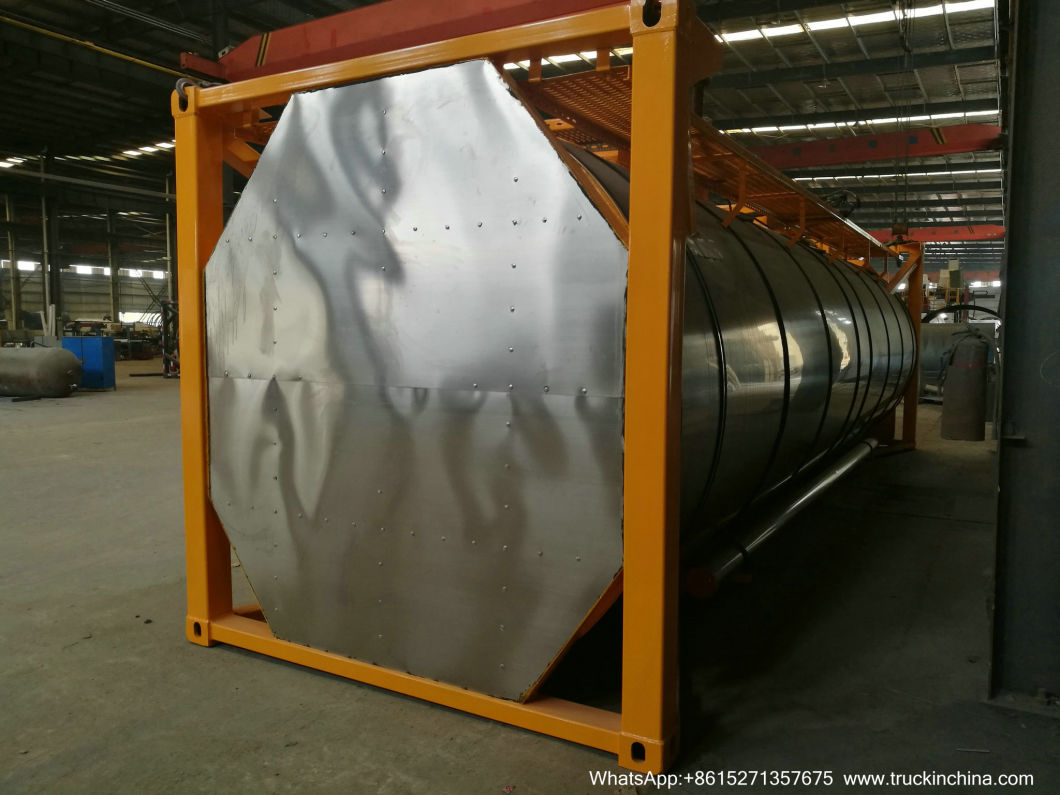

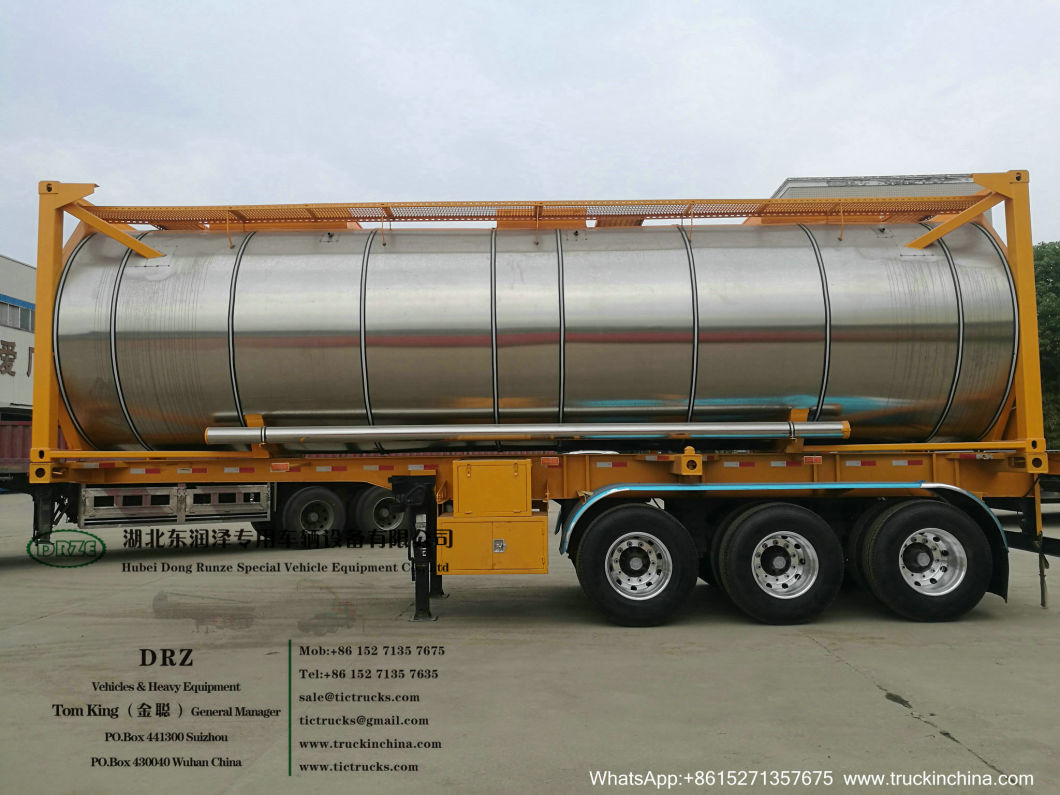

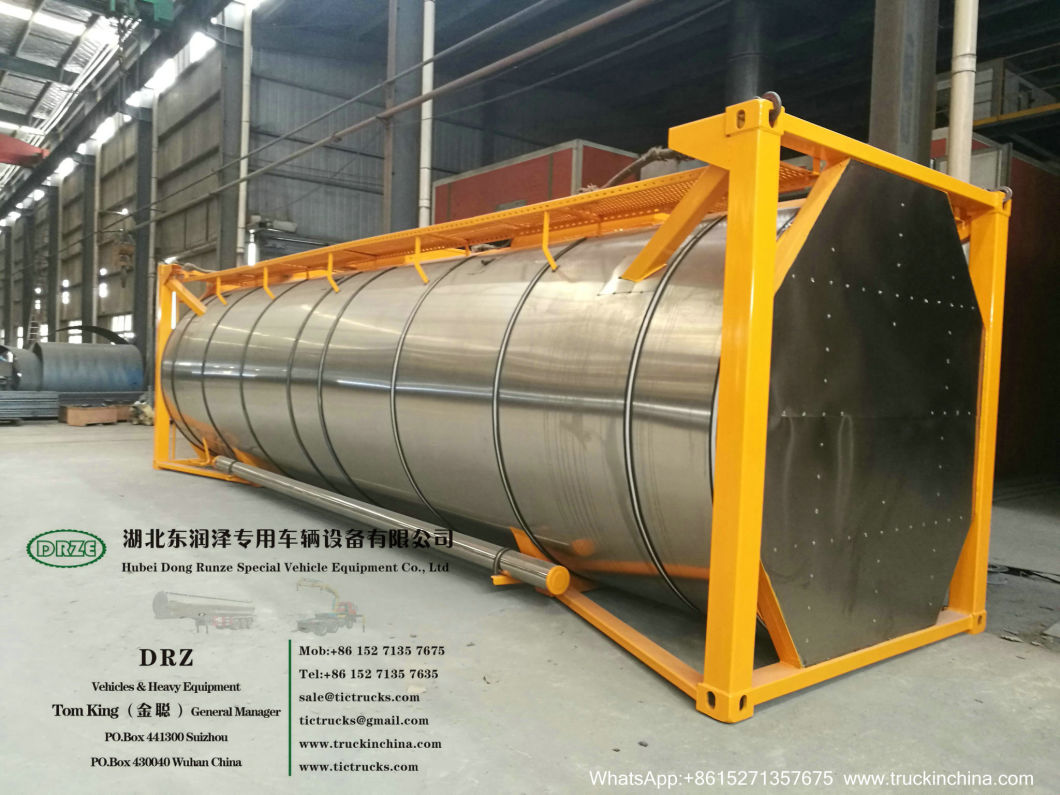

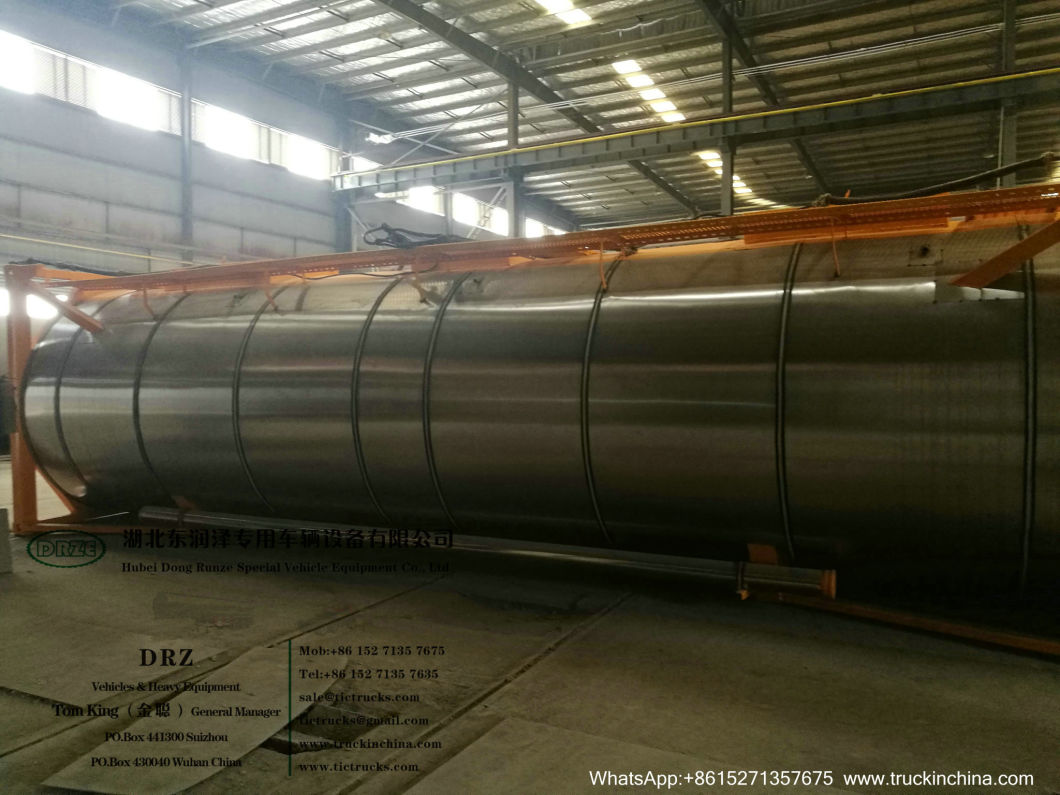

The pictures are for your reference only.
Technical Parameter of Tank Container
| Technical parameter of tank container | |
| 20 FT ISOTANK | 20 feet insulated and steam-heated tank |
Outer dimensions(mm) | 6058×2438×2591 |
Insulating performance | Design according to user's requirement |
Water testing pressure(MPa) | 0.6 |
| (mm)Insulating materials and thickness(mm) | insulated rockwood 50mm |
Heating way | steam-heated tank |
Capacity(m3) | According to users requirement 17,500L |
Host materials | SS304 SS316l stainless steel SS304 SS316l |
Thickness of shell materials(mm) | 5/6/8 |
Thickness of Seal Head materials(mm) | 5/6/8 |
Outer matte materials | No |
Corner post materials | 16Mn |
| ,, Manhole cover, Breather valve, Foot valve | Two |
Technical Specifications
| Type | ISO single compartment insulated and steam-heated tank containers | |
| Capacity | Tare weight | Max gross weight |
| 26,000ltr 6,870lbs | 4150kg 9,140lbs | 34,000kg 74,890lbs |
| 25,000ltr 6,600lbs | 3970kg 8,741lbs | 34,000kg 74,890lbs |
| 24,000ltr 6,340lbs | 3,375kg/4,200kg 7,431lbs/9,248lbs | 30,480kg/36,000kg 67,196lbs/79.295lbs |
| 21,000ltr 5,550lbs | 3,275kg/3,800kg 7,220lbs/8,380lbs | 30,480kg 67,196lbs |
| 17,500ltr 4,626lbs | 3,000kg 6,614lbs | 30,480kg 67,196lbs |
| Dimensions | Metric | Imperial |
| Length | 6,058mm | 19'10" |
| Width | 2,438mm | 8'0" |
| Height | 2,591mm | 8'6" |
| Pressures | Bar | Psi |
| Working pressure | 4.0 | 58 |
| Test pressure | 6.0 | 87 |
| Steam working pressure | 4.0 | 58 |
| Steam test pressure | 6.0 | 87 |
| Relief valve | 4.4 | 64 |
| Shelf material | Stainless steel, 304 L; 316L |
| Design Code | ASME VIII, division I where applicable |
| Temperatures | °C | °F |
| Maximum cargo temperature | 100 - 130 | 212 - 266 |
| Approvals | Lloyds Construction Certificate, UIC, CSC, TIR, IM101, UK (DOT), RID/ADR, AAR600, FRA, TC. |
| Standard fittings | |
| Manlid | 500mm (20") diameter |
| Calibration | Volumetric calibration chart adjacent to manlid - dipstick provided |
| Airline | 1.5" with stainless ball valve and 1.5" BSP cap |
| Relief valve | 2.5" Max Highflow set at 4.4 Bar - facility to fit a second |
| Bottom discharge | 3" stainless steel foot-valve with butterfly valve and blank flange/3" BSP cap |
| Top outlet | Provision for 3" butterfly valve and syphon tube |
| Gaskets and seals | SWR (sweet white rubber) and PTFE (Teflon) |
| Insulation | 50mm (2") rockwool/polyurathane with G.R.R or aluminium cladding |
| Steam heating | 7.5m2 effective surface area external steam ducts. Inlet and oulet three quarter inch BSP |
ISO 40' LNG Tank Container | Bitumen tank container | ISO 20' Tank Container |
IMO 1 | IMO 2 | IMO 5 |
T9, T10,T11,T14,T50 portable tank Standard ISO tank 10.9K-26K cement tank,
PTFE/PE Lined tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Insulation Tank for bitumen Liquid Asphalt,crude oil etc.Portable Tank Container
Tank Containers can be used to carry the following products:
Portable Tank Container
Products
ISO Tank - Ammonium Nitrate
ISO Tank - Bio-diesel
ISO Tank - Molasses
ISO Tank - Caster Oil
ISO Tank - Hexane
ISO Tank - Ethanol
ISO Tank - Ethylene
ISO Tank - Methanol
ISO Tank - IMO 1
ISO Tank - IMO 2
ISO Tank - IMO5
ISO Tank - Capacities ranging from 10,000 litres to 25,000 litres
ISO Tank - Swap Bodies with capacities ranging from 26,000 litres to 32,000 litres
ISO Tank - Bitumen tank containers 21,000 litres
ISO Tank - Off-shore tanks with capacities of 1,000 litres to 10,000 litres
IMO 1
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12,000 - 26,500 litres nominal
ISO Tank - MAWP of 4 bar
ISO Tank - For transport of:
ISO Tank - Hazardous liquids
ISO Tank - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating (optional)
ISO Tank -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 2
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12,000 - 26,500 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - For transport of:
ISO Tank - Low Hazardous liquids
ISO Tank - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating
ISO Tank - Cooling by Glycol
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 0
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12000 - 26500 litres nominal
ISO Tank - MAWP of 4 bar
ISO Tank - For transport of
ISO Tank - Wine
ISO Tank - Fruit Juices
ISO Tank - Vegetable Oils
ISO Tank - Mineral Oils
ISO Tank - Non-hazardous Oils
ISO Tank - Available in 20 foot / 6 metres
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating (optional)
ISO Tank -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 5
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 15,000 - 25,500 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - For transport of gases, including:
ISO Tank - Propane
ISO Tank - Butane
ISO Tank - Refrigerants
ISO Tank - Available in 20, 30 or 40 foot sizes
ISO Tank - Cooling by sun-shieldPlease contact us if you require further information and/or a quotation. (Contact Details above)IMO 7
ISO Tank - Shell made from 316 Stainless Steel or Carbon Steel
ISO Tank - Capacity of 20,000 - 24,000 litres nominal
ISO Tank - MAWP of 8 bar
ISO Tank - For transport of cryogenic gases, including:
ISO Tank - LNG
ISO Tank - Available in 10, 20, 30 or 40 foot sizes
ISO Tank - Cooling by glycolPlease contact us if you require further information and/or a quotation. (Contact Details above)
Bitumen Tank Containers
ISO Tank - Shell made from Carbon Steel
ISO Tank - Capacity of 20,000-25,000 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - Low Hazardous liquids
ISO Tank - Available in 20 or 30 foot sizes
ISO Tank - Also Swap-bodies 7.15m (30,000 litres) and 7.82 (35,000 litres)
ISO Tank - Heating by direct flame, hot oil or electric heatingPlease contact us if you require further information and/or a quotation. (Contact Details above)
Cement Containers
ISO Tank - Capacity of 17.5 - 25 cubic metres
ISO Tank - Pressure dischargeOffshore
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 2,000 - 10,000 litres
ISO Tank - MAWP of 5 bar
ISO Tank - For transport of gases, including:
ISO Tank - Hazardous chemicals
ISO Tank - Acid
ISO Tank - Petroleum
ISO Tank - Available in 8 x 8 x 10 sizes
ISO Tank - Heated by steam or electric (optional)
Technical Parameter of Tank Container
| Technical parameter of tank container | ||||||
| 40FT ISO | 40 feet beam tank container | |||||
| Outer dimensions(mm) | 12192×2438×2438 | |||||
| Working temperature(ºC) | 12-28 | |||||
Insulating performance | Design according to user's requirement | |||||
| Water testing pressure(MPa) | 0.6 | 0.9 | ||||
| Insulating materials and thickness(mm) | Design according to user's requirement | |||||
Heating way | Design according to user's requirement | |||||
| Capacity(m3) | 20/24/26/30/35/40/50/55 20/24/26/30/35/40/50/55 According to users requirement | |||||
Host materials | Q235B,304/316L Carbon steel Q235B,stainless steel304/316L | |||||
| Thickness of shell materials(mm) | 5/6 | |||||
| Thickness of Seal Head materials(mm) | 6/8 | |||||
Corner materials | 16Mn | |||||
| Manhole cover, Breather valve, Foot valve | Domestic made or imported | |||||
| Technical parameter of tank container | ||||||
| ISOTANK | 30 feet beam tank container | |||||
Working temperature(ºC) | 12-28(ºC) | |||||
Insulating performance | Design according to user's requirement | |||||
Water testing pressure(MPa) | 0.6/0.9(MPa) | |||||
| (mm)Insulating materials and thickness(mm) | /50mm 50mm Glass fiber and polyurethane | |||||
Heating way | Steam heating | |||||
| Capacity(m3) | 20/24/26/30/35/40/50/55(m3) 20/24/26/30/35/40/50/55 According to users requirement | |||||
Host materials | Q235B,304/316L Carbon steel Q235B,stainless steel304/316L | |||||
| Thickness of shell materials(mm) | 8(mm) | |||||
| Thickness of Seal Head materials(mm) | 8(mm) | |||||
Outer matte materials | ||||||
C orner post materials | 16Mn | |||||
| Manhole cover, Breather valve, Foot valve | Domestic made or imported | |||||
| Technical parameter of tank container | ||||||
| ISOTANK | 20 feet beam tank container | 40 feet beam tank container | ||||
Outer dimensions(mm) | 6058×2438×2438 | 12192×2438×2438 | ||||
| Working temperature(ºC) | 12-28(ºC) | |||||
Insulating performance | Design according to user's requirement | |||||
| Water testing pressure(MPa) | 0.6 | 0.9(MPa) | ||||
| (mm)Insulating materials and thickness(mm) | /50mm 50mm Glass fiber and polyurethane | |||||
Heating way | Steam heating | |||||
| Capacity(m3) | 20/24/26/30/35/40/50/55(m3) 20/24/26/30/35/40/50/55 According to users requirement | |||||
Host materials | Q235B,304/316L Carbon steel Q235B,stainless steel304/316L | |||||
| Thickness of shell materials(mm) | 5/6(mm) | |||||
| Thickness of Seal Head materials(mm) | 6/8(mm) | |||||
Outer matte materials | SUS304 Stainless steel with mirror finish | |||||
Corner post materials | 16Mn | |||||
| Manhole cover, Breather valve, Foot valve | Domestic made or imported | |||||
| Technical parameter of tank container | ||
| 30 FT | 30 feet beam tank container | |
| Working temperature(ºC) | 12-28(ºC) | |
Insulating performance | Design according to user's requirement | |
| Water testing pressure(MPa) | 0.6(MPa) | 0.9 |
| (mm)Insulating materials and thickness(mm) | /50mm 50mm Glass fiber and polyurethane | |
Heating way | Steam heating | |
| Capacity(m3) | 20/24/26/30(m3) 20/24/26/30According to users requirement | |
Host materials | Q235B,304/316L Carbon steel Q235B,stainless steel304/316L | |
Thickness of shell materials(mm) | 8(mm) | |
Thickness of Seal Head materials(mm) | 8(mm) | |
Outer matte materials | ||
Corner post materials | 16Mn | |
| ,, Manhole cover, Breather valve, Foot valve | Domestic made or imported | |
