PTO Power Take-off for ML642A Transmission SDQ50-65LGQ1

PTO Power Take-off for ML642A Transmission SDQ50-65LGQ1
Email us for Discount Price
Price: $ 550
Discount Price: $ 300
Availability:
Quantity:

  • SDQ50-65LGQ1
  • Shanghai, China
  • 10000
  • T/T , Paypal , Union
  • Carton
  • 1 Ask for discount

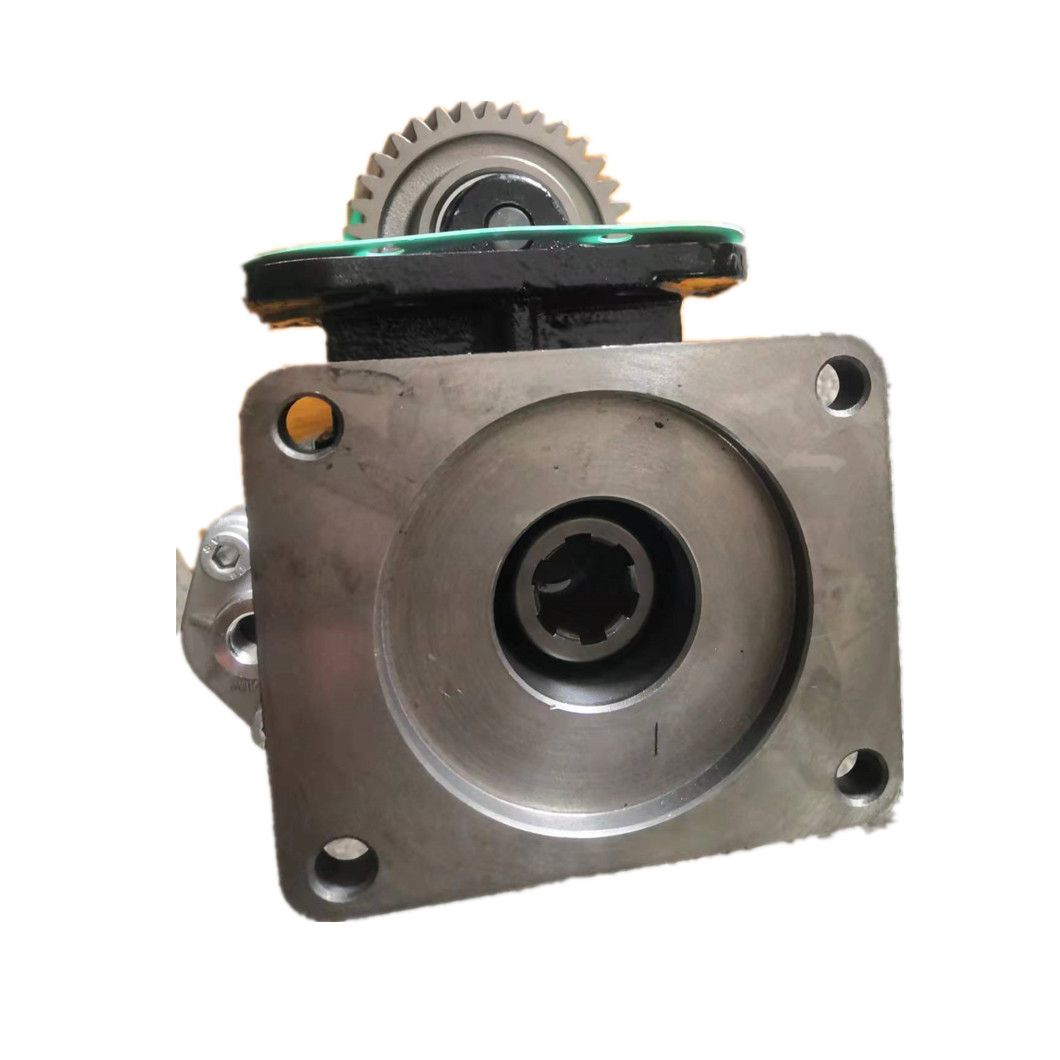

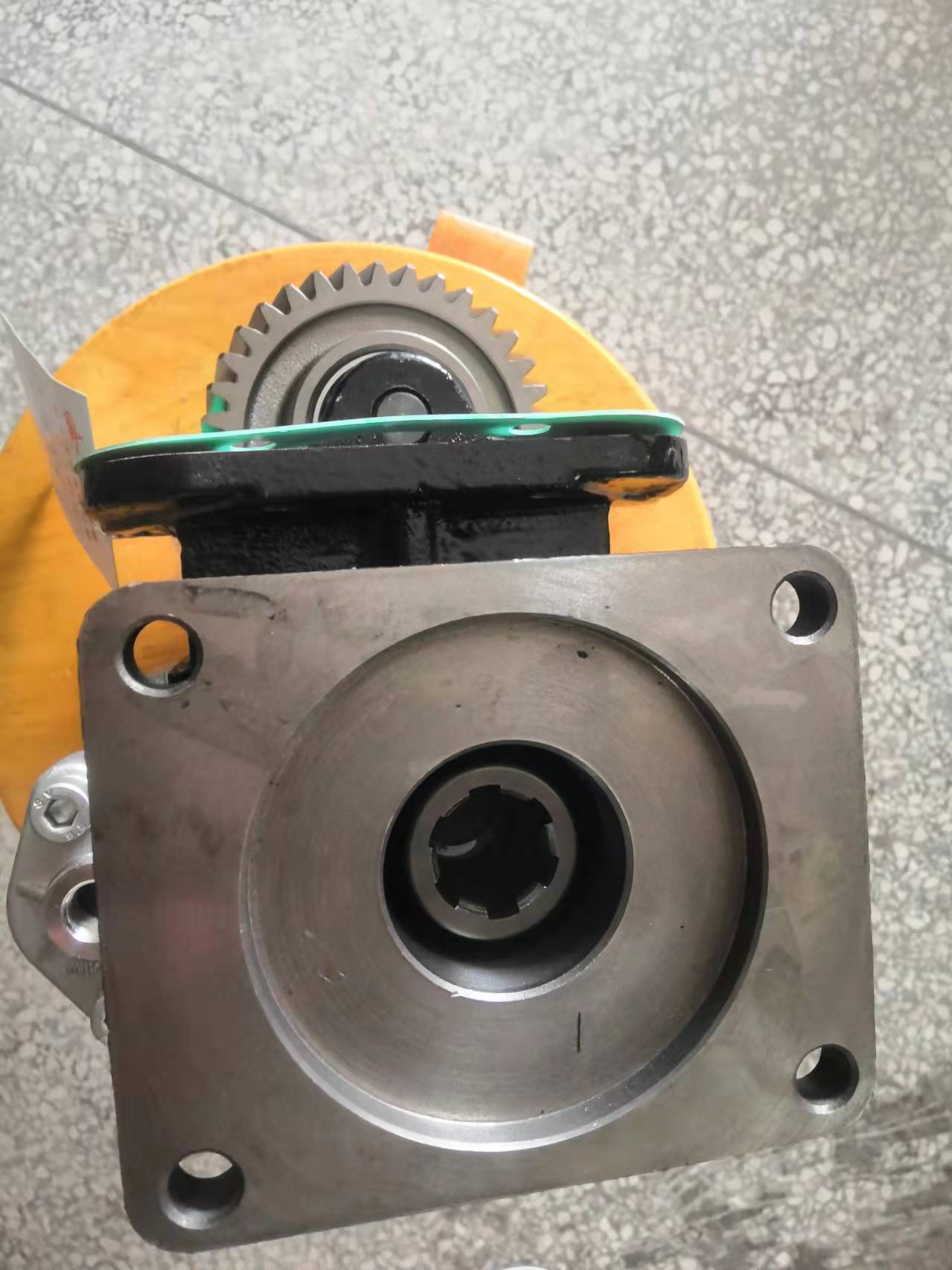

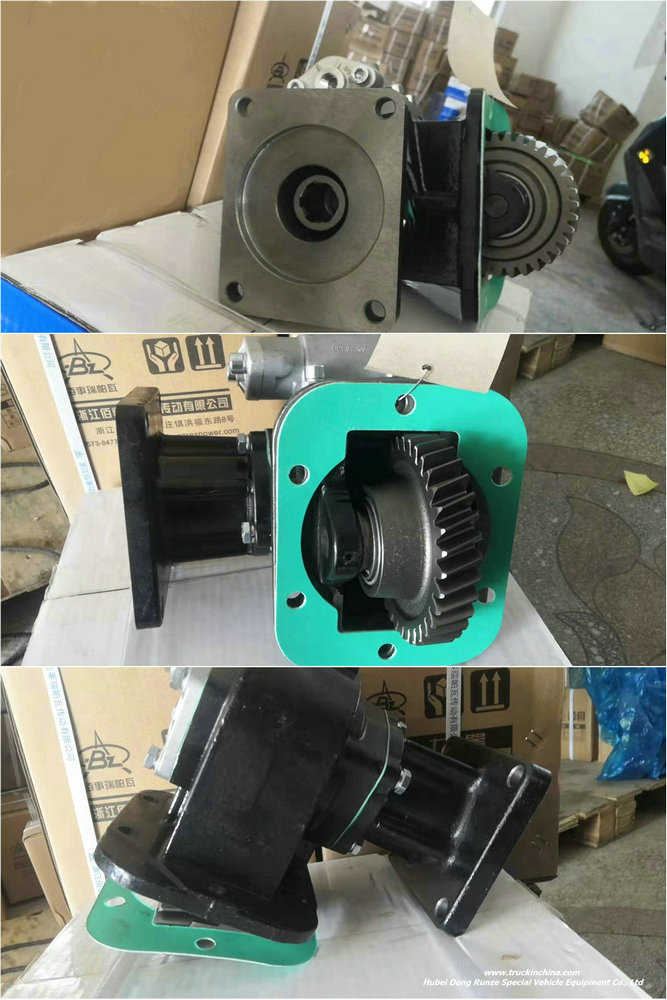

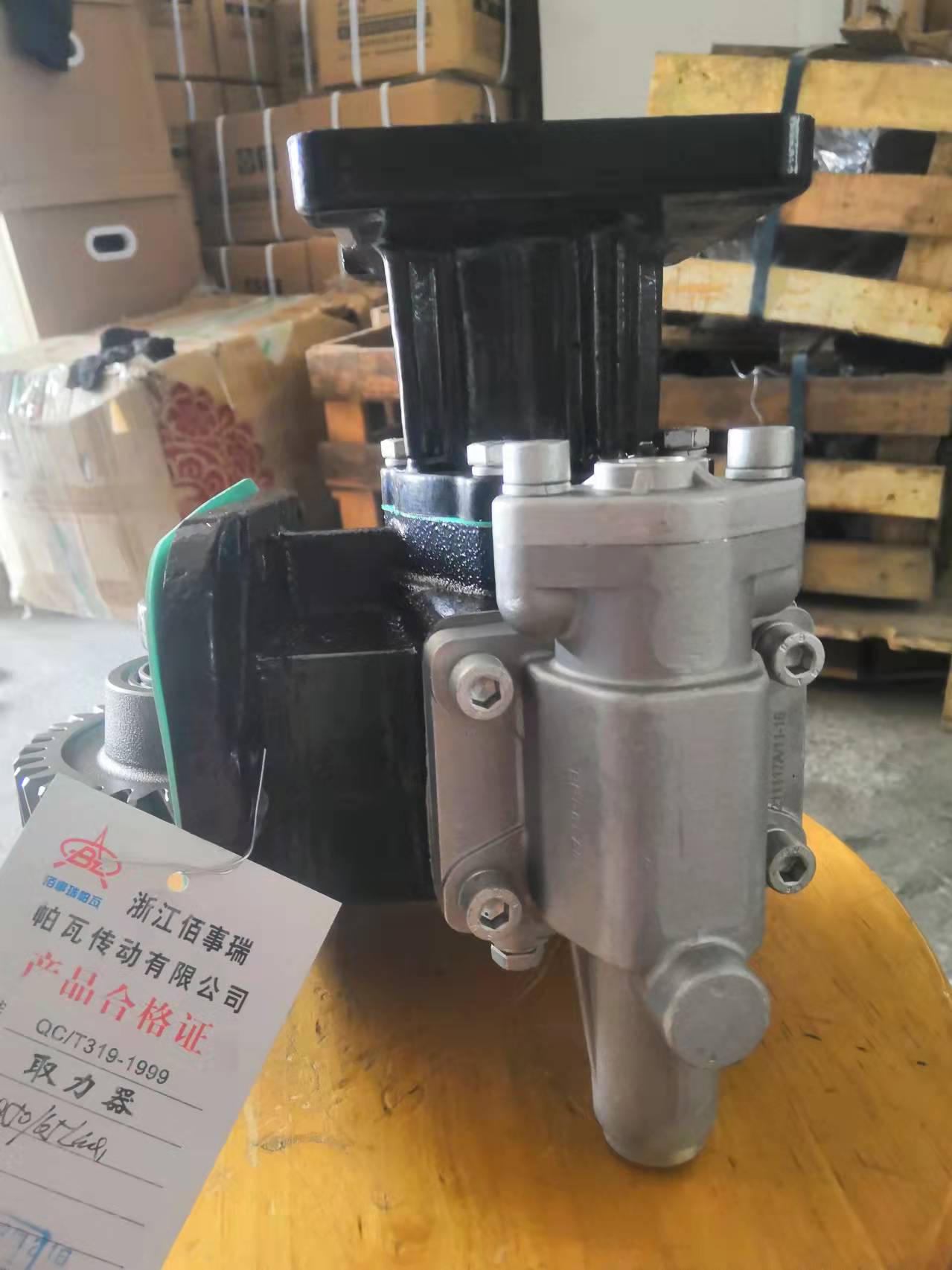

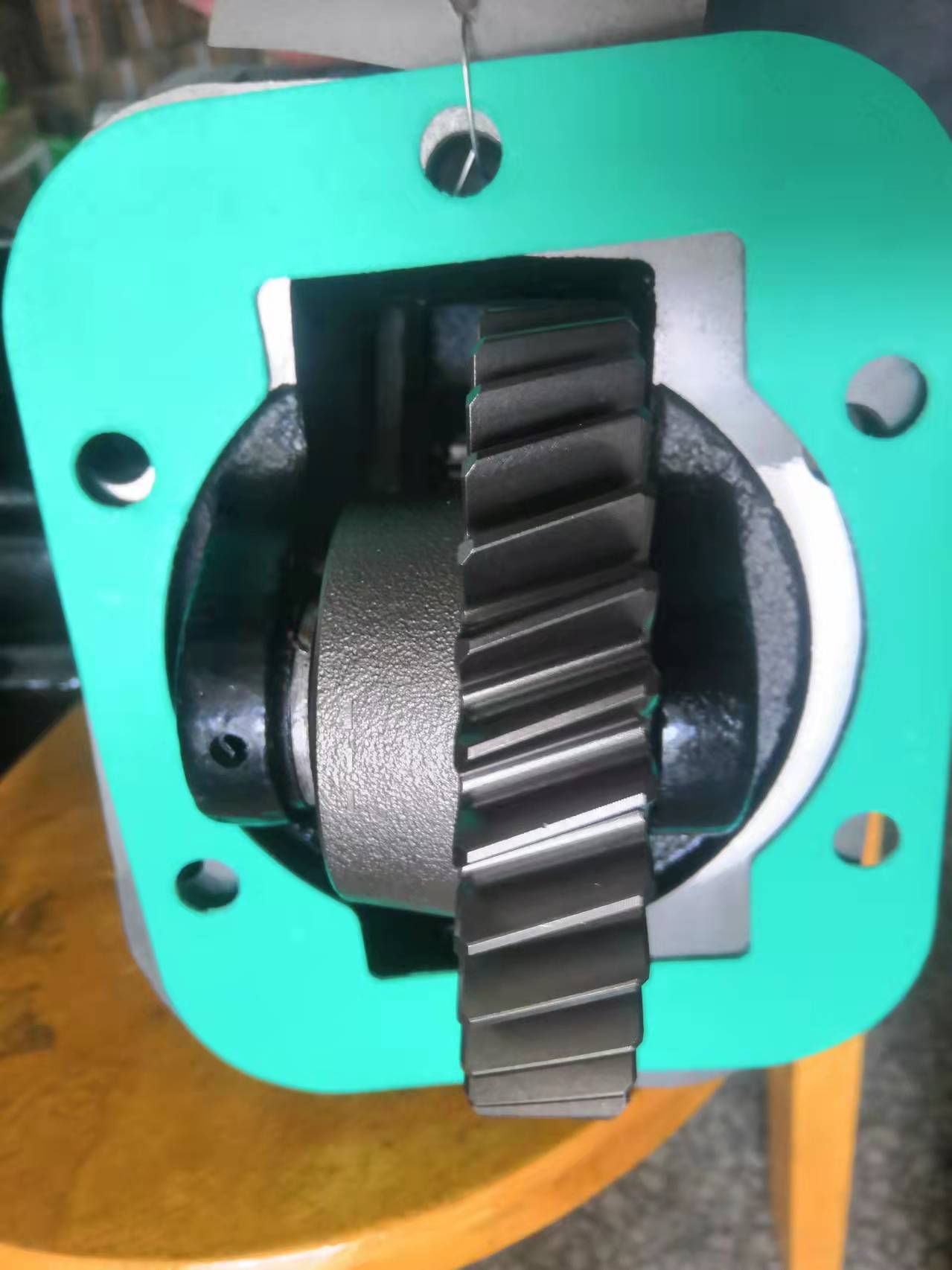

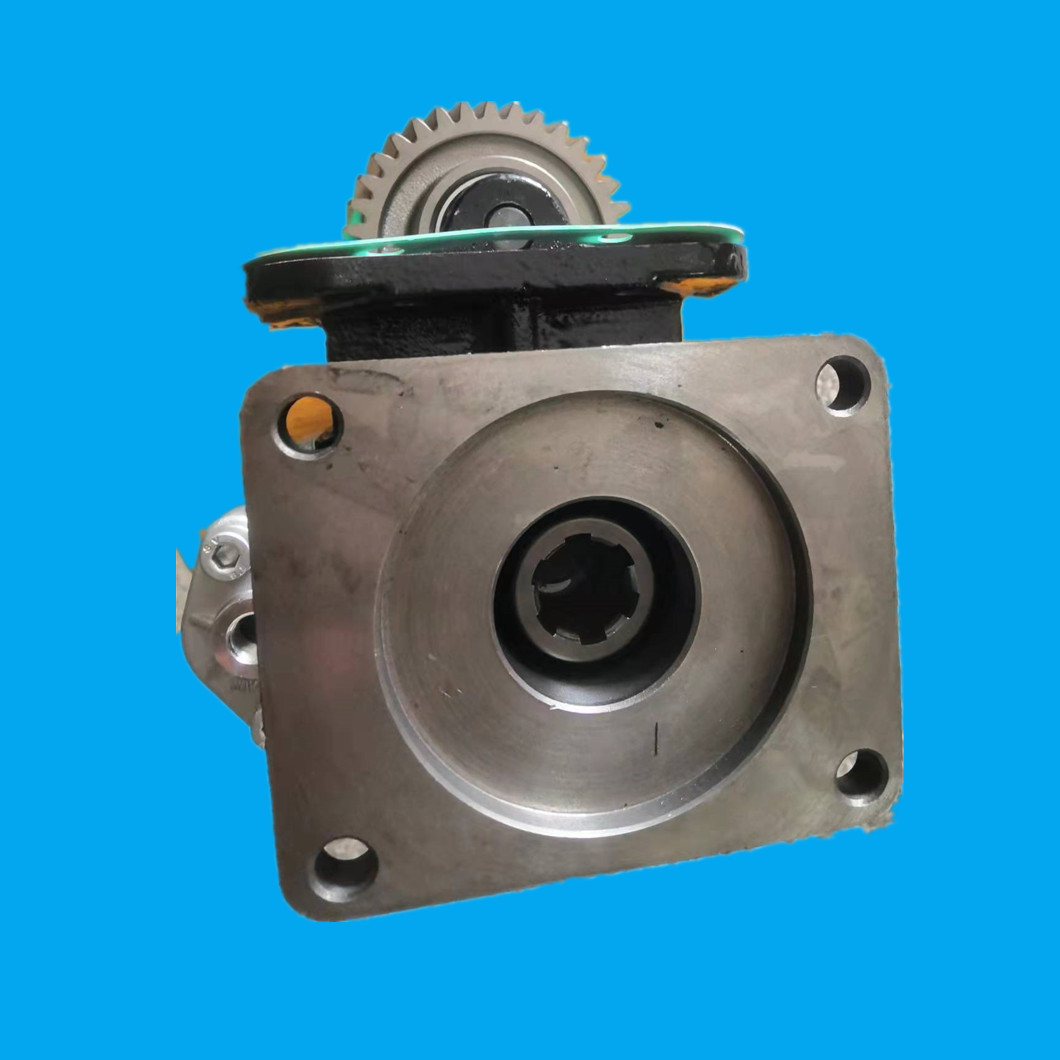

PTO Power Take-off  for ML642A Transmission SDQ50-65LGQ1

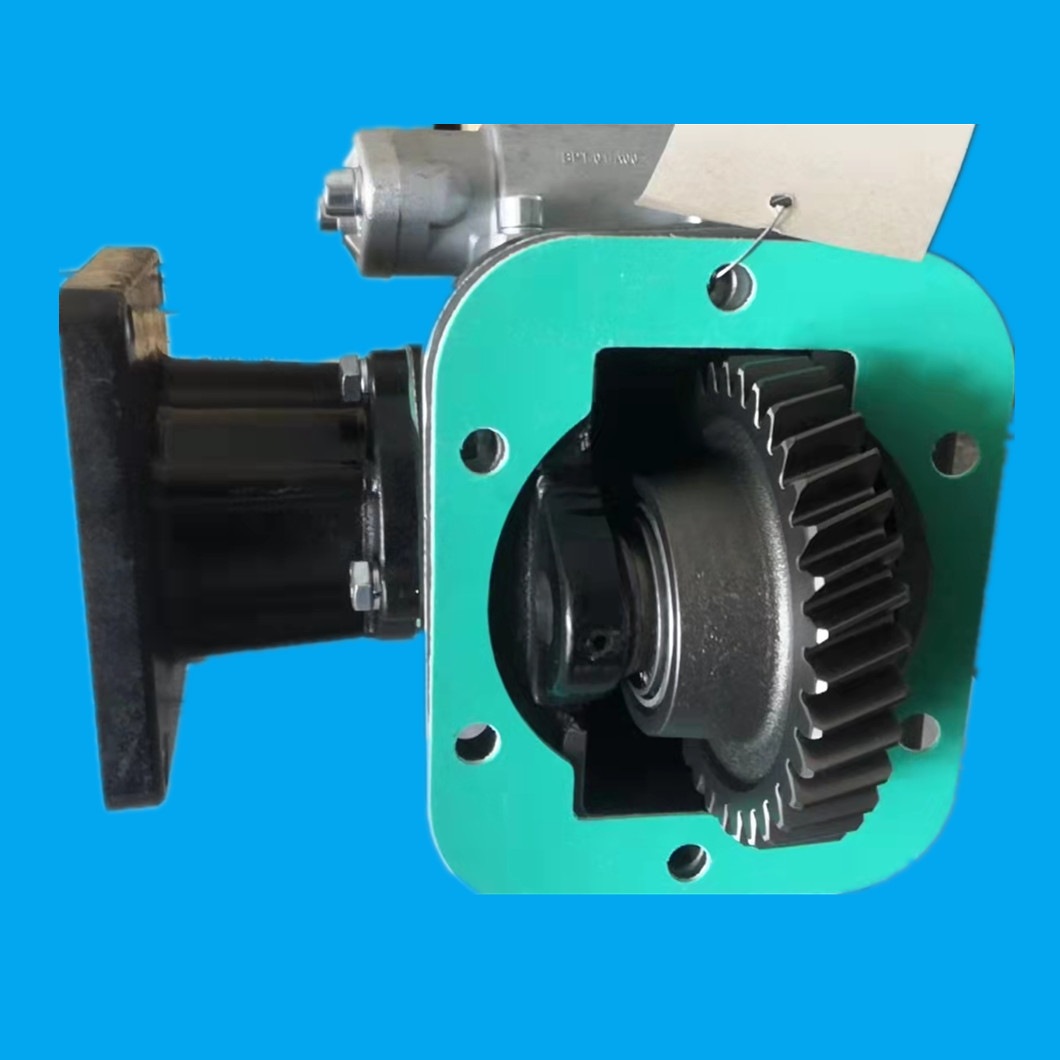

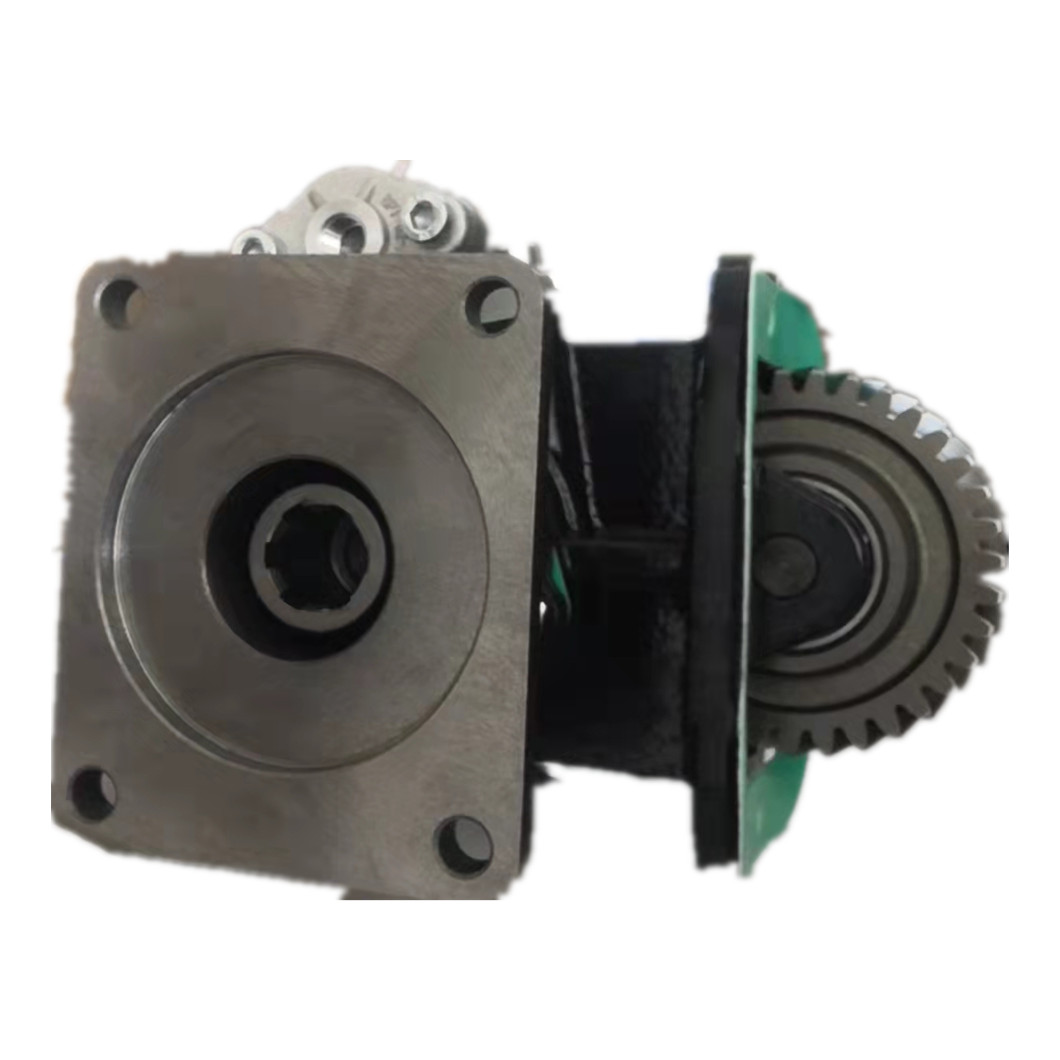

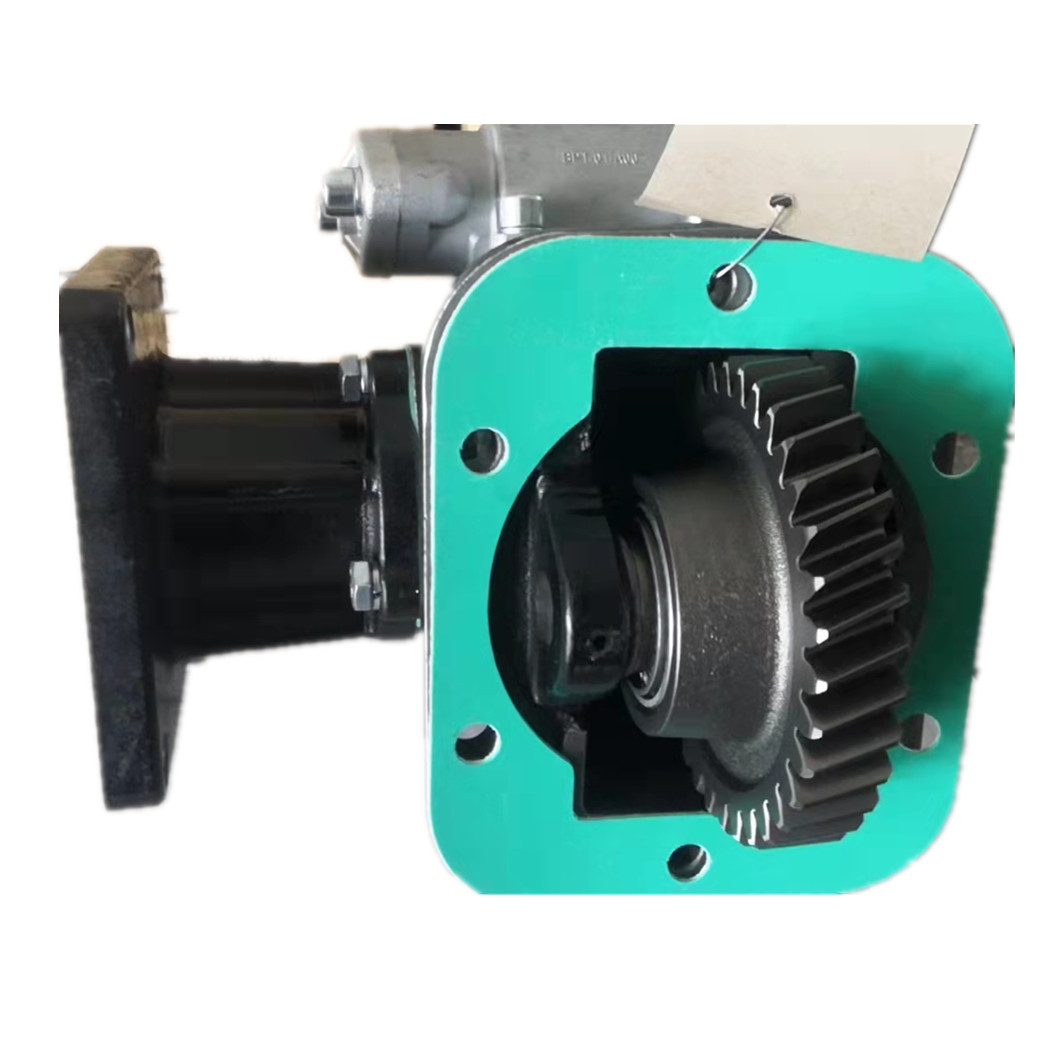

SDQ50-65 PTO ML642A-A9 67ML642A PTO SDQ50-65LGQ1 3

ML642A PTO SDQ50-65LGQ1 (4)ML642A PTO SDQ50-65LGQ1 (5)


Model list of power take-off

FAW Jiefang power takeoff

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-YQ12/68

1.24

250

CA6T-123/TS6-53

Internal spline / flange

Pneumatics

2

SDQ-YQ12/72

1.199

250

CA6T-123/TS6-53

Internal spline / flange

Pneumatics

3

SDQ-YQ13/70

1.08

300

CATS6-75A/1700940-680

Internal spline / flange

Pneumatics

4

SDQ-YQ15/75

1.006

350

CATS6-75(74)、

TZ1700940H4GCA6T-138

Internal spline / flange

Pneumatics

5

SDQ-YQ15/52

1.179

400

CA6T138

Internal spline / flange

Pneumatic (dynamic clutch)

Dongfeng series power take off (DFAC)

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-DF21/33

1.044

250

17C-0003017G0A4-08

Internal spline / flange

Pneumatics

2

SDQ-DF22/47

1.2

600

Dt0690 overdrive

Internal spline / flange

Pneumatics

3

SDQ-DF22/47-A

1.03

600

Dt0690 overdrive

Internal spline / flange

Pneumatics

4

SDQ-DF24/42

1.2

600

DF6S900

Internal spline / flange

Pneumatics

5

SDQ-DF24/42-B

1.03

450

DF6S900

Internal spline / flange

Pneumatics

6

SDQ-DF24/45

1.2

600

DF6S900

Internal spline / flange

Pneumatics

7

SDQ-DF24/45-B

1.03

450

DF6S900

Internal spline / flange

Pneumatics

8

SDQ-DF24/65

1.06

400

DF6S-750

Internal spline / flange

Pneumatics

9

SDQ-DF24/64

1.06

400

DF6S750/DF6S650

Internal spline / flange

Pneumatics



10



SDQ-DF24/69



1.211



350

17K1/17KT6K-00030

17K17-00030/17G1A7-15

17K23-00030/17G0A7-15

Internal spline / flange

Pneumatics



11



SDQ-DF25/63



1.23



350

17G1A7-41/17F40(44/62)

/17g0a7-21 (41) / jiangft 650H

Internal spline / flange

Pneumatics



12



SDQ-DF26/31



1.45



350

DC6J70T/17G0A3-08(09/15/

25/96/Zqc6t-75 / 750

Internal spline / flange

Pneumatics





13





SDQ-DF27/21





1.845





350

DC85JTZ/17G0Z56-010/17G 0A3-33(35/36)/17G0010-N9

002/14G0A3-3234

/DC6J85TZ





Internal spline / flange





Pneumatics



14



SDQ-DF27/53



1.35



350

17G0A9-Z67D/DC7J100TB/1

7G0A9-45(-24-00030)

Internal spline / flange

Pneumatics

15

SDQ-DF27/55

1.216

300

17g0a3-32 (33 / 34 / 35 / 36) straight

Connecting gear / dc6j85tz (direct gear)

Internal spline / flange

Pneumatics

16

SDQ-DF27/65

1.07

350

DC7J100TC17G0A9-Z66D

Internal spline / flange

Pneumatics

17

SDQ-DF27/66

1.26

350

Dc6j85tz (overdrive)

/17G0A3-54/1700010-A9000

Internal spline / flange

Pneumatics

18

SDQ-DF28/55

1.3

400

17GOA3-38/17N29-00030

Internal spline / flange

Pneumatics

19

SDQ-DF28/65

1.55

350

Dc7j120tb (overdrive)

/01-00030

Internal spline / flange

Pneumatics



20



SDQ-DF28/72



1.84



350

Dc7j120tc (direct gear)

/01-00030

Internal spline / flange

Pneumatics

Jac Xingrui series power take off (JAC)

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-XR50/35

1

300

LC6T55 WLY6TS55

Internal spline / flange

Pneumatics

2

SDQ-XR50/45

1.1

280

LC6T46/LC6T450

Internal spline / flange

Pneumatics

3

SDQ-XR50/60

1.1435

300

LC6T540

Internal spline / flange

Pneumatics

4

SDQ-XR50/63

1.11

300

LC6T540/15CO7027

Internal spline / flange

Pneumatics

5

SDQ-XR50/65

1.6433

250

ML642A-A9

Internal spline / flange

Pneumatics

6

SDQ-XR50/67

1.1541

250

ML532A

Internal spline / flange

Pneumatic / manual

7

SDQ-XR50/69

1.1

280

LC6T46/LC6T450

Internal spline / flange

Pneumatics

8

SDQ-XR50/71

1.17

200

LC5T97/LC5T30

Internal spline / flange

Pneumatics

9

SDQ-XR50/74

1.03

200

LC5T35/LC5T40

Internal spline / flange

Pneumatics

10

SDQ-XR23/55

1.12

300

LC6T450M1

Internal spline / flange

Pneumatic / manual

11

SDQ-XR37/77

1.55

200

ML532C

Internal spline / flange

Pneumatic / manual

Qingling Isuzu series power take off (Isuzu)

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-WS51/62

1.3

150

Msb-5m / starray lc5t88

Internal spline / flange

Pneumatics

2

SDQ-WS38/63

1

150

Msb-5m / starray lc5t88

Internal spline / flange

Pneumatic / manual

3

SDQ-WS32/64

1.095

300

MYY-6S

Internal spline / flange

Pneumatic / manual



4



SDQ-WS35/74



1.63



180

MSB-5M/MSB-5S/MSB-5SM/LC5T88



LC5T25/LC5T255M3/LC5T28



Internal spline / flange

Pneumatic / manual vacuum

5

SDQ-WS52/77

1.18

250

MLD-6Q/MLD6A

Internal spline / flange

Pneumatics

JMC series power take off

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-GT32/65

1.26

250

6MT1420/DN3-70030-E0/KN3

Internal spline / flange

Pneumatic / manual

2

SDQ-GT51/67

1.2

200

JC5T28/5T26.5/MTI280JD

Internal spline / flange

Pneumatic / manual

3

SDQ-GT32/65-A

1.315

250

6MT1420/DN3-70030-E0/KN3

Internal spline / flange

Pneumatic / manual

4

SDQ-GT32/65-B

1.09

250

6MT1420/DN3-70030-E0/KN3

Internal spline / flange

Pneumatic / manual

5

SDQ-GT32/65-C

1.26

250

6MT1420/DN3-70030-E0/KN3

Internal spline / flange

Pneumatic / manual

ZF series power take off

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-ZF51/38

1.077

300

ZF6S500/ZF6S600/ZF6S558

ZF6S508/ZF6S458

Internal spline / flange

Pneumatics

2

SDQ-ZF51/44

1

250

ZF5S400

Internal spline / flange

Manual

3

SDQ-ZF48/39

1.063

250

ZF5S408/ZF5S328

Internal spline / flange

Pneumatics

4

SDQ-ZF211/65

0.772

650

TraXon12

Internal spline / flange

Pneumatics

Fast power take off

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-FS212/70

0.94

600

12JSD160TA

Internal spline / flange

Pneumatics

2

SDQ-FS212/70-A

0.78

600

12JSD160TA

Internal spline / flange

Pneumatics

3

SDQ-FS19/31

QD40A

1.09

400

8JS75

Internal spline

Pneumatics

4

SDQ-FS24/37

QCZ70A

0.93

600

6J80T

Internal spline / flange

Pneumatics

5

SDQ-FS211/60

1.1

350

6DS40TB-D/6DS60TB-D

6DS60TA-D

Internal spline / flange

Pneumatics



6



SDQ-FS211/70



0.94



600

Fuller / fast / rt-11509c

8JS100S/17G0A9-22

Internal spline / flange

Pneumatics



7



SDQ-FS211/70-A



0.78



600

Fuller / fast / rt-11509c

8JS100S/17G0A9-22

Internal spline / flange

Pneumatics

8

SDQ-FS34/29

QD40J




400

8JS75

8js75tc



Internal spline / flange

Pneumatics

WanLiYang series power take off (wly)

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-WL24/37

1.176

250

10H30

Internal spline / flange

Pneumatics

2

SDQ-WL24/38

1.077

300

6G55

Internal spline / flange

Pneumatics

3

SDQ-WL24/40

1.333

300

6G40A

Internal spline / flange

Pneumatics

4

SDQ-WL31/39

1.1

300

6G40A

Internal spline / flange

Pneumatics

5

SDQ-WL24/43

1.087

300

5G40

Internal spline / flange

Pneumatic / manual / vacuum

6

SDQ-WL24/44

1.043

300

6G40B

Internal spline / flange

Pneumatics

7

SDQ-WL24/59

1.094

300

6G120/6G70

Internal spline / flange

Pneumatics

8

SDQ-WL24/60

1.3

300

6TS40

Internal spline / flange

Pneumatics

9

SDQ-WL24/63

1.39

180

5TS32

Internal spline / flange

Pneumatic / manual

10

SDQ-WL 24/63-B

1.39

180

5G32A

Internal spline / flange

Pneumatic / manual

11

SDQ-WL 24/66

1.359

180

5TS32-C

Internal spline / flange

Pneumatic / manual

12

SDQ-WL 24/66-B

1.146

180

5G32B/5G32C

Internal spline / flange

Pneumatic / manual

13

SDQ-WL 24/67

SDQ-WL 25/67

1.147

300

6T120/6S46/6S51

Internal spline / flange

Pneumatics

14

SDQ-WL 24/70

1.15

200

6S46B (2015-4-25)

Internal spline / flange

Pneumatic / manual

15

SDQ-WL 24/71

SDQ-WL 25/71

1.11

300

6S51B/6S46B

Internal spline / flange

Pneumatic / manual

16

SDQ-WL 24/72

1.133

300

6TS55E/6TS60

Internal spline / flange

Pneumatic / manual

17

SDQ-WL23/63

1.35

350

10H46

Internal spline / flange

Pneumatics

18

SDQ-WL23/71

1.15

400

7TS60

Internal spline / flange

Pneumatics

19

SDQ-WL24/75

1

400

7TS60B

Internal spline / flange

Pneumatics

20

SDQ-WL25/70

1.244

400

7TS60C

Internal flange / spline

Pneumatics

21

SDQ-WL24/73

1.07

400

7TS60D

Internal spline / flange

Pneumatics

22

SDQ-WL25/33

1.228

350

10h46 (right)

Internal spline / flange

Pneumatics

23

SDQ-WL27/70

1.08

150

5TS40

Internal spline / flange

Pneumatics

24

SDQ-WL31/46

1.2

180

5TS40

Internal spline / flange

Pneumatics

25

SDQ-WL211/100

1

1000

9G90

Internal spline / flange

Pneumatics

Heavy duty  Sinotruck power take off

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-ZD27/61

1.1

600

DC7J120T

Flange flange

Pneumatic (dynamic clutch)

2

HW50

0.739

500

HW14710/HW18710

HW15710/HW19710

Internal flange / spline

Pneumatics

3

HW70

0.793

700

HW18709/HW18710

Internal spline / flange


4

HW80Q-F301


800

HW90510C1

Flange flange

Pneumatics

5

HW140Q-F301

0.84

1400

HW12706

Flange flange

Pneumatics

6

HW140Q-F302

0.84

1400

HW12706

Flange flange

Pneumatics

7

HW140Q-F303

0.84

1400

HW12706

Flange flange

Pneumatics

8

HW140Q-F305

0.84

1400

HW12706

Flange flange

Pneumatics

9

HW60Q-F300

0.686

600

HW12706

Flange flange

Pneumatics

Other series of power take-off

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-HL211/65

0.772

650

Soda gearbox 12sob1500

Internal spline / flange

Pneumatics

2

SDQ-HL211/100

1

1000

Soda gearbox 12sob1500

Internal spline / flange

Pneumatics

3

SDQ-NQ42/26

1.15

150

NAC 2830.5

Internal spline / flange

Pneumatics

4

SDQ-NQ42/27

1.15

150

NAC 2830.5

Internal spline / flange

Pneumatics

5

SDQ-SQ42/77

1.13

300

SAIC sc50m6d

Internal spline / flange

Pneumatics


New energy series power take off

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-LK31/38

1.043

300

Suzhou green control 6s100

Internal spline / flange

Pneumatics

2

SDQ-LK24/36

1.136

300

Suzhou green control j6s95

Internal spline / flange

Pneumatics

3

SDQ-LK20/56

1.148

300

Suzhou green control j2s130

Internal spline / flange

Pneumatics

Export series power take off

Serial number

Model of power take-off

speed ratio

Output torque

(N.m)

Matching gearbox

Output mode

control mode

1

Pto1000 series

0.6- 1.88

300

EATON FS 3005/4005

EATON 6305

Internal flange / spline

Pneumatics







2







Pto2000 series







0.6- 1.88







350

Eaton fuller Eaton rt-11109a / rt-6609a rt-7608a

Allison Ellison

M-5600/M-6600/S-5600 S-6600







Internal spline / flange







Pneumatics

3

3131BZ

0.84-2.9

4

450

Allison Ellison

MD-3000/MD-4000

Internal spline / flange

Hydraulic (dynamic clutch)



4

3252BZ

0.81-1.8

5



300

Allison Ellison

MD-3000/MD-4000

Internal spline / flange

Hydraulic (dynamic clutch)



5

3151BZ



0.84-2



540

Allison Ellison

MD-3000/MD-4000

Internal spline / flange

Constant mesh



6



3300



0.74-1



390

Allison Ellison

MD-1000/MD-2000

Internal spline / flange

Hydraulic (dynamic clutch)

7

PTO852

1.13

650

Allison

Internal spline / flange

Hydraulic (dynamic clutch)





8





103K_03BZ





0.77-0.55





650

ZF ZF

S5-50/90

S6-65/66/70/75/80/90 6S-800/1000/1005/1200





Flange flange





Pneumatics





9





1010K_03 (BZ)





0.76





420

ZF ZF

S5-50/90

S6-65/66/70/75/80/90 6S-800/1000/1005/1200





Flange flange





Pneumatics

ML642A PTO SDQ50-65LGQ1_1




JAC Truck PTO Model Xingrui series power take off (JAC)

Serial number

Model of power take-off

Speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-XR50/35

1

300

LC6T35,LC6T55 ,WLY6TS55

Internal spline / flange

Pneumatic control

2

SDQ-XR50/45

1.1

280

LC6T46/LC6T450

Internal spline / flange

Pneumatic control

3

SDQ-XR50/60

1.1435

300

LC6T540

Internal spline / flange

Pneumatic control

4

SDQ-XR50/63

1.11

300

LC6T540/15CO7027

Internal spline / flange

Pneumatic control

5

SDQ-XR50/65

1.6433

250

ML642A-A9

Internal spline / flange

Pneumatic control

6

SDQ-XR50/67

1.1541

250

ML532A

Internal spline / flange

Pneumatic / manual

7

SDQ-XR50/69

1.1

280

LC6T46/LC6T450

Internal spline / flange

Pneumatic control

8

SDQ-XR50/71

1.17

200

LC5T97/LC5T30

Internal spline / flange

Pneumatic control

9

SDQ-XR50/74

1.03

200

LC5T35/LC5T40

Internal spline / flange

Pneumatic control

10

SDQ-XR23/55

1.12

300

LC6T450M1

Internal spline / flange

Pneumatic / manual

11

SDQ-XR37/77

1.55

200

ML532C

Internal spline / flange

Pneumatic / manual

JAC Product line

JAC Shuailing H-series wide body 4150

JAC Shuai Ling H-series

3815

JAC Shuailing K-series

2800 / 3360 / 3815

JAC Chassis Model

HFC1100P71K1C6V

HFC1081P71K1C6V

HFC1070P73K2C3ZV

size
parameter

Length (mm)

6828

6835

5280、6295、5840

Width (mm)

2207

2135

2205

Height (mm)

2374

2279

2350

Wheelbase (mm)

4150

3815

2800、3360、3815

Front suspension (mm)

1178

1110

1110

Rear suspension (mm)

1500

1910

1370

Front track width (mm)

1686

1680

1440

Rear track width (mm)

1728

1525

1425

Engine

model

ISF3.8s5154

ISF3.8s5154

WP3Q130E50

JND408D143-52

WP3Q130E50

HFC4DE1-1D

discharge

Euro 5

Euro 5

Euro 5

Euro 5

Euro 5

Euro 5

Power (kw)

115

115

96

105

96

115

Torque (N.m)

500

500

350

450

350

355

Transmission model

LC6T55

LC6T55

LC6T450M1

LC6T540

LC6T450M1

ML642A

PTO
Power

Take-off

PTO Model

SDQ-XR50/35

SDQ-XR50/35

SDQ50/45LGQ1

SDQ-XR50/63

SDQ50/45LGQ1

SDQ50/65LGQ1-B

speed ratio

1

1

1.1

1.1

1.1

1.095;1.64

Torque (kg)

(N.m)

30

300

30

300

28

280

30

300

28

300

25

250

Manipulation mode

Pneumatic control

Pneumatic control

Pneumatic control

Pneumatic control

Pneumatic control

Pneumatic control

Maximum speed (km / h)

100

100

100

98

100

100

Maximum climbing gradient

30%

30%

30%

30%

30%

30%

Maximum total mass (kg)

10450

8280

7350

Front / rear axle (T)

3.5/7

2.5/6

2.5/4.8

Leaf spring number (front / back)

8/9+10

3/4+3,9/12

7/4+5

Tyre

7.50R20 14PR、7.50-20 14PR 、8.25R20 14PR、8.25-20 16PR

7.50R16 14PR、7.50-16 14PR、8.25R16 14PR

7.00R16 14PR、7.00-16 14PR

Braking (brake form)

Drum brake

Drum brake

Drum brake

PTO and remote throttle

Local PTO, remote PTO interface

Local PTO, remote PTO interface

Local PTO, remote PTO interface

Frame section (mm)

230×75×6

190×65×6

170×65×5

Other options

With exhaust auxiliary brake; Optional air conditioning, standard configuration of dynamic.

JAC Product line

JAC Shuailing W-series 16t kaweista

JAC Shuailing W-series 12t kaweista

JAC Chassis Model

HFC1160P70KQD6ZV

HFC1121P70K1E1V

size
parameter

Length (mm)

7790、7990,8290

7090、8390

Width (mm)

2468

2468

Height (mm)

2640

2640

Wheelbase (mm)

4500/4700/5000

3800/5300

Front suspension (mm)

1290

1290

Rear suspension (mm)

2000、2300

2000、2300

Front track width (mm)

1910

1830

Rear track width (mm)

1860

1800

Engine

model

ISD190 50

ISD210 50

ISD160 50

JND412D190-52

discharge

Euro 5

Euro 5

Euro 5

Power (kw)

140

155

118

140

Torque (N.m)

800

800

600

740

Transmission model

DF6S900

WLY6G70

8JS75C


Power takeoff

PTO model

4205010-90650

4202010LG11Z

QD40A

speed ratio

1.2

1.277

0.93

Torque (kg)

45

27

40

Manipulation mode

Pneumatic control

Pneumatic control

Pneumatic control

Maximum speed (km / h)

97

114

95

95

Maximum climbing gradient

30%

34%

30%

30%

Maximum total mass (kg)

16000

12490

Front / rear axle (T)

6/10

3.5/9

Leaf spring number (front / back)

10/9+7

9/9+7

Tyre

10.00R20 16PR

9.00R20 16PR

Braking (brake form)

Front plate and back drum

Front drum and back drum

PTO and remote throttle

Local PTO, remote throttle

Local PTO, remote throttle

Frame section (mm)

245×75×(7+4)

245×75×(7+4)

Other options

Equipped with ABS, vehicle borne satellite positioning and navigation device, vehicle recorder;With exhaust auxiliary brake; It is equipped with rotary motor, air conditioner, electric door and window, central lock.

Equipped with ABS, vehicle borne satellite positioning and navigation device;With exhaust auxiliary brake; Power steering, air conditioning, can instrument, airbag seat and multifunctional steering wheel are equipped as standard;
Standard Jianghuai Navistar engine, 190ps, 740N m. It can meet the maximum load demand of 16t


Previous:
Next:

SUCCESS CASES

More >>

Contact Us

EMAIL:Sale@tictrucks.com,
TEL: +86-152-7135 7675 (Mr. King) ; TEL: +86-135-9782 8741 (Mr. Xi);
 WeiChat: king253725877 ; Keanxisong
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300  .......

Hubei Dong Runze Special Vehicle Equipment Co., Ltd. All rights reserved. 2009-2024 XML Site Map webmail   Made-in-China.com    https://tictrucks.en.made-in-china.com/
 www.truckinchina.com ,www.tictrucks.com
