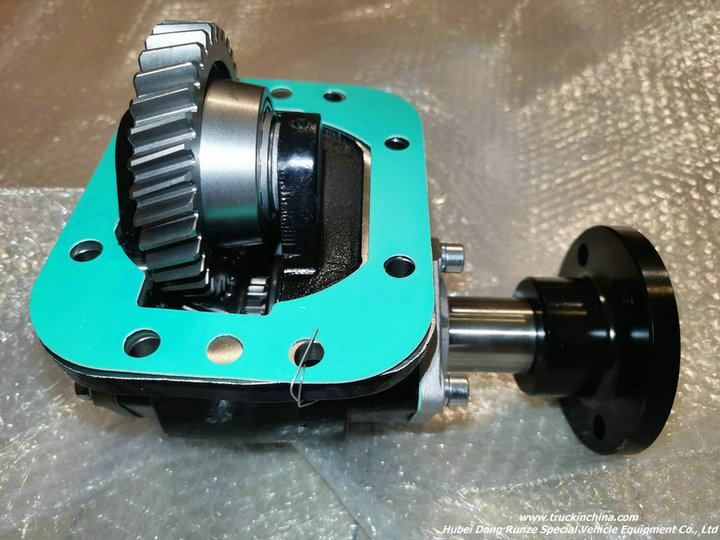

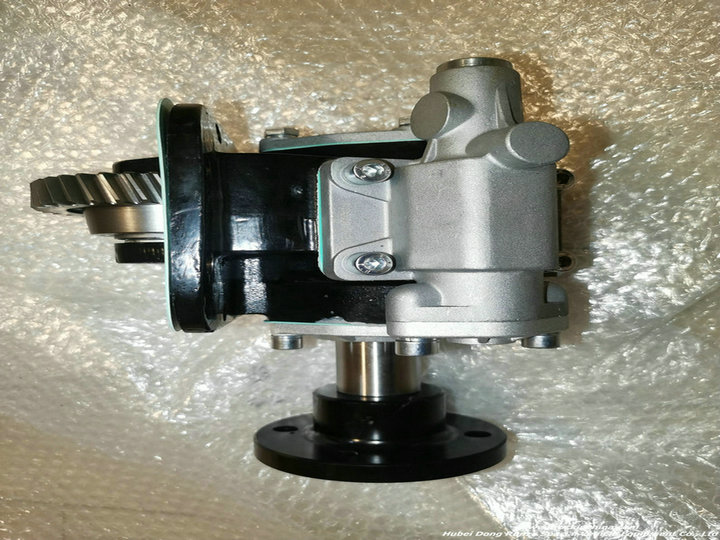

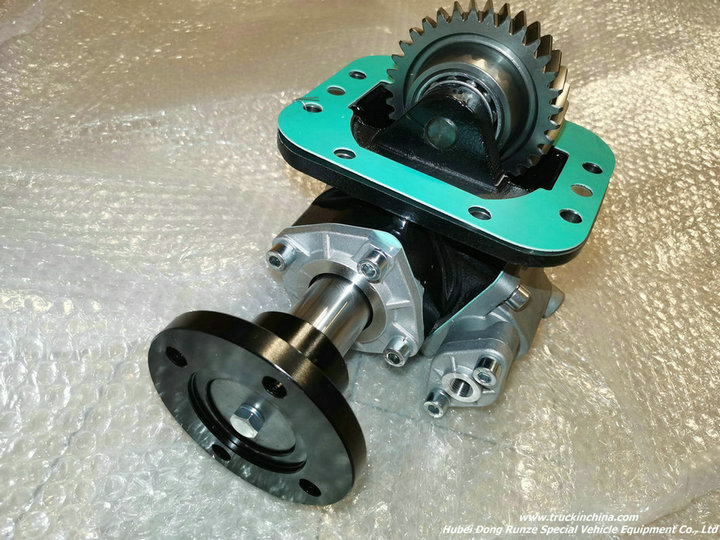

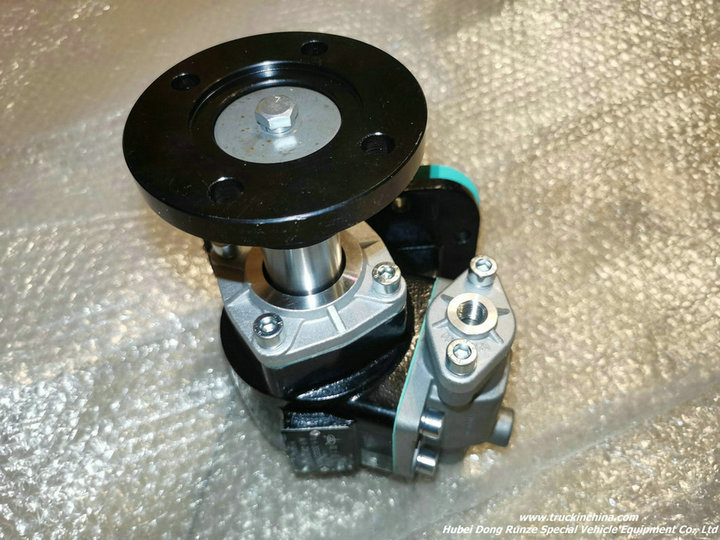

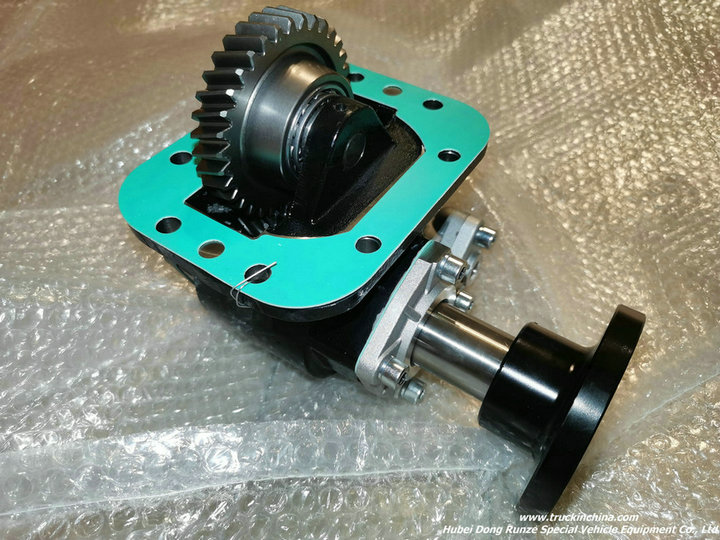

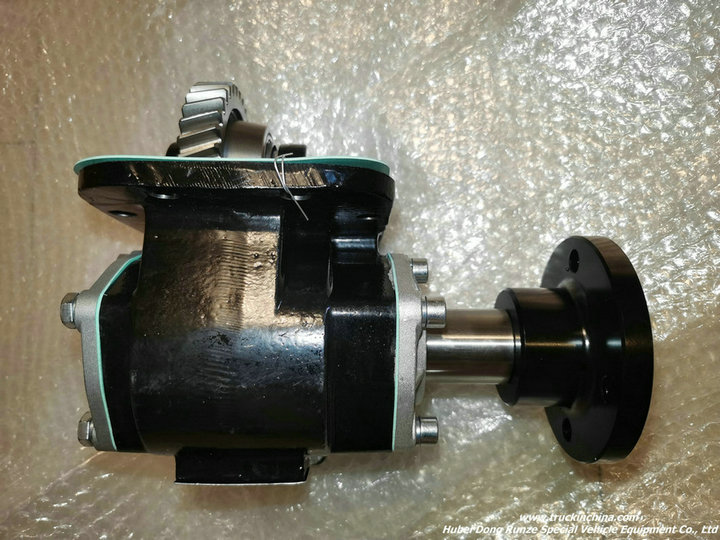

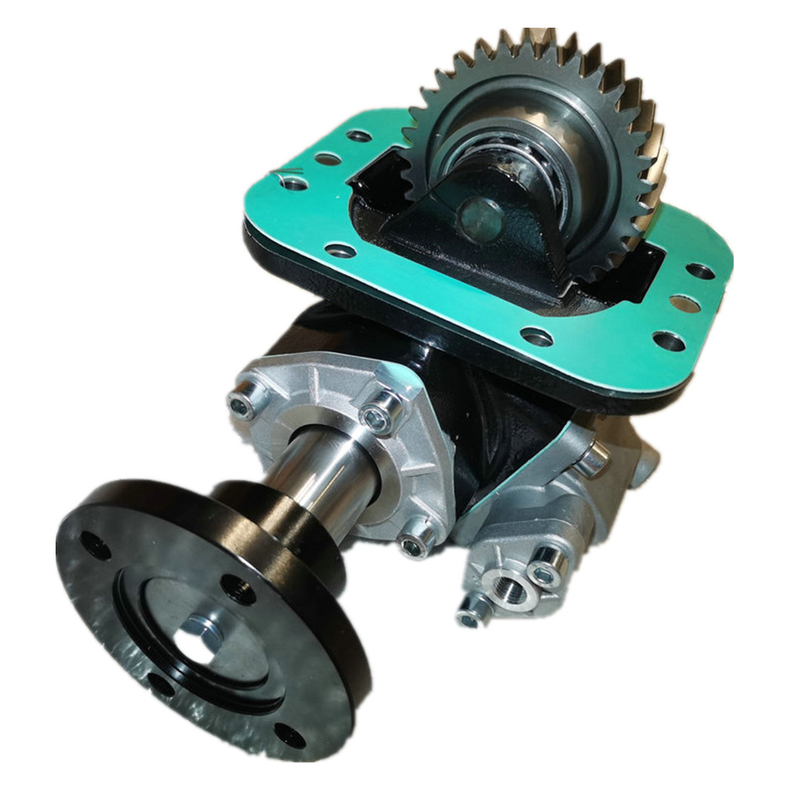

PTO Pneumatical Power Take-off SDQ24-63PQ1-B WLY 5G32A -0.794-5.595 ISO Flange
Opiotnal Power Output Spline
Model list of power take-off
FAW Jiefang power takeoff
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-YQ12/68 | 1.24 | 250 | CA6T-123/TS6-53 | Internal spline / flange | Pneumatics |
2 | SDQ-YQ12/72 | 1.199 | 250 | CA6T-123/TS6-53 | Internal spline / flange | Pneumatics |
3 | SDQ-YQ13/70 | 1.08 | 300 | CATS6-75A/1700940-680 | Internal spline / flange | Pneumatics |
4 | SDQ-YQ15/75 | 1.006 | 350 | CATS6-75(74)、 TZ1700940H4G、CA6T-138 | Internal spline / flange | Pneumatics |
5 | SDQ-YQ15/52 | 1.179 | 400 | CA6T138 | Internal spline / flange | Pneumatic (dynamic clutch) |
Dongfeng series power take off (DFAC)
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-DF21/33 | 1.044 | 250 | 17C-00030、17G0A4-08、 | Internal spline / flange | Pneumatics |
2 | SDQ-DF22/47 | 1.2 | 600 | Dt0690 overdrive | Internal spline / flange | Pneumatics |
3 | SDQ-DF22/47-A | 1.03 | 600 | Dt0690 overdrive | Internal spline / flange | Pneumatics |
4 | SDQ-DF24/42 | 1.2 | 600 | DF6S900 | Internal spline / flange | Pneumatics |
5 | SDQ-DF24/42-B | 1.03 | 450 | DF6S900 | Internal spline / flange | Pneumatics |
6 | SDQ-DF24/45 | 1.2 | 600 | DF6S900 | Internal spline / flange | Pneumatics |
7 | SDQ-DF24/45-B | 1.03 | 450 | DF6S900 | Internal spline / flange | Pneumatics |
8 | SDQ-DF24/65 | 1.06 | 400 | DF6S-750 | Internal spline / flange | Pneumatics |
9 | SDQ-DF24/64 | 1.06 | 400 | DF6S750/DF6S650 | Internal spline / flange | Pneumatics |
10 |
SDQ-DF24/69 |
1.211 |
350 | 17K1/17KT6K-00030、 17K17-00030/17G1A7-15、 17K23-00030/17G0A7-15 | Internal spline / flange | Pneumatics |
11 |
SDQ-DF25/63 |
1.23 |
350 | 17G1A7-41/17F40(44/62) /17g0a7-21 (41) / jiangft 650H | Internal spline / flange | Pneumatics |
12 |
SDQ-DF26/31 |
1.45 |
350 | DC6J70T/17G0A3-08(09/15/ 25/96)/Zqc6t-75 / 750 | Internal spline / flange | Pneumatics |
13 |
SDQ-DF27/21 |
1.845 |
350 | DC85JTZ/17G0Z56-010/17G 0A3-33(35/36)/17G0010-N9 002/14G0A3-32(34) /DC6J85TZ |
Internal spline / flange |
Pneumatics |
14 |
SDQ-DF27/53 |
1.35 |
350 | 17G0A9-Z67D/DC7J100TB/1 7G0A9-45(-24-00030) | Internal spline / flange | Pneumatics |
15 | SDQ-DF27/55 | 1.216 | 300 | 17g0a3-32 (33 / 34 / 35 / 36) straight Connecting gear / dc6j85tz (direct gear) | Internal spline / flange | Pneumatics |
16 | SDQ-DF27/65 | 1.07 | 350 | DC7J100TC、17G0A9-Z66D | Internal spline / flange | Pneumatics |
17 | SDQ-DF27/66 | 1.26 | 350 | Dc6j85tz (overdrive) /17G0A3-54/1700010-A9000 | Internal spline / flange | Pneumatics |
18 | SDQ-DF28/55 | 1.3 | 400 | 17GOA3-38/17N29-00030 | Internal spline / flange | Pneumatics |
19 | SDQ-DF28/65 | 1.55 | 350 | Dc7j120tb (overdrive) /01-00030 | Internal spline / flange | Pneumatics |
20 |
SDQ-DF28/72 |
1.84 |
350 | Dc7j120tc (direct gear) /01-00030 | Internal spline / flange | Pneumatics |
Jac Xingrui series power take off (JAC)
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-XR50/35 | 1 | 300 | LC6T55 WLY6TS55 | Internal spline / flange | Pneumatics |
2 | SDQ-XR50/45 | 1.1 | 280 | LC6T46/LC6T450 | Internal spline / flange | Pneumatics |
3 | SDQ-XR50/60 | 1.1435 | 300 | LC6T540 | Internal spline / flange | Pneumatics |
4 | SDQ-XR50/63 | 1.11 | 300 | LC6T540/15CO7027 | Internal spline / flange | Pneumatics |
5 | SDQ-XR50/65 | 1.6433 | 250 | ML642A-A9 | Internal spline / flange | Pneumatics |
6 | SDQ-XR50/67 | 1.1541 | 250 | ML532A | Internal spline / flange | Pneumatic / manual |
7 | SDQ-XR50/69 | 1.1 | 280 | LC6T46/LC6T450 | Internal spline / flange | Pneumatics |
8 | SDQ-XR50/71 | 1.17 | 200 | LC5T97/LC5T30 | Internal spline / flange | Pneumatics |
9 | SDQ-XR50/74 | 1.03 | 200 | LC5T35/LC5T40 | Internal spline / flange | Pneumatics |
10 | SDQ-XR23/55 | 1.12 | 300 | LC6T450M1 | Internal spline / flange | Pneumatic / manual |
11 | SDQ-XR37/77 | 1.55 | 200 | ML532C | Internal spline / flange | Pneumatic / manual |
Qingling Isuzu series power take off (Isuzu)
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-WS51/62 | 1.3 | 150 | Msb-5m / starray lc5t88 | Internal spline / flange | Pneumatics |
2 | SDQ-WS38/63 | 1 | 150 | Msb-5m / starray lc5t88 | Internal spline / flange | Pneumatic / manual |
3 | SDQ-WS32/64 | 1.095 | 300 | MYY-6S | Internal spline / flange | Pneumatic / manual |
4 |
SDQ-WS35/74 |
1.63 |
180 | MSB-5M/MSB-5S/MSB-5SM/LC5T88
LC5T25/LC5T255M3/LC5T28 |
Internal spline / flange | Pneumatic / manual vacuum |
5 | SDQ-WS52/77 | 1.18 | 250 | MLD-6Q/MLD6A | Internal spline / flange | Pneumatics |
JMC series power take off
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-GT32/65 | 1.26 | 250 | 6MT1420/DN3-70030-E0/KN3 | Internal spline / flange | Pneumatic / manual |
2 | SDQ-GT51/67 | 1.2 | 200 | JC5T28/5T26.5/MTI280JD | Internal spline / flange | Pneumatic / manual |
3 | SDQ-GT32/65-A | 1.315 | 250 | 6MT1420/DN3-70030-E0/KN3 | Internal spline / flange | Pneumatic / manual |
4 | SDQ-GT32/65-B | 1.09 | 250 | 6MT1420/DN3-70030-E0/KN3 | Internal spline / flange | Pneumatic / manual |
5 | SDQ-GT32/65-C | 1.26 | 250 | 6MT1420/DN3-70030-E0/KN3 | Internal spline / flange | Pneumatic / manual |
ZF series power take off
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-ZF51/38 | 1.077 | 300 | ZF6S500/ZF6S600/ZF6S558 ZF6S508/ZF6S458 | Internal spline / flange | Pneumatics |
2 | SDQ-ZF51/44 | 1 | 250 | ZF5S400 | Internal spline / flange | Manual |
3 | SDQ-ZF48/39 | 1.063 | 250 | ZF5S408/ZF5S328 | Internal spline / flange | Pneumatics |
4 | SDQ-ZF211/65 | 0.772 | 650 | TraXon12 | Internal spline / flange | Pneumatics |
Fast power take off
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-FS212/70 | 0.94 | 600 | 12JSD160TA | Internal spline / flange | Pneumatics |
2 | SDQ-FS212/70-A | 0.78 | 600 | 12JSD160TA | Internal spline / flange | Pneumatics |
3 | SDQ-FS19/31 (QD40A) | 1.09 | 400 | 8JS75 | Internal spline | Pneumatics |
4 | SDQ-FS24/37 ( QCZ70A) | 0.93 | 600 | 6J80T | Internal spline / flange | Pneumatics |
5 | SDQ-FS211/60 | 1.1 | 350 | 6DS40TB-D/6DS60TB-D 6DS60TA-D | Internal spline / flange | Pneumatics |
6 |
SDQ-FS211/70 |
0.94 |
600 | Fuller / fast / rt-11509c 8JS100S/17G0A9-22 | Internal spline / flange | Pneumatics |
7 |
SDQ-FS211/70-A |
0.78 |
600 | Fuller / fast / rt-11509c 8JS100S/17G0A9-22 | Internal spline / flange | Pneumatics |
8 | SDQ-FS34/29 QD40J
| 400 | 8JS75 8js75tc
| Internal spline / flange | Pneumatics |
WanLiYang series power take off (wly)
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-WL24/37 | 1.176 | 250 | 10H30 | Internal spline / flange | Pneumatics |
2 | SDQ-WL24/38 | 1.077 | 300 | 6G55 | Internal spline / flange | Pneumatics |
3 | SDQ-WL24/40 | 1.333 | 300 | 6G40A | Internal spline / flange | Pneumatics |
4 | SDQ-WL31/39 | 1.1 | 300 | 6G40A | Internal spline / flange | Pneumatics |
5 | SDQ-WL24/43 | 1.087 | 300 | 5G40 | Internal spline / flange | Pneumatic / manual / vacuum |
6 | SDQ-WL24/44 | 1.043 | 300 | 6G40B | Internal spline / flange | Pneumatics |
7 | SDQ-WL24/59 | 1.094 | 300 | 6G120/6G70 | Internal spline / flange | Pneumatics |
8 | SDQ-WL24/60 | 1.3 | 300 | 6TS40 | Internal spline / flange | Pneumatics |
9 | SDQ-WL24/63 | 1.39 | 180 | 5TS32 | Internal spline / flange | Pneumatic / manual |
10 | SDQ-WL 24/63-B | 1.39 | 180 | 5G32A | Internal spline / flange | Pneumatic / manual |
11 | SDQ-WL 24/66 | 1.359 | 180 | 5TS32-C | Internal spline / flange | Pneumatic / manual |
12 | SDQ-WL 24/66-B | 1.146 | 180 | 5G32B/5G32C | Internal spline / flange | Pneumatic / manual |
13 | SDQ-WL 24/67 SDQ-WL 25/67 | 1.147 | 300 | 6T120/6S46/6S51 | Internal spline / flange | Pneumatics |
14 | SDQ-WL 24/70 | 1.15 | 200 | 6S46B (2015-4-25) | Internal spline / flange | Pneumatic / manual |
15 | SDQ-WL 24/71 SDQ-WL 25/71 | 1.11 | 300 | 6S51B/6S46B | Internal spline / flange | Pneumatic / manual |
16 | SDQ-WL 24/72 | 1.133 | 300 | 6TS55E/6TS60 | Internal spline / flange | Pneumatic / manual |
17 | SDQ-WL23/63 | 1.35 | 350 | 10H46 | Internal spline / flange | Pneumatics |
18 | SDQ-WL23/71 | 1.15 | 400 | 7TS60 | Internal spline / flange | Pneumatics |
19 | SDQ-WL24/75 | 1 | 400 | 7TS60B | Internal spline / flange | Pneumatics |
20 | SDQ-WL25/70 | 1.244 | 400 | 7TS60C | Internal flange / spline | Pneumatics |
21 | SDQ-WL24/73 | 1.07 | 400 | 7TS60D | Internal spline / flange | Pneumatics |
22 | SDQ-WL25/33 | 1.228 | 350 | 10h46 (right) | Internal spline / flange | Pneumatics |
23 | SDQ-WL27/70 | 1.08 | 150 | 5TS40 | Internal spline / flange | Pneumatics |
24 | SDQ-WL31/46 | 1.2 | 180 | 5TS40 | Internal spline / flange | Pneumatics |
25 | SDQ-WL211/100 | 1 | 1000 | 9G90 | Internal spline / flange | Pneumatics |
Heavy duty Sinotruck power take off
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-ZD27/61 | 1.1 | 600 | DC7J120T | Flange flange | Pneumatic (dynamic clutch) |
2 | HW50 | 0.739 | 500 | HW14710/HW18710 HW15710/HW19710 | Internal flange / spline | Pneumatics |
3 | HW70 | 0.793 | 700 | HW18709/HW18710 | Internal spline / flange | |
4 | HW80Q-F301 | 800 | HW90510C1 | Flange flange | Pneumatics | |
5 | HW140Q-F301 | 0.84 | 1400 | HW12706 | Flange flange | Pneumatics |
6 | HW140Q-F302 | 0.84 | 1400 | HW12706 | Flange flange | Pneumatics |
7 | HW140Q-F303 | 0.84 | 1400 | HW12706 | Flange flange | Pneumatics |
8 | HW140Q-F305 | 0.84 | 1400 | HW12706 | Flange flange | Pneumatics |
9 | HW60Q-F300 | 0.686 | 600 | HW12706 | Flange flange | Pneumatics |
Other series of power take-off
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-HL211/65 | 0.772 | 650 | Soda gearbox 12sob1500 | Internal spline / flange | Pneumatics |
2 | SDQ-HL211/100 | 1 | 1000 | Soda gearbox 12sob1500 | Internal spline / flange | Pneumatics |
3 | SDQ-NQ42/26 | 1.15 | 150 | NAC 2830.5 | Internal spline / flange | Pneumatics |
4 | SDQ-NQ42/27 | 1.15 | 150 | NAC 2830.5 | Internal spline / flange | Pneumatics |
5 | SDQ-SQ42/77 | 1.13 | 300 | SAIC sc50m6d | Internal spline / flange | Pneumatics |
New energy series power take off
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-LK31/38 | 1.043 | 300 | Suzhou green control 6s100 | Internal spline / flange | Pneumatics |
2 | SDQ-LK24/36 | 1.136 | 300 | Suzhou green control j6s95 | Internal spline / flange | Pneumatics |
3 | SDQ-LK20/56 | 1.148 | 300 | Suzhou green control j2s130 | Internal spline / flange | Pneumatics |
Export series power take off
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | Pto1000 series | 0.6- 1.88 | 300 | EATON FS 3005/4005 EATON 6305 | Internal flange / spline | Pneumatics |
2 |
Pto2000 series |
0.6- 1.88 |
350 | Eaton fuller Eaton rt-11109a / rt-6609a rt-7608a Allison Ellison M-5600/M-6600/S-5600 S-6600 |
Internal spline / flange |
Pneumatics |
3 | 3131(BZ) | 0.84-2.9 4 | 450 | Allison Ellison MD-3000/MD-4000 | Internal spline / flange | Hydraulic (dynamic clutch) |
4 | 3252(BZ) | 0.81-1.8 5 |
300 | Allison Ellison MD-3000/MD-4000 | Internal spline / flange | Hydraulic (dynamic clutch) |
5 | 3151(BZ) |
0.84-2 |
540 | Allison Ellison MD-3000/MD-4000 | Internal spline / flange | Constant mesh |
6 |
3300 |
0.74-1 |
390 | Allison Ellison MD-1000/MD-2000 | Internal spline / flange | Hydraulic (dynamic clutch) |
7 | PTO852 | 1.13 | 650 | Allison | Internal spline / flange | Hydraulic (dynamic clutch) |
8 |
103K_03(BZ) |
0.77-0.55 |
650 | ZF ZF S5-50/90 S6-65/66/70/75/80/90 6S-800/1000/1005/1200 |
Flange flange |
Pneumatics |
9 |
1010K_03 (BZ) |
0.76 |
420 | ZF ZF S5-50/90 S6-65/66/70/75/80/90 6S-800/1000/1005/1200 |
Flange flange |
Pneumatics |
PTO Pneumatical Power Take-off SDQ24-63PQ1-B WLY 5G32A -0.794-5.595 ISO Flange
Opiotnal Power Output Spline
Model list of power take-off
FAW Jiefang power takeoff
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-YQ12/68 | 1.24 | 250 | CA6T-123/TS6-53 | Internal spline / flange | Pneumatics |
2 | SDQ-YQ12/72 | 1.199 | 250 | CA6T-123/TS6-53 | Internal spline / flange | Pneumatics |
3 | SDQ-YQ13/70 | 1.08 | 300 | CATS6-75A/1700940-680 | Internal spline / flange | Pneumatics |
4 | SDQ-YQ15/75 | 1.006 | 350 | CATS6-75(74)、 TZ1700940H4G、CA6T-138 | Internal spline / flange | Pneumatics |
5 | SDQ-YQ15/52 | 1.179 | 400 | CA6T138 | Internal spline / flange | Pneumatic (dynamic clutch) |
Dongfeng series power take off (DFAC)
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-DF21/33 | 1.044 | 250 | 17C-00030、17G0A4-08、 | Internal spline / flange | Pneumatics |
2 | SDQ-DF22/47 | 1.2 | 600 | Dt0690 overdrive | Internal spline / flange | Pneumatics |
3 | SDQ-DF22/47-A | 1.03 | 600 | Dt0690 overdrive | Internal spline / flange | Pneumatics |
4 | SDQ-DF24/42 | 1.2 | 600 | DF6S900 | Internal spline / flange | Pneumatics |
5 | SDQ-DF24/42-B | 1.03 | 450 | DF6S900 | Internal spline / flange | Pneumatics |
6 | SDQ-DF24/45 | 1.2 | 600 | DF6S900 | Internal spline / flange | Pneumatics |
7 | SDQ-DF24/45-B | 1.03 | 450 | DF6S900 | Internal spline / flange | Pneumatics |
8 | SDQ-DF24/65 | 1.06 | 400 | DF6S-750 | Internal spline / flange | Pneumatics |
9 | SDQ-DF24/64 | 1.06 | 400 | DF6S750/DF6S650 | Internal spline / flange | Pneumatics |
10 |
SDQ-DF24/69 |
1.211 |
350 | 17K1/17KT6K-00030、 17K17-00030/17G1A7-15、 17K23-00030/17G0A7-15 | Internal spline / flange | Pneumatics |
11 |
SDQ-DF25/63 |
1.23 |
350 | 17G1A7-41/17F40(44/62) /17g0a7-21 (41) / jiangft 650H | Internal spline / flange | Pneumatics |
12 |
SDQ-DF26/31 |
1.45 |
350 | DC6J70T/17G0A3-08(09/15/ 25/96)/Zqc6t-75 / 750 | Internal spline / flange | Pneumatics |
13 |
SDQ-DF27/21 |
1.845 |
350 | DC85JTZ/17G0Z56-010/17G 0A3-33(35/36)/17G0010-N9 002/14G0A3-32(34) /DC6J85TZ |
Internal spline / flange |
Pneumatics |
14 |
SDQ-DF27/53 |
1.35 |
350 | 17G0A9-Z67D/DC7J100TB/1 7G0A9-45(-24-00030) | Internal spline / flange | Pneumatics |
15 | SDQ-DF27/55 | 1.216 | 300 | 17g0a3-32 (33 / 34 / 35 / 36) straight Connecting gear / dc6j85tz (direct gear) | Internal spline / flange | Pneumatics |
16 | SDQ-DF27/65 | 1.07 | 350 | DC7J100TC、17G0A9-Z66D | Internal spline / flange | Pneumatics |
17 | SDQ-DF27/66 | 1.26 | 350 | Dc6j85tz (overdrive) /17G0A3-54/1700010-A9000 | Internal spline / flange | Pneumatics |
18 | SDQ-DF28/55 | 1.3 | 400 | 17GOA3-38/17N29-00030 | Internal spline / flange | Pneumatics |
19 | SDQ-DF28/65 | 1.55 | 350 | Dc7j120tb (overdrive) /01-00030 | Internal spline / flange | Pneumatics |
20 |
SDQ-DF28/72 |
1.84 |
350 | Dc7j120tc (direct gear) /01-00030 | Internal spline / flange | Pneumatics |
Jac Xingrui series power take off (JAC)
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-XR50/35 | 1 | 300 | LC6T55 WLY6TS55 | Internal spline / flange | Pneumatics |
2 | SDQ-XR50/45 | 1.1 | 280 | LC6T46/LC6T450 | Internal spline / flange | Pneumatics |
3 | SDQ-XR50/60 | 1.1435 | 300 | LC6T540 | Internal spline / flange | Pneumatics |
4 | SDQ-XR50/63 | 1.11 | 300 | LC6T540/15CO7027 | Internal spline / flange | Pneumatics |
5 | SDQ-XR50/65 | 1.6433 | 250 | ML642A-A9 | Internal spline / flange | Pneumatics |
6 | SDQ-XR50/67 | 1.1541 | 250 | ML532A | Internal spline / flange | Pneumatic / manual |
7 | SDQ-XR50/69 | 1.1 | 280 | LC6T46/LC6T450 | Internal spline / flange | Pneumatics |
8 | SDQ-XR50/71 | 1.17 | 200 | LC5T97/LC5T30 | Internal spline / flange | Pneumatics |
9 | SDQ-XR50/74 | 1.03 | 200 | LC5T35/LC5T40 | Internal spline / flange | Pneumatics |
10 | SDQ-XR23/55 | 1.12 | 300 | LC6T450M1 | Internal spline / flange | Pneumatic / manual |
11 | SDQ-XR37/77 | 1.55 | 200 | ML532C | Internal spline / flange | Pneumatic / manual |
Qingling Isuzu series power take off (Isuzu)
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-WS51/62 | 1.3 | 150 | Msb-5m / starray lc5t88 | Internal spline / flange | Pneumatics |
2 | SDQ-WS38/63 | 1 | 150 | Msb-5m / starray lc5t88 | Internal spline / flange | Pneumatic / manual |
3 | SDQ-WS32/64 | 1.095 | 300 | MYY-6S | Internal spline / flange | Pneumatic / manual |
4 |
SDQ-WS35/74 |
1.63 |
180 | MSB-5M/MSB-5S/MSB-5SM/LC5T88
LC5T25/LC5T255M3/LC5T28 |
Internal spline / flange | Pneumatic / manual vacuum |
5 | SDQ-WS52/77 | 1.18 | 250 | MLD-6Q/MLD6A | Internal spline / flange | Pneumatics |
JMC series power take off
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-GT32/65 | 1.26 | 250 | 6MT1420/DN3-70030-E0/KN3 | Internal spline / flange | Pneumatic / manual |
2 | SDQ-GT51/67 | 1.2 | 200 | JC5T28/5T26.5/MTI280JD | Internal spline / flange | Pneumatic / manual |
3 | SDQ-GT32/65-A | 1.315 | 250 | 6MT1420/DN3-70030-E0/KN3 | Internal spline / flange | Pneumatic / manual |
4 | SDQ-GT32/65-B | 1.09 | 250 | 6MT1420/DN3-70030-E0/KN3 | Internal spline / flange | Pneumatic / manual |
5 | SDQ-GT32/65-C | 1.26 | 250 | 6MT1420/DN3-70030-E0/KN3 | Internal spline / flange | Pneumatic / manual |
ZF series power take off
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-ZF51/38 | 1.077 | 300 | ZF6S500/ZF6S600/ZF6S558 ZF6S508/ZF6S458 | Internal spline / flange | Pneumatics |
2 | SDQ-ZF51/44 | 1 | 250 | ZF5S400 | Internal spline / flange | Manual |
3 | SDQ-ZF48/39 | 1.063 | 250 | ZF5S408/ZF5S328 | Internal spline / flange | Pneumatics |
4 | SDQ-ZF211/65 | 0.772 | 650 | TraXon12 | Internal spline / flange | Pneumatics |
Fast power take off
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-FS212/70 | 0.94 | 600 | 12JSD160TA | Internal spline / flange | Pneumatics |
2 | SDQ-FS212/70-A | 0.78 | 600 | 12JSD160TA | Internal spline / flange | Pneumatics |
3 | SDQ-FS19/31 (QD40A) | 1.09 | 400 | 8JS75 | Internal spline | Pneumatics |
4 | SDQ-FS24/37 ( QCZ70A) | 0.93 | 600 | 6J80T | Internal spline / flange | Pneumatics |
5 | SDQ-FS211/60 | 1.1 | 350 | 6DS40TB-D/6DS60TB-D 6DS60TA-D | Internal spline / flange | Pneumatics |
6 |
SDQ-FS211/70 |
0.94 |
600 | Fuller / fast / rt-11509c 8JS100S/17G0A9-22 | Internal spline / flange | Pneumatics |
7 |
SDQ-FS211/70-A |
0.78 |
600 | Fuller / fast / rt-11509c 8JS100S/17G0A9-22 | Internal spline / flange | Pneumatics |
8 | SDQ-FS34/29 QD40J
| 400 | 8JS75 8js75tc
| Internal spline / flange | Pneumatics |
WanLiYang series power take off (wly)
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-WL24/37 | 1.176 | 250 | 10H30 | Internal spline / flange | Pneumatics |
2 | SDQ-WL24/38 | 1.077 | 300 | 6G55 | Internal spline / flange | Pneumatics |
3 | SDQ-WL24/40 | 1.333 | 300 | 6G40A | Internal spline / flange | Pneumatics |
4 | SDQ-WL31/39 | 1.1 | 300 | 6G40A | Internal spline / flange | Pneumatics |
5 | SDQ-WL24/43 | 1.087 | 300 | 5G40 | Internal spline / flange | Pneumatic / manual / vacuum |
6 | SDQ-WL24/44 | 1.043 | 300 | 6G40B | Internal spline / flange | Pneumatics |
7 | SDQ-WL24/59 | 1.094 | 300 | 6G120/6G70 | Internal spline / flange | Pneumatics |
8 | SDQ-WL24/60 | 1.3 | 300 | 6TS40 | Internal spline / flange | Pneumatics |
9 | SDQ-WL24/63 | 1.39 | 180 | 5TS32 | Internal spline / flange | Pneumatic / manual |

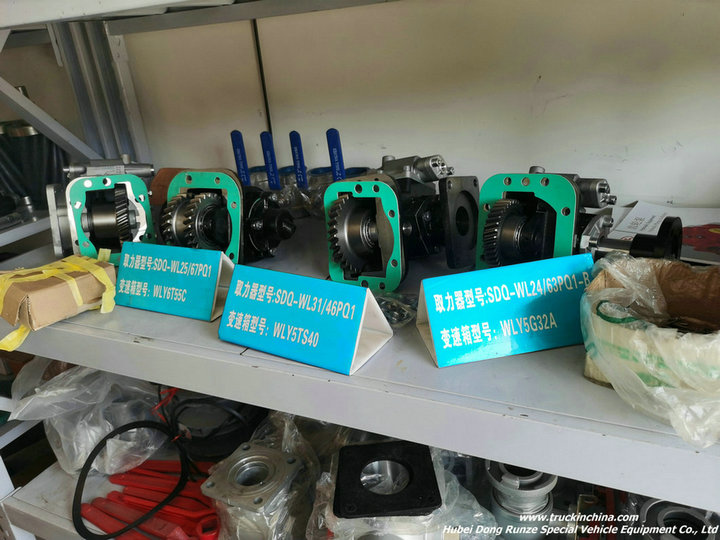

10 | SDQ-WL 24/63-B | 1.39 | 180 | 5G32A | Internal spline / flange | Pneumatic / manual |
11 | SDQ-WL 24/66 | 1.359 | 180 | 5TS32-C | Internal spline / flange | Pneumatic / manual |

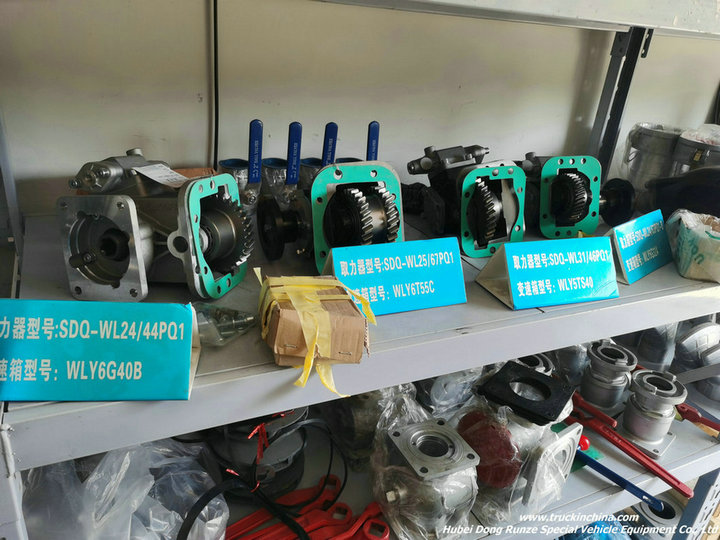

12 | SDQ-WL 24/66-B | 1.146 | 180 | 5G32B/5G32C | Internal spline / flange | Pneumatic / manual |
13 | SDQ-WL 24/67 SDQ-WL 25/67 | 1.147 | 300 | 6T120/6S46/6S51 | Internal spline / flange | Pneumatics |
14 | SDQ-WL 24/70 | 1.15 | 200 | 6S46B (2015-4-25) | Internal spline / flange | Pneumatic / manual |
15 | SDQ-WL 24/71 SDQ-WL 25/71 | 1.11 | 300 | 6S51B/6S46B | Internal spline / flange | Pneumatic / manual |
16 | SDQ-WL 24/72 | 1.133 | 300 | 6TS55E/6TS60 | Internal spline / flange | Pneumatic / manual |
17 | SDQ-WL23/63 | 1.35 | 350 | 10H46 | Internal spline / flange | Pneumatics |
18 | SDQ-WL23/71 | 1.15 | 400 | 7TS60 | Internal spline / flange | Pneumatics |
19 | SDQ-WL24/75 | 1 | 400 | 7TS60B | Internal spline / flange | Pneumatics |
20 | SDQ-WL25/70 | 1.244 | 400 | 7TS60C | Internal flange / spline | Pneumatics |
21 | SDQ-WL24/73 | 1.07 | 400 | 7TS60D | Internal spline / flange | Pneumatics |
22 | SDQ-WL25/33 | 1.228 | 350 | 10h46 (right) | Internal spline / flange | Pneumatics |
23 | SDQ-WL27/70 | 1.08 | 150 | 5TS40 | Internal spline / flange | Pneumatics |
24 | SDQ-WL31/46 | 1.2 | 180 | 5TS40 | Internal spline / flange | Pneumatics |
25 | SDQ-WL211/100 | 1 | 1000 | 9G90 | Internal spline / flange | Pneumatics |
Heavy duty Sinotruck power take off
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-ZD27/61 | 1.1 | 600 | DC7J120T | Flange flange | Pneumatic (dynamic clutch) |
2 | HW50 | 0.739 | 500 | HW14710/HW18710 HW15710/HW19710 | Internal flange / spline | Pneumatics |
3 | HW70 | 0.793 | 700 | HW18709/HW18710 | Internal spline / flange | |
4 | HW80Q-F301 | 800 | HW90510C1 | Flange flange | Pneumatics | |
5 | HW140Q-F301 | 0.84 | 1400 | HW12706 | Flange flange | Pneumatics |
6 | HW140Q-F302 | 0.84 | 1400 | HW12706 | Flange flange | Pneumatics |
7 | HW140Q-F303 | 0.84 | 1400 | HW12706 | Flange flange | Pneumatics |
8 | HW140Q-F305 | 0.84 | 1400 | HW12706 | Flange flange | Pneumatics |
9 | HW60Q-F300 | 0.686 | 600 | HW12706 | Flange flange | Pneumatics |
Other series of power take-off
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-HL211/65 | 0.772 | 650 | Soda gearbox 12sob1500 | Internal spline / flange | Pneumatics |
2 | SDQ-HL211/100 | 1 | 1000 | Soda gearbox 12sob1500 | Internal spline / flange | Pneumatics |
3 | SDQ-NQ42/26 | 1.15 | 150 | NAC 2830.5 | Internal spline / flange | Pneumatics |
4 | SDQ-NQ42/27 | 1.15 | 150 | NAC 2830.5 | Internal spline / flange | Pneumatics |
5 | SDQ-SQ42/77 | 1.13 | 300 | SAIC sc50m6d | Internal spline / flange | Pneumatics |
New energy series power take off
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | SDQ-LK31/38 | 1.043 | 300 | Suzhou green control 6s100 | Internal spline / flange | Pneumatics |
2 | SDQ-LK24/36 | 1.136 | 300 | Suzhou green control j6s95 | Internal spline / flange | Pneumatics |
3 | SDQ-LK20/56 | 1.148 | 300 | Suzhou green control j2s130 | Internal spline / flange | Pneumatics |
Export series power take off
Serial number | Model of power take-off | speed ratio | Output torque (N.m) | Matching gearbox | Output mode | control mode |
1 | Pto1000 series | 0.6- 1.88 | 300 | EATON FS 3005/4005 EATON 6305 | Internal flange / spline | Pneumatics |
2 |
Pto2000 series |
0.6- 1.88 |
350 | Eaton fuller Eaton rt-11109a / rt-6609a rt-7608a Allison Ellison M-5600/M-6600/S-5600 S-6600 |
Internal spline / flange |
Pneumatics |
3 | 3131(BZ) | 0.84-2.9 4 | 450 | Allison Ellison MD-3000/MD-4000 | Internal spline / flange | Hydraulic (dynamic clutch) |
4 | 3252(BZ) | 0.81-1.8 5 |
300 | Allison Ellison MD-3000/MD-4000 | Internal spline / flange | Hydraulic (dynamic clutch) |
5 | 3151(BZ) |
0.84-2 |
540 | Allison Ellison MD-3000/MD-4000 | Internal spline / flange | Constant mesh |
6 |
3300 |
0.74-1 |
390 | Allison Ellison MD-1000/MD-2000 | Internal spline / flange | Hydraulic (dynamic clutch) |
7 | PTO852 | 1.13 | 650 | Allison | Internal spline / flange | Hydraulic (dynamic clutch) |
8 |
103K_03(BZ) |
0.77-0.55 |
650 | ZF ZF S5-50/90 S6-65/66/70/75/80/90 6S-800/1000/1005/1200 |
Flange flange |
Pneumatics |
9 |
1010K_03 (BZ) |
0.76 |
420 | ZF ZF S5-50/90 S6-65/66/70/75/80/90 6S-800/1000/1005/1200 |
Flange flange |
Pneumatics |
2 Pcs ISO 20FT Hydrochloric Acid tank container (PE lined tank container) to Africa 20FT Tank Container for Hydrochloric Acid Un1789 HCL carbon steel and lined with 16mm LLDPE Tanks capacity 20KL Hydrochloric acid with the concentration of 1789 (38%)
10pcs T21 Un Portable Tanks C480S for Transport Trimethylaluminum (TMA) Trimethylgallium (TMG) , Triethylgallium (TEG) Aluminum Triethyl (TEAL) 1880liters to Korea C-430 Saddle Type Portable Tank , tank capacity 1630L C-480 Saddle Type Portable Tank, tank capacity 1880L YCDT1880-T21 TEAL tank Triethylaluminum (TEAL) Alky Portable Tank Container FOR UN3394 ,UN3399 HS code :8609009000
Hydrochloric Acid Tank Lined PE Tank body 11cbm to Hai Phong Vietnam11000Liters Lined PE Mobile Hydrochloric Acid (HCl) Tank For Truck Lorry TANK CONTAINER VOLUME 11 M3,Steel shell 5mm, head 6mm TANK SIZE :5000*2250*1350MM, OVER ALL SIZE 5250*2250*1900MMDischarge valve ND80/DN 65, po
Fast Eaton Transmission Power Take-Off Spline PTO SDQ211/60LGQ1 for 6DS60T-B/60T-D Costa Rica
Fast Eaton Transmission Power Take-Off PTO For 8JS85E ,6DS60T-D Ecuador Quito Part No. Description SDQ34/29PQ1 " PTO FOR 8JS85E GEAR FLANGE" SDQ211-60LGQ1 "PTO FOR 6DS60T-D GEAR SPLINE"
Manual Flange PTO FOR ML532A GEARBOX , ISO Flange Mechanically Operated
UN3394 T21 TEAL Portable Tank C480S Teal Metal Alkyls Cylinder For KE Materials C-430 Saddle Type Portable Tank , tank capacity 1630L C-480 Saddle Type Portable Tank, tank capacity 1880L YCDT1880-T21 TEAL tank Triethylaluminum (TEAL) Alky Portable Tank Container FOR UN3394 ,UN3399 HS code :8609009000
5 Sets 5-12m3 Lined PTFE / LDPE / PE Circulation Tank Storage Tank Used For Store H2SO4 98% ,75% ,HCL35%,NAOH 45% for Vietnam Chemcial Factory
Inspection company on behalf of TCM for LIWA PLASTICS INDUSTRIAL COMPLEX PROJECT. 10Units T21 TEAL Portable Tank Containers For Metal Alkyls Date : 2021-3-12T21 TEAL tank Triethylaluminum (TEAL) Alky Portable Tank Container tank capacity 1880L FOR UN3394 ,UN3399 HS code :8609009000
16Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 Ready to USA T21 TEAL C-430 Tank PROFORMA INVOICE D21080316
20pcs T21 TEAL TANK UN Portable Alkyls 1.88m3 UN3394 Container Ship to Rotterdam After amost 2 and a half months Producing, those 20 units UN Portable T21 TEAL TANK (EMPTY AND NEW TANKS) finally two partial ship From Shanghai Port China To Germany, Transit Through Rotterdam , Country Of Destination Turkmenistan, Transit Through Germany.The commodity is a circulation tare. Temporary bringing in EU. Filling at the Lanxess Organometallics GmbH, Bergkamen, Germany. The end destination - Turkmenistan.
Triethylaluminum (TEAL) Alky Portable Tank Container - tank capacity 1880L - FOR UN3394 ,UN3399 - complete set with valves- full set ADR/RID BV INSPECTION CERTIFICATE BIC Number- Nameplate with individual tank serial number for each tank
5 Sets 5-12m3 Lined PTFE / LDPE / PE Circulation Tank Storage Tank Used For Store H2SO4 98% ,75% ,HCL35%,NAOH 45% for Vietnam Chemcial Factory
16Units T21 TEAL Cylinder Portable Tanks Loading 40GP Containers Delivery to US
Lined PE Mobile Hydrochloric Acid HCl Tank Body 6m3 for Tanker truck lorry SKD Loading
