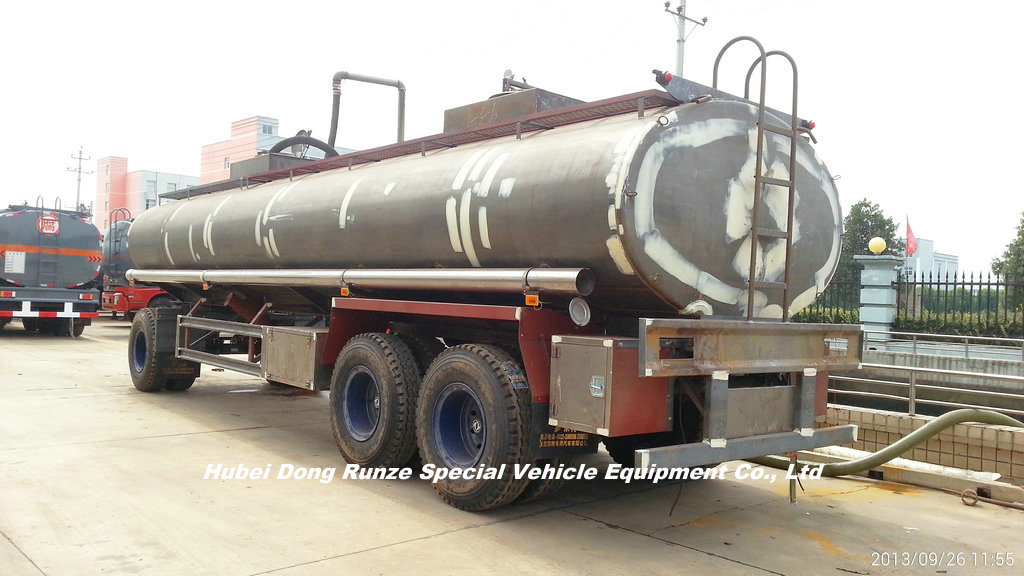

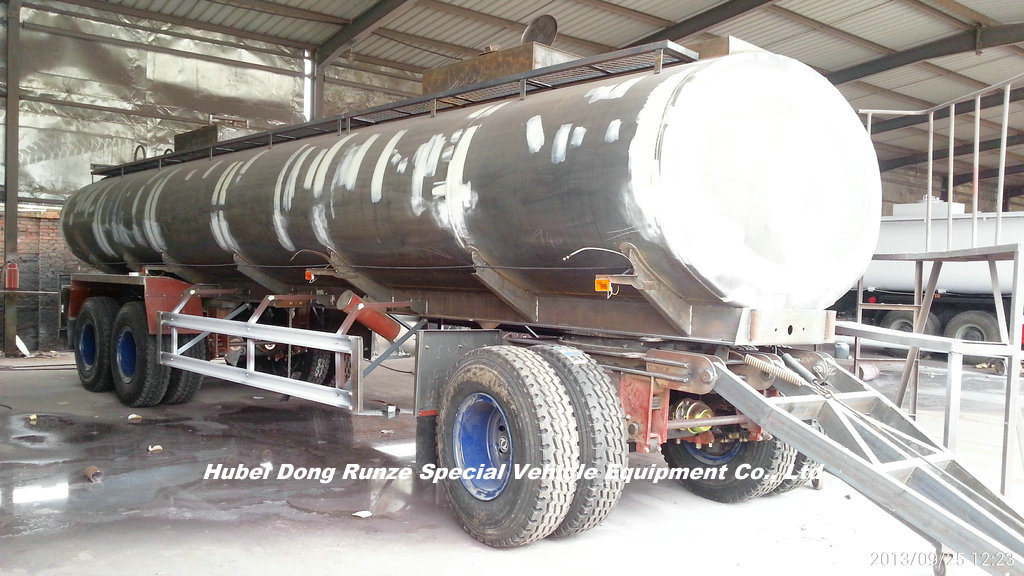

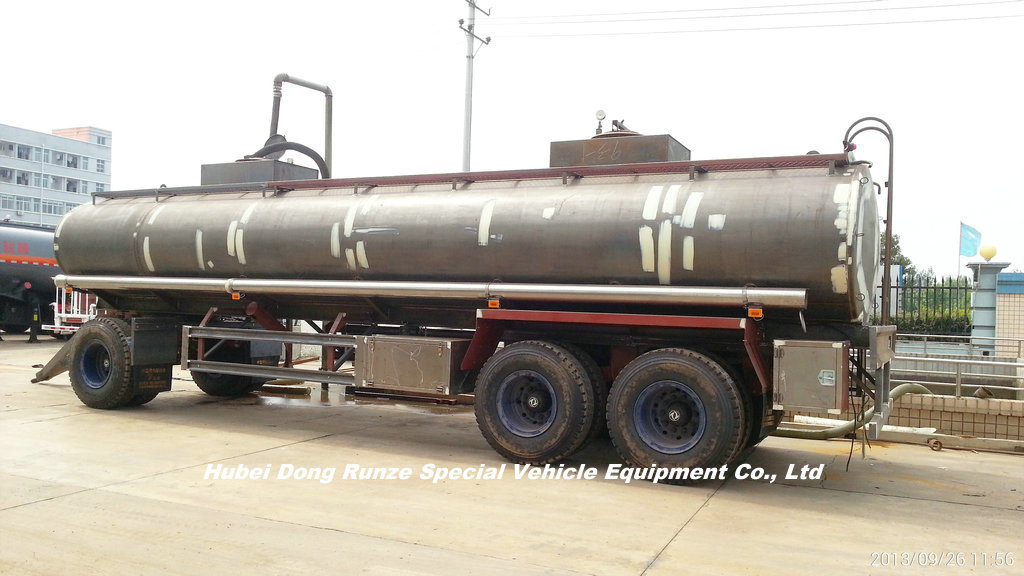

Oil Tank Full Trailer (Customizing 2-3-4 Axles Dolly Tanker 10CBM -30CBM)
| Quantity: | |
|---|---|
- Shanghai, China
- 200sets Per Month
- T/T, Western Union
Oil Tank Full Trailer ( Customizing 3-4 Axles Dolly Tanker 20CBM -30CBM )
Full Tank Trailer With Draw Bar Dolly 2axles For Fuel ,Water,Oil,Diesel Fuel Trailer Pup Tanker
Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
| 3-AXLE OIL FULL TRAILER | |
| Capacity: 20 CBM | |
| Frame: Upper plate: 14mm, lower plate: 14mm,middle: 8mm. Side main beam: 6mm, cross beam: 6mm, reinforced triangle beam:4mm, Support beam: 4mm | |
| Dimension(L×W ×H): 8000*2700*2800mm | |
| Tank size: 20 CBM | |
| Thickness: Floor 6mm Diamond checked, Side 5mm | |
| Suspension: Mechanical suspension | |
| Connector: With connecting triangle frame with thickness of 8mm | |
| Axle: 3x13Ton BPW axles. | |
| Tire: 12.00 x R20 x 18PR, Triangle brand TR668 ,13pcs |
3-Axle Stake Semi Trailer with Dolly for Cargo Transportation 12 Wheels Dolly Trailer
Tare Weight | 4500kg |
Payload | 15000----35000 kg |
Total Weight | 18000 ----39900kg |
Overall Length | Refer drawing |
Overall Width | Refer drawing mm (maximum 2) |
Overall Height | Refer drawing |
Wheel track | Refer drawing mm |
Wheel base | Refer drawing mm |
STANDARD SPECIFICATION | |
Main Frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes 505mm Height, Top Flange 14mm,width 140mm; Middle Flange 6mm ;Bottom Flange 16mm,width 140mm |
Axle | FUWA/ BPW / L1 ,Dongfeng DANA axles. |
Suspension | 3-axle spring Suspension |
Landing Gear | No |
Wheel Rim | 6---12units |
Tyre | 6 --12 units of size 10.00-20 ; 11.00-20;11.00R20;11.00R22.5 |
Pneumatic Braking System | 30/30 spring brake chamber (S Cam); eliable local brand 40L air tank ; reliable local brand standard coppery air-connector. |
Electrical System | 24V 7-pin socket; reliable local brand standard red rear lights, orange turning lights, red rear reflectors, 3 orange side lights and 3 orange side reflectors each side 6, standard Cable. |
Tank | 5000---25,000 litres capacity |
Shell baffles 6 mm carbon steel | |
Tank fittings | Manhole covers top filler Bottom coupling DN80 discharge system |
Painting | as client requirement |

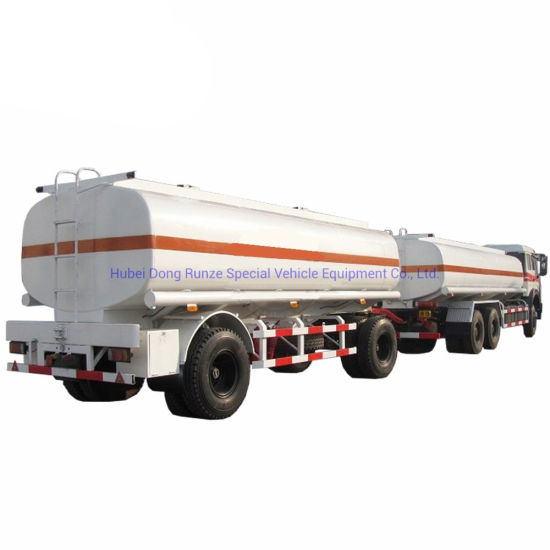

DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4/6/9/10/12 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
Axle No. | Axle Location | Tire No. | Length | Rating Capacity | ||
1 | Rear | 4 | 1-5 CBM | 5Tons | ||
2 | 1+1 | 8 | 6-15 CBM | 16~18Tons | ||
3 | 1+2 | 12 | 15-50CBM | 18~50Tons | ||
4 | 2+2 | 16 | 50-70CBM | 50-80Tons | ||
Suspension | America type mechanical Suspension | |||||
Wheel | 11.00 R20 | |||||
Turntable | Diameter is 1100mm | |||||
Traction hook | DN50 | |||||
Traction bar | Length is 1.4m | |||||
Dimensions(LxWxH) | 7500-18000×2500×1500mm | |||||
Steel Spring | 10/10 pieces per axles | |||||
Tire: | ||||||
The material of | The height of the beam is420mm,upper plate is 12mm*140,down plate is 12*140mm,middle plate is 6mm(strictly).made of Q345 | |||||
Platform plate | 3mm Diamond Plate | |||||
Brake: | WABCO VALVE | |||||
Brake | Kemi Brand of China | |||||
Brake Chamber | TWO double and two single chamber( TKL brand ) | |||||
ABS system | with | |||||
Electrical: | ||||||
Voltage | 24V | |||||
Receptacle | 7 ways(7 wire harness) | |||||
Light color: | (LED light) | |||||
Side marker lamp | Orange | |||||
Rear lamp | Red | |||||
Turn signal lamp | Orange | |||||
Miscellaneous: | ||||||
Painting | Can be choose freely | |||||
Marking | According to the requirement of the buyer | |||||
Side Guard | According to the requirement of the buyer | |||||
Tools box | One pieces or According to the buyer(1m length) | |||||
| Water tank | The size can be choose freely. | ||||
