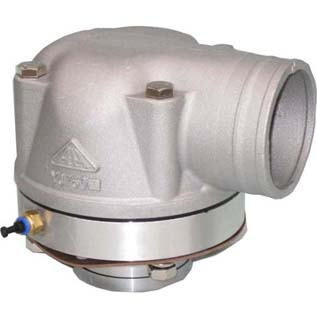

Oil Recovery Valve

Oil Recovery Valve
Availability:
Quantity:

  Feature:

 Casting AL alloy structure,oxidize treatment

 4" NPT thread vent

 Reasonable design,use the pneumatic switch controller to control

 Fit flange TTMA and EN13083 standard

 More flow,lower pressure





 Parameter:





       Size        4"
       Flow        1600L/MIN
       working pressure        0.3MPA
       Connect way        flange
       opeate way        pneumatic


         Temperature




         -20 to 70 ℃




         Medium


       Oil

  oil recovery valve 209

 oil recovery valve

 YJ7507/YJ7508 series oil recovery valve install at the manhole cover or the top of tanker,to avoid the oil leakage and make the oil can be recycled.

 When oil tanker unloading oil,the vapor recovery joint and valve can connect and open the lift valve.

 When stop unloading,the lift valve will automatically close, to prevent any pollutant into the valve.







 Material:

 Body: casting AL alloy

 Shaft: SS

 Seal: FPW,NBR

 Spring: SS
