North Benz 6X6 Sewage Vacuum Truck / Septic / Tanker Truck 16cbm.

Quantity:
  • Shanghai, China
  • 10000
  • T/T, Western Union
  • 2627
  • 6x6
  • 251-350hp
  • New
  • 12.00-20, 12.00r20, 12.00r24
  • Mercedes Benz Technology
  • Weichai, Hino
  • Zf8098, Tas85
  • 6~9-Speed, Single, Dry
  • Euro 2, Euro 3, Euro 4
  • Working Pressure
  • Single Stage Rotary Oil Seal Vacuum Pump
  • 16 Cbm to 20 Cbm
  • 4450+1450, 4500+1350;5050+1350
  • BEIBEN
  • Nil
  • military standard.
  • China
  • 8705909990
  • ISO9000, CCC
  • Euro 3
  • 20T
  • Manual
  • Diesel
  • 12000~16000L

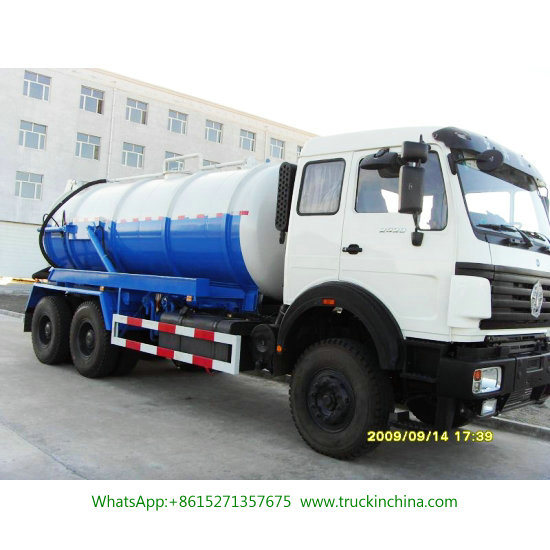

NORTH BENZ 6x6 Sewage Vacuum Truck / Septic / Tanker Truck 16CBM.

Cubage (T)

12 CBM to16 CBM

Vehicle

Overall dimension(length/width/height)mm

10826×2500×3355

G V W(kg)

26000

Payload (kg)

17960

Kerb mass(kg)

7910

Fuel Type

Diesel

Fuel consumption(L/100km)

29

Top speed

90

Engine

Model

WP10.270

Exhaust/Power(kw)

9726cc/199kw

270HP

Manufacturer

Weichai Motor Co., Ltd.

Type

6-in-line water cool Turbo Charge engine

Chassis

Drive type

6*4/6*6

Wheelbase (mm)

5050+1350

Tread(front/rear)mm

1995/1800.

Front Bridge

7.5T FRONT AXLE

Number of spring axles(front/rear)

9/9+6

Tire specification

12.00-20 ; 12.00R20

Air condition

with

suction system

suction pump

Single Stage Rotary Oil Seal Vacuum Pump

special parameter

Vertical suction heihgt

≥8

working pressure

8500Pa

rotation speed

500

suction speed

98L/S

power

5.5kw

inlet diatmeter

50mm

filling time

Less than 5s

discharge time

Less than 4s

4*2
ND1160A41 4100 WP6.180 6000L NG80,6,457,10.00-20
ND1163A48J 4800 WP10.270 10000L NG80,9,,12.00R20
6*4 ND1255B44 4450+1450 WP10.290 15000L
16000L
17000L
NG80,9,,12.00R20
ND1252B44 WP10.336
6*4 ND1253B45J 4500+1350 WP7.270E30 18000L NG80,9,457,11.00R20
8*4 ND13105D44J 1700+4425+1350 WP10.270 18000L NG80,9,457,11.00R20
1.Beiben ND1160,ND2060 4 wheel drive sewage suction truck based on Mercedes Benz technology
2. Common rail engine, World famous weichai engine
3.FAST(Fuller) gearbox
4.Benz front axle and rear axle, for military using.
North Benz 6X6 Sewage Vacuum Truck / Septic / Tanker Truck 16cbm.
North Benz 6X6 Sewage Vacuum Truck / Septic / Tanker Truck 16cbm.
North Benz 6X6 Sewage Vacuum Truck / Septic / Tanker Truck 16cbm.
North Benz 6X6 Sewage Vacuum Truck / Septic / Tanker Truck 16cbm.

Euro 3, Euro 4 septik truck sewage tanker Cesspool Emptying Truck
4*2/4x4 ND1160A41 4100 WP6.180
ND1163A48J 4800 WP10.270
WP10.290

Model

ND2160E48J (4*4)

Engine

290 HP EURO II-V

chassis

BeiBen 4x4 military chassis

Outside dimension(mm)

8826×2500×3355

volume of tank

6000L~ 10000L

Material of tank

Carbon steel

Thickness

6mm

Total mass (kg)

16000

Kerb mass (kg)

7960

Rated payload(kg)

7910

Wheelbase (mm)

4800

Tread(front/rear)

1995/1800

Approach/departure angle

30/28

Front /rear suspension

1410/2616

Minimum turning diameter

20.4

Clutch type

GFX420, diaphragm spring clutch

Gear box type

9JS119,mechanical , 9 forwards, manual

Tire type

14.00R20 (6+1)

Fuel tank capacity (L)

300

Max.gradient

60

Max. Speed(Km/h)

85

Battery(V)

Electrical system storage battery 2X12V/135Ah

generator

28V-35A

Starter

5.4Kw/24V

A/C

YES

4x2

Beiben Vacuum Sewage Suction Tanker Truck 8cbm

Chassis

Model

ND11601A48J

Traction type

4X2

Driving type

LHD

Driver's cab

Long cabin, A/C

Dimensions in (mm)

Wheel base(mm): 4800


Overall size(mm): 8690x2500x3080

Engine

Maker: WEICHAI


Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling


Engine model: WP10.270E31


Emission Standard: EUROIII EGR


Maximum output: 270HP /1900 rpm


Number of cylinder:6


Displacement: 9.726L

Clutch

430mm, hydraulically operating with air assistance

Transmission

Fuller 9JS135

Steering

TAS85

Front Axle

Benz front axle 7.5 ton

Rear Axle

Benz strengthened type 13T, double reduction drive axle
Ratio: 5.263

Spring

10/8+6

Types

12.00-20 Bias tyre

No. of tyre

6+1(spare)

Fuel tank

400L Aluminium

PTO

QH50

Electrics

Operating voltage: 24V, negative grounded

Kerb weight(kg)

6920

Body

Tank Volume

8m3,9m3,10m3,12m3


Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier
