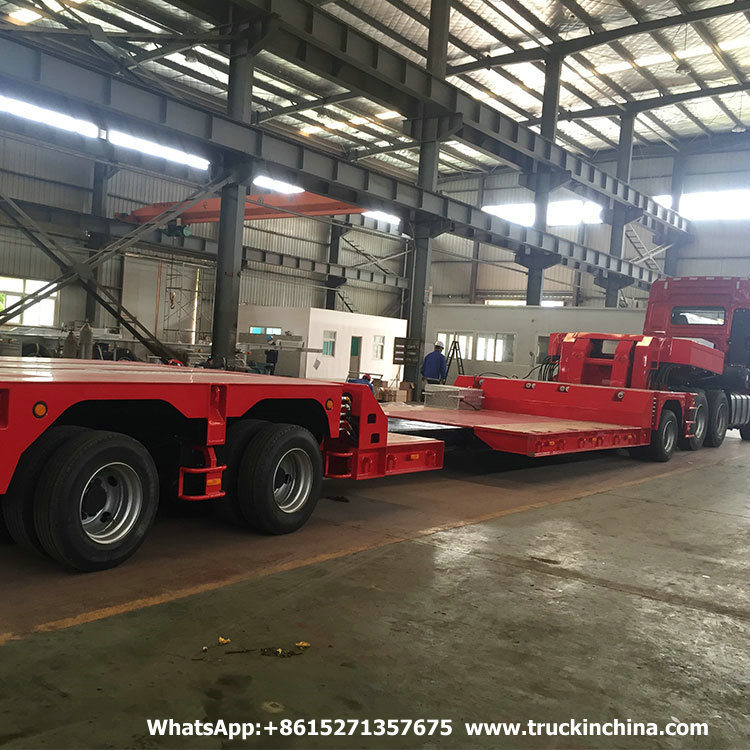

Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)

Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)
Availability:
Quantity:
  • Shanghai, China

  • 200

  • T/T, Western Union

Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)
Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)



Hydraulic Modular Trailers, Multi Axle Trailer 80T- 250T
Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)

Hydraulic Low Loader Semi Trailer For Cylinder Tank Goods Tanker
Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)




Multi Axle Steering Axle Low Bed Trailer

Product Name Multi Axle Steering Axle Multifunctional hydraulic combined lowbed trailer
Weight About 16345Kg
Size 12400mm*2990mm*1605mm(customized)
Loading Capacity (T) ≤ 40 T
Axle 13 T/16T, saf(customized)
Rim 6.75/7.5(special for export market )(customized)
Tire 235/75R 17.5 143/141 (special for export market )(customized)
Suspension Mechanical suspension (Germany Type or America Type)
Or Air suspension (China brand or BPW brand ) (special for export market )
Spring leaf Air sac
(special for export market )
King pin JOST brand 2.0 or 3.5inch bolts type or Welding type(customized)
Support leg JOST brand C200T or China brand 28Tons (Double speed)(customized)
Main beam Height: 380mm, upper plate is 16mm, middle plate is 8mm,(customized)
Down plate is 16mm; Material is WELTEN80 Steel.(customized)
Side beam 6mm channel steel (Material is Q235steel). (customized)
Bottom Platform 3mm diamond steel plate (customized)
Side Wall 6100mm ,or can be do box type ,for choose(customized)
Brake chamber N.24(customized)
ABS Optional(customized)
Twist Locks Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional(customized)
Valve WABCO valve
Light LED light (special for export market )
Voltage 24V
Receptacle 7 ways (7 wire harness)(customized)
Tool box One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms: By bulk cargo carrier, RORO or 40HQ container.
Remark

The above trailer is just for you reference, we producing according to customer's requirements.
As the requirements of the customers in different countries are different, we can design for our

customer's special need.Please don't hesitate to contact me if you have any inquiry!!


Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)
Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)
Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)
Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)


Steering Axle Low Bed Trailer Hydraulic Low Loader 2 Axle 16 Wheel Hydraulic Gooseneck Lowbed Semi Trailer

Product Name 2 axle 16 wheel hydraulic gooseneck horse low bed semi trailer
Size 12400mm*2990mm*1605mm(customized)
Loading Capacity (T) ≤ 40 T
Axle 13 T/16T, saf(customized)
Rim 6.75/7.5(special for export market )(customized)
Tire 235/75R 17.5 143/141 (special for export market )(customized)
Suspension Mechanical suspension (Germany Type or America Type)
Or Air suspension (China brand or BPW brand ) (special for export market )
Spring leaf Air sac
(special for export market )
King pin JOST brand 2.0 or 3.5inch bolts type or Welding type(customized)
Support leg JOST brand C200T or China brand 28Tons (Double speed)(customized)
Main beam Height: 380mm, upper plate is 16mm, middle plate is 8mm,(customized)
Down plate is 16mm; Material is WELTEN80 Steel.(customized)
Side beam 6mm channel steel (Material is Q235steel). (customized)
Bottom Platform 3mm diamond steel plate (customized)
Side Wall 6100mm ,or can be do box type ,for choose(customized)
Brake chamber N.24(customized)
ABS Optional(customized)
Twist Locks Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional(customized)
Valve WABCO valve
Light LED light (special for export market )
Voltage 24V
Receptacle 7 ways (7 wire harness)(customized)
Tool box One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting

Complete Chassis sand blasting to clean rust,

1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms: By bulk cargo carrier, RORO or 40HQ container.
Remark

The above trailer is just for you reference,

we producing according to customer's requirements.
As the requirements of the customers in different countries are different,

we can design for our customer's special need.

Please don't hesitate to contact me if you have any inquiry!!


Heavy Duty Self Propelled Modular Trailer (100T 200T SPMT Trailer)
Multi axle Hydraulic Modular Lowbed Semi Trailer

Heavy Duty Self Propelled Modular Trailer (100T  - 200T SPMT Power Dolly Trailer )

Modular low bed trailer equip power gooseneck/ramp
Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)

Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)

Hydraulic Detachable Gooseneck Lowbed Trailer 4 Axle ,5 Axles ,6 Axles Front Loading With Removable Dolly Trailer with Detachable Gooseneck ( Front loading  Low Boy trailer)



Lowbed Trailer Product Description
Modular low bed trailer equip power gooseneck/ramp

Usage:To transport  rail vehicles, mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders, paver, crane, etc)

Power gooseneck
Power gooseneck low plate
Four line eight axle trailer

200 Ton Multi axle Hydraulic Modular Lowbed Semi Trailer



Type Hydraulic modular trailer
Overall dimension 15500 x 2990 x 1360 mm
Loading weight 200 Ton
Hydraulic station Diesel engine 4100
Min. Turning radius 11.7m
Approaching / depature angle 30 %
Axle 13 ton axle x 20 pcs
Tyre 7.50-15
Suspension hydraulic
Color As your required


Trailers Non Ground Bearing Hydraulic Detachable Gooseneck


Lowboy trailer 60 ~150Ton 4~5~6 axles Hydraulic-neck low-bed trailer ,Heavy Haul Equipment Trailer removable gooseneck tridem-axle low-bed trailer

Lowbed Trailer Hydraulic Detachable Gooseneck Lowbed Trailer 4 Axle ,5 Axles ,6 Axles Front Loading With  Removable Dolly Trailer

Application of SPMT trailer Self Propelled Modular Transporter
Self propelled modular transporter is a self driving trailer, without the power and assistance from tractor or other vehicles. It is designed and made for heavy duty equipment transport, like the shipyard, tower, bridge. This modular trailer could combine other type of modular trailer vertically or horizontally to fulfill huge project transport, reaches hundreds or thousands tons.


Description of SPMT trailer Self Propelled Modular Transporter.
This is a 8 axle lines self propelled modular transporter. The independent power pack in front of the trailer provide the pressure to the hydraulic system of this trailer, which could control the trailer to move, steer, lift, etc.


Selling point of SPMT trailer Self Propelled Modular Trailer
1.Combined with other modular platform trailer
2.Suitable for extremely heavy loading project


Specification

Dimension
Overall dimension 15000x2500x1350mm
Tare weight 19500kgs
Payload 120Tons
Specification
Chassis Heavy duty and special design steel frame,
Axle YORK axle
Suspension Hydraulic suspension
Spring Hydraulic cylinder
Floor 5mm steel plate
Power Diesel engine as a power pack
Hydraulic system Hydraulic system to control lifting and steering
Tyre 11R22.5
Brake system Pneumatic braking system
Painting Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint
Accessories One standard tool box, one spare tyre carrier


Removable Gooseneck Lowboy Trailer heavy transport Mine dumper


Hydraulic-neck low-bed trailer Front loading  Low Boy trailer
Detaching lowbed neck Gooseneck Trailer Dropping The Low Bed Trailer
OVERSIZE LOAD - REMOVABLE GOOSENECK
HEAVY & OVERSIZE LOAD - REMOVABLE GOOSENECK - MURRAY SEMI-TRAILER

Detaching Removable Gooseneck Lowboy Trailer shiping transport Photos

OVERSIZE LOAD - REMOVABLE GOOSENECK


Gooseneck hydraulic trailers Feature


REMOVABLE GOOSENECK Lowboy Trailer


Customize  Truck

80 Ton Low Loader Trailer, Bulldozer Low Loader Trailer, Tri Axle Low Bed Trailer

Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer  Drawbar Fulltowing Trailer Trailer Dolly for Sale
4/6/9/10/12 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
