Multi Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular)

Multi Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular)

Quantity:
  • Shanghai, China
  • 200
  • T/T, Western Union

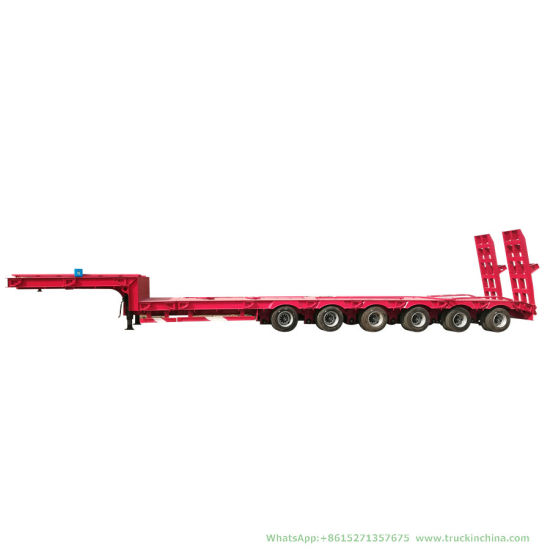

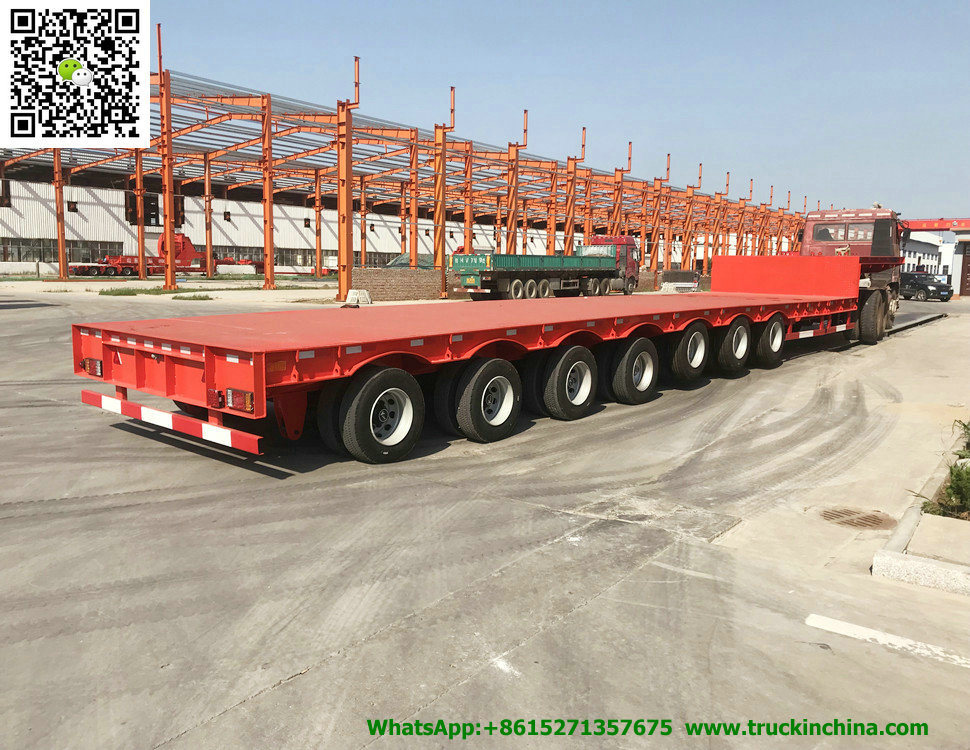

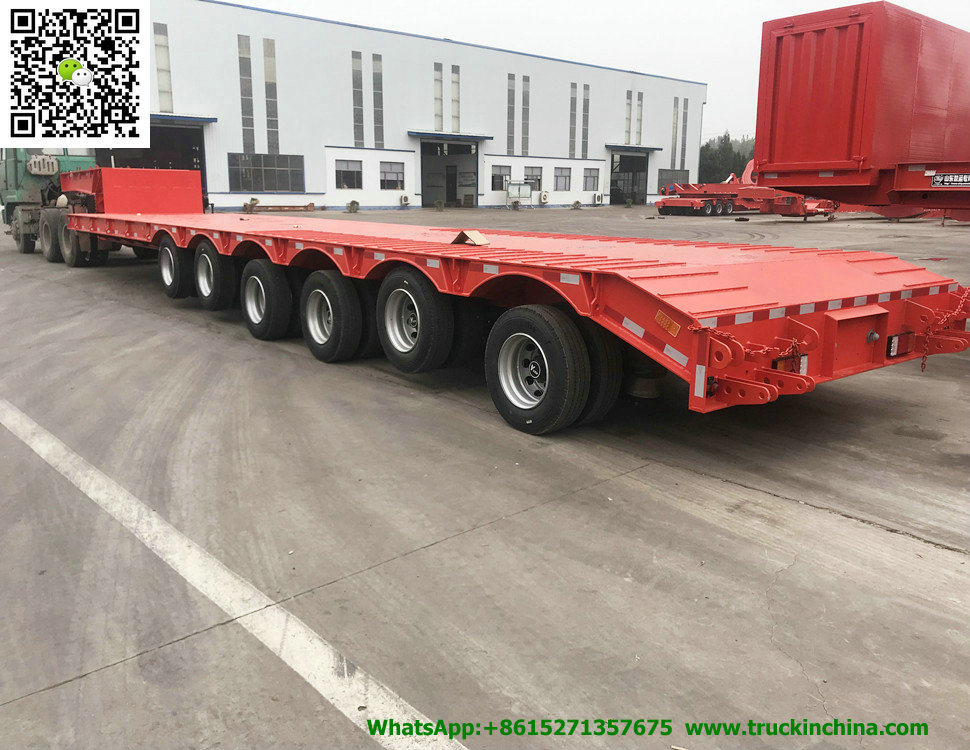

Multi Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular )

Hydraulic Modular Trailers, Multi Axle Trailer 80T- 250T
Multi Axle Steering Axle Low Bed TrailerMulti Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular)

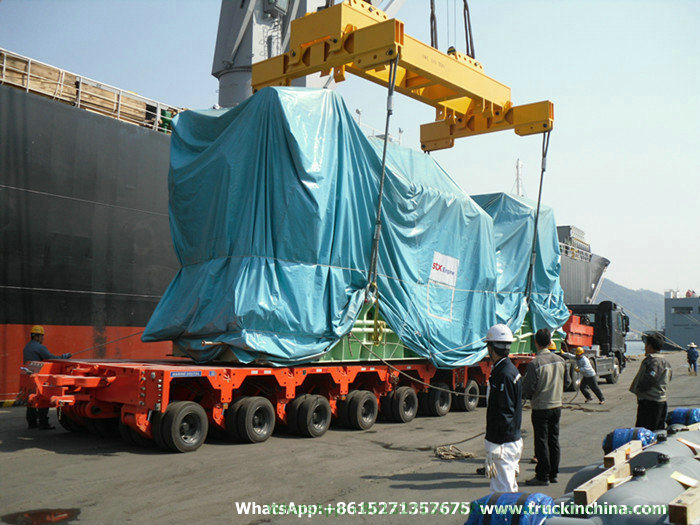

Hydraulic platform Multi-Axles trailer

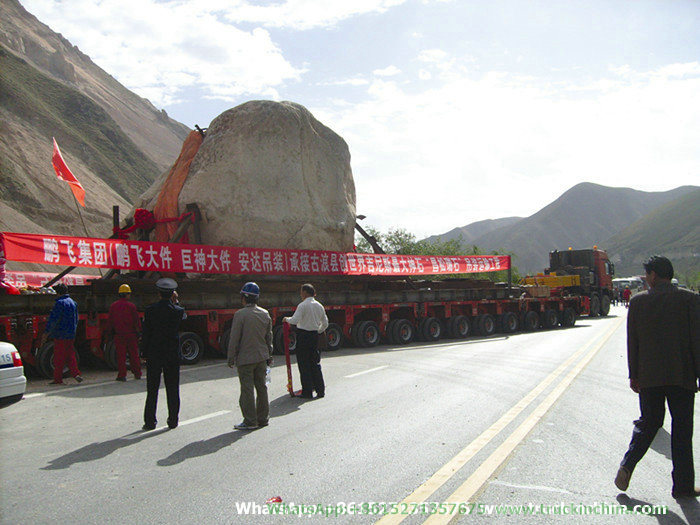

Hydraulic platform Multi-Axles trailer are mainly used in transporting large and heavy loads, bridge, tunnel engineering ,power engineering, petrochemical engineering and railway construction. Transportation oversize and over weight freights that split apart series hydraulic full trailer that can be assembled into weight from 45 tons to 2200 tons of various series.

We use advanced manufacture technology,make automatic submerged-arc welding for vertical beam,uses shot blasting treatment for integral frame,removes welding stress effectively,uses advanced fixture and technology during the whole production process,and ensure formation and assembly accuracy of work pieces

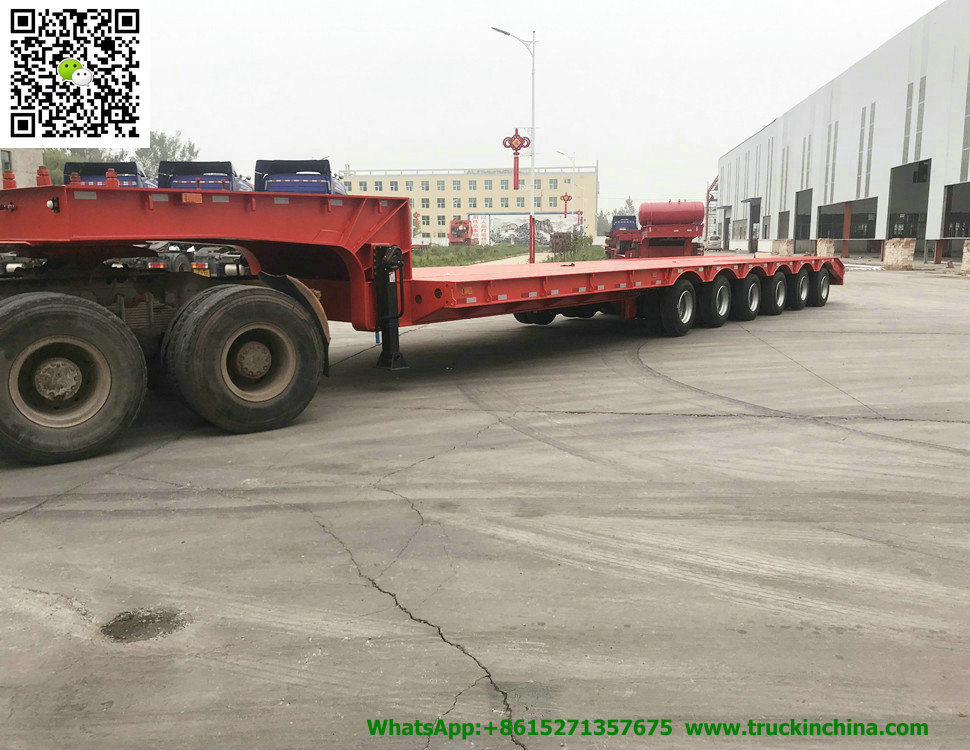

Multi Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular)
Multi Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular)

Multi Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular)
Multi Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular)
Multi Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular)
Multi Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular)
Multi Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular)
Multi Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular)


Advantage of Multi Axles Truck Trailer Features
Hydraulic suspension system
Platform height is adjustable
All wheels can be steerable
mall turning radius, 48° steering angle with hydraulic gooseneck
Both automatically and manually steering
Specifications
Width
2990mm-3000mm
Loading capacity(T)
60-150T
Max Steering Angle
+/-55°
Tire
215/75R17.5
Suspension
Hydraulic Air suspension with lifting and steering
Rim
6.00-17.5 (10holes)
Landing gear
JOST brand
Electrical System
24V, 7core socket, lights according to European standards.
Rated Capacity
35000kgs
Brake
Dual line pneumatic brake system,T30/30+T30 air chamber; parking brake;


Steering Axle Low Bed Trailer



Heavy Duty Self Propelled Modular Trailer (100T 200T SPMT Trailer)


200 Ton Multi axle Hydraulic Modular Lowbed Semi Trailer


Heavy Duty Self Propelled Modular Trailer (100T  - 200T SPMT Power Dolly Trailer )

Modular low bed trailer equip power gooseneck/ramp
Multi Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular)

Multi Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular)

Hydraulic Detachable Gooseneck Lowbed Trailer 4 Axle ,5 Axles ,6 Axles Front Loading With Removable Dolly Trailer with Detachable Gooseneck ( Front loading  Low Boy trailer)



Lowbed Trailer Product Description
Modular low bed trailer equip power gooseneck/ramp

Usage:To transport  rail vehicles, mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders, paver, crane, etc)

Power gooseneck
Power gooseneck low plate
Four line eight axle trailer

200 Ton Multi axle Hydraulic Modular Lowbed Semi Trailer


Type Hydraulic modular trailer
Overall dimension 15500 x 2990 x 1360 mm
Loading weight 200 Ton
Hydraulic station Diesel engine 4100
Min. Turning radius 11.7m
Approaching / depature angle 30 %
Axle 13 ton axle x 20 pcs
Tyre 7.50-15
Suspension hydraulic
Color As your required


Trailers Non Ground Bearing Hydraulic Detachable Gooseneck


Lowboy trailer 60 ~150Ton 4~5~6 axles Hydraulic-neck low-bed trailer ,Heavy Haul Equipment Trailer removable gooseneck tridem-axle low-bed trailer

Lowbed Trailer Hydraulic Detachable Gooseneck Lowbed Trailer 4 Axle ,5 Axles ,6 Axles Front Loading With  Removable Dolly Trailer

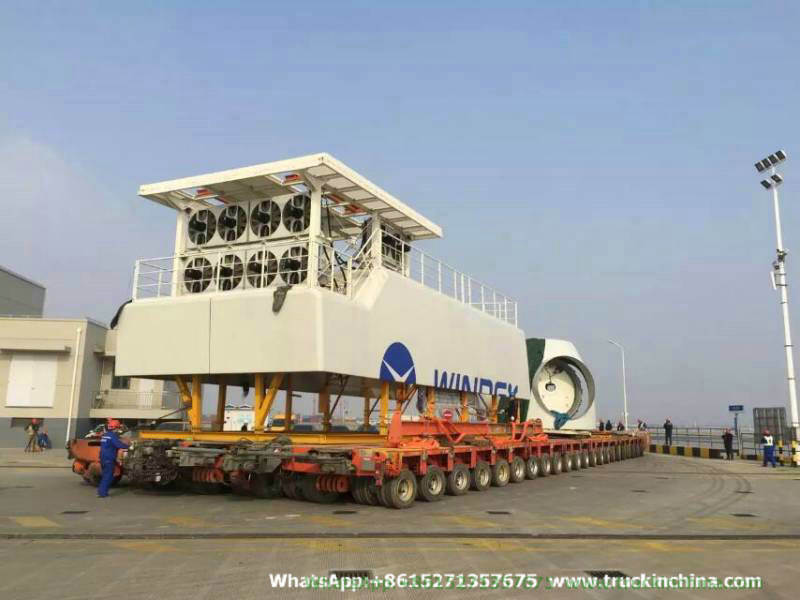

Application of SPMT trailer Self Propelled Modular Transporter
Self propelled modular transporter is a self driving trailer, without the power and assistance from tractor or other vehicles. It is designed and made for heavy duty equipment transport, like the shipyard, tower, bridge. This modular trailer could combine other type of modular trailer vertically or horizontally to fulfill huge project transport, reaches hundreds or thousands tons.

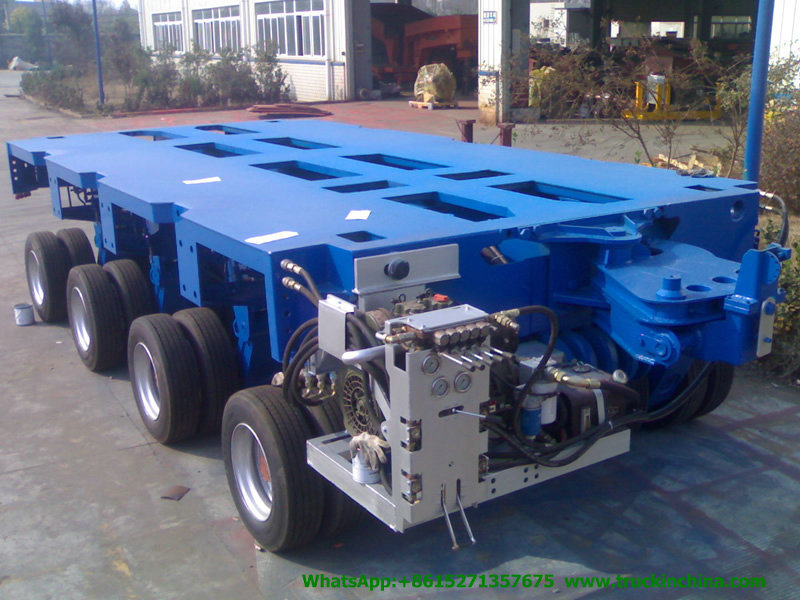

Description of SPMT trailer Self Propelled Modular Transporter.
This is a 8 axle lines self propelled modular transporter. The independent power pack in front of the trailer provide the pressure to the hydraulic system of this trailer, which could control the trailer to move, steer, lift, etc.


Selling point of SPMT trailer Self Propelled Modular Trailer
1.Combined with other modular platform trailer
2.Suitable for extremely heavy loading project


Specification

Dimension
Overall dimension 15000x2500x1350mm
Tare weight 19500kgs
Payload 120Tons
Specification
Chassis Heavy duty and special design steel frame,
Axle YORK axle
Suspension Hydraulic suspension
Spring Hydraulic cylinder
Floor 5mm steel plate
Power Diesel engine as a power pack
Hydraulic system Hydraulic system to control lifting and steering
Tyre 11R22.5
Brake system Pneumatic braking system
Painting Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint
Accessories One standard tool box, one spare tyre carrier


Removable Gooseneck Lowboy Trailer heavy transport Mine dumper


Hydraulic-neck low-bed trailer Front loading  Low Boy trailer
Detaching lowbed neck Gooseneck Trailer Dropping The Low Bed Trailer
OVERSIZE LOAD - REMOVABLE GOOSENECK
HEAVY & OVERSIZE LOAD - REMOVABLE GOOSENECK - MURRAY SEMI-TRAILER

Detaching Removable Gooseneck Lowboy Trailer shiping transport Photos

OVERSIZE LOAD - REMOVABLE GOOSENECK


Gooseneck hydraulic trailers Feature

Multi Axle Steering Axle Low Bed Trailer (5-6 Axles Hydraulic Modular)


REMOVABLE GOOSENECK Lowboy Trailer


Customize  Truck

3 Axle Low Loader Trailer, 60Ton Low Bed Semi-trailer, 60Ton Low Loader Trailer ,3 Axle Low Bed Trailer, Low Loader Trailer, 80 Ton Low Loader Trailer, Bulldozer Low Loader Trailer, Tri Axle Low Bed Trailer

Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer  Drawbar Fulltowing Trailer Trailer Dolly for Sale
4/6/9/10/12 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
