Mobile skid lpg gas plan with 4 digital scales sale price

Views:2022     Author:Dong Runze Special Vehicle      Publish Time: 2017-08-18      Origin:skid mounted LPG tank station

Mobile skid lpg gas plan with 4 digital scales sale price

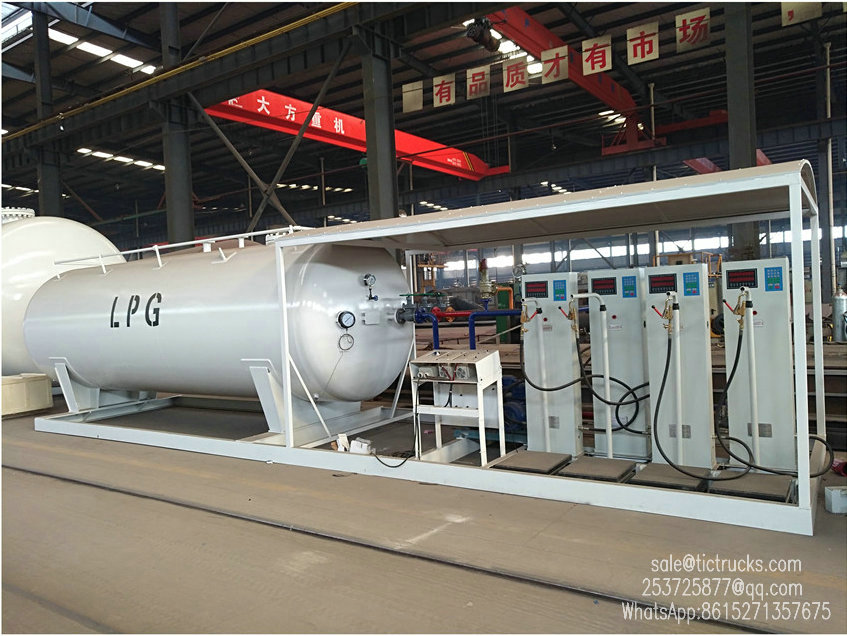

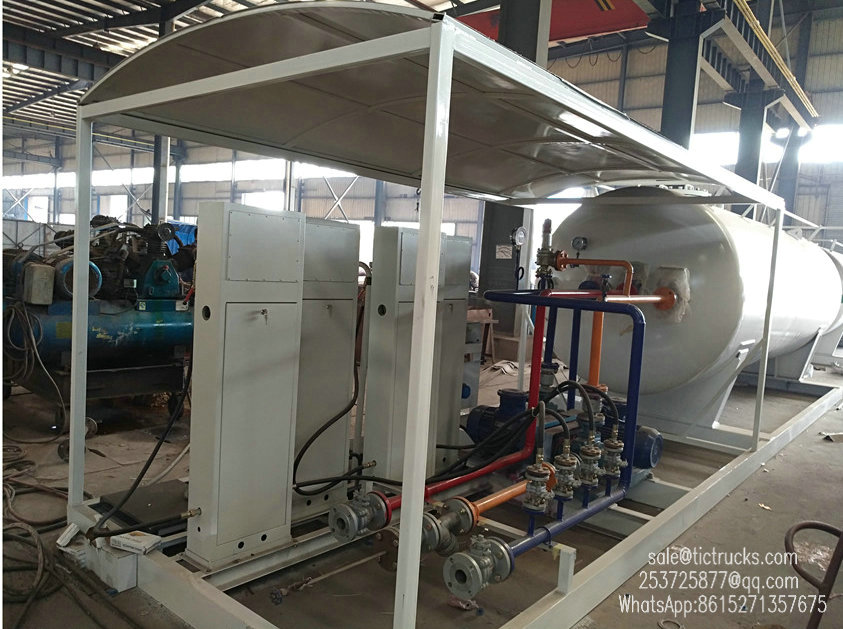

15m3 mobile skid-mounted lpg gas plant with 4 digital scales for filling gas cylinders

skid lpg tank can fill 4 domestic gas cylinders at same time.


main technical parameters of hot sale mobile skid lpg gas plant with digital scales

25ton LPG skid-mounted filling station 60cbm LPG Tank for sale
60M3 LPG SKID Station $52000
50M3 LPG SKID Station $48000
40M3 LPG SKID Station $42000
20M3 LPG SKID Station $24000
12M3 LPG SKID Station $22000
10m3 LPG SKID Station $21000
5m3 LPG SKID Station $19000

Price: $ 22000.00  -  60000.00
Discount Price: $ 19000.00  -  52000.00

new mobile skid lpg gas plan with 4 digital scales_2_1.jpgnew mobile skid lpg gas plan with 4 digital scales_ _1.jpg

Volume of Tank5M3/8M3/10M3/12M3/15M3/20M3/25m3/32m3/40m3/45m3/50m3/60m3
/65m3//80m3/100m3/120m3

Material of Tank and Main Pressure PartsCarbon Steel Q345R
Filling MediumLiquefied Petroleum Gas ( Propane)
Design Pressure1.77 MPa
Corrosion Allowance1 mm
Medium Density0.42tons/ cbm-0.52tons/cbm
Working pressure≤1.6Mpa
Working temperature≤50
Hydraulic test pressure2.22
Air tight test pressure1.77
Filling ratio0.95
Heat treatmentStress relief
Service time15 years
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter,
Pressure gauge, Temperature Gauge.
Skid Parts List will be show in separated page below.

LPG Pump & Motor Specification


Pump    brand lpg gas pump

ModelYQB15-5

MediumLiquid petroleum gas

Working pressure differential≤0.5Mpa

Inlet pressure≤1.0Mpa

Flow Speed15.5m3/h

Applied Power5.5kw

Inlet & Outlet Flange2”NPT / 2" NPT

Revolution

780r/min

mass166kgs

MotorChinese brand

Specification7.5HP(5.5KW), Explosive Proof,
Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable

Lpg gas pump and motor2 sets

LPG Cylinder electronic Filling Machines Specification


Brandanhui Kaiyuan Brand

ModelBCS-150

Power supply available220V 50HZ

Rated power30W

Max weighting capacity150kg

Mini weighting capacity1kg

Measurement Precision±0.5%

Accuracy Level

Certified Division value50g

Anti-explosion RateExhibit II BT4

Weighing station size535*425mm

digital scales No.4 set

More information, please feel free to contact us.
