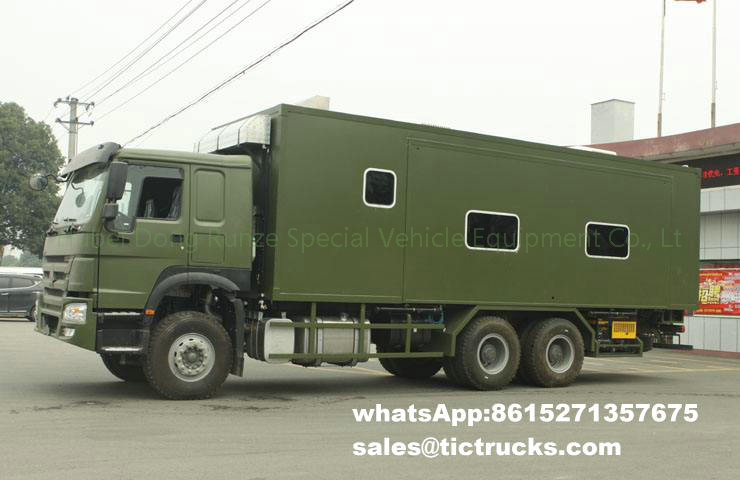

manufacturing and exporting Mobile Clinics. These types of clinics are wide in demand for health organizations, NGOs and defence forces for providing medical services to any area in shortest time possible. We make use of only the rugged quality raw materials for designing these Mobile Clinics. All the latest medical equipments and techniques are installed in these clinics.
Can reach to any remote place
Fully equipped medical services
We are engaged in offering Mobile Clinics to our clients.
It is developed keeping in mind the requirements of the defense forces of the country as well as that of the government bodies, health related organizations, NGO's with allied requirements.
Our products have been designed and made for a high degree of ruggedness from quality materials, under strict quality control procedures as a result these products can more than compete in quality, with similar products of international brands.
We have supplied our spatially designed units to NGO's who have acknowledged our product is value for money.
Mobile Medical Vans. These vans are specially designed for providing doctors and patients the best medical services. We make use of the best grade molded FRP and thermoplastic material for designing the interior surface of the van. This type of Mobile Medical Van ensures excellent medical services even in difficult terrains.
Greater convenience for the patients
Advanced medical facilities
Trauma Van. presents an effective and complete care for emergency situations even in difficult terrains. Best for onsite care, this medical van is well equipped with all the life support systems required for saving organs and maintaining their functions. We are offering this Trauma Van to clients at the competitive price.
Compact and mobile
Quick set up for functioning
Length: 12meter and Width 2.6meter, Beam: Grade 457x 152 x 67kgs. S355 grade, Chassis: Rigid combination of steel section and pressed steel cross members, Capacity: 20 Tons, Tare Weight: 6.8 Tons, Axles: 1×16 BPW model Brand new Axles, Tire: 315/80R22.5, Rim: 9.00×22.5, Landing Legs: FUWA, Electrical System: 24 V electrical systems with 7 pins connector- LED light 4 Tail lights, 10 spot lights, Brakes: 2 line pneumatic system with 2 diaphragm brake chambers per axle, Floor: 3 mm steel chequered plates supported by heavy duty pressed steel channels., King Pin: 2” heavy duty mounted to 10mm thick friction plate., Head Board: Not included, Spare Wheel: Not included, Twist Locks: Not included, Spare wheel Carrier: Space for 1, Accessories: Tool box without tools, mud guard with flaps, access ladder to the flatbed., Warning Signs: Reverse horn, reverse light, break warning light at back including reflecting signs, Reflective tape where needed, Light boxes, Under run bumper, Paint: High grade commercial paint
Fabricate complete framework using 50mm square Box section, External Cladding with 2 / 3mm Aluminum panels, Insulate all 4 walls + Roof with 50mm commercial Styrofoam panels, Added roof insulation and water proofing using GRP Coated ply boards, Insulate all Floor with 50mm commercial Styrofoam panels, External Cladding of floor with 3mm steel sheet, General floor area internal 4mm sheet, X-Ray machine area to be reinforced using 12mm Steel sheet, Rubberized / Linoleum top layer on floor, Closed Rear & Front end bulkhead, Doors: 2 x Kerb + 1 x Road, Grab handle on all side doors, Internal paneling using grey colored laminated ply boards, Slide out foldable steps x 2, Hand rails for steps, Painted in white
The compartment is divided into 4 rooms
Waiting Room which is position in the middle on the compartment
Dr. / Nurse Room with Treatment Room
All areas are designed specifically for the quoted vehicle which will incorporate all listed in this specification.
Work Surface with desk and drawers/storage units to be included.
is designed to accommodate patient and be comfortable while they are waiting for the examination and results, this rooms has various facilities like Television with VCD/DVD player, Rest Room, Sink, hanger for coat and comfortable seat.
Doctor / Nurse and Treatment Room:
Examination Bed with mounted light
19” Flat screen monitor
Portable Ultra sound
Doctors Table and chairs
X-ray control Desk
Laboratory Room including gen set room, AC and water supply room:
Digital Weighing scale
Sphygmomanometer x 2 unit
Stethoscope x 2 unit
X-Ray Room (X-ray unit to be supplied by client):
Is designed and build with 2mm lead sheet to protect from radiation,
Floor will be made up of marine grade plywood and finished with Heavy Duty anti-slip washable Vinyl sheets.
Al edges will be neatly trimmed-off & covered by beadings.
Structural Frame Work & Side Walls:
Body structural frame work will be made up of Mild Steel hollow sections, adequately reinforced with strong goal posts to bear body weight.
The internal & external side walls including roof, front & rear will be covered by thin Aluminium sheets with compressed special hard foam to reduce weight of trailer.
The walls are insulated with a core of PU foam or glass wool or equivalent to form ‘Sandwich’ Panelling
Entrance door, swing-out single-leaf, fitted with stainless steel hinges.
Internal sliding doors for access between rooms/compartments.
Roof ceiling mounted’ Cassette’ type Air-Conditioning units for each room will be supplied and installed by us-
AC units will be powered by on-board generator-Diesel Engine Driven Silent Generator
Prime Ratings Approx.: 25KVA
230/400 V, 3 Phase
Water storage tanks:
Stainless steel/fiber glass water storage tanks for fresh and waste, under floor mounted. Tank capacity 500 liters.
Stainless steel/fiber glass water storage tanks for waste water, under floor mounted, tanks capacity 250 liters.
Water supply lines to wash basins
Water supply via pressure activated pump system
Electrical & Others:
Roof ceiling mounted fluorescent lights
Emergency lighting system
Roof Ventilator for each room
Shoreline connection with plug & socket for external power supply
Electrical cable 50 mtr with reel
Body Top clearance lights
7 way quick release connector
Pair of 24 volts rear lights units, each comprising tail light, rake and signal lights fitted with high intensity bulbs.
Body skirting with various service lids as required, gas
Roof access ladder
Heavy duty rear bumper
Reflective Sticker on bumper
Body side reflectors
Aluminum surface will be primed and finished with 2 coats of polyurethane paint in single ‘White’ color.
All mild steel parts will be grit blasted and coated with polyurethane finish paint.

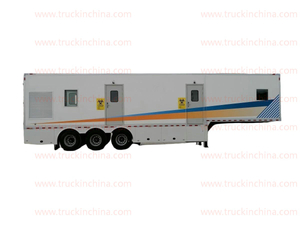

Medical trailers and mobile clinics from allow hospitals, clinics and companies providing medical equipment or services to go on-site to better serve their customers' and patients' needs.
Mobile medical trailers can serve the following functions:
Medical learning labs
Medical sales trailers
Medical product demonstration trailers
Sports medicine trailers
Mobile diabetic treatment
Mobile physical therapy
Mobile health screening trailers
Diagnostics and therapeutic services, among other health services, become more accessible to people when utilizing a medical trailer or mobile clinic.
medical trailers can also serve as a mobile lab or mobile display trailer for companies taking their medical products on site for demonstrations to physicians, surgeons and other medical professionals at hospitals and clinics.
medical trailers are equipped with the latest technology, including optional wireless satellite uplink, allowing instant access to resources and outside communications.
For more information on medical trailers or a mobile clinic, call Specialty Trailer Sales at ：8615271357675
