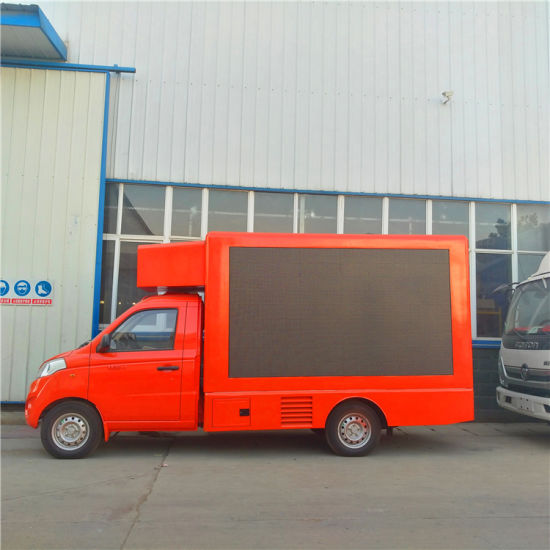

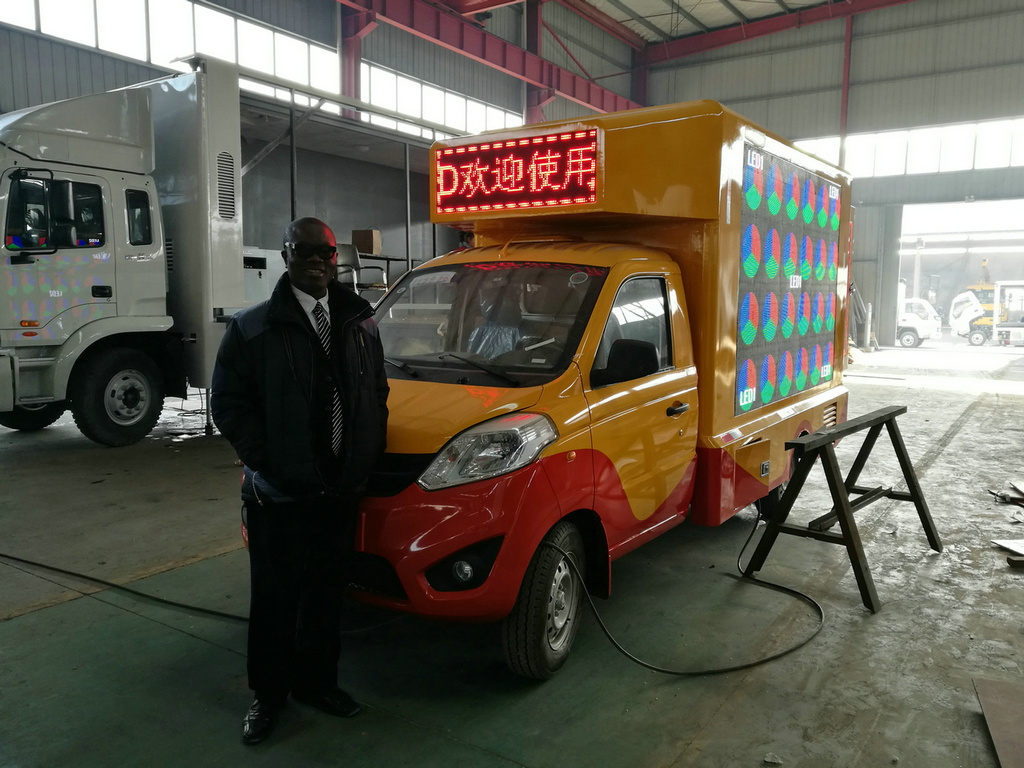

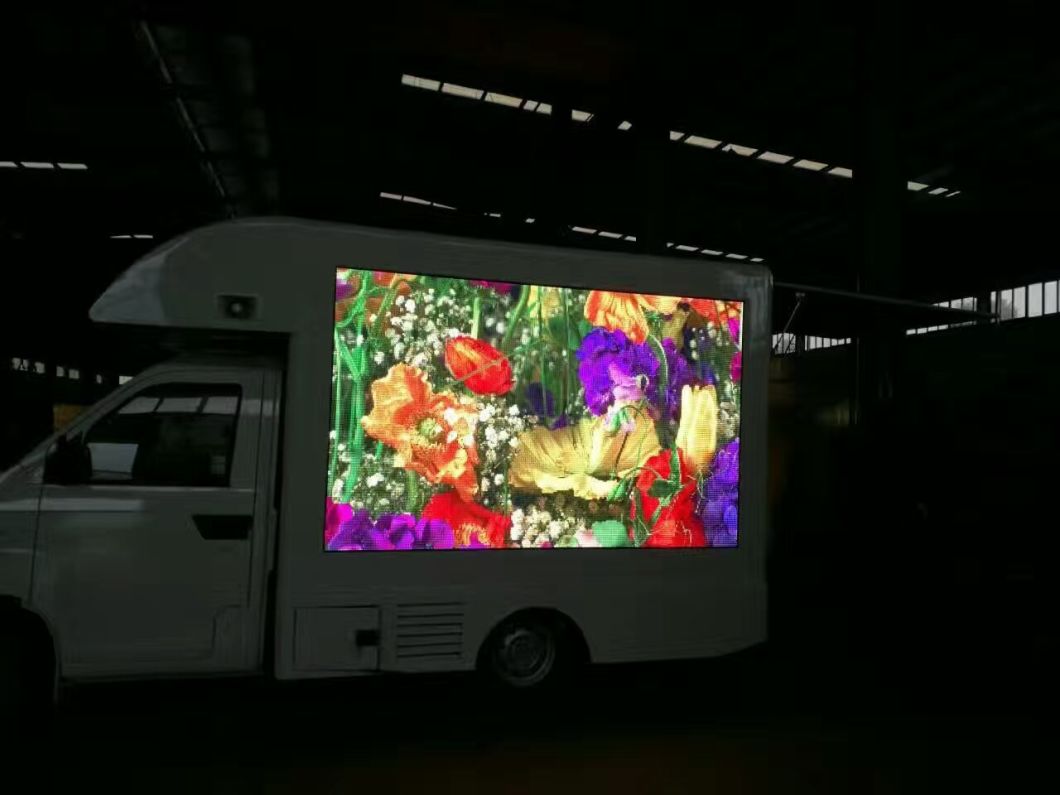

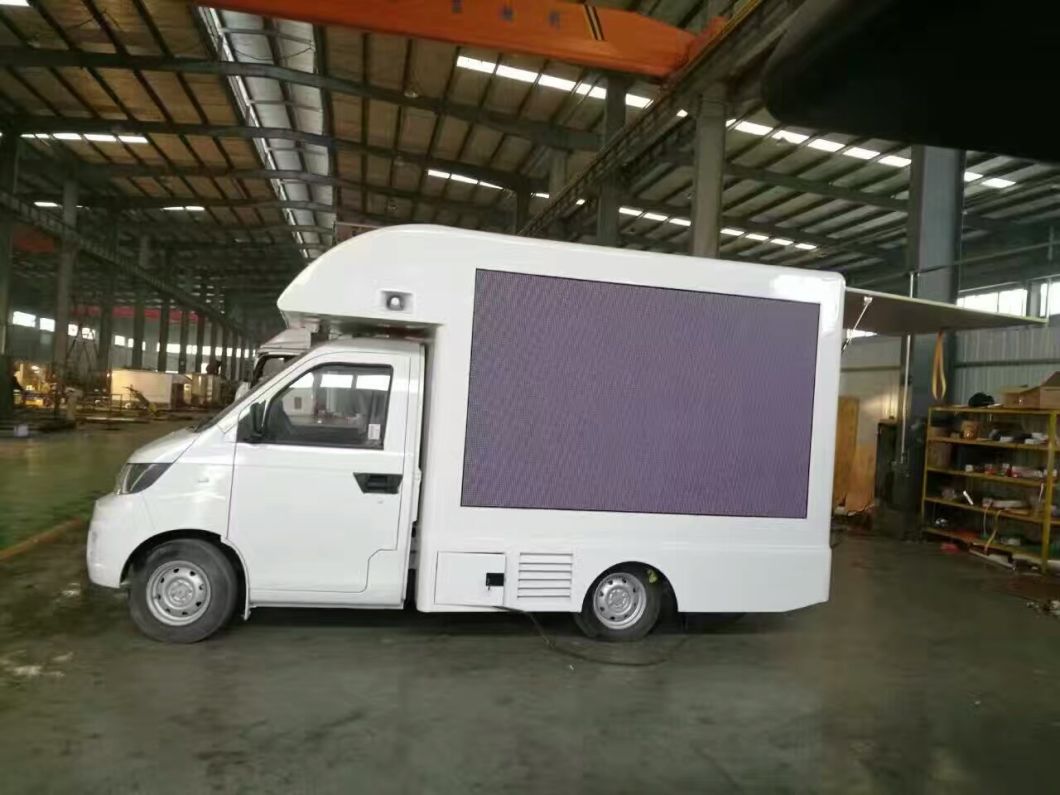

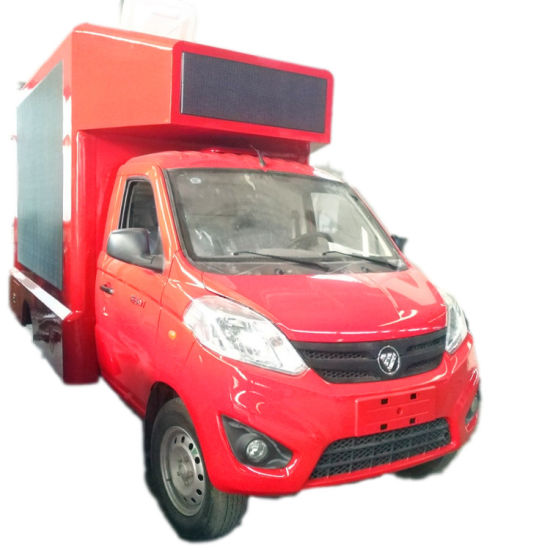

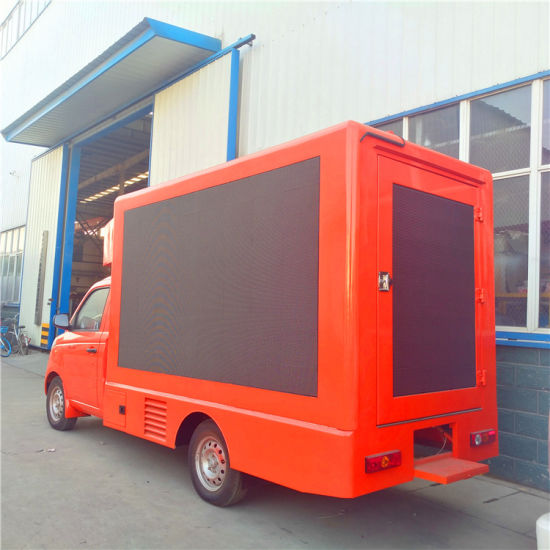

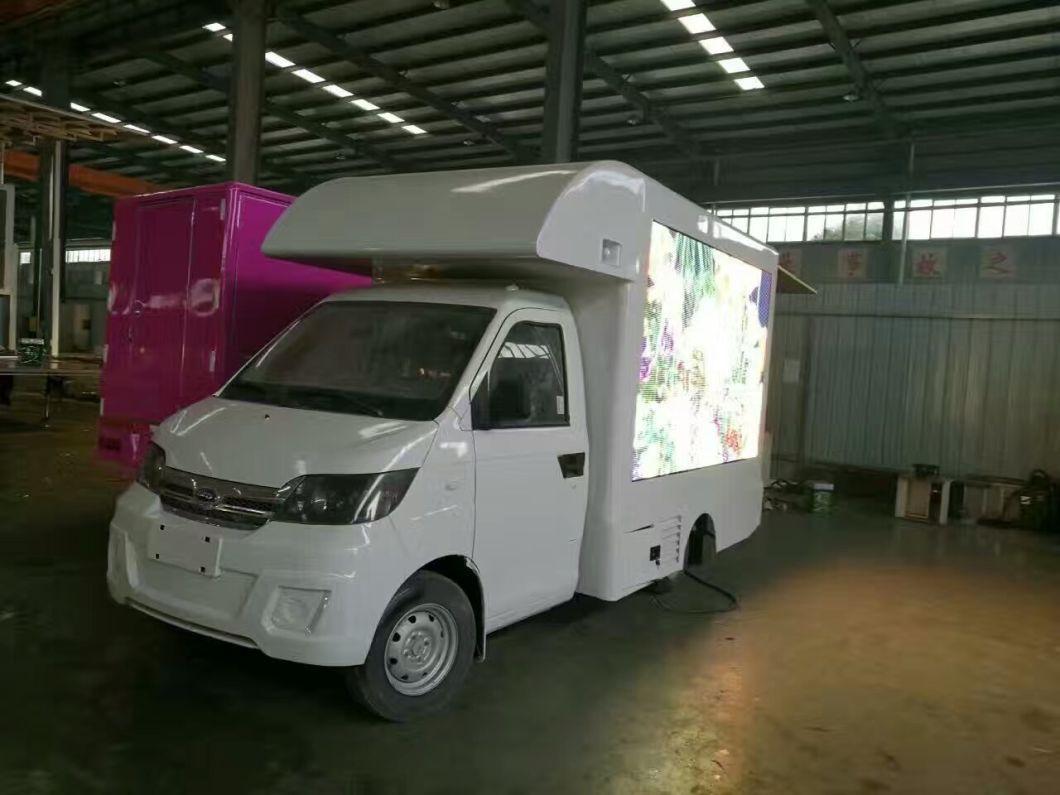

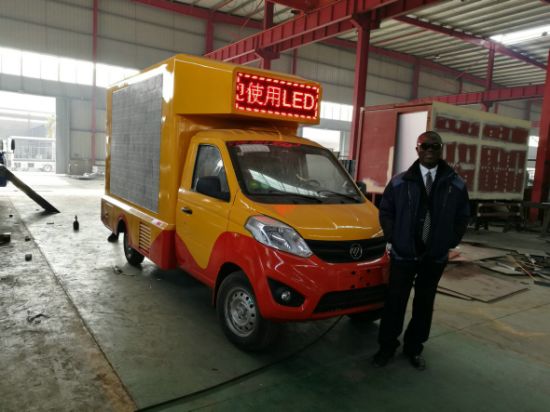

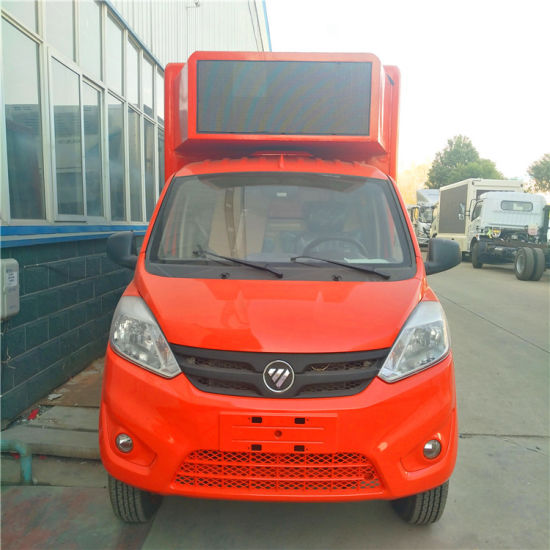

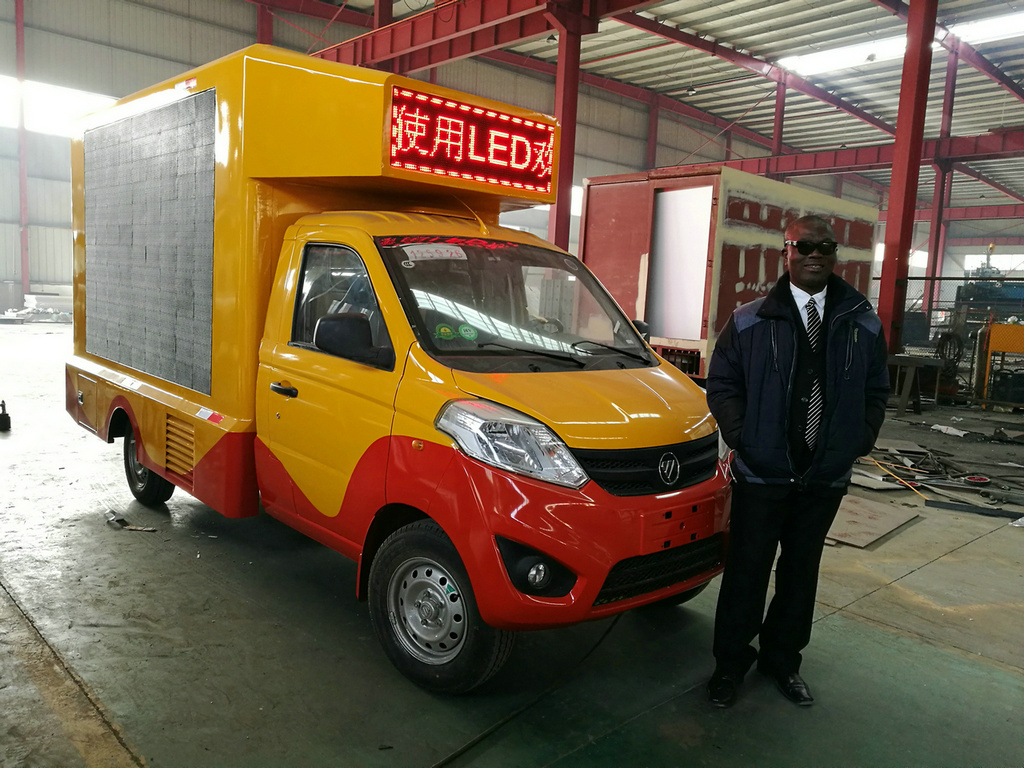

Mini P4 LED Display Truck Foton LED Billboard Van

Mini P4 LED Display Truck Foton LED Billboard Van billboard truck, our mobile billboards, glass walled display trucks, advertising display cubes, bicycle billboard advertising trailer, or the all new LED digital billboard trucks, your ads will not be thrown away, turned off or disregarded
https://youtu.be/I1mkx4SIHoI

Quantity:
  • DRZ5
  • FOTON
  • 8705
  • Shanghai, China
  • 3000
  • T/T

HOWO Truck Mounted Outdoor Advertising  with LED Billboard Display Screen
HOWO Mobile LED Stage Truck

https://youtu.be/I1mkx4SIHoI

LED Billboard,Mobile Led Truck,LED Billboard Truck,LED Billboard Upper Body,Mobile LED Billboard

Outdoor LED Advertising Truck HOWO Mobile LED Stage Truck

1. Factory direct sale led truck, high quality at competitive price.
2. Optional P5/P6/P8 lifting screen, good visual effect.
3. Optional foldable stage with different size, multi-functional usage.
4. World famous chassis brand SINOTRUCK HOWO, most popular for export.Mini P4 LED Display Truck Foton LED Billboard Van
Mini P4 LED Display Truck Foton LED Billboard Van
Mini P4 LED Display Truck Foton LED Billboard Van
Mini P4 LED Display Truck Foton LED Billboard Van
Mini P4 LED Display Truck Foton LED Billboard Van
Mini P4 LED Display Truck Foton LED Billboard Van
Mini P4 LED Display Truck Foton LED Billboard Van
Mini P4 LED Display Truck Foton LED Billboard Van

Mini P4 LED Display Truck Foton LED Billboard Van

Specifications

Vehicle

Driver's cab

Vehicle model

DRZ5046XXCB5 led advertising truck

Brand

Foton OLLIN

Manufacturer

Dong Runze Special Vehicle

Operation control system

Flat head, single row

Overall dimensions

5995X2000X2900

Allowable seats

3

Curb weight

2120

Steering

Left hand drive

Traction system

4×2

Transmission

5-speed with over drive

Max speed

110

Model

Electrically hydraulic control

Axle load

680/1570

Air-conditioning

optional

Chassis

Engine

Chassis model

BJ1049V8JEA-F1

Engine model

4J28TC3

Manufacturer

Beiqi Foton Motor Co., Ltd.

Manufacturer

Beiqi Foton Motor Co., Ltd.

Number of axles

2

Fuel type

diesel

Wheel base

3360

Power

81

Tire specification

7.00R16 8PR,

Engine horse power

110

Number of tires

6+1

Displacement

2771

F/R track base

1530/1485

Emission standard

Euro V

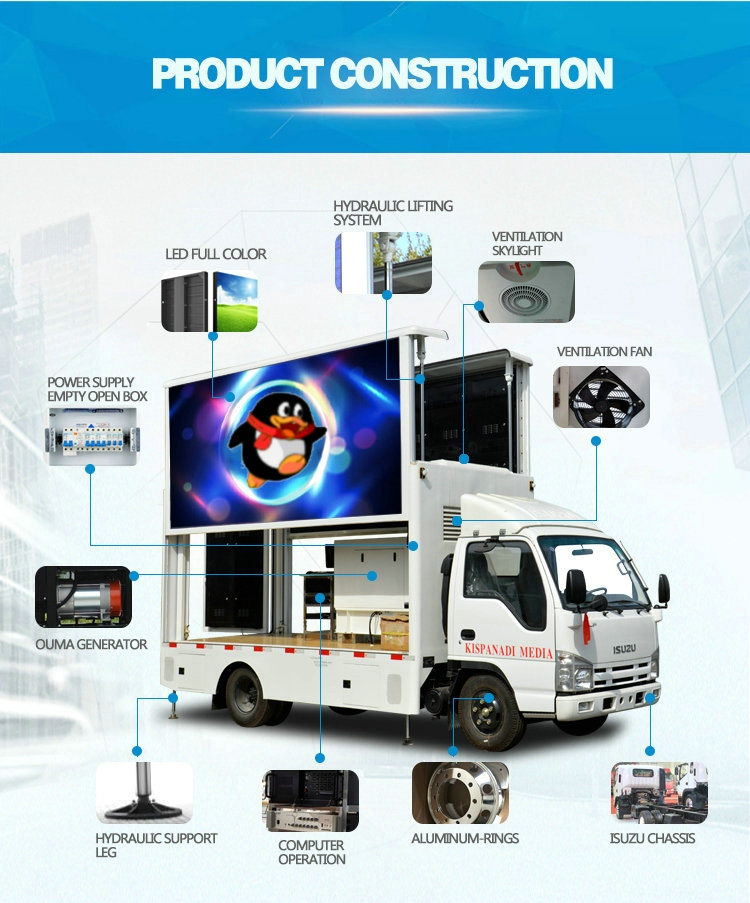

Standard equipment

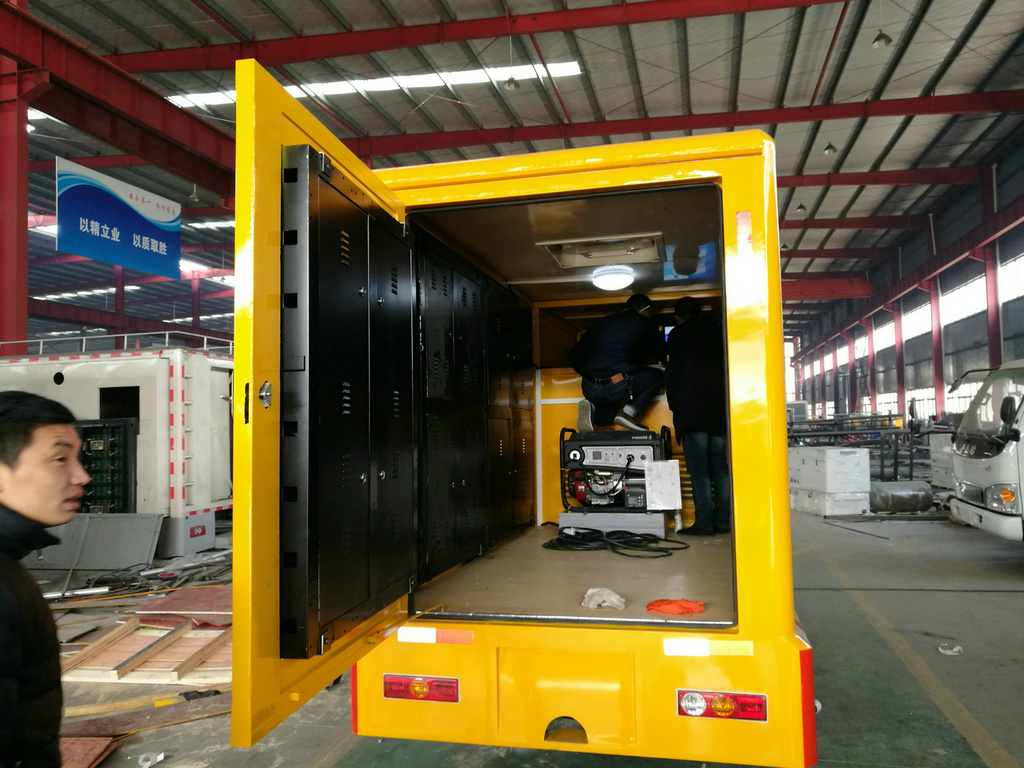

1>       Ouma silent diesel generator;

2>       Loop ventilation cooling system;

3>       One side waterproof P5 full color led screen;

4>       Inside and outside the electric distribution box;

5>       5cm composite steel box, aluminium alloy pattern plate floor;

6>       The other side advertising light box with subtitle; The rear side monochrome screen;

7>       1 industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console.

Options

1.         4 hydraulic legs.

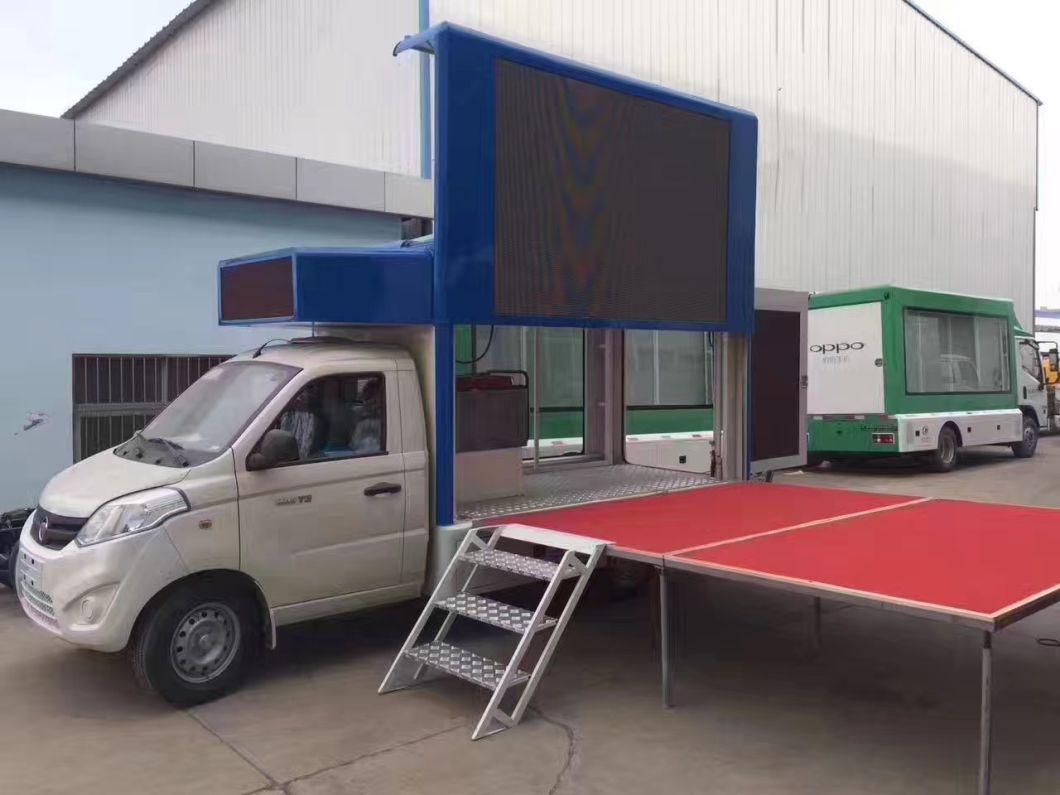

2.         4m2 hydraulic stage.

3.         External stitching stage.

4.         P4 led screen for choose.

5.         Lifting system 1.2m height for side led screen.

6.         Two sides or All round (3-side) LED full color screen.

Color &Painting

According to customer's requirements

FOB Shanghai

USD

Product cycle

15-20 days

Warranty

12 months, from the date of supply

If there is a slight change in the chassis parameters above, please take the actual product as the standard.

Many chassis can be choose: Foton,ISUZU, HOWO, FAW, DFAC, JMC, JAC ect.Product.

Product price should be configured with different vehicles and different coat materials, we recommend that you contact us.

Classification

Item

Unit

Parameter

Vehicle

Vehicle model


DRZ5047XXCZZ4 led advertising truck

Manufacturer


Dong Runze Special Vehicle
Overall dimensions

mm

5995×2025×2995

Curb weight

kg

4300

Traction system


4×2

Max speed

km/h

90

Chassis

Chassis model


ZZ1047C3414D145

Manufacturer


ZhongQi Automobile Co., Ltd

Number of axles


2

Wheel base

mm

3360

Tire specification


7.00-16LT 8PR

Number of tires


6

F/R track base

mm

1605/1520

Engine

Engine model


4DW93-84E4

Fuel type


Diesel

Power

kw

64

Engine horse power

hp

87.04

Displacement

ml

2540

emission standard


Euro III

Driver's cab

Brand


HOWO

Model


Flat head, single row

Allowable seats


2

Steering


Left hand drive

Transmission


5-speed with over drive

Operation control system


Electrically hydraulic control

Air-conditioning


Optional

Standard equipment

1> One side waterproof P8 full color led screen;

2> The other side advertising light box with subtitle;

3> The rear side monochrome screen to display the text;

4> 5cm composite steel box, wooden floor;

5> Inside and outside the electric distribution box;

6> Loop ventilation cooling system;

7> Ouma silent diesel generator;

8>1 industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console.

Color & Painting

According to customer's requirements

FOB Shanghai

USD



Mini P4 LED Display Truck Foton LED Billboard Van

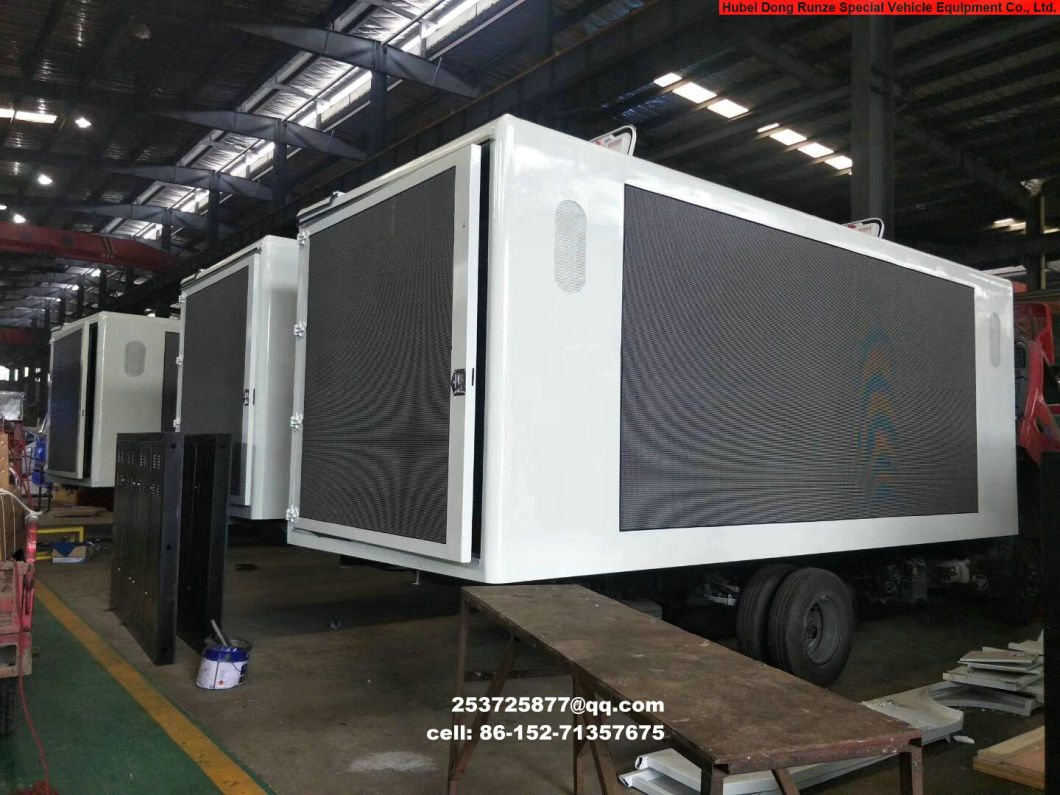

LED Billboard Truck Box Boby Customizing

led screen left and right size

3840*1760mm ( 6.8m2)

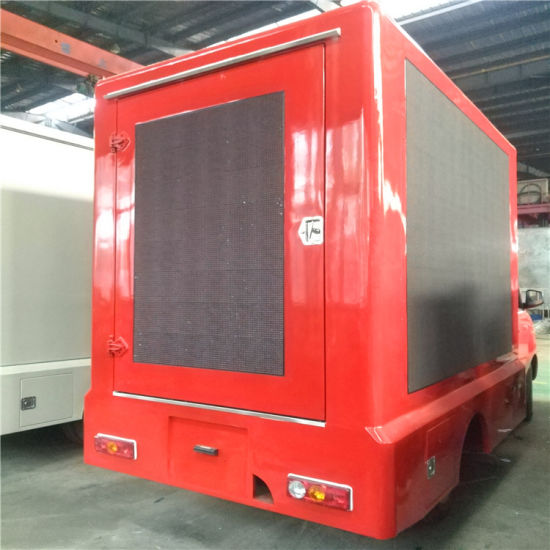

rear door led screen size

1280*1440mm (1.84 m2)


Equipment configuration

1> All 3-sides(right, left, rear side) waterproof P5/P6 full color led screen

2> 5cm composite steel box, wooden floor;

3> Inside and outside the electric distribution box;

4> Loop ventilation cooling system;

5> Ouma silent diesel generator;

6>1 industrial computer with control system, 4 waterproof speakers, 1 amplifier .

Color & painting

According to customer's requirements

Price

P5 full color screen x all 3 sides, $22000-$27000FOB


P6 full color screen x all 3 sides, $20000-$25000FOB

Options

(1) Lifting system 1.5m height for side led screen,  add$900/one side
(2).4 hydraulic legs,add $500
(3) 9.6m2 hydraulic stage, add $700
(4) External stitching stage, add $50/m2

other


LED Truck

wheelbase

LED Billboard body size

5995×2030×2980

3300

P8 :3840*1792=6.88

P6 : 3840*1728=6.65

Rear Screen :1280*1440=1.84

5995×2050×3100

3308

5595*2025*2995

3360

5995×2100×3050

3300

5995×2000×2900

3360

5995*2040*2990

3360

5595*2025*2995

3360

5990*1990*2950

3300

5995*2030*3050

3360

5995*2150*2900

3360

8760*2365*3675

4700

P8:5376*2304=12.38

P6:  5376*2304=12.38

Rear Screen 1600*1600=2.56

7290*2330*3350

3800

P8:4864*2048=10

P6:  4800*2112=10.13

Rear Screen 1600*1600=2.56

5250*1900*2750

2800

P8:2560*1536=3.93

P6:2496*1536=3.83

Rear Screen 960*1280=1.64

5100*1710*2640

3070

P8:2304*1536=3.54

P6:2496*1536=3.83

Rear Screen 960*1280=1.64

5000*1960*2590

2900

4650*1700*2400

2765

P8:2304*1408=3.14

P6:2304*1345=3.1

1. Mobile LED advertising trucks is also named as mobile LED screen trucks, LED advertising vehicles, LED mobile advertising vehicles, LED media cars, LED propaganda vehicles, LED stage trucks, digital led screen display trucks, etc.


2. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.


3. One side waterproof P6/P8/P10 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.


4. Optional1-side, 2-sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surroundings.

Mini P4 LED Display Truck Foton LED Billboard Van

Mini P4 LED Display Truck Foton LED Billboard Van
