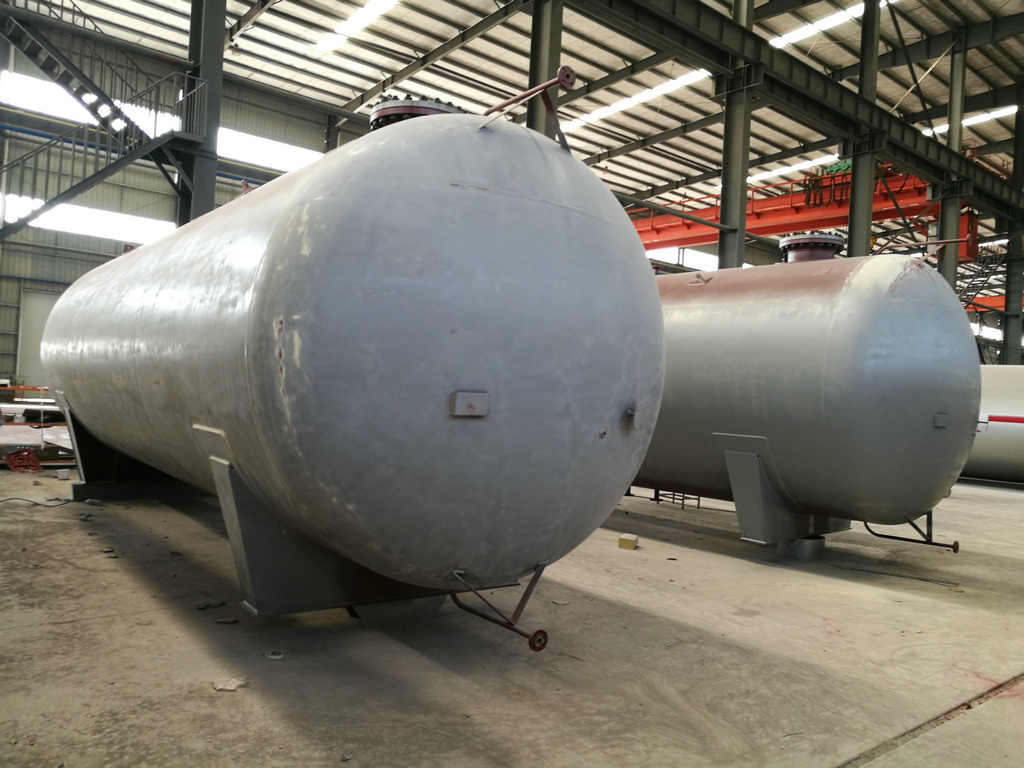

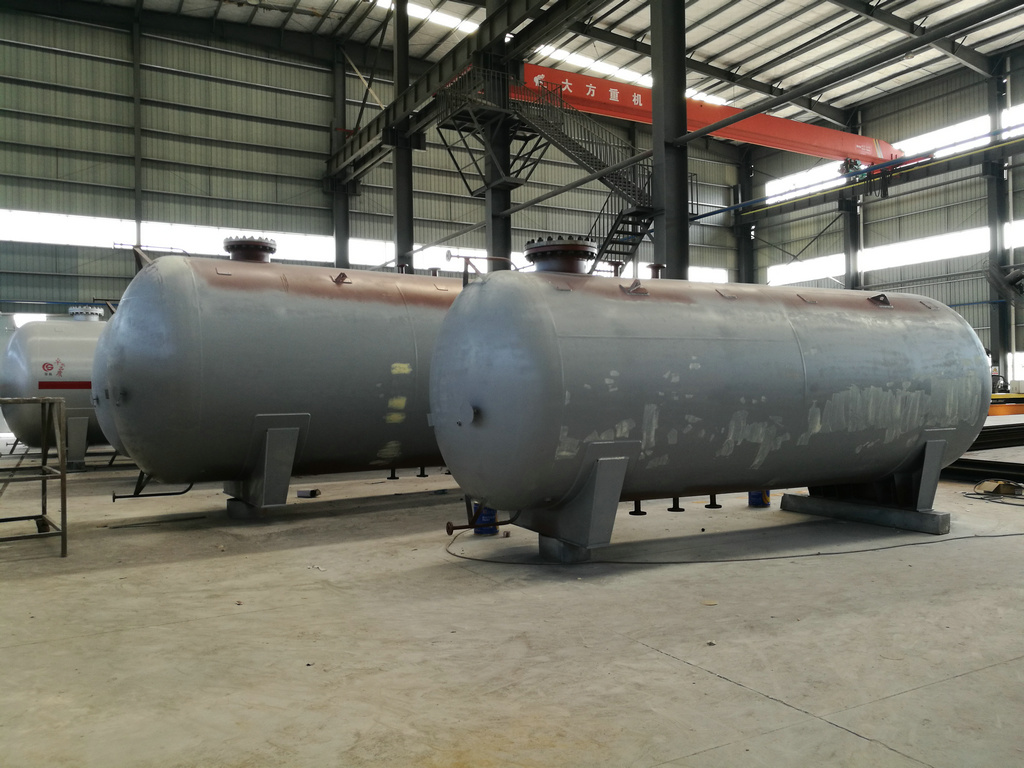

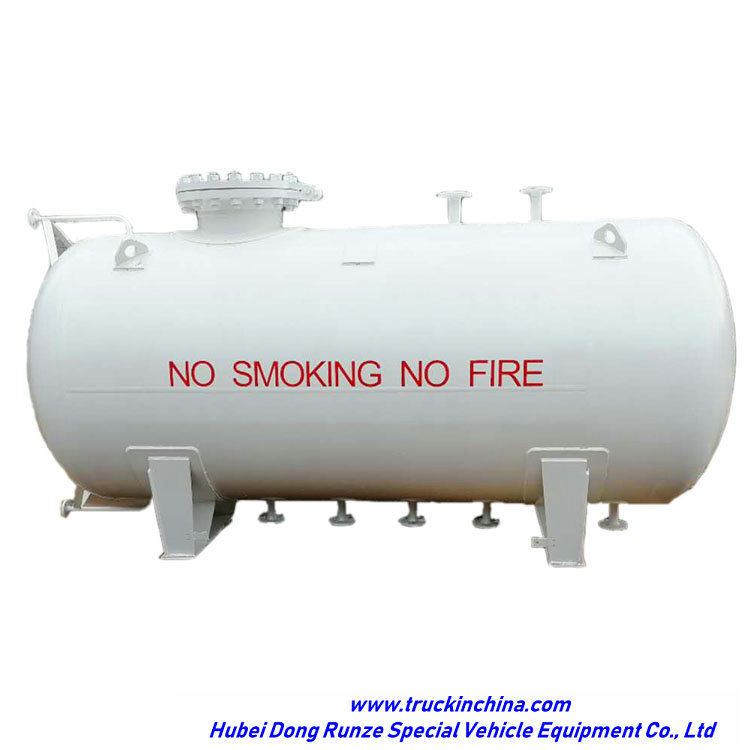

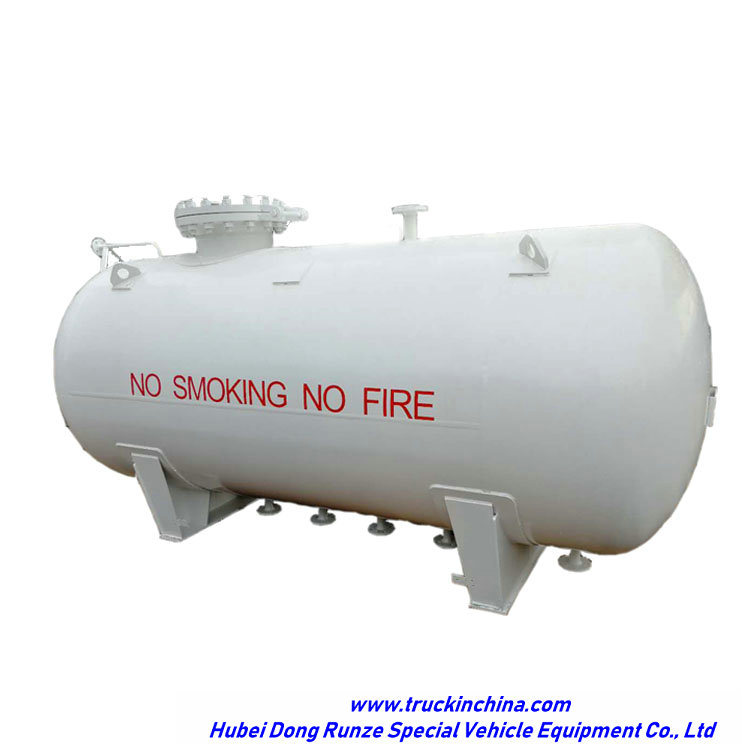

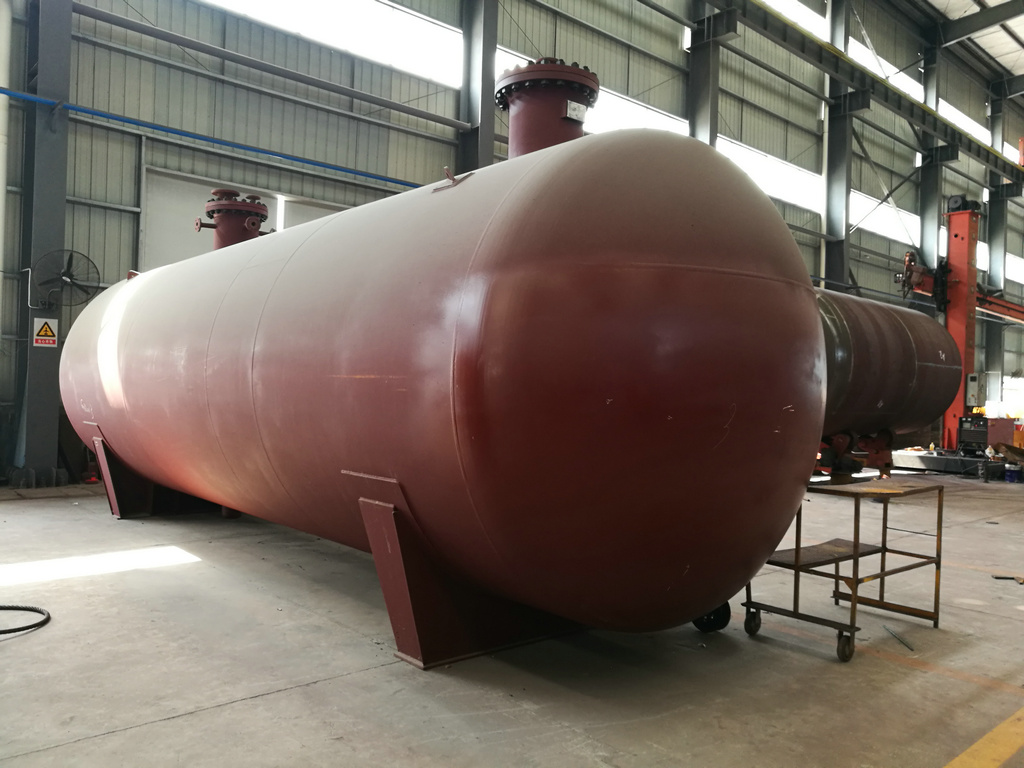

Mini 500 Gallons (1.89m3) Propane LPG Small Pressure Tank 1 Ton Cooking Gas Storage (LPG, DEM, Isobutane, cooking gas)
Quantity: | |
---|---|
storage tanks and stationary storage tanks, including above-ground storage tanks, underground storage tanks, horizontal storage tanks, and vertical storage tanks etc., which is customized according to the customers' requirement.
Technical Specifications
Design Codes: ASME BPVC -1/-2,GB/T 150,JB/T 4732
Vessel Capacity: 0.5m3~1000m3
Vessel Material: SA-516, SA-612,Q370R etc.
SPECIFICATIONS for 1.89 m3 LPG Storage Tank | |
Storage tank Model | DRZ-180101-02 |
Water capacity | 1.89 -5m³ |
Tank weight under hydrostatic test | 2400 kg |
Tank empty weight | 510 kg |
Design pressure | 1.724 MPa |
MAWP | 1.724 MPa AT 51.7ºC |
Loading | LP Gas ,cooking Gas |
Design Temperature | 51.7ºC |
MDMT | -20ºC AT 0.7MPa |
Corrosion allowance | 0 |
Air-leackage test pressure | 1.724/null |
Hydro. or PNUMATIC test pressure | 2.25/1.897 MPa |
Minimum required thickness of shell | 11.61 mm |
Minimum required thickness of head | 10.57 mm |
Main material | SA-516 GR.70 AS-ROLLED |
Design& manufacturing standard, regulation for supervision & Inspection | ASME Boiler and Pressure Vessel Code, SECT. VIII. DIV. I, 2017ED |
LPG propane tank parameters are only for your reference. We offer a complete range of tank sizes from 5000 liters to 100,000 liters and in both horizontal and vertical vessels.
Volume (L) | Design Pressure (Mpa) | Shell Size (Dia*length*thick) mm | Total Size (Dia*height*length) mm | Material | Net Weight (kg) |
5000 | 1.77 | 1200*4000*10 | 1220*1650*4794 | Q345R alloy steel | 2330 |
10000 | 1.77 | 1600*4400*10 | 1620*2400*5300 | Q345R | 2800 |
15000 | 1.77 | 1800*5250*12 | 1824*2600*6300 | Q345R | 4250 |
25000 | 1.77 | 2200*5800*12 | 2224*3000*7100 | Q345R | 5850 |
30000 | 1.77 | 2200*7100*12 | 2224*3000*8400 | Q345R | 6800 |
45000 | 1.77 | 2600*7500*14 | 2628*3400*9000 | Q345R | 9770 |
50000 | 1.77 | 2600*8500*14 | 2628*3400*10000 | Q345R | 10800 |
Tank | Volume (m³) | loading mass (ton) | standard and configuration | |
1 | Liquid ammonia tank | 10 | 5.2 | Execution standard: GB150 "pressure vessel" and "fixed pressure vessel safety technology and supervision code" design pressure: 21.6 design temperature: 50 ° c filling ratio: 0.52 corrosion allowance: material: 2 mm subject Q345R |
2 | 20 | 10.4 | ||
3 | Liquid ammonia tank | 25 | 13 | |
4 | 32 | 16.64 | ||
5 | Liquid ammonia tank | 50 | 26 | |
6 | 60 | 32.2 | ||
7 | Liquid ammonia tank | 80 | 41.6 | |
8 | 100 | 46.8 |
Main parameter of ASME LPG storage tank
Technical Specification | Parameter | |
Tank | Tank name | LPG storage tank |
Model | DT3100-100LAG | |
Overall dimensions | 13024*3244*3830 mm | |
Inner diameter | 3200mm | |
Vessel type | on the ground | |
Designing pressure | 1.91 Mpa | |
Working pressure | 1.61 Mpa | |
Designing temperature | -19~50 | |
Filling medium | Liquid petroleum/propane gas | |
Corrosion margin | 1.00 mm | |
Curb weight | 49400kg | |
Full capacity | 100m³ | |
Heat treatment | Bulk | |
Filling factor | 520 Kg/ m³ | |
Tanker & pressure parts material | Q345R | |
Hydraulic test pressure | 2.22 Mpa | |
Gas tight test pressure | 1.91 Mpa | |
Produce standard | ASME standard and GB150 standard | |
Optional accessories | afety valve,SCL-UHZ(magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc. | |
Liquid indicator | Model | UHZ-518C14 |
Version | Magnetic | |
Nominal pressure | 2.5 Mpa | |
Scope of testing | 50~2500 mm | |
precision | 2.5 | |
Safety Valve | Model | A42F-2.5-80 |
Version | Built-in | |
Nominal pressure | 2.5 Mpa | |
Nominal radius | DN80 | |
Opening pressure | 1.68-1.76 Mpa | |
Re-seating pressure | ≥0.8 Mpa opening pressure | |
Handling System | Feed pipe | DN80 |
Drain pipe | DN80 | |
Admission port | DN50 | |
Sewage outfall port | DN80 | |
Vent nozzle port | DN80 |
Tanker LPG gas tanker series list:

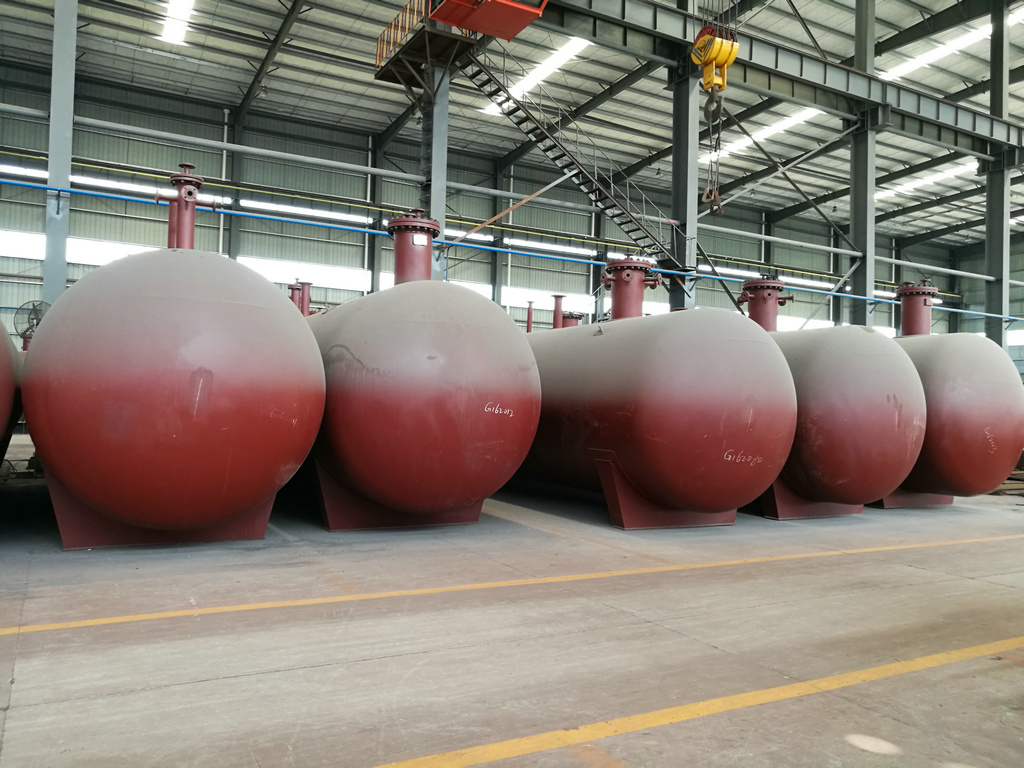

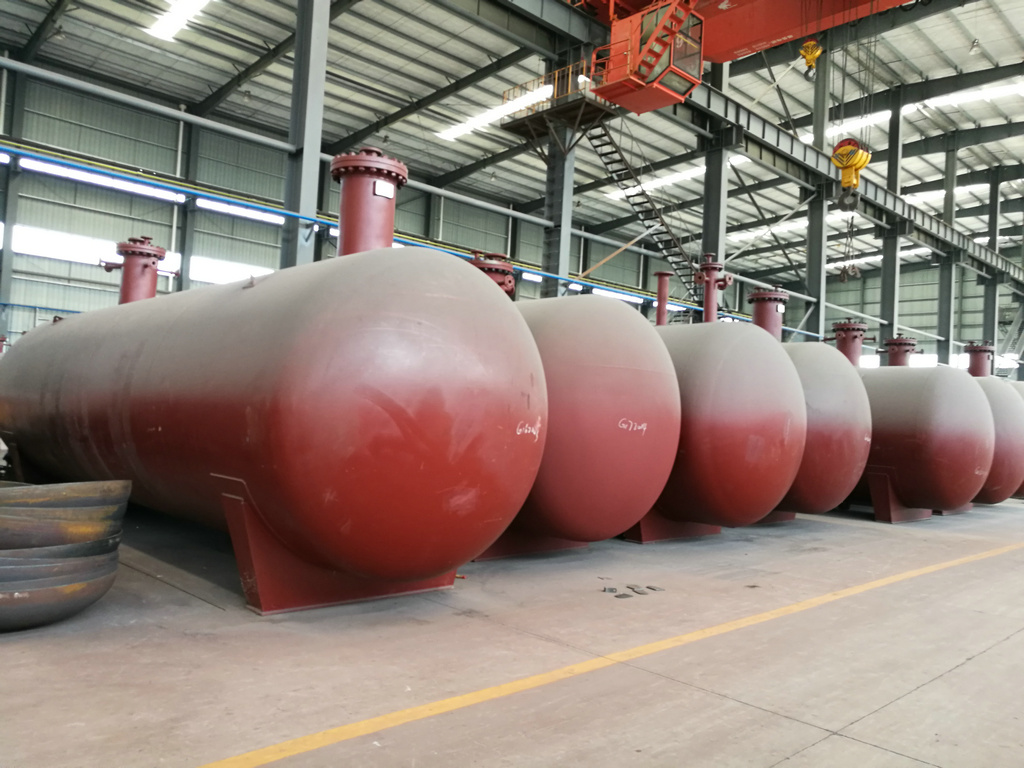

Storage tanker (Under ground Horizontal type)
S/N | Name | Model number | Volume | Tanker dimensions(L×W×H) | Thickness of raw material (MM) | Seal head type | Loading weight (KG) | Tanker weight(KG) | Others |
1 | lpg storage tank | DT1600-12 | 12 m3 | 6270×1620×2255 DN1600×10 | δ10 | Double oval | 4840 | 3298 | |
2 | lpg storage tank | DT2100-25 | 25 m3 | 7594×2124×2877 DN2100×12 | δ12 | Double oval | 10080 | 5688 | |
3 | lpg storage tank | DT2400-32 | 32 m3 | 7508×2428×3007 DN2400×14 | δ14 | Double oval | 12902 | 7460 | |
4 | lpg storage tank | DT2400-50 | 50 m3 | 11483×2428×3028 DN2400×14 | δ14 | Double oval | 20160 | 10824 | |
5 | Propane gas storage tanker | DT2600-50 | 50 m3 | 9912×2628×3215 DN2600×14 | δ14 | Double oval | 20160 | 10229 | |
6 | Propane gas storage tanker | DT3000-80 | 80 m3 | 11866×3032×3610 DN3000×16 | δ16 | Double oval | 32256 | 17900 | |
7 | Propane gas storage tanker | DT3200-100 | 100 m3 | 13010×3236×3716 DN3200×18 | δ18 | Double oval | 40320 | 21228 | |
8 | Liquid ammonium storage tanker | DT2000-20 | 20 m3 | 6806×2028×2611 DN2000×14 | δ14 | Double oval | 10188 | 5585 | |
9 | Liquid ammonium storage tanker | DT2200-32 | 32 m3 | 8914×2232×2810 DN2200×16 | δ16 | Double oval | 16301 | 8795 |
