Military Truck Dongfeng 6x6 truck 7.6T.m Palfinger crane

Availability:
Quantity:

 6x6 Military Truck off road truck  Palfinger crane

 Dongfeng 6x6 truck 7.6T.m Palfinger



Crane  6x6 Military Truck off road truck with crane



         Items




         Descriptions




         Specifications




         General




         Vehicle name




         Off road truck




         Driving type




         6x6




         The total mass(kg)




         10740




         Curb weight(kg)




         6920




         Payload weight (kg)




         5000




         Overall dimensions (mm)




         7650x2470x2740




         Cargo box size(mm)




         4270x2294x550




         Engine




         Fuel type




         Diesel




         Engine brand




         Cummins




         Engine model




         B190-33




         Engine power(kw)




         140




         Displacement(ml)




         5900




         Emission standard




         Euro III




         Chassis




         Chassis model




         EQ2102GJ




         Steering wheel




         Left hand drive




         Axle




         3




         Front/rear axle load(T)




         3410/8240




         Tire specification




         12.5R20




         Wheelbase (mm)




         3500+1250




         Wheel tread(mm)




         1876/1870




         Front/rear suspension(mm)




         1385/1515




         Approach/departure angle




         35/34




         Top speed(km/h)




         90



 6x6 truck crane specification EURO 4





       Chassis mould        DFS5160GLJ        Compartment length
       Total weight (kg)        16050        Approach / departure angle (° )        35/30
       Rated the quality (kg)        7900        Front overhang / rear overhang (mm):        1385/1625
       Curb weight(kg)        7955        Max speed(km/h):        95
       Axle load        4020/6015/6015





       Chassis information
       Number of axes        3        Type of fuel        Diesel
       Wheelbase (mm):        3500+1250        Front track (mm):        1916
       passage:        3        Rear track (mm):        1876/1876
       Number of tires        6        Number of spring        10/12
       Tire Specifications        12.5R20






       Engine info
       Engine Model        Engine Manufacturer        Displacement (ml)        Horse power
       YC6J180-42
       ISDe185 40
       Guangxi Yuchai
       Dongfeng cummins
       6494
       6700
       180HP
       195HP

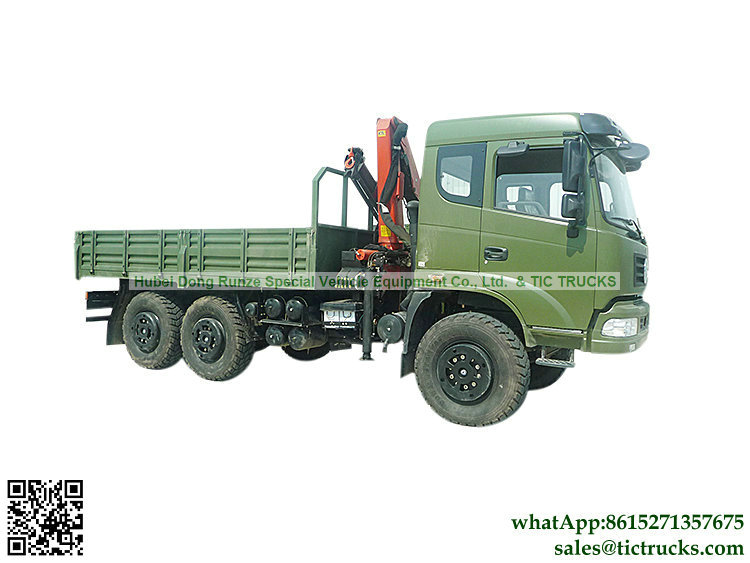

 6x6 truck crane picture

 Project parameters
 Lifting moment: T.m 7.6
 Max weight: Kg 3300
 Swivel angle: a 400
 Rotary torque: T.m 0.9
 Maximum working pressure: Mpa 31.5
 Recommended pump: l/min 25-35
 Hydraulic telescopic arm quantity: 1 2 (a), 3 (b)
 Maximum work rate: 5.7 m 7.6 m 9.6 m
 Machine weight: 875 Kg 950 Kg 1018 Kg
