Manhole Cover YOJE Series

Manhole Cover YOJE Series
Availability:
Quantity:

  YOJE series manhole cover  European standard system



       Serial number        unit        unit price
       manhole (flanged)-RKG-AL-560  20inch       unit        $210~580USD
       manhole (flanged)-RKG-AL-580  20inch       unit       $230~580USD
       manhole(clamp)- RKG 20inch       unit       $192~380USD

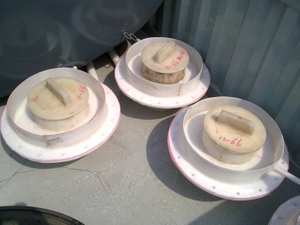

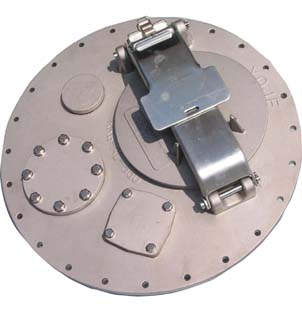

 YOJE RKG series manhole cover is installed on the top of oil tanker and used for loading oil ,checking gas recovery,mending the internal inlet.

 Also can protect the tanker under the emergency. When loading oil,the outside temperature’s change will lead the tanker’s inside pressure to change. Then the manhole cover’s breathing valve can automatically make the tanker pressure to the normal level. If some emergency happen ,  like the tanker overturn,the breathing valve will automatically close to avoid the tanker’s explosion when under the fire condition..


Feature:

 All types manhole cover has the breathing valve

 Breathing valve's different pressure set can fit different operation requirement

 Breathing valve has the automatically seal's function,can avoid leakage under emergency

 Fit EN13317:2002 standard

  RKG-P-530
 YOJE RKG series manhole cover 2012082335351701

   Material:

 Body: SS

 Handle: SS

 Safety locker: SS

 Seal: PTFE

 Parameter:




         Size


       20"


         Working pressure




         0.3MPA




         Install way




         Welding




         Material




         SS 304/316




         Medium




         oil




         Temperature




         -50 to 200 ℃





 RKG-6306YOJE RKG series manhole cover RKG-6306


 Material:

 Body: Steel

 Breathing valve: AL alloy

 Handle: steel

 Safety locker: SS

 Seal: NBR



       Size

         20"




         Breathing valve




         10"




         Pressure resistance




         0.254MPA




         Open pressure




         21KPA-32KPA




         Max air flow rate




         7000m⊃3; /H




         Connect way




         Clamped




         Temperature




         -20 to 70 ℃





 RKG-6308
 YOJE RKG series manhole cover  RKG-6308


 Material:

 Body: Steel

 Breathing valve: AL alloy

 Handle: steel

 Safety locker: SS

 Seal: NBR




       Size

         16"




         Breathing valve




         10"




         Pressure resistance




         0.254MPA




         Open pressure




         21KPA-32KPA




         Max air flow rate




         7000m⊃3; /H




         Connect way




         Clamped




         Temperature




         -20 to 70 ℃





 RKG-6306C
 YOJE RKG series manhole cover RKG-6306C


 Material:

 Body: steel

 Breathing valve: AL alloy

 Handle: steel

 Safety locker: SS

 Seal: NBR



       Size

         20"




         Breathing valve




         10"




         Pressure resistance




         0.254MPA




         Open pressure




         21KPA-32KPA




         Max air flow rate




         7000m⊃3; /H




         Connect way




         Clamped




         Temperature




         -20 to 70 ℃





 RKG-6308C
 YOJE RKG series manhole cover RKG-6308C


 Material:

 Body: Steel

 Breathing valve: AL alloy

 Handle: steel

 Safety locker: SS

 Seal: NBR



       Size

         16"




         Breathing valve




         10"




         Pressure resistance




         0.254MPA




         Open pressure




         21KPA-32KPA




         Max air flow rate




         7000m⊃3; /H




         Connect way




         Clamped




         Temperature




         -20 to 70 ℃





 RKG-580E

 YOJE RKG series manhole cover  RKG-580E
 Material:

 Body: Casting AL alloy

 Breathing valve: AL alloy

 Handle: steel

 Safety locker: Brass

 Seal: NBR



       Size

         20"




         Breathing valve




         10"




         Pressure resistance




         0.254MPA




         Open pressure




         21KPA-32KPA




         Max air flow rate




         7000m⊃3; /H




         Connect way




         Flange




         Temperature




         -20 to 70 ℃





 RKG-560E

 YOJE RKG series manhole cover RKG-560E
 Material:

 Body: Casting AL alloy

 Breathing valve: AL alloy

 Handle: steel

 Safety locker: Brass

 Seal: NBR




       Size

         20"




         Breathing valve




         10"




         Pressure resistance




         0.254MPA




         Open pressure




         21KPA-32KPA




         Max air flow rate




         7000m⊃3; /H




         Connect way




         Flange




         Temperature




         -20 to 70 ℃





 RKG-460E

 YOJE RKG series manhole cover RKG-460E
 Material:

 Body: Casting AL alloy

 Breathing valve: AL alloy

 Handle: steel

 Safety locker: SS

 Seal: NBR



       Size

         16"




         Breathing valve




         10"




         Pressure resistance




         0.254MPA




         Open pressure




         21KPA-32KPA




         Max air flow rate




         7000m⊃3; /H




         Connect way




         Flange




         Temperature




         -20 to 70 ℃





 RKG-AL-560

 YOJE RKG series manhole coverRKG-AL-560
 Material:

 Body: Casting AL alloy

 Breathing valve: AL alloy

 Handle: steel

 Safety locker: SS

 Seal: NBR



       Size

         20"




         Breathing valve




         10"




         Pressure resistance




         0.254MPA




         Open pressure




         21KPA-32KPA




         Max air flow rate




         7000m⊃3; /H




         Connect way




         Flange




         Temperature




         -20 to 70 ℃





 RKG-AL-460

 YOJE RKG series manhole cover  RKG-AL-460
 Material:

 Body: Casting AL alloy

 Breathing valve: AL alloy

 Handle: steel

 Safety locker: SS

 Seal: NBR



       Size

         16"




         Breathing valve




         10"




         Pressure resistance




         0.254MPA




         Open pressure




         21KPA-32KPA




         Max air flow rate




         7000m⊃3; /H




         Connect way




         Flange




         Temperature




         -20 to 70 ℃





 RKG-S-560

 YOJE RKG series manhole cover RKG-S-560
 Material:

 Body: steel

 Breathing valve: AL alloy

 Handle: steel

 Safety locker: SS

 Seal: NBR


       Size

         20"




         Breathing valve




         10"




         Pressure resistance




         0.254MPA




         Open pressure




         21KPA-32KPA




         Max air flow rate




         7000m⊃3; /H




         Connect way




         Flange




         Temperature




         -20 to 70 ℃
