Liquid Gas Storage Tank Cryogenic LNG Tank ~100m3
| Availability: | |
|---|---|
| Quantity: | |
Propane Storage Tank LPG / HN3 /LNG/CO2 storage tank gas cylinder Portable Design Code ASME
Liquid gas Storage Tank~100m3
Online
Tom
TomPropane Storage Tank LPG / HN3 /LNG/CO2 storage tank gas cylinder Portable Design Code ASME
Liquid gas Storage Tank~100m3
Online Tom
LPG /NH3/ LNG/CO2 Storage tank 10~200m3 Ammonia Gas Cylinder, Ammonia Rail Tank, Ammonia Sphere, Ammonia Spherical Tank, Ammonia Storage Tank, Ammonia Tank, Ammonia Transport Semitrailer, Argon Tanks, Bulk LPG Storage Tanks, Butane Gas Tank, Butane Storage Tanks, Carbon Dioxide Gas Tank, Chlorine Gas Tank, CNG Storage Tanks, CO2 Gas Tanks, CO2 Generation Plant, CO2 Liquid Tanker, CO2 Recovery Plant, CO2 Storage Tank, Ethylene Gas Tank, Ethylene Oxide Tank, Ethylene Tank, Fixed Roof Tank , gas cylinder Portable
Cryogenic Liquid Storage Tank is widely used for steel mills, gas production, welding, cutting, military industry and other industries with high purity required liquid.Economic,secure and reductive cost of gas is currently preferred to liquid storage vessel in industry.Cryogenic liquid storage tanks with vacuum powder adiabatic type can be divided to two categories,vertical and horizontal.according to the loading medium contents,we select austenitic stainless steel material, namely 304(0Gr18Ni9),according to different users’ area,we select different material. Outside the container Q235B or Q345R, internal and external container sandwich fill vacuum perlite insulation materials.
Technical Parameter
l Cryogenic Liquid Storage Tank
Technical Parameter
| Insulation Type | Vacuum powder insulation/high vacuum multi-layer wrap insulation and other insulation material |
| Capacity | 1M3 —350 M3 |
| Working Pressure | 0.2MPa—3.5 MPa |
| Medium | LOX,LIN,LAr,LNG,LCO2,Ethylene etc. |
l Liquid Carbon Dioxide Storage Tank
Technical Parameter
| Insulation Type | Vacuum powder insulation |
| Capacity | 1M3 —350 M3 |
| Working Pressure | 0.2MPa—3.5 MPa |
| Medium | LCO2 |
l LNG Storage Tank
Technical Parameter
| Insulation Type | Vacuum powder insulation |
| Capacity | 50M3 —150 M3 |
| Working Pressure | 0.2MPa—0.8 MPa |
| Medium | LNG |
T: 86 722 3308751, F: 86 722 3309186, M:8615271357675
LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
Design,Manufacture,Installation,Commissioning,Maintenance
| 16680kg | 15700kg | LOX :18354kg, LAr:21830kg, LIN:13041kg | LOX :18354kg, LAr:20800kg, LIN:13041kg |
| Ф2412X11742mm | Ф2412X5834mm | Ф2412X5604mm | Ф2412X5604mm |
| 12192X2438X2591mm | 6058X2438X2591mm | ||
| LNG | LCO2 | LOX、LIN、LAr | |
| 0.7MPa | 2.2 MPa | 0.8MPa | 1.6MPa |
| -162℃～50℃ | -40℃～50℃ | -196℃～50℃ | -196℃～50℃ |
| 41.5m3 | 17.06m3 | 17.5m3 | 17.5m3 |

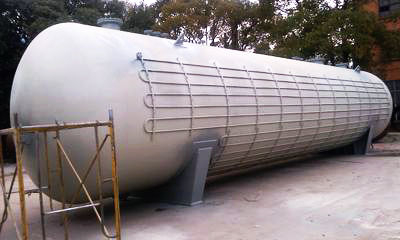

Main Technical features of the LPG Storage Tank station:
| Product Model | DT-LPG-TK3 |
| Structural form | Integral type, separated type |
| Install Method | Above-ground, under-ground |
| System Approach | Double pump system, single pump system |
| Storage Tank Volume(M⊃3;) | 5, 6, 10,15,20, 30 , 40 , 50 , 60 |
| Design pressure of storage tank | 1.77Mpa |
| Design pressure of pipe | 2.5Mpa |
| Opening pressure of safety valve | 1.75Mpa |
| Ambient Temperature | -40-55°C |
| Ambint Humidity | 10~95% |
| Dimension of skid-mounted body | Up to customer's requirement |
TIC TRUCKS , www.truckinchina.com
LPG /NH3/ LNG/CO2 Storage tank 10~200m3 Ammonia Gas Cylinder, Ammonia Rail Tank, Ammonia Sphere, Ammonia Spherical Tank, Ammonia Storage Tank, Ammonia Tank, Ammonia Transport Semitrailer, Argon Tanks, Bulk LPG Storage Tanks, Butane Gas Tank, Butane Storage Tanks, Carbon Dioxide Gas Tank, Chlorine Gas Tank, CNG Storage Tanks, CO2 Gas Tanks, CO2 Generation Plant, CO2 Liquid Tanker, CO2 Recovery Plant, CO2 Storage Tank, Ethylene Gas Tank, Ethylene Oxide Tank, Ethylene Tank, Fixed Roof Tank , gas cylinder Portable
Cryogenic Liquid Storage Tank is widely used for steel mills, gas production, welding, cutting, military industry and other industries with high purity required liquid.Economic,secure and reductive cost of gas is currently preferred to liquid storage vessel in industry.Cryogenic liquid storage tanks with vacuum powder adiabatic type can be divided to two categories,vertical and horizontal.according to the loading medium contents,we select austenitic stainless steel material, namely 304(0Gr18Ni9),according to different users’ area,we select different material. Outside the container Q235B or Q345R, internal and external container sandwich fill vacuum perlite insulation materials.
Technical Parameter
l Cryogenic Liquid Storage Tank
Technical Parameter
| Insulation Type | Vacuum powder insulation/high vacuum multi-layer wrap insulation and other insulation material |
| Capacity | 1M3 —350 M3 |
| Working Pressure | 0.2MPa—3.5 MPa |
| Medium | LOX,LIN,LAr,LNG,LCO2,Ethylene etc. |
l Liquid Carbon Dioxide Storage Tank
Technical Parameter
| Insulation Type | Vacuum powder insulation |
| Capacity | 1M3 —350 M3 |
| Working Pressure | 0.2MPa—3.5 MPa |
| Medium | LCO2 |
l LNG Storage Tank
Technical Parameter
| Insulation Type | Vacuum powder insulation |
| Capacity | 50M3 —150 M3 |
| Working Pressure | 0.2MPa—0.8 MPa |
| Medium | LNG |
T: 86 722 3308751, F: 86 722 3309186, M:8615271357675
LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
Design,Manufacture,Installation,Commissioning,Maintenance
| 16680kg | 15700kg | LOX :18354kg, LAr:21830kg, LIN:13041kg | LOX :18354kg, LAr:20800kg, LIN:13041kg |
| Ф2412X11742mm | Ф2412X5834mm | Ф2412X5604mm | Ф2412X5604mm |
| 12192X2438X2591mm | 6058X2438X2591mm | ||
| LNG | LCO2 | LOX、LIN、LAr | |
| 0.7MPa | 2.2 MPa | 0.8MPa | 1.6MPa |
| -162℃～50℃ | -40℃～50℃ | -196℃～50℃ | -196℃～50℃ |
| 41.5m3 | 17.06m3 | 17.5m3 | 17.5m3 |
Main Technical features of the LPG Storage Tank station:
| Product Model | DT-LPG-TK3 |
| Structural form | Integral type, separated type |
| Install Method | Above-ground, under-ground |
| System Approach | Double pump system, single pump system |
| Storage Tank Volume(M⊃3;) | 5, 6, 10,15,20, 30 , 40 , 50 , 60 |
| Design pressure of storage tank | 1.77Mpa |
| Design pressure of pipe | 2.5Mpa |
| Opening pressure of safety valve | 1.75Mpa |
| Ambient Temperature | -40-55°C |
| Ambint Humidity | 10~95% |
| Dimension of skid-mounted body | Up to customer's requirement |
TIC TRUCKS , www.truckinchina.com
