LPG Storage Tank Technical 60cbm Bulk LPG Gas Tank 60000liters (30ton LPG Gas) Storage
| Quantity: | |
|---|---|
-
Shanghai, China
-
8000
-
T/T
Propane design pressure of 1.77 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.42 T/M3
Design of liquid ammonia pressure of 2.16 MPa design temperature 50 ºC corrosion allowance 2 mm density of 0.52 T/M3
Propane design pressure of 2.16 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.43 T/M3
Liquid sulfur dioxide design pressure of 0.98 MPa design temperature 50 ºC corrosion allowance 4 mm density of 1.2 T/M3
Gas pressure is 4.1 MPa design temperature 50 ºC corrosion allowance of 1.4 mm
Isobutane design pressure of 0.79 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.49 T/M3
Dimethyl ether design pressure of 1.15 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.58 T/M3

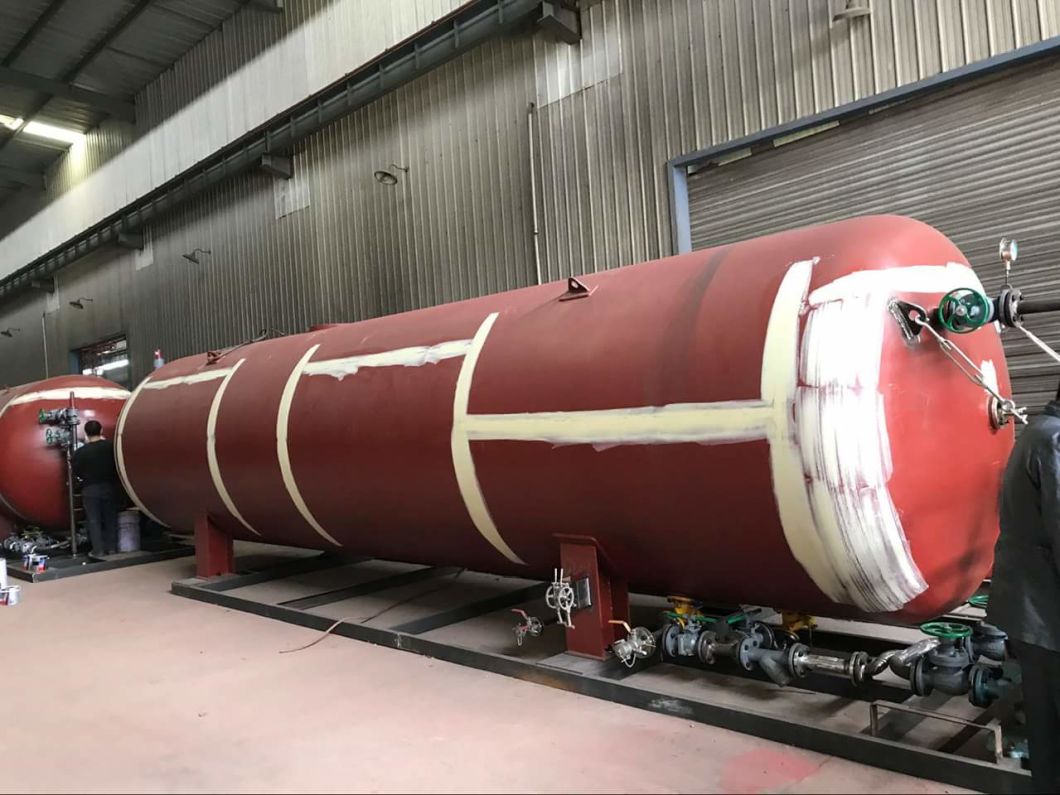

Detail Picture

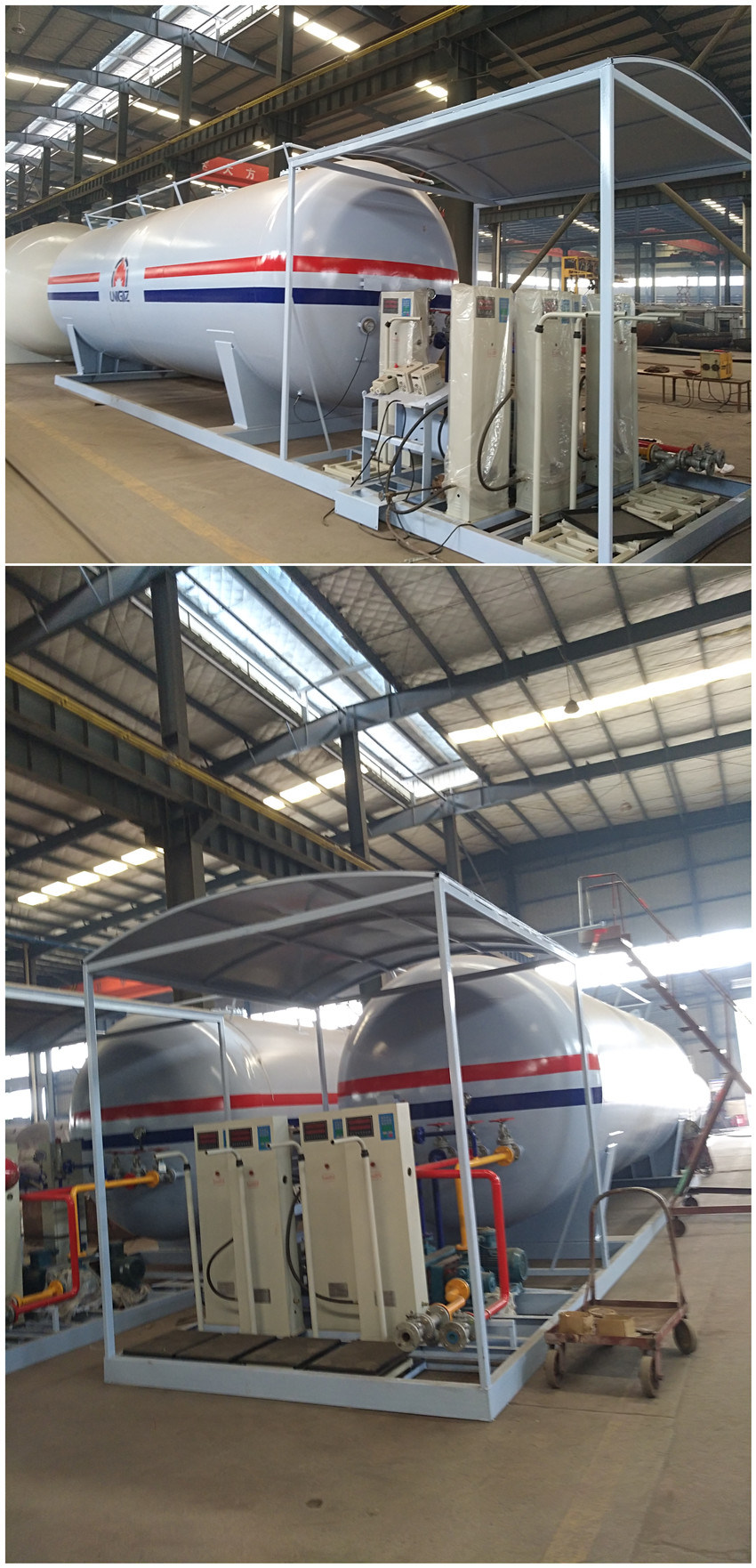

Nigerian Design 21ton Above Ground LPG Tank 50cbm LPG Skid Mounted Station LPG Mounted Tank Filling Station cooking gas tank station underground propane tank
| NO. | model | design pressure | Cylinder size (diameter * tube length * wall thickness mm) | Dimensions (outside diameter * total height / total length mm) | Material | Total net weight(kg) |
| 1 | 10m/10000L | 1.77MPa | 1600*4400*10 | 1620*2400*5300 | Q345R | 2800 |
| 2 | 15m/15000L | 1.77MPa | 1800*5250*12 | 1824*2600*6300 | Q345R | 4250 |
| 3 | 25m/25000L | 1.77MPa | 2200*5800*12 | 2224*3000*7100 | Q345R | 5850 |
| 4 | 30m/30000L | 1.77MPa | 2200*7100*12 | 2224*3000*8400 | Q345R | 6800 |
| 5 | 45m/45000L | 1.77MPa | 2600*7500*14 | 2628*3400*9000 | Q345R | 9770 |
| 6 | 50m/50000L | 1.77MPa | 2600*8500*14 | 2628*3400*10000 | Q345R | 10800 |
| P.S:We can produce according to your request, you need the model,To provide you with the best quality, best price, best service | ||||||
| Technical Specification | Parameter | |
| Tank | Tank name | LPG storage tank |
| Overall dimensions | 13024*3244*3830 mm | |
| Inner diameter | 3200mm | |
| Vessel type | on the ground | |
| Designing pressure | 1.91 Mpa | |
| Working pressure | 1.61 Mpa | |
| Designing temperature | -19~50 | |
| Filling medium | Liquid petroleum/propane gas | |
| Corrosion margin | 1.00 mm | |
| Curb weight | 49400kg | |
| Full capacity | 100m³ | |
| Heat treatment | Bulk | |
| Filling factor | 520 Kg/ m³ | |
| Tanker & pressure parts material | Q345R | |
| Hydraulic test pressure | 2.22 Mpa | |
| Gas tight test pressure | 1.91 Mpa | |
| Produce standard | ASME standard and GB150 standard | |
| Optional accessories | safety valve, SCL-UHZ (magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc. | |
| Liquid indicator | Model | UHZ-518C14 |
| Version | Magnetic | |
| Nominal pressure | 2.5 Mpa | |
| Scope of testing | 50~2500 mm | |
| precision | 2.5 | |
| Safety Valve | Model | A42F-2.5-80 |
| Version | Built-in | |
| Nominal pressure | 2.5 Mpa | |
| Nominal radius | DN80 | |
| Opening pressure | 1.68-1.76 Mpa | |
| Re-seating pressure | ≥0.8 Mpa opening pressure | |
| Handling System | Feed pipe | DN80 |
| Drain pipe | DN80 | |
| Admission port | DN50 | |
| Sewage outfall port | DN80 | |
| Vent nozzle port | DN80 | |
LPG pump: America Corken brand, Blackmer brand and China famous brand pump.
LPG explosive proof motors: ABB, SIEMENS, China famous local brand can be chosen from.
LPG filling machine: LPG dispenser for autogas; LPG eletrical filling scales for cylinders filling; LPG auto type filling scales for cylinder filling and other special requirement about the filling machine can be customized products.
LPG compressor can be Corken, Blackmer, China local brand and other famous brand.
LPG flow meter: LC brand, China copy brand and other famous brand.
LPG Accessory brand: REGO, FISHER, MEC, ROCHESTER and other standard or brand accessory and China local famous brand accessory can be available.
1) lpg storage tank capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.
2) lpg storage tank material
Q345R Q370R SA516
3) lpg storage tank production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
Technical Parameter for 30tons lpg storage tank
Item | Parameter | ||
Tank | Description of LPG tank | 60CBM LPG storage tank | |
Overall dimensions (mm) | 10962*2728*3318 | ||
Curb weight(kg) | 12750 | ||
Filling weight(kg) | 30000 | ||
Type of vessel | The third kind | ||
Design pressure | 1.77MPa | ||
Max working pressure | 1.61MPa | ||
Design temperature | -19~50ºC | ||
Filling medium | Liquid petroleum gas (propane) | ||
Corrosion allowance | 1.0mm | ||
Volume | 60 CBM | ||
Thermal treatment | The entirety | ||
Filling capacity | 420~450kg/CBM | ||
Material of the tank | Q345R | ||
Hydraulic test pressure | 2.22 M Pa | ||
Gas tight test pressure | 1.77 M Pa | ||
Cylinder thickness | 14mm | ||
Head thickness | 16mm | ||
Service life | 15 years | ||
Accessory for the LPG storage tank | |||
Liquid level indicator | Type | UNZ-518C14 | |
Version of the indicator | Magnetic type liquid level indicator | ||
Normal pressure | 2.5M Pa | ||
Scope of testing | 50-2300mm | ||
Precision | 2.5 | ||
Safety valve | Model | A42F-2.5-80 | |
Version | Built-in | ||
Normal pressure | 2.5 M Pa | ||
Normal diameter | DN80 | ||
Opening pressure | 1.68~1.76MPa | ||
Re-seating pressure | 0.8 times of the opening pressure | ||
Loading and unloading system | Normal diameter | Feed pipe | DN50 |
Drain pipe | DN50 | ||
Admission port | DN50 | ||
Sewage outfall port | DN50 | ||
Vent nozzle port | DN50 | ||
Standard | GB150 | ||
Safety fitting for selection | Safety valve, column magnetic liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. | ||
Specification | Designed Pressure: 1.66Mpa Filling Ratio: 0.42 kg/L Working Temperature:-50ºC Corrosion Allowance: 1mm | ||
Detailed pics for 60cbm lpg gas storage tank ASME LPG storage tank
| Technical Specification | Parameter | |
| Tank | Tank name | LPG storage tank |
| Model | DT3100-100LAG | |
| Overall dimensions | 13024*3244*3830 mm | |
| Inner diameter | 3200mm | |
| Vessel type | on the ground | |
| Designing pressure | 1.91 Mpa | |
| Working pressure | 1.61 Mpa | |
| Designing temperature | -19~50 | |
| Filling medium | Liquid petroleum/propane gas | |
| Corrosion margin | 1.00 mm | |
| Curb weight | 49400kg | |
| Full capacity | 100m³ | |
| Heat treatment | Bulk | |
| Filling factor | 520 Kg/ m³ | |
| Tanker & pressure parts material | Q345R | |
| Hydraulic test pressure | 2.22 Mpa | |
| Gas tight test pressure | 1.91 Mpa | |
| Produce standard | ASME standard and GB150 standard | |
| Optional accessories | afety valve,SCL-UHZ(magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc. | |
| Liquid indicator | Model | UHZ-518C14 |
| Version | Magnetic | |
| Nominal pressure | 2.5 Mpa | |
| Scope of testing | 50~2500 mm | |
| precision | 2.5 | |
| Safety Valve | Model | A42F-2.5-80 |
| Version | Built-in | |
| Nominal pressure | 2.5 Mpa | |
| Nominal radius | DN80 | |
| Opening pressure | 1.68-1.76 Mpa | |
| Re-seating pressure | ≥0.8 Mpa opening pressure | |
| Handling System | Feed pipe | DN80 |
| Drain pipe | DN80 | |
| Admission port | DN50 | |
| Sewage outfall port | DN80 | |
| Vent nozzle port | DN80 | |
Tanker LPG gas tanker series list:
Storage tanker (Under ground Horizontal type)
S/N | Name | Model number | Volume | Tanker dimensions(L×W×H) | Thickness of raw material (MM) | Seal head type | Loading weight (KG) | Tanker weight(KG) | Others |
1 | lpg storage tank | DT1600-12 | 12 m3 | 6270×1620×2255 DN1600×10 | δ10 | Double oval | 4840 | 3298 | |
2 | lpg storage tank | DT2100-25 | 25 m3 | 7594×2124×2877 DN2100×12 | δ12 | Double oval | 10080 | 5688 | |
3 | lpg storage tank | DT2400-32 | 32 m3 | 7508×2428×3007 DN2400×14 | δ14 | Double oval | 12902 | 7460 | |
4 | lpg storage tank | DT2400-50 | 50 m3 | 11483×2428×3028 DN2400×14 | δ14 | Double oval | 20160 | 10824 | |
5 | Propane gas storage tanker | DT2600-50 | 50 m3 | 9912×2628×3215 DN2600×14 | δ14 | Double oval | 20160 | 10229 | |
6 | Propane gas storage tanker | DT3000-80 | 80 m3 | 11866×3032×3610 DN3000×16 | δ16 | Double oval | 32256 | 17900 | |
7 | Propane gas storage tanker | DT3200-100 | 100 m3 | 13010×3236×3716 DN3200×18 | δ18 | Double oval | 40320 | 21228 | |
8 | Liquid ammonium storage tanker | DT2000-20 | 20 m3 | 6806×2028×2611 DN2000×14 | δ14 | Double oval | 10188 | 5585 | |
9 | Liquid ammonium storage tanker | DT2200-32 | 32 m3 | 8914×2232×2810 DN2200×16 | δ16 | Double oval | 16301 | 8795 |
3
| | LPG STORAGE TANK SPECIFICATION | ||||||
| Capacity (CBM) | Diameter DN | Shell thickness (mm) | Head thickness (mm) | Kerb weight (kg) | Loading Weight (kg) | Overall dimension(mm) | |
| 5 | 1600 | 10 | 10 | 2030 | 1995 | 3070*1620*2210 | |
| 8 | 1600 | 10 | 10 | 2540 | 3192 | 4270*1620*2210 | |
| 10 | 1600 | 10 | 10 | 2950 | 3990 | 5260*1620*2210 | |
| 12 | 1800 | 10 | 12 | 3360 | 4788 | 5034*1820*2410 | |
| 15 | 1800 | 10 | 12 | 3920 | 5985 | 6224*1820*2410 | |
| 20 | 1800 | 10 | 12 | 4820 | 7980 | 8174*1820*2410 | |
| 25 | 2200 | 12 | 14 | 6020 | 9975 | 7008*2224*2814 | |
| 32 | 2400 | 14 | 14 | 7710 | 12768 | 7508*2428*3018 | |
| 50 | 2600 | 14 | 16 | 10910 | 19950 | 9912*2628*3218 | |
| 50 | 2700 | 14 | 16 | 10640 | 19950 | 9182*2728*3318 | |
| 80 | 3100 | 16 | 18 | 17000 | 31920 | 11166*3132*3722 | |
| 80 | 3200 | 18 | 18 | 18140 | 31920 | 10516*3236*3826 | |
| 100 | 3100 | 16 | 18 | 20410 | 39900 | 13866*3132*3722 | |
| 100 | 3200 | 18 | 18 | 21800 | 39900 | 13016*3236*3826 | |
| 120 | 3400 | 18 | 20 | 24960 | 47880 | 13820*3436*4026 | |
| Design pressure | 1.77MPa | ||||||
| Corrosion allowance( mm) | 1mm | ||||||
| Medium density (kg/m3) | 420kg/m3 | ||||||
| Material of tank and main pressure parts | Q345R | ||||||
| Carried standard | Pressure vessels,supervision regulation on safety technology for stationary pressure vessels | ||||||
| Safety valve of selection fitting | Safety valve, column magnetic reversible level meter,pressure gauge, thermometer,cut-off valve | ||||||

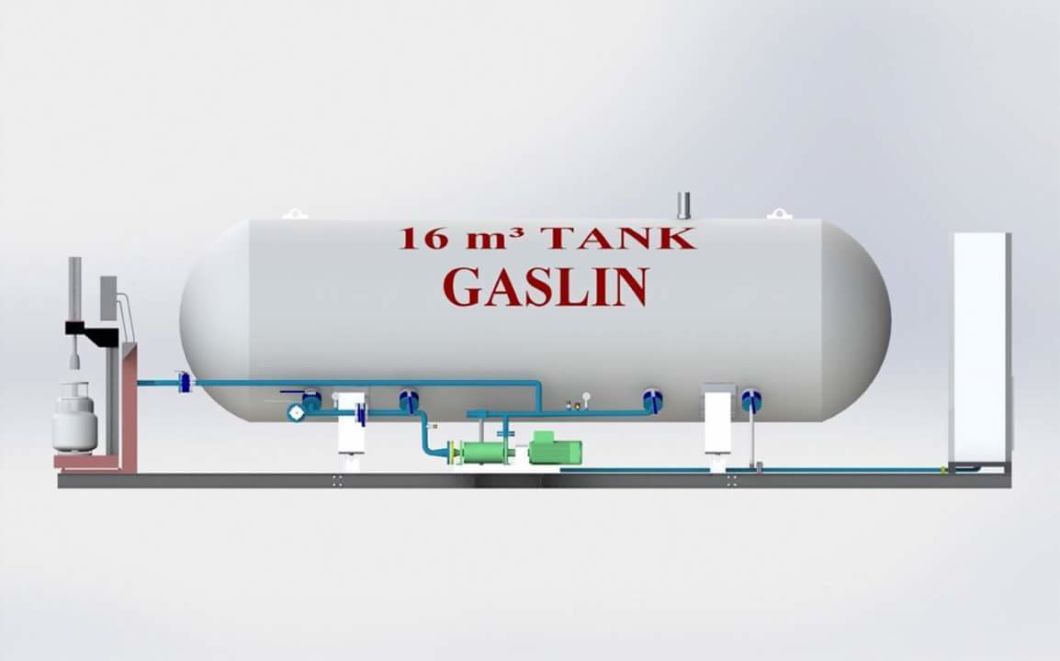

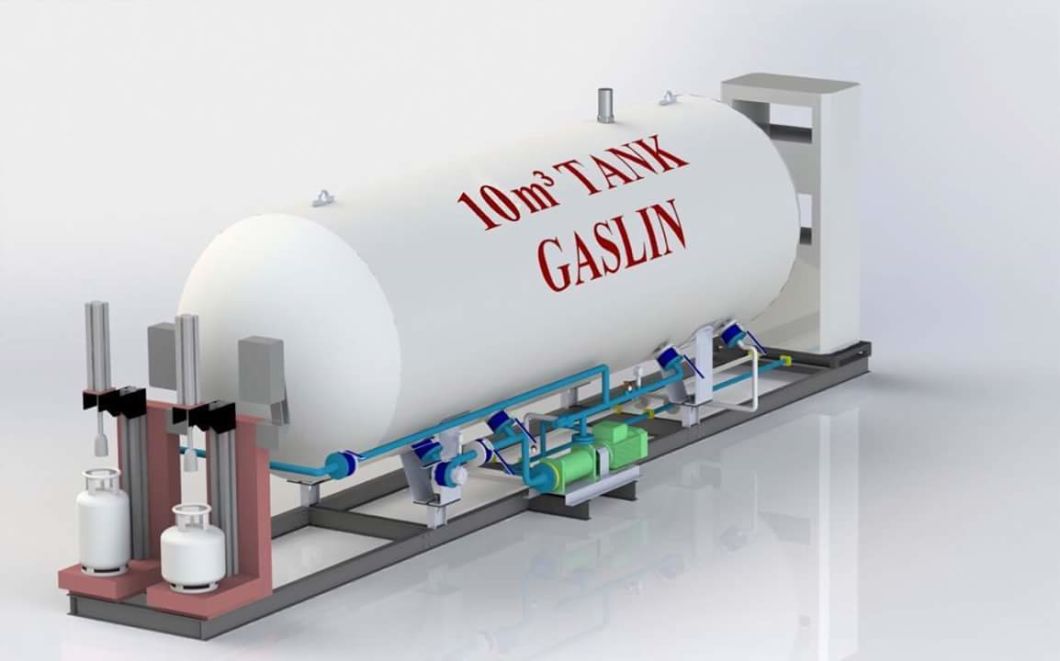

| Product Model | T-LPG-TK |
| Structural form | Integral type, separated type |
| Install Method | Above-ground, |
| System Approach OPTIONAL: | Double pump system, single pump system |
| Storage Tank Volume(M 3;) | 5, 6, 10,15,20, 30 , 40 , 50 , 60,80, 100 , 125 , 150 |
| Design pressure of storage tank | 1.77Mpa |
| Design pressure of pipe | 2.5Mpa |
| Opening pressure of safety valve | 1.75Mpa |
| Ambient Temperature | -40-55°C |
| Ambint Humidity | 10~95% |
| Dimension of skid-mounted body | Up to customer's requirement |
Horizontal Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE - Plastic 7042 (16mm - 20 mm ) storage tank
storage hydrochloride, hydrogen chlorate, sodium hydroxide,acrylic
acetic acid, glacial acetic acid, hydrogen peroxide
Propionic acid, ammonia,NH3·H2O
other tanks
Horizontal Oil Tank | Horizontal Oil Tank |
SS Double Oil Tank | |
SF Double Oil Tank | |
Industrial Condenser | U shape Condenser |
Tubular surface condenser | |
Reaction Tower | Pressure Reactor |
Pyrolysis Reactor |
Horizontal Fuel Storage Tank Cbm For Petroleum Oil,Gasoline, Petrol, Diesel Steel Q235 or Q345 .Q245.R20 thinckness 5.6.8mm - 10.12mm Custermizing 1-100CBM
Tri Axle 28Mt Liquid Petroleum Gas Lpg Tank Truck Semi Trailer For Sale
$35,900.00 - $37,500.00/Set(Min. Order)
Best Quality 60m3 Tri Axle Propane Tank Lpg Semi Trailer For Sale
$29,000.00 - $37,500.00/Set(Min. Order)
Lowest Price Q345R 30mt Bulk Propane Delivery Lpg Gas Tanker Trailer 60m3
$30,000.00 - $37,500.00/Set(Min. Order)
China New Tri Axle 50000 Liter Lpg Transport Tank Trailer Trucks 20 Ton
$32,000.00 - $33,600.00/Set(Min. Order)
China Mini 2.5 Metric Tonnes Howo Lpg Gas Distribution Tanker Truck 5000 Liter
$23,000.00 - $29,500.00/Set(Min. Order)
Sinotruk Howo Mini Mobile Truck Tankers Light Cargo Truck Box Truck For Liquefied Gas Mobile Gas Metan Refueling Trucks For Sale
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
New Liquid Ammonia Tank Container Mobile Gas Metan Refueling Lpg Road Tanker Bobtail Propane Mobile Dispenser Truck
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
New Liquid Methane Lpg Auto Gas 5 Mt Skid Gas Plant With Dispenser Pump Gas Refueling Nigeria Lpg Dispensing Trucks
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Sinotruk Howo 4x2 Nigeria Bulk Lpg Dispensing Bullet Tank 2.5 Ton 3 Ton 4 Ton 5 Ton Mini 5m3 Lpg Bobtail Truck For Refilling
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Sinotruk Howo 4x2 6m3 8m3 10m3 Flow Meter Lpg Gas Mini Transport Filling 5000 Litres Lpg Vehicle Fuel Tank
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
00:23
Famous 5-35cbm Dongfeng Kinland 220-375Hp 8x4 Propane Lpg Trucks For Sale
$25,000.00/Sets
00:23
Hot Sale 20 Cbm 30cbm 40cbm 50cbm Lpg Gas Tank Container Trailer 2 Axles 3 Axles Liquid Propane Gas Semi Trailer Made In China
$22,000.00/Sets
Sinotruk Howo 120hp 116hp Dimethyl Ether Tank Propane Gas Car Refilling Mobile Tanker Mobile Gas Filling Service Truck
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Factory 2.5 Mt Howo Small Liquid Propane Gas Transport Truck For Sale
$23,000.00 - $29,500.00/Set(Min. Order)
China New Lowest Price Dongfeng Small 5000 l Propane Truck Transport Lpg Tanker For Sale
$23,000.00 - $29,500.00/Set(Min. Order)
Chinese Cheapest 6x4 Dongfeng 12 Ton Bulk Cooking Gas Lpg Truck 25000 Liters With Good Quality
$35,000.00 - $41,000.00/Set(Min. Order)
Chinese Cheapest Left Hand Drive 8x4 Jiefang Bulk Lpg Cooking Gas Delivery Tanker Truck 18 Ton
$58,000.00 - $59,000.00/Set(Min. Order)
12Mt Brand New 10 Wheeler Faw 24000 Liters Bulk Propane Transport Tanker Truck For Sale
$39,000.00 - $59,000.00/Set(Min. Order)
20m3 Chinese Factory 10ton Portable Lpg Filling Station For Sale
$22,000.00 - $35,000.00/Set(Min. Order)
Q345R Portable 10mt Gas Lpg Cylinder Filling Plant For Sale
$20,000.00 - $35,000.00/Set(Min. Order)
2.5 Ton To 60 Tons Propane Tank Skid Mounted Lpg Filling Station With Scale
$23,000.00 - $35,000.00/Set(Min. Order)
Factory Lowest Price Brand New Portable 40 Cubic Meter Lpg Tank Skid Fpr Sale
$23,000.00 - $35,000.00/Set(Min. Order)
China Lowest Price 15mt Propane Lpg Gas Filling Machine
$23,600.00 - $35,000.00/Set(Min. Order)
5m3 To 120m3 Lpg Cooking Gas Cylinder Filling Station Sale
$23,000.00 - $35,000.00/Set(Min. Order)
Hot Selling 10 Metric Tonne Portable Mobile Lpg Station With Lpg Dispenser
$24,500.00 - $31,500.00/Set(Min. Order)
2017 New Top Quality 21 Metric Ton Propane Gas Filling Station With Cheapest Price
$23,000.00 - $35,000.00/Set(Min. Order)
China Cheapest Brand New 20m3 Lpg Refilling Station For Cooking Gas Cylinder
$22,000.00 - $35,000.00/Set(Min. Order)
Chinese Factory Brand New Small Mobile 5 Ton Lpg Skid Station With Gas Scale For Sale
$21,000.00 - $25,000.00/Set(Min. Order)
Lowest Price New Mini Gas Cylinder Filling Mobile Station 6tons
$22,000.00 - $23,000.00/Set(Min. Order)
Best Quality Portable 20000 Liter Lpg Filling Tank Skid For Sale
$24,500.00 - $31,500.00/Set(Min. Order)
Factory 30000 Liter Auto Lpg Gas Filling Skid Station With Dispenser
$23,600.00 - $35,000.00/Set(Min. Order)
Brand New 15ton Cooking Gas Cylinder Filling Lpg Skid With 2 Scales
$23,600.00 - $35,000.00/Set(Min. Order)
High Safe 5m3 To 120m3 Chinese Lpg Filling Stations For Sale
$22,000.00 - $23,000.00/Set(Min. Order)
Top Quality 50000 Liters Gas Cylinder Lpg Filling Plant Made In China
$23,000.00 - $35,000.00/Set(Min. Order)
Chinese Cheapest Price 25 Metric Ton 50m3 Propane Station For Sale
$26,000.00 - $35,000.00/Set(Min. Order)
Factory Lowest Price 20000 Liters 10 Ton Lpg Gas Refilling Plant For Sale
$22,000.00 - $35,000.00/Set(Min. Order)
Acid Storage Tank for Oil Fied Chemical Contain Hydrochloric Acid 120CBM Horizontal
Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%), H2SO4 etc
Horizontal / Vertical Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE Plastic 7042 (16mm - 25 mm ) storage tank
| water tank | stainless steel tank /water pump/ High pressure squirt gun |
|---|---|
| steel option | Q235/Q345/ 16 manganese steel/SS201/SS304 /SS316 alummin alloy tanker |
| acids tanker | steel lined plastic for water/alcohol/ethanol acid, alkaline and salt HCL, NaOH ,NaCIO Sodium Hypochlorite NaCIO /hydrofluoric acid HF/CAUSTIC SODA alummin nitric acid |
| oil/petrol,Fuel diesel/LPG/LNG | steel tank with oil pump/ gun fuel truck nozzle |
| asphalt/bitumen/crude oil tanker/ AN ammonium methana Alcohol | burner/steam heating and insulation system ,pump option |
Propane design pressure of 1.77 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.42 T/M3
Design of liquid ammonia pressure of 2.16 MPa design temperature 50 ºC corrosion allowance 2 mm density of 0.52 T/M3
Propane design pressure of 2.16 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.43 T/M3
Liquid sulfur dioxide design pressure of 0.98 MPa design temperature 50 ºC corrosion allowance 4 mm density of 1.2 T/M3
Gas pressure is 4.1 MPa design temperature 50 ºC corrosion allowance of 1.4 mm
Isobutane design pressure of 0.79 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.49 T/M3
Dimethyl ether design pressure of 1.15 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.58 T/M3
Detail Picture

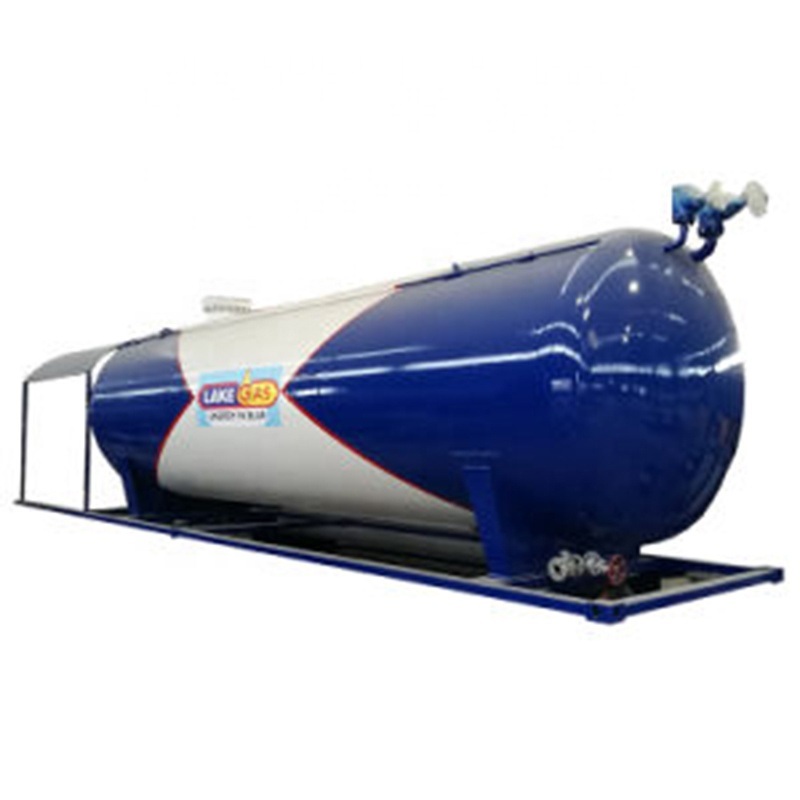

Nigerian Design 21ton Above Ground LPG Tank 50cbm LPG Skid Mounted Station LPG Mounted Tank Filling Station cooking gas tank station underground propane tank
| NO. | model | design pressure | Cylinder size (diameter * tube length * wall thickness mm) | Dimensions (outside diameter * total height / total length mm) | Material | Total net weight(kg) |
| 1 | 10m/10000L | 1.77MPa | 1600*4400*10 | 1620*2400*5300 | Q345R | 2800 |
| 2 | 15m/15000L | 1.77MPa | 1800*5250*12 | 1824*2600*6300 | Q345R | 4250 |
| 3 | 25m/25000L | 1.77MPa | 2200*5800*12 | 2224*3000*7100 | Q345R | 5850 |
| 4 | 30m/30000L | 1.77MPa | 2200*7100*12 | 2224*3000*8400 | Q345R | 6800 |
| 5 | 45m/45000L | 1.77MPa | 2600*7500*14 | 2628*3400*9000 | Q345R | 9770 |
| 6 | 50m/50000L | 1.77MPa | 2600*8500*14 | 2628*3400*10000 | Q345R | 10800 |
| P.S:We can produce according to your request, you need the model,To provide you with the best quality, best price, best service | ||||||
| Technical Specification | Parameter | |
| Tank | Tank name | LPG storage tank |
| Overall dimensions | 13024*3244*3830 mm | |
| Inner diameter | 3200mm | |
| Vessel type | on the ground | |
| Designing pressure | 1.91 Mpa | |
| Working pressure | 1.61 Mpa | |
| Designing temperature | -19~50 | |
| Filling medium | Liquid petroleum/propane gas | |
| Corrosion margin | 1.00 mm | |
| Curb weight | 49400kg | |
| Full capacity | 100m³ | |
| Heat treatment | Bulk | |
| Filling factor | 520 Kg/ m³ | |
| Tanker & pressure parts material | Q345R | |
| Hydraulic test pressure | 2.22 Mpa | |
| Gas tight test pressure | 1.91 Mpa | |
| Produce standard | ASME standard and GB150 standard | |
| Optional accessories | safety valve, SCL-UHZ (magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc. | |
| Liquid indicator | Model | UHZ-518C14 |
| Version | Magnetic | |
| Nominal pressure | 2.5 Mpa | |
| Scope of testing | 50~2500 mm | |
| precision | 2.5 | |
| Safety Valve | Model | A42F-2.5-80 |
| Version | Built-in | |
| Nominal pressure | 2.5 Mpa | |
| Nominal radius | DN80 | |
| Opening pressure | 1.68-1.76 Mpa | |
| Re-seating pressure | ≥0.8 Mpa opening pressure | |
| Handling System | Feed pipe | DN80 |
| Drain pipe | DN80 | |
| Admission port | DN50 | |
| Sewage outfall port | DN80 | |
| Vent nozzle port | DN80 | |
LPG pump: America Corken brand, Blackmer brand and China famous brand pump.
LPG explosive proof motors: ABB, SIEMENS, China famous local brand can be chosen from.
LPG filling machine: LPG dispenser for autogas; LPG eletrical filling scales for cylinders filling; LPG auto type filling scales for cylinder filling and other special requirement about the filling machine can be customized products.
LPG compressor can be Corken, Blackmer, China local brand and other famous brand.
LPG flow meter: LC brand, China copy brand and other famous brand.
LPG Accessory brand: REGO, FISHER, MEC, ROCHESTER and other standard or brand accessory and China local famous brand accessory can be available.
1) lpg storage tank capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.
2) lpg storage tank material
Q345R Q370R SA516
3) lpg storage tank production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
Technical Parameter for 30tons lpg storage tank
Item | Parameter | ||
Tank | Description of LPG tank | 60CBM LPG storage tank | |
Overall dimensions (mm) | 10962*2728*3318 | ||
Curb weight(kg) | 12750 | ||
Filling weight(kg) | 30000 | ||
Type of vessel | The third kind | ||
Design pressure | 1.77MPa | ||
Max working pressure | 1.61MPa | ||
Design temperature | -19~50ºC | ||
Filling medium | Liquid petroleum gas (propane) | ||
Corrosion allowance | 1.0mm | ||
Volume | 60 CBM | ||
Thermal treatment | The entirety | ||
Filling capacity | 420~450kg/CBM | ||
Material of the tank | Q345R | ||
Hydraulic test pressure | 2.22 M Pa | ||
Gas tight test pressure | 1.77 M Pa | ||
Cylinder thickness | 14mm | ||
Head thickness | 16mm | ||
Service life | 15 years | ||
Accessory for the LPG storage tank | |||
Liquid level indicator | Type | UNZ-518C14 | |
Version of the indicator | Magnetic type liquid level indicator | ||
Normal pressure | 2.5M Pa | ||
Scope of testing | 50-2300mm | ||
Precision | 2.5 | ||
Safety valve | Model | A42F-2.5-80 | |
Version | Built-in | ||
Normal pressure | 2.5 M Pa | ||
Normal diameter | DN80 | ||
Opening pressure | 1.68~1.76MPa | ||
Re-seating pressure | 0.8 times of the opening pressure | ||
Loading and unloading system | Normal diameter | Feed pipe | DN50 |
Drain pipe | DN50 | ||
Admission port | DN50 | ||
Sewage outfall port | DN50 | ||
Vent nozzle port | DN50 | ||
Standard | GB150 | ||
Safety fitting for selection | Safety valve, column magnetic liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. | ||
Specification | Designed Pressure: 1.66Mpa Filling Ratio: 0.42 kg/L Working Temperature:-50ºC Corrosion Allowance: 1mm | ||

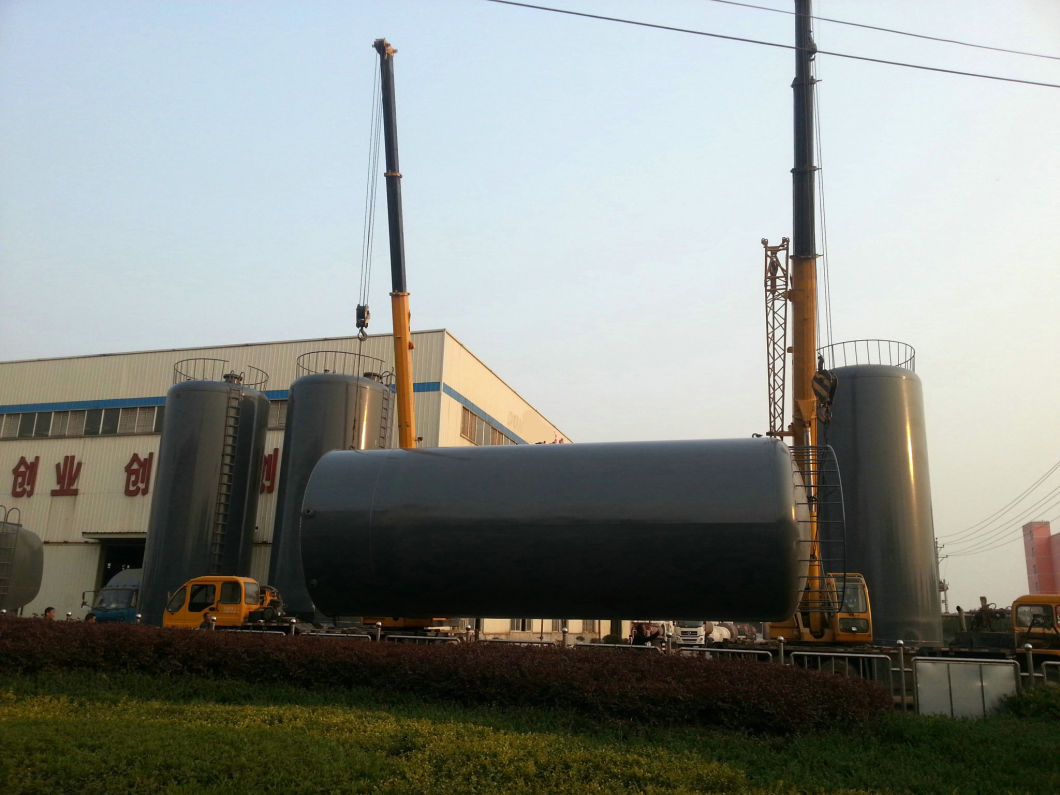

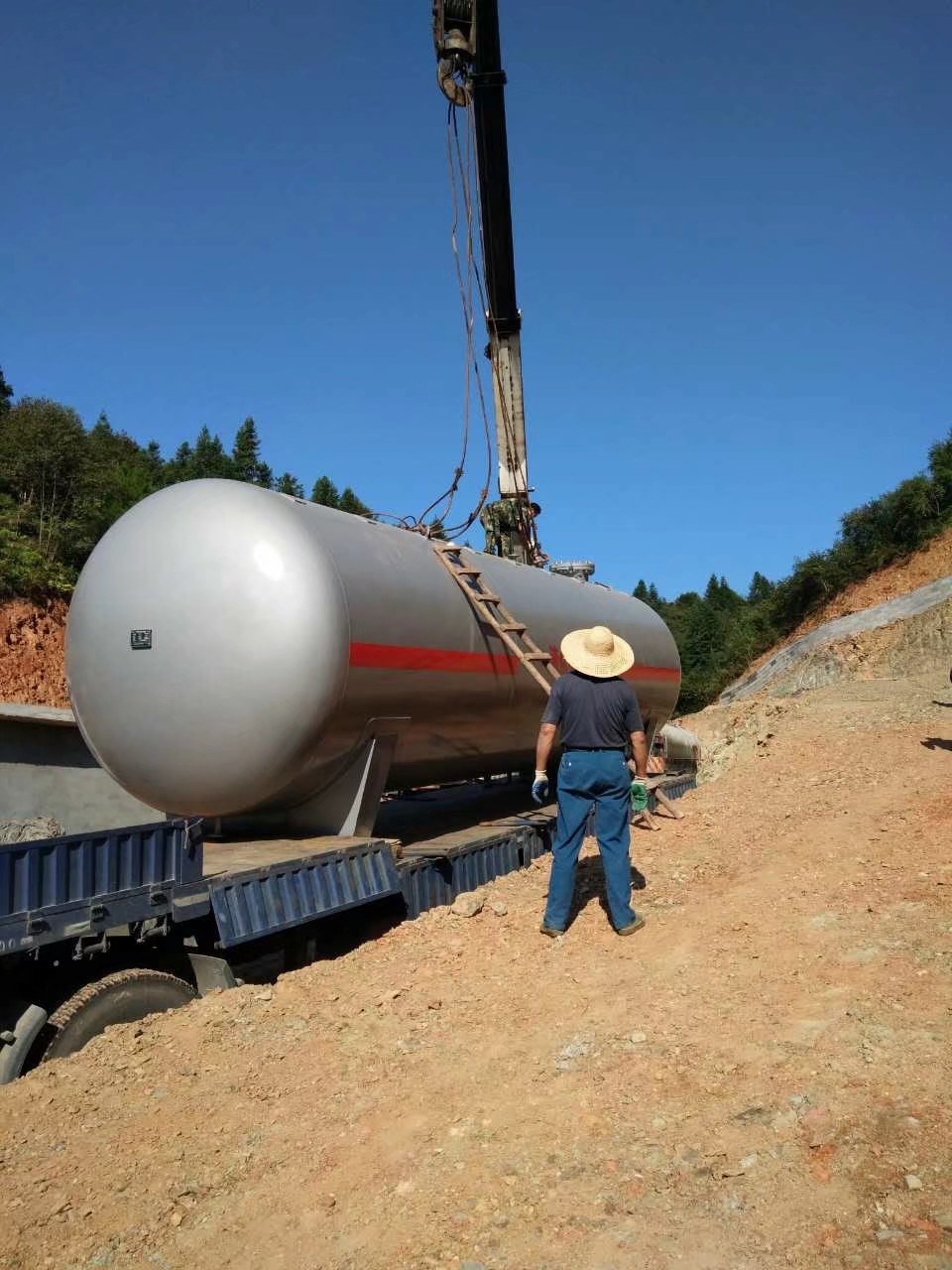

Detailed pics for 60cbm lpg gas storage tank ASME LPG storage tank
| Technical Specification | Parameter | |
| Tank | Tank name | LPG storage tank |
| Model | DT3100-100LAG | |
| Overall dimensions | 13024*3244*3830 mm | |
| Inner diameter | 3200mm | |
| Vessel type | on the ground | |
| Designing pressure | 1.91 Mpa | |
| Working pressure | 1.61 Mpa | |
| Designing temperature | -19~50 | |
| Filling medium | Liquid petroleum/propane gas | |
| Corrosion margin | 1.00 mm | |
| Curb weight | 49400kg | |
| Full capacity | 100m³ | |
| Heat treatment | Bulk | |
| Filling factor | 520 Kg/ m³ | |
| Tanker & pressure parts material | Q345R | |
| Hydraulic test pressure | 2.22 Mpa | |
| Gas tight test pressure | 1.91 Mpa | |
| Produce standard | ASME standard and GB150 standard | |
| Optional accessories | afety valve,SCL-UHZ(magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc. | |
| Liquid indicator | Model | UHZ-518C14 |
| Version | Magnetic | |
| Nominal pressure | 2.5 Mpa | |
| Scope of testing | 50~2500 mm | |
| precision | 2.5 | |
| Safety Valve | Model | A42F-2.5-80 |
| Version | Built-in | |
| Nominal pressure | 2.5 Mpa | |
| Nominal radius | DN80 | |
| Opening pressure | 1.68-1.76 Mpa | |
| Re-seating pressure | ≥0.8 Mpa opening pressure | |
| Handling System | Feed pipe | DN80 |
| Drain pipe | DN80 | |
| Admission port | DN50 | |
| Sewage outfall port | DN80 | |
| Vent nozzle port | DN80 | |
Tanker LPG gas tanker series list:
Storage tanker (Under ground Horizontal type)
S/N | Name | Model number | Volume | Tanker dimensions(L×W×H) | Thickness of raw material (MM) | Seal head type | Loading weight (KG) | Tanker weight(KG) | Others |
1 | lpg storage tank | DT1600-12 | 12 m3 | 6270×1620×2255 DN1600×10 | δ10 | Double oval | 4840 | 3298 | |
2 | lpg storage tank | DT2100-25 | 25 m3 | 7594×2124×2877 DN2100×12 | δ12 | Double oval | 10080 | 5688 | |
3 | lpg storage tank | DT2400-32 | 32 m3 | 7508×2428×3007 DN2400×14 | δ14 | Double oval | 12902 | 7460 | |
4 | lpg storage tank | DT2400-50 | 50 m3 | 11483×2428×3028 DN2400×14 | δ14 | Double oval | 20160 | 10824 | |
5 | Propane gas storage tanker | DT2600-50 | 50 m3 | 9912×2628×3215 DN2600×14 | δ14 | Double oval | 20160 | 10229 | |
6 | Propane gas storage tanker | DT3000-80 | 80 m3 | 11866×3032×3610 DN3000×16 | δ16 | Double oval | 32256 | 17900 | |
7 | Propane gas storage tanker | DT3200-100 | 100 m3 | 13010×3236×3716 DN3200×18 | δ18 | Double oval | 40320 | 21228 | |
8 | Liquid ammonium storage tanker | DT2000-20 | 20 m3 | 6806×2028×2611 DN2000×14 | δ14 | Double oval | 10188 | 5585 | |
9 | Liquid ammonium storage tanker | DT2200-32 | 32 m3 | 8914×2232×2810 DN2200×16 | δ16 | Double oval | 16301 | 8795 |
3
| | LPG STORAGE TANK SPECIFICATION | ||||||
| Capacity (CBM) | Diameter DN | Shell thickness (mm) | Head thickness (mm) | Kerb weight (kg) | Loading Weight (kg) | Overall dimension(mm) | |
| 5 | 1600 | 10 | 10 | 2030 | 1995 | 3070*1620*2210 | |
| 8 | 1600 | 10 | 10 | 2540 | 3192 | 4270*1620*2210 | |
| 10 | 1600 | 10 | 10 | 2950 | 3990 | 5260*1620*2210 | |
| 12 | 1800 | 10 | 12 | 3360 | 4788 | 5034*1820*2410 | |
| 15 | 1800 | 10 | 12 | 3920 | 5985 | 6224*1820*2410 | |
| 20 | 1800 | 10 | 12 | 4820 | 7980 | 8174*1820*2410 | |
| 25 | 2200 | 12 | 14 | 6020 | 9975 | 7008*2224*2814 | |
| 32 | 2400 | 14 | 14 | 7710 | 12768 | 7508*2428*3018 | |
| 50 | 2600 | 14 | 16 | 10910 | 19950 | 9912*2628*3218 | |
| 50 | 2700 | 14 | 16 | 10640 | 19950 | 9182*2728*3318 | |
| 80 | 3100 | 16 | 18 | 17000 | 31920 | 11166*3132*3722 | |
| 80 | 3200 | 18 | 18 | 18140 | 31920 | 10516*3236*3826 | |
| 100 | 3100 | 16 | 18 | 20410 | 39900 | 13866*3132*3722 | |
| 100 | 3200 | 18 | 18 | 21800 | 39900 | 13016*3236*3826 | |
| 120 | 3400 | 18 | 20 | 24960 | 47880 | 13820*3436*4026 | |
| Design pressure | 1.77MPa | ||||||
| Corrosion allowance( mm) | 1mm | ||||||
| Medium density (kg/m3) | 420kg/m3 | ||||||
| Material of tank and main pressure parts | Q345R | ||||||
| Carried standard | Pressure vessels,supervision regulation on safety technology for stationary pressure vessels | ||||||
| Safety valve of selection fitting | Safety valve, column magnetic reversible level meter,pressure gauge, thermometer,cut-off valve | ||||||
| Product Model | T-LPG-TK |
| Structural form | Integral type, separated type |
| Install Method | Above-ground, |
| System Approach OPTIONAL: | Double pump system, single pump system |
| Storage Tank Volume(M 3;) | 5, 6, 10,15,20, 30 , 40 , 50 , 60,80, 100 , 125 , 150 |
| Design pressure of storage tank | 1.77Mpa |
| Design pressure of pipe | 2.5Mpa |
| Opening pressure of safety valve | 1.75Mpa |
| Ambient Temperature | -40-55°C |
| Ambint Humidity | 10~95% |
| Dimension of skid-mounted body | Up to customer's requirement |
Horizontal Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE - Plastic 7042 (16mm - 20 mm ) storage tank
storage hydrochloride, hydrogen chlorate, sodium hydroxide,acrylic
acetic acid, glacial acetic acid, hydrogen peroxide
Propionic acid, ammonia,NH3·H2O
other tanks
Horizontal Oil Tank | Horizontal Oil Tank |
SS Double Oil Tank | |
SF Double Oil Tank | |
Industrial Condenser | U shape Condenser |
Tubular surface condenser | |
Reaction Tower | Pressure Reactor |
Pyrolysis Reactor |
Horizontal Fuel Storage Tank Cbm For Petroleum Oil,Gasoline, Petrol, Diesel Steel Q235 or Q345 .Q245.R20 thinckness 5.6.8mm - 10.12mm Custermizing 1-100CBM
Tri Axle 28Mt Liquid Petroleum Gas Lpg Tank Truck Semi Trailer For Sale
$35,900.00 - $37,500.00/Set(Min. Order)
Best Quality 60m3 Tri Axle Propane Tank Lpg Semi Trailer For Sale
$29,000.00 - $37,500.00/Set(Min. Order)
Lowest Price Q345R 30mt Bulk Propane Delivery Lpg Gas Tanker Trailer 60m3
$30,000.00 - $37,500.00/Set(Min. Order)
China New Tri Axle 50000 Liter Lpg Transport Tank Trailer Trucks 20 Ton
$32,000.00 - $33,600.00/Set(Min. Order)
China Mini 2.5 Metric Tonnes Howo Lpg Gas Distribution Tanker Truck 5000 Liter
$23,000.00 - $29,500.00/Set(Min. Order)
Sinotruk Howo Mini Mobile Truck Tankers Light Cargo Truck Box Truck For Liquefied Gas Mobile Gas Metan Refueling Trucks For Sale
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
New Liquid Ammonia Tank Container Mobile Gas Metan Refueling Lpg Road Tanker Bobtail Propane Mobile Dispenser Truck
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
New Liquid Methane Lpg Auto Gas 5 Mt Skid Gas Plant With Dispenser Pump Gas Refueling Nigeria Lpg Dispensing Trucks
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Sinotruk Howo 4x2 Nigeria Bulk Lpg Dispensing Bullet Tank 2.5 Ton 3 Ton 4 Ton 5 Ton Mini 5m3 Lpg Bobtail Truck For Refilling
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Sinotruk Howo 4x2 6m3 8m3 10m3 Flow Meter Lpg Gas Mini Transport Filling 5000 Litres Lpg Vehicle Fuel Tank
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
00:23
Famous 5-35cbm Dongfeng Kinland 220-375Hp 8x4 Propane Lpg Trucks For Sale
$25,000.00/Sets
00:23
Hot Sale 20 Cbm 30cbm 40cbm 50cbm Lpg Gas Tank Container Trailer 2 Axles 3 Axles Liquid Propane Gas Semi Trailer Made In China
$22,000.00/Sets
Sinotruk Howo 120hp 116hp Dimethyl Ether Tank Propane Gas Car Refilling Mobile Tanker Mobile Gas Filling Service Truck
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Factory 2.5 Mt Howo Small Liquid Propane Gas Transport Truck For Sale
$23,000.00 - $29,500.00/Set(Min. Order)
China New Lowest Price Dongfeng Small 5000 l Propane Truck Transport Lpg Tanker For Sale
$23,000.00 - $29,500.00/Set(Min. Order)
Chinese Cheapest 6x4 Dongfeng 12 Ton Bulk Cooking Gas Lpg Truck 25000 Liters With Good Quality
$35,000.00 - $41,000.00/Set(Min. Order)
Chinese Cheapest Left Hand Drive 8x4 Jiefang Bulk Lpg Cooking Gas Delivery Tanker Truck 18 Ton
$58,000.00 - $59,000.00/Set(Min. Order)
12Mt Brand New 10 Wheeler Faw 24000 Liters Bulk Propane Transport Tanker Truck For Sale
$39,000.00 - $59,000.00/Set(Min. Order)
20m3 Chinese Factory 10ton Portable Lpg Filling Station For Sale
$22,000.00 - $35,000.00/Set(Min. Order)
Q345R Portable 10mt Gas Lpg Cylinder Filling Plant For Sale
$20,000.00 - $35,000.00/Set(Min. Order)
2.5 Ton To 60 Tons Propane Tank Skid Mounted Lpg Filling Station With Scale
$23,000.00 - $35,000.00/Set(Min. Order)
Factory Lowest Price Brand New Portable 40 Cubic Meter Lpg Tank Skid Fpr Sale
$23,000.00 - $35,000.00/Set(Min. Order)
China Lowest Price 15mt Propane Lpg Gas Filling Machine
$23,600.00 - $35,000.00/Set(Min. Order)
5m3 To 120m3 Lpg Cooking Gas Cylinder Filling Station Sale
$23,000.00 - $35,000.00/Set(Min. Order)
Hot Selling 10 Metric Tonne Portable Mobile Lpg Station With Lpg Dispenser
$24,500.00 - $31,500.00/Set(Min. Order)
2017 New Top Quality 21 Metric Ton Propane Gas Filling Station With Cheapest Price
$23,000.00 - $35,000.00/Set(Min. Order)
China Cheapest Brand New 20m3 Lpg Refilling Station For Cooking Gas Cylinder
$22,000.00 - $35,000.00/Set(Min. Order)
Chinese Factory Brand New Small Mobile 5 Ton Lpg Skid Station With Gas Scale For Sale
$21,000.00 - $25,000.00/Set(Min. Order)
Lowest Price New Mini Gas Cylinder Filling Mobile Station 6tons
$22,000.00 - $23,000.00/Set(Min. Order)
Best Quality Portable 20000 Liter Lpg Filling Tank Skid For Sale
$24,500.00 - $31,500.00/Set(Min. Order)
Factory 30000 Liter Auto Lpg Gas Filling Skid Station With Dispenser
$23,600.00 - $35,000.00/Set(Min. Order)
Brand New 15ton Cooking Gas Cylinder Filling Lpg Skid With 2 Scales
$23,600.00 - $35,000.00/Set(Min. Order)
High Safe 5m3 To 120m3 Chinese Lpg Filling Stations For Sale
$22,000.00 - $23,000.00/Set(Min. Order)
Top Quality 50000 Liters Gas Cylinder Lpg Filling Plant Made In China
$23,000.00 - $35,000.00/Set(Min. Order)
Chinese Cheapest Price 25 Metric Ton 50m3 Propane Station For Sale
$26,000.00 - $35,000.00/Set(Min. Order)
Factory Lowest Price 20000 Liters 10 Ton Lpg Gas Refilling Plant For Sale
$22,000.00 - $35,000.00/Set(Min. Order)
Acid Storage Tank for Oil Fied Chemical Contain Hydrochloric Acid 120CBM Horizontal
Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%), H2SO4 etc
Horizontal / Vertical Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE Plastic 7042 (16mm - 25 mm ) storage tank
| water tank | stainless steel tank /water pump/ High pressure squirt gun |
|---|---|
| steel option | Q235/Q345/ 16 manganese steel/SS201/SS304 /SS316 alummin alloy tanker |
| acids tanker | steel lined plastic for water/alcohol/ethanol acid, alkaline and salt HCL, NaOH ,NaCIO Sodium Hypochlorite NaCIO /hydrofluoric acid HF/CAUSTIC SODA alummin nitric acid |
| oil/petrol,Fuel diesel/LPG/LNG | steel tank with oil pump/ gun fuel truck nozzle |
| asphalt/bitumen/crude oil tanker/ AN ammonium methana Alcohol | burner/steam heating and insulation system ,pump option |
