Quantity: | |
---|---|
. P4/ P5/ P6 led screen for choose, 1 side or 2 sides

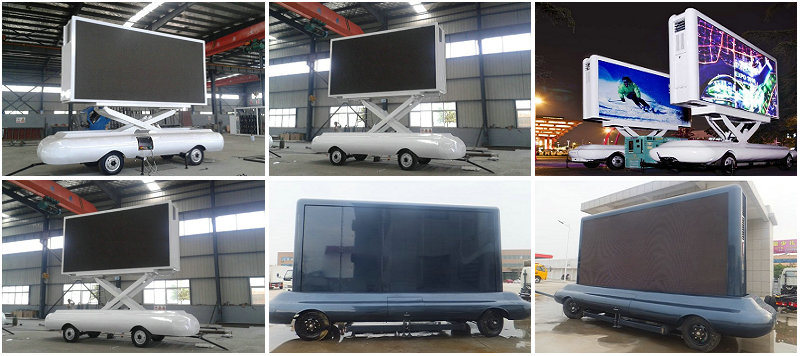

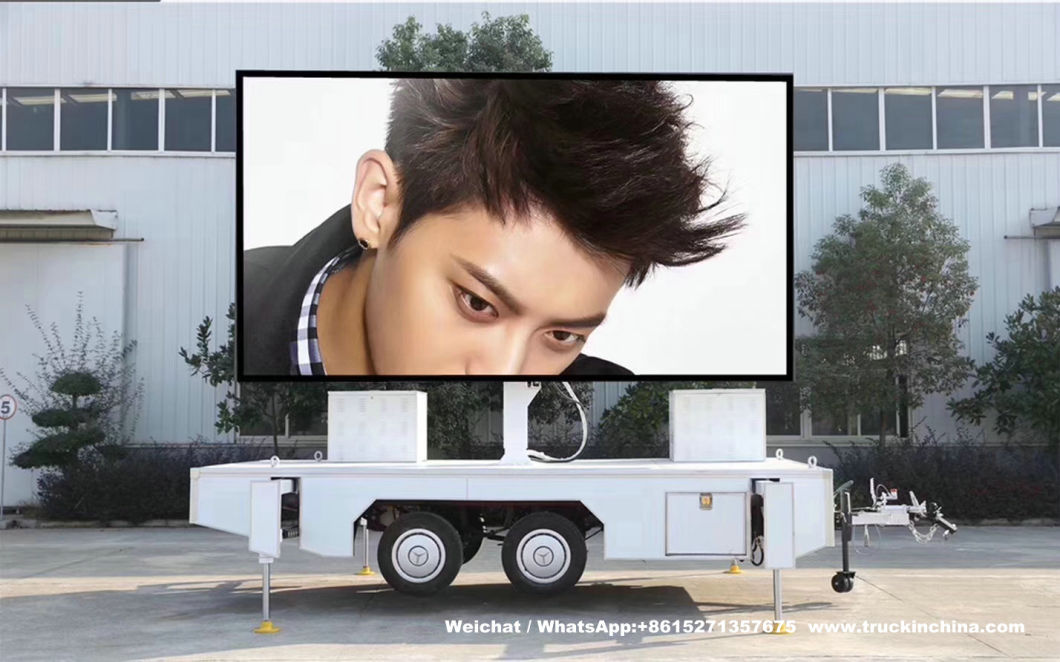

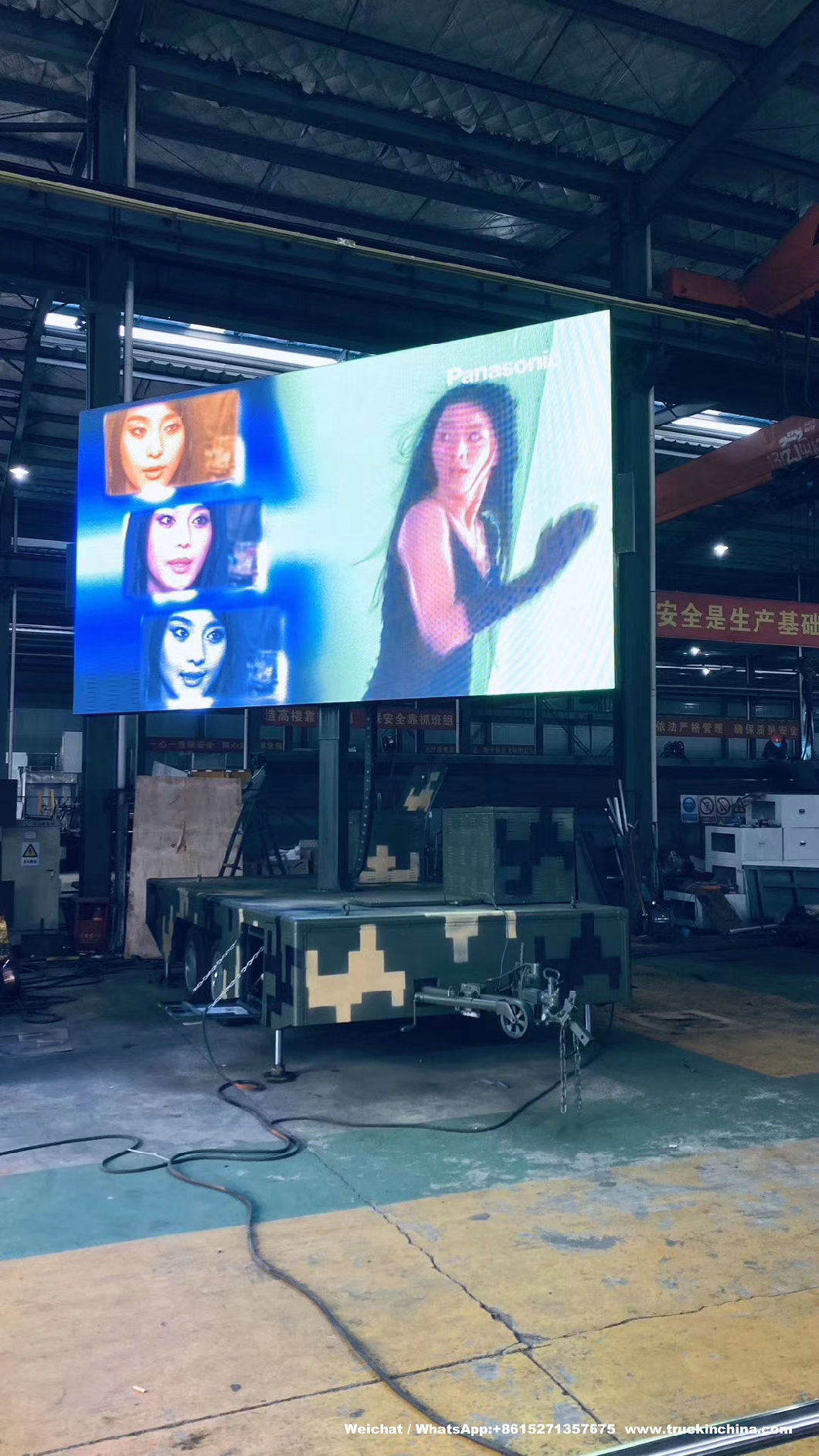

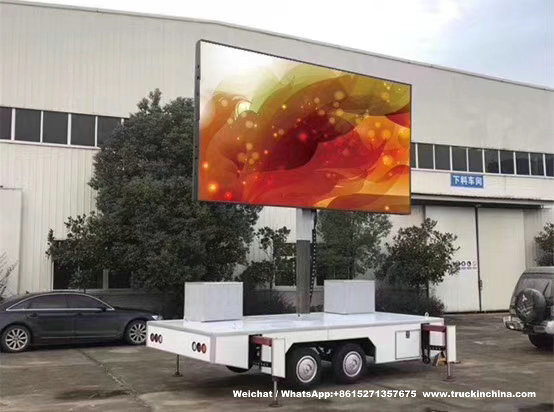

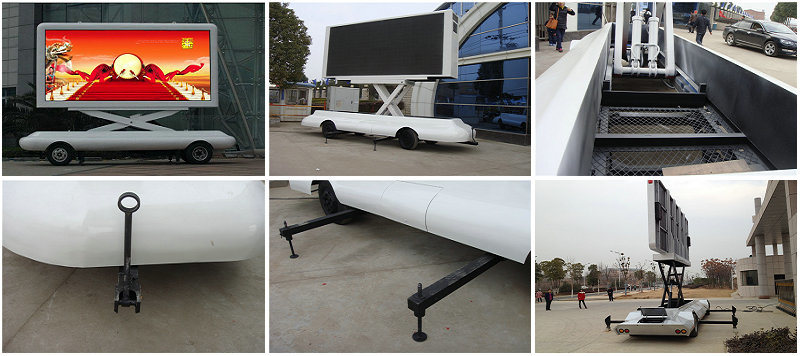

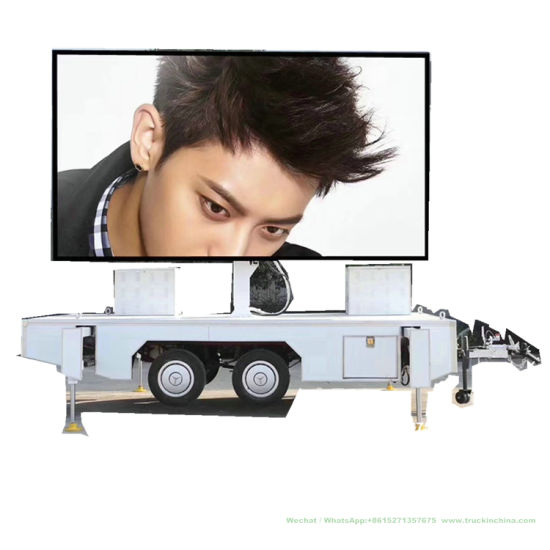

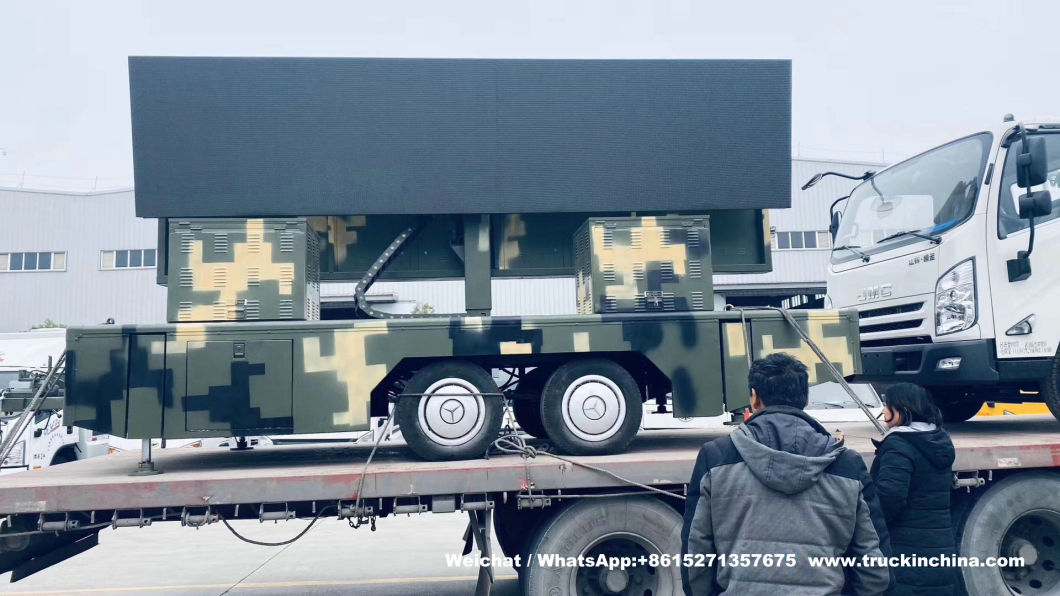

Mobile Outdoor Led Display Trailer
P6 TV Screen Trailer Outdoor LED Display
1. Traction type LED advertising vehicle (P5, P6, P8, P10 screen), full color, high brightness, stable performance, impact resistance; Stereo picture vivid and clear.
2. Light control system, based on the outdoor light brightness, adjust the mobile screen conveniently without disassembling and installation.
3. Screen dynamic and static combination, can complete the multi form, multi direction, multi information release.
4. With TV receiving card, can receive cable or radio set top box TV signal. Wide visual range, strong visual shock, obvious communication effect.
Specifications
Led screen | Products Name | Led screen Trailer |
Screen size | 3.74*2.186 /4.8*2.4m customized | |
Lap dip | red, blue, green full color | |
Pixel pitch | 8mm | |
Pixel density | 15625/sqm | |
Horizontal view angle | 110(+55/-55) | |
Vertical Angle of view | 50(+25-25) | |
Luminance (brightness ) | 6500 cd/sqm | |
Min visual range | 5 m | |
Drive mode | quarter scan | |
Refresh Rate | >3840 | |
Hue | 1.07billion | |
Malfunction dot rate | less than 1/10000 | |
Working life | >100000 h | |
Mean free error time | >100000h | |
Working temperature | "-25-+80 degree | |
Out of control point | <3/10000 | |
working humodoty | 10%-99% | |
Working voltage | 220V | |
Aera power consumption | 200w/sqm | |
Control system | Hydraulic leg | 4 |
Lifting | scissors forks are dyadic | |
Legs lifting weight | 5Tons | |
CPU | Intel low power dissipation 1.8G dual-core four | |
Ram | DDR3.2G | |
Storage | SSD32G solid |
Specifications of double-axle advertisement mobile led trailer:
Classification | Item | Parameter |
Vehicle | Product name | P6 Mobile Outdoor Led Display Trailer |
Overall size | 6700*2100*3500 mm | |
Curb weight | 5500 kg | |
Wheel | 4 | |
LED screen | Model number | P6 |
Screen size | 4800*2304 mm | |
Pixel pitch | 6 mm | |
Module size | 192*192 mm | |
Pixel Density | 27777 dot/m2 | |
Brightness | 7000 cd/m2 | |
Weight | 52 kg/m2 | |
Horizontal view angle | 110(+55/-55) degree | |
Vertical Angle of view | 50(+25-25) degree | |
Min visual range | 5 m | |
Working life | >100000 h | |
Working temperature | -20-+60 degree | |
Ambient Humidity | 10%-99% | |
Working voltage | 220 V | |
Control system | Hydraulic leg | 4 units |
Lifting system | Scissor hydraulic lift | |
Max lifting height | 1.5 m | |
Legs lifting weight | 5 Tons | |
Instruction | 1. Equipped with anti-emergency brake protection device. 2. The screen can be split into 2 parts, detachable. 3. With power control system, distributed around. 4. With one computer control computer, one power amplifier, two audio, four legs, can lift 1.5 meters height, one toolbox. | |
Options | 1. OUMA silent diesel generator; 2. Screen folding system; 3. Dedicated Gigabit LAN laptop. | |
Color &Painting | According to customer's requirements |
LED Truck Dimensions | wheelbase | LED Billboard Body Size | ||
5995×2030×2980 | 3300 | P8 :3840*1792=6.88m2 P6 : 3840*1728=6.65m2 Rear Screen :1280*1440=1.84m2 | ||
5995×2050×3100 | 3308 | |||
5595*2025*2995 | 3360 | |||
5995×2100×3050 | 3300 | |||
5995×2000×2900 | 3360 | |||
5995*2040*2990 | 3360 | |||
5595*2025*2995 | 3360 | |||
5990*1990*2950 | 3300 | |||
5995*2030*3050 | 3360 | |||
5995*2150*2900 | 3360 | |||
8760*2365*3675 | 4700 | P8:5376*2304=12.38m2 P6: 5376*2304=12.38m2 Rear Screen 1600*1600=2.56m2 | ||
7290*2330*3350 | 3800 | P8:4864*2048=10m2 P6: 4800*2112=10.13m2 Rear Screen 1600*1600=2.56m2 | ||
5250*1900*2750 | 2800 | P8:2560*1536=3.93m2 P6:2496*1536=3.83m2 Rear Screen 960*1280=1.64m2 | ||
5100*1710*2640 | 3070 | P8:2304*1536=3.54m2 P6:2496*1536=3.83m2 Rear Screen 960*1280=1.64m2 | ||
5000*1960*2590 | 2900 | |||
4650*1700*2400 | 2765 | P8:2304*1408=3.14m2 P6:2304*1345=3.1m2 | ||
Equipment configuration |
2> 5cm composite steel box, wooden floor; 3> Inside and outside the electric distribution box; 4> Loop ventilation cooling system; 5> Ouma silent diesel generator; 6>1 industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console. | |||
Color & painting | According to customer's requirements |
Applications | ||||||
Press release | news conferences, product launches, channel investment activities, press appearances , etc | |||||
Activities road show | promotions, public relations activities, product marketing, branding promotion, draft activities, live shows and other sales | |||||
Live | sporting events, live events, concerts, etc. | |||||
Parade display | product buildings parade promotion, exhibitions, fairs, shows, etc | |||||
Forum lecture | forums, conferences and seminars | |||||
Celebration &ceremony | real estate opening, anniversary celebration, the opening ceremony, festivals, ribbon-cutting ceremony, award ceremonies. | |||||
Election | promotion for election, policy promotion | |||||
Other applications | wedding live, auction, etc |
