Kingrun Tunnel Cleaning Vehicle Multi-Function Cleaning with High Pressure Washing System
| Quantity: | |
|---|---|
-
Shanghai, China
-
10000
-
T/T, Western Union
Tunnel Cleaning Vehicle with High Pressure Washing System
Tunnel Cleaning Vehicle with High Pressure Washing System Overview The tunnel cleaning machinesprays detergent solutions via high pressure on tunnel walls, subway walls and landmarks, and thenbrushes dirt away.
- Detergent tank volume: 500L-, SS304
- Size of tunnel brush: Ø 1000 Í L2000mm, PP
- Product model: DRZ5180
- Water tank volume: 5000L- 8000L , Q235 steel SS304
Dongfeng Multi-function Guardrail and Tunnel Washing Truck street cleaning truck

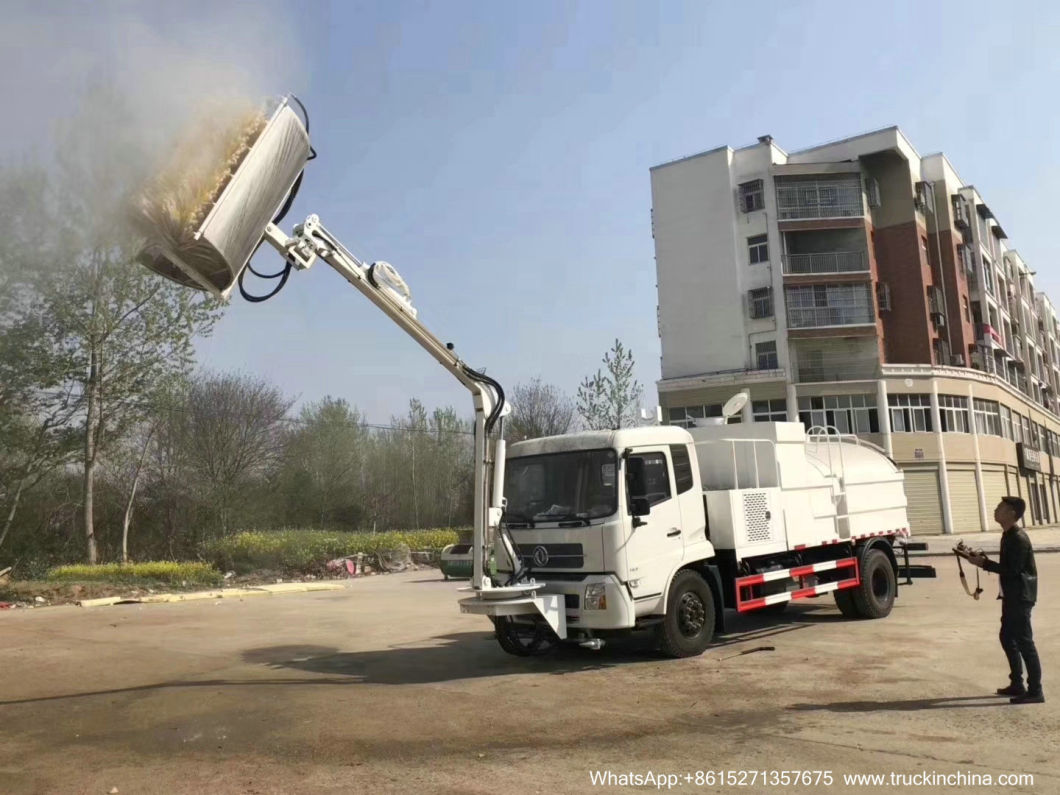

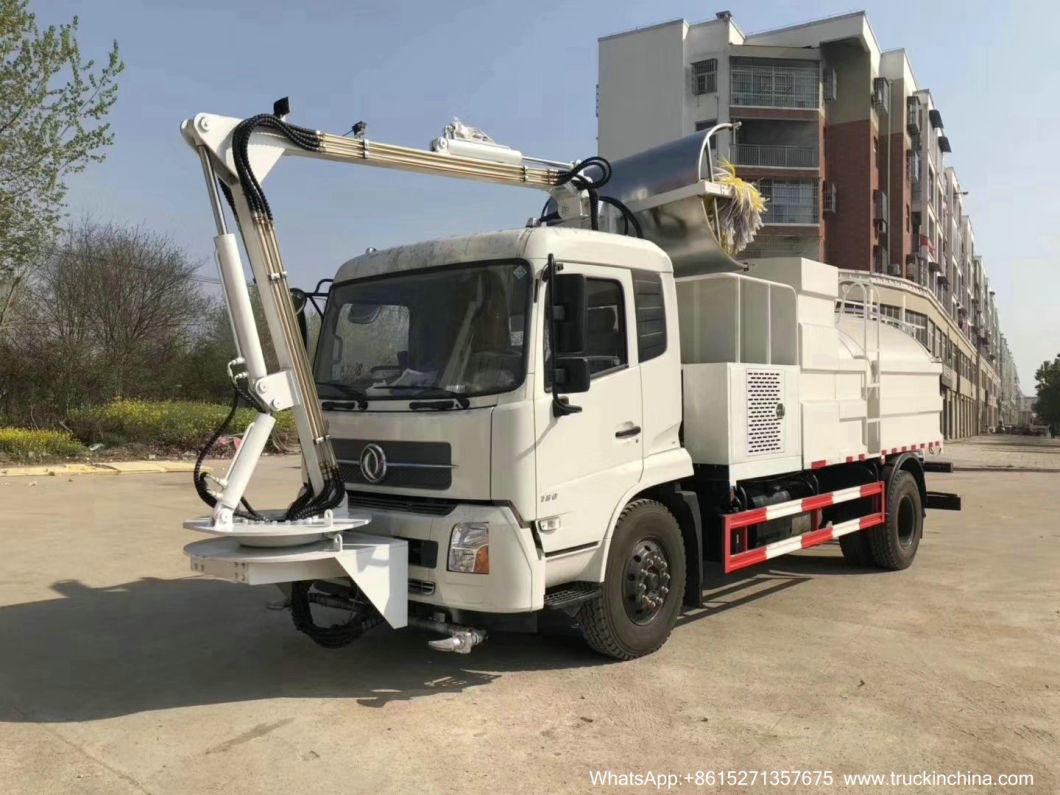

Tunnel Cleaning Vehicle with High Pressure Washing SystemThe cleaning brush, made of special composite materials, has a long service life.

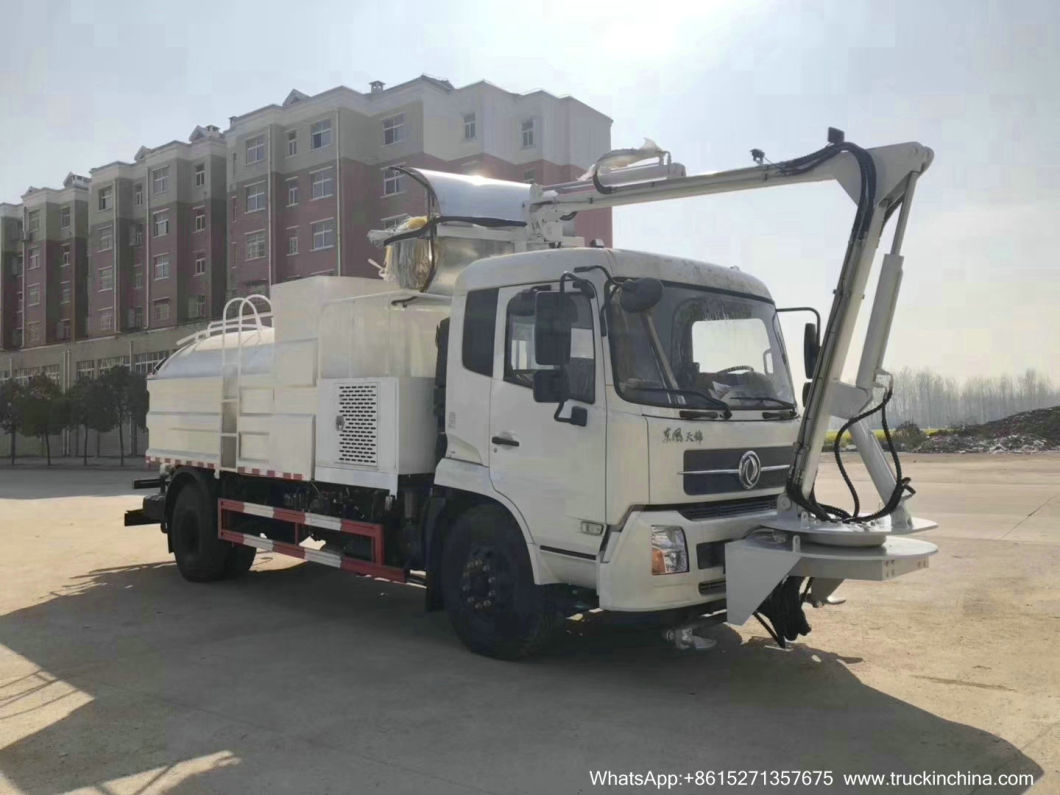

With a two-section foldable support boom, the tunnel cleaning equipment can clean a large working radius.

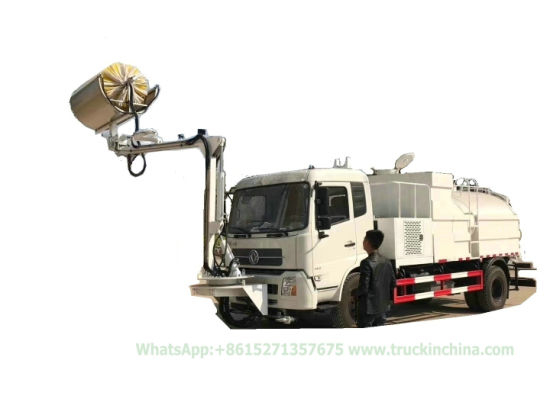

The drive unit drives the boom at 270 degree revolving angle, which makes it easy to move the brush and alternate working sites.
With an automatic barrier-avoiding device, the tunnel cleaning machine detects the wall and prevents the brush from colliding with it and being damaged.
The brush can revolve left and right as well as up down and can be locked in every 30 degrees.
Tunnel Cleaning Vehicles
High Pressure Tunnel Wall Cleaning Truck
Tunnel Cleaning Truck/Wall Cleaning Truck
wall cleaning vehicle is a special vehicle developed by our company for the cleaning of the tunnel wall surface, and has auxiliary functions such as washing and guardrails. It is especially suitable for cleaning of facades such as highway tunnels, river crossings and viaducts.

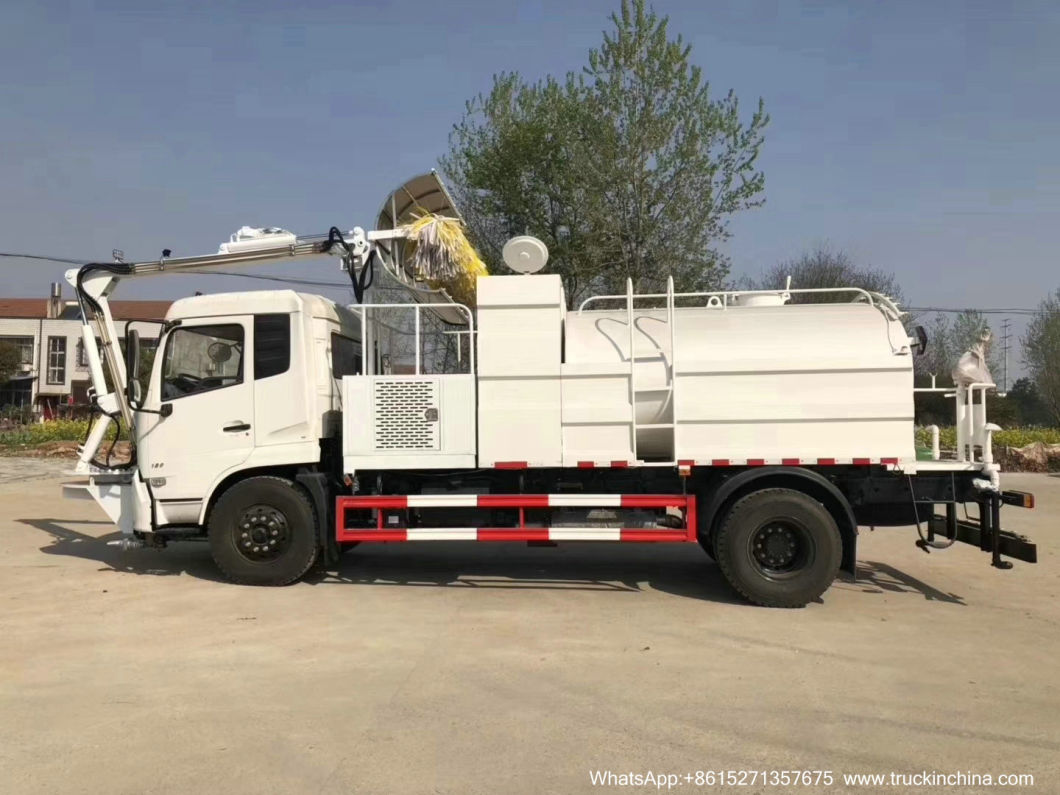

As shown in above picture, a typical wall cleaner truck includes a chassis, hydraulic System, Electrical System , Airway System , Sub frame, and Rotation Platform, Boom system , water supply system, water tank, guardrail and rear protection. ,and The device , the low-pressure water system , the control room, and the like are scrubbed.
Drive ModelLeft or right driven hand, 4x2Cabinextended cabin, with one sleeper, air conditionEngineEngine ModelB190 Typediesel engine, 4-stroke,6-cylinder in line, inter-cooling and turbo-charging, euro-2 emission standardPowerHP190DisplacementL5.9DimensionsOverall LxWxHmm10000x2500x2840 mmWheel Basemm4700Gearbox6 forwards and 1 reverses, manuallySteeringpower steeringCleaning Device9000 liters stainless steel made water tank
Cleaning efficiency: >90%,cleaning speed> 3 km/h
Max. cleaning height: 1100 mm, Min. cleaning height: 720 mm
Rotation speed: 180 rpm
Brush diameter (extended): 1050 mm, Brush width: 600 mm
Water flow: 42 liters/min, water spray pressure: 3-4 MPa

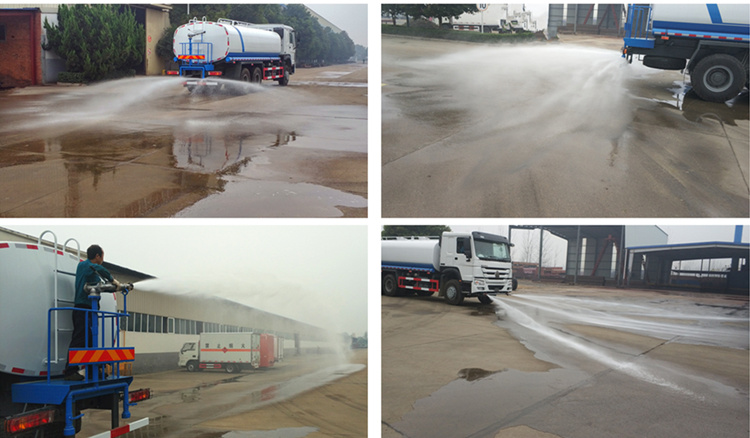

1. The Spray System Is Located In The Rear Part Of The Cleaning Vehicle, Consisting Of An Upper Spray Tube And a Lower Spray Tube. The Upper And Lower Spray Can Be Used Separately Or At The Same Time. Spray System Can Spray Dust And Regulate Air Humidity.
2. The Cleaning Width Of The Spray Rack Is 3-3.5m, Which Can Be Adjusted Arbitrarily. When The Expansion Spray Bar Shrinks, Double Water Flow Can Be Realized To Strengthen The Cleaning.
3. The Left And Right Telescopic Spray Bar Ends Are Equipped With Adjustable Width Indicator Lights, Which Can Be Raised During Operation And Lowered During Driving.
4. The Car Greatly Reduces The Labor Intensity Of The Staff, Is Convenient And Efficient, And Improves The Work Efficiency.
5. The Cleaning Arm Can Rotate 290 Degrees, Driving Plc Computer Integrated Control.
BrakesService brake: dual circuit compressed air brake
Parking brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brakeTyre9.00-20,9.00R20
| Model | DS-80 |
| Throw | 80m no wind |
| Volume Flow (Adjustable) | 105L-118L/min |
| Fog Droplet Size (Adjustable ) | 30-150um |
| Water Pressure (Mpa) | 2.5~3.5Mpa |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | 10° +45° |
| Coverage Area | 15000~17000m² without wind |
| Overall Dimensions (L*W*H) | L241*W153*H250(cm |
