King Run Truck Mounted Dust Suppression Unit 8

Views: 1648 Author: Dong Runze Special Vehicle Publish Time: 2017-09-18 Origin: Dong Runze Special Vehicle

Truck Mounted Dust Suppression Unit (With the Vehicle)

1. Dust Suppression Unit

2. Diesel Truck (6 Cylinder turbo charged / Inter cooled/ Direct injection)

3. Generator

4.. Water Storage Tank & Pump

Vehicle Mounted DS-80,DS-100,DS-120,DS-150 Dust Suppression Equipment

on bassis of Dongfeng Kingrun New Model chassis

180HP Cummins Engine.Euro 5 Euro 4 displacement

9.00R20 Radial Tire

Water Tank capacity: 8500Liters / 8.5Tons

Standard Air assisted sparyer spray range: 80-85m

Sprayer power: 45kw. Motor power: 120KW Disesel Engine.

optional: 20m, 30m, 50m, 60-70m, 80-85m, 100m sprayer.

Mini Order: 1 units

company type: manufactuer

original: Machin In China

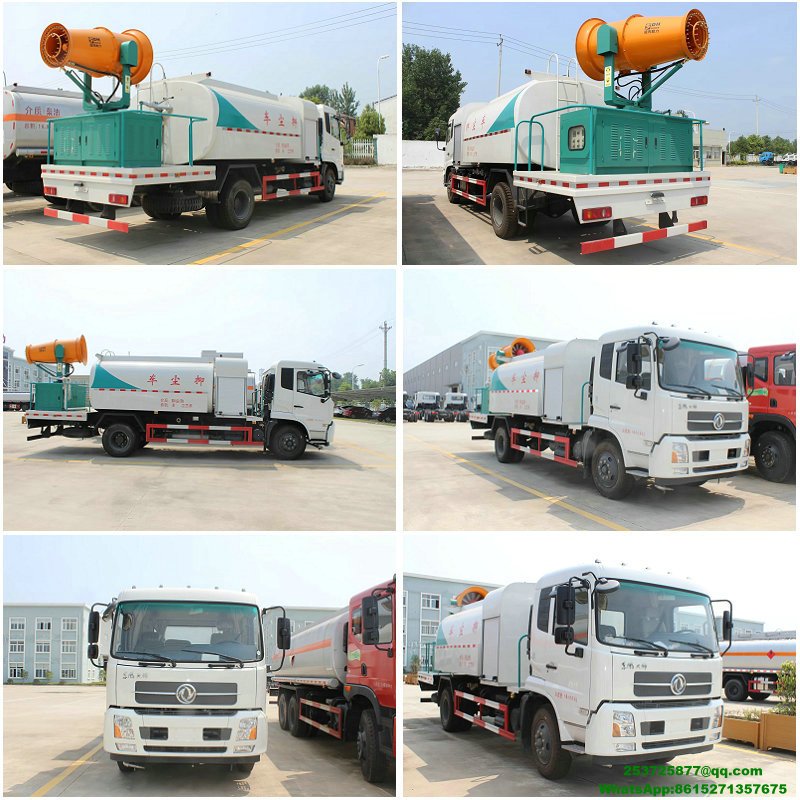

King Run water truck Mounted Dust Suppression_1.jpeg

outside dimension (L×W×H)mm		8800×2500×3460
Cargo body size (L×W×H)mm		56002294600
Kerb mass		5,900Kg
Chassis Model /Manufacturer		KingRun white color
driving type		4×2
Cabin		With one bed
Wheelbase		4700mm
Engine
model	ISB180 50
Type	Diesel, 6-cylinder in line with water cooling, turbo-charging &electrical control, Euro IV
Max. power/rotated speed	132(KW) /2500(rpm)
Max. torque	630（N.m） /1500(rpm)
Cylinder bore×Stroke(mm)	102×120
Displacement(ML)	5900CC
Company of engine	Dongfeng Cummins
Compression ratio	(17.3±0.5):1
Emission level	Euro 5
Gear box Dongfeng six Forwards ,one reverse.

Front axle	4.5T
Rear axle	9T
Tyre	9.00R20
air condition	With

Dust Suppression Unit, Truck Mounted Dust Suppression Unit ,Vehicle Mounted DS-150 Dust Suppression Equipment, Dust Suppression Unit Vehicle,Dust suppression Vehicle,Construction site Dust Suppression Truck,Water Tank Trucks

Large Sprayers for Controlling Dust

6000L-9000L fine water mist dust control truck with fog cannon

6000L-9000L fine water mist dust control truck ,Pesticide Truck with fog cannon for Pest, Weed, Termite Control, Landscape & fertilizer spray

dust control water sprayer

ISUZU dust control water truck dust suppresion truck

ISUZU dust control water truck 9000L fine water mist dust control truck ,Pesticide Truck with fog cannon for Pest, Weed, Termite Control, Landscape & fertilizer spray 50-120M

dust control and water transportation

New Model 45-55m pesticide spraying Trucks 8000Liters Water Tank Truck with fog cannon

New Model 45-55m pesticide spraying Trucks 8000Liters Water Tank Truck
fine water mist dust control truck ,Pesticide Truck with fog cannon for Pest, Weed, Termite Control, Landscape & fertilizer spray

15000L DONGFENG 10 wheels Muti-function Dust Control water Truck

15000L DONGFENG 10 wheels Muti-function Dust Control water Truck
Dust suppression truck ,Pesticide Truck with fog cannon for Pest, Weed, Termite Control, Landscape & fertilizer spray
Euro 5 standard 240HP

Hoizontal fine water Spraying range: more than 40m to 80m
